Three white 140mm fans with infinity mirror centres, daisy-chained together

Phanteks

Phanteks PH-F140M25_G2_DWT01_3P 3x 140mm case fan

SKU CH-W3EW-NJDJ3 MPN PH-F140M25_G2_DWT01_3P

Three white 140 mm hydraulic-bearing fans with daisy-chain Linq6 connectors, 1800 RPM maximum speed, 101.78 CFM airflow and addressable RGB lighting

  • Fan Counts3 Fans
  • Fan ControllerNo Controller
  • TypeCase Fan
  • Fan Size140mm

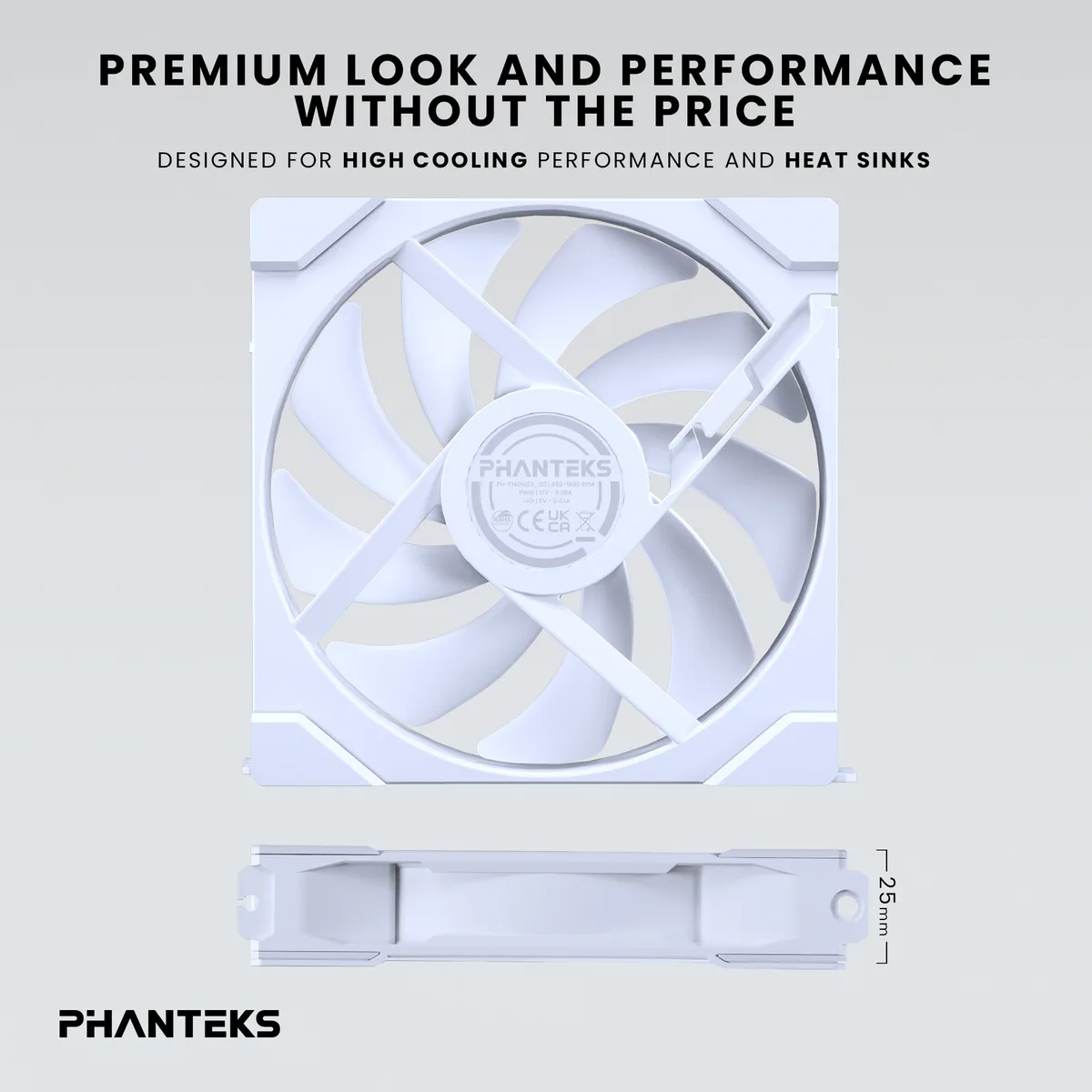

  • Fan Thickness25mm
  • Bearing TypeHydraulic

Fan Size 140mm

Style Regular

Model M25 Gen2

Option Triple Fans

  • Daisy-chain frame links three 140 mm fans with one cable
  • Linq6 connector merges PWM and D-RGB control into single wire
  • 78 CFM airflow at 1800 RPM cools radiators and heatsinks
  • Hydraulic bearing runs as quiet as 36.4 dBA at full speed

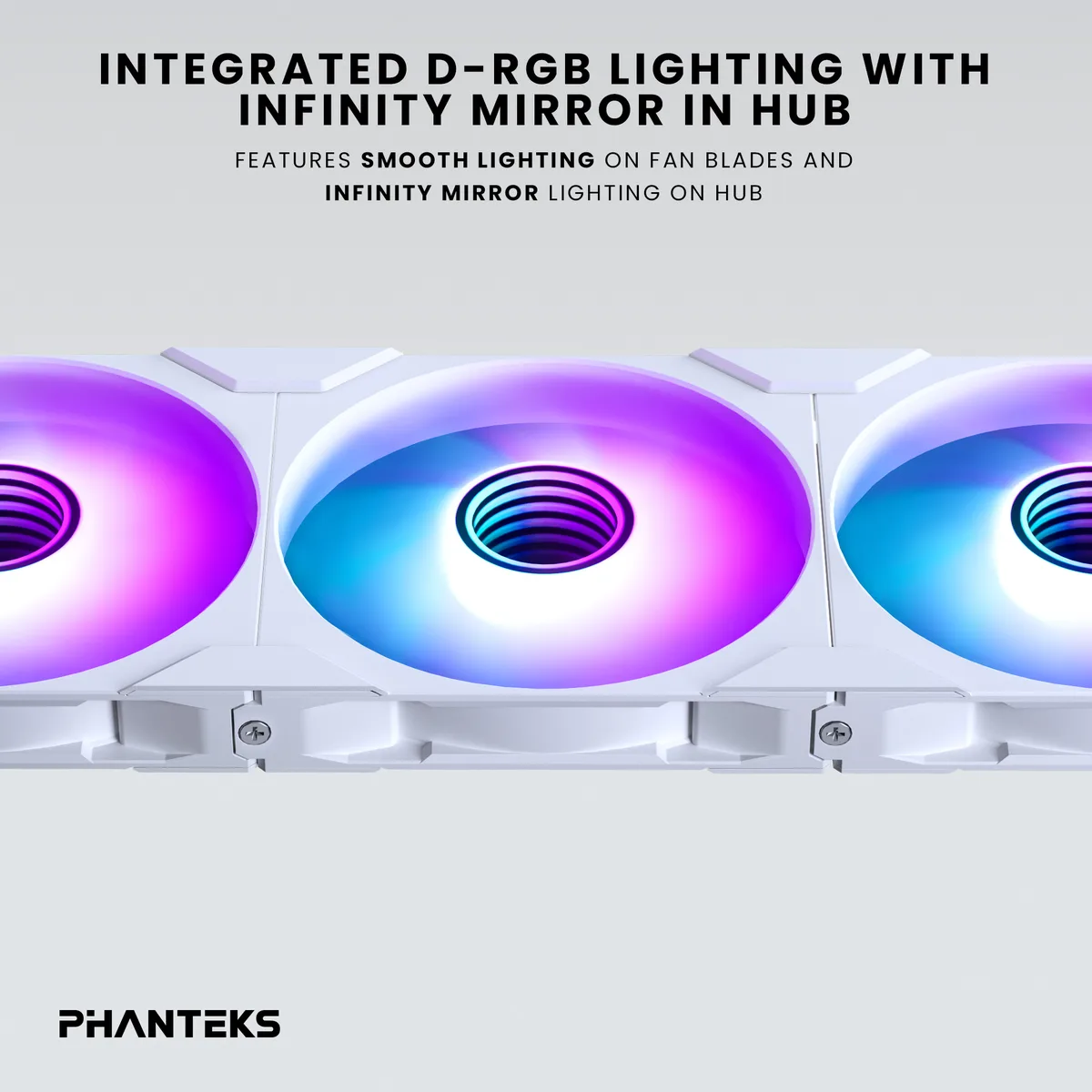

  • White matte blades plus infinity-mirror lighting with included screw covers

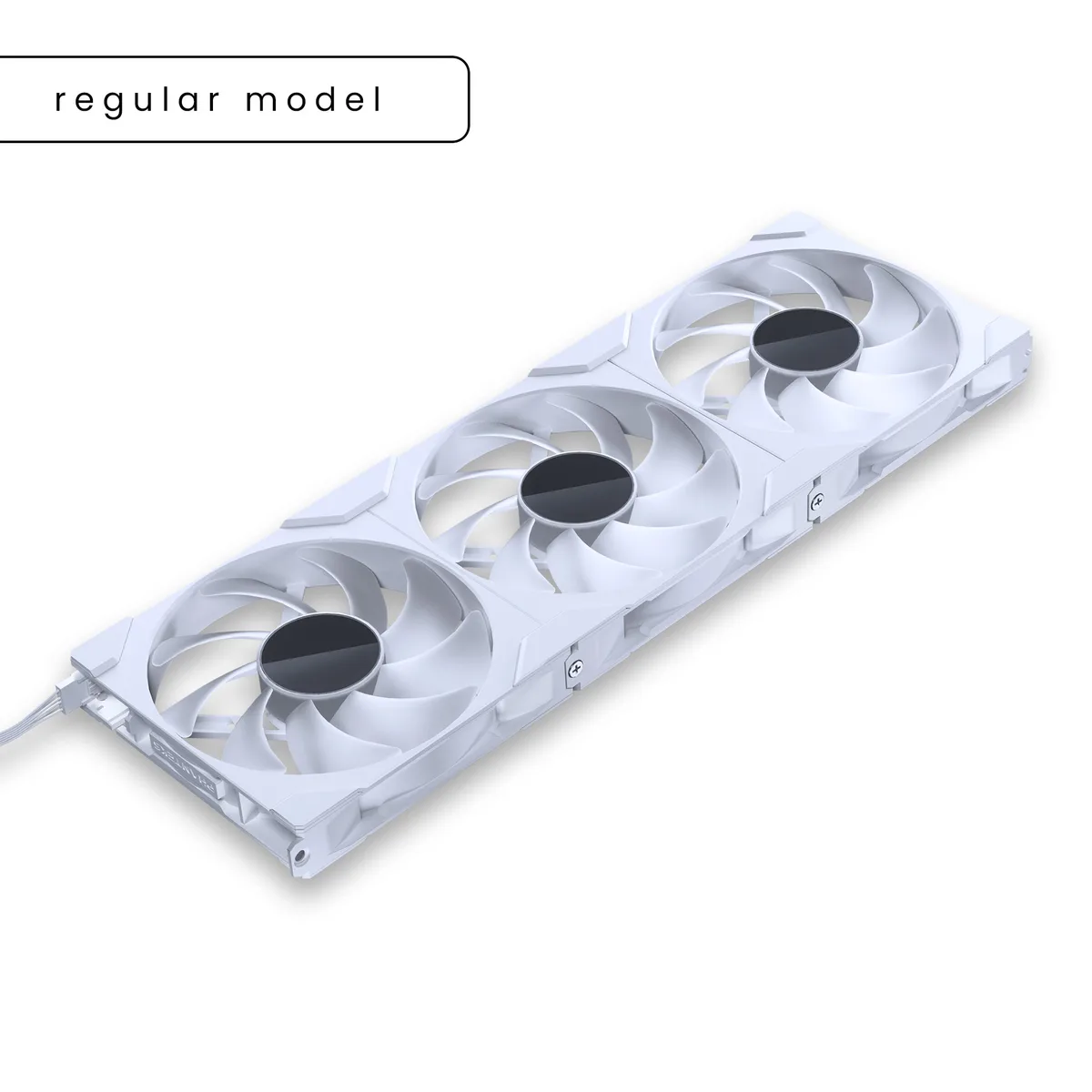

Triple-pack 140 mm fans

The Phanteks M25 Gen2 triple pack supplies three 140 mm hydraulic-bearing fans finished in white with addressable D-RGB lighting. Each unit runs from 350 to 1800 RPM, pushing up to 101.78 CFM at 2.23 mmH2O static pressure while peaking at 36.4 dBA. The Linq6 connector merges PWM control and lighting signals into a single daisy-chainable cable.

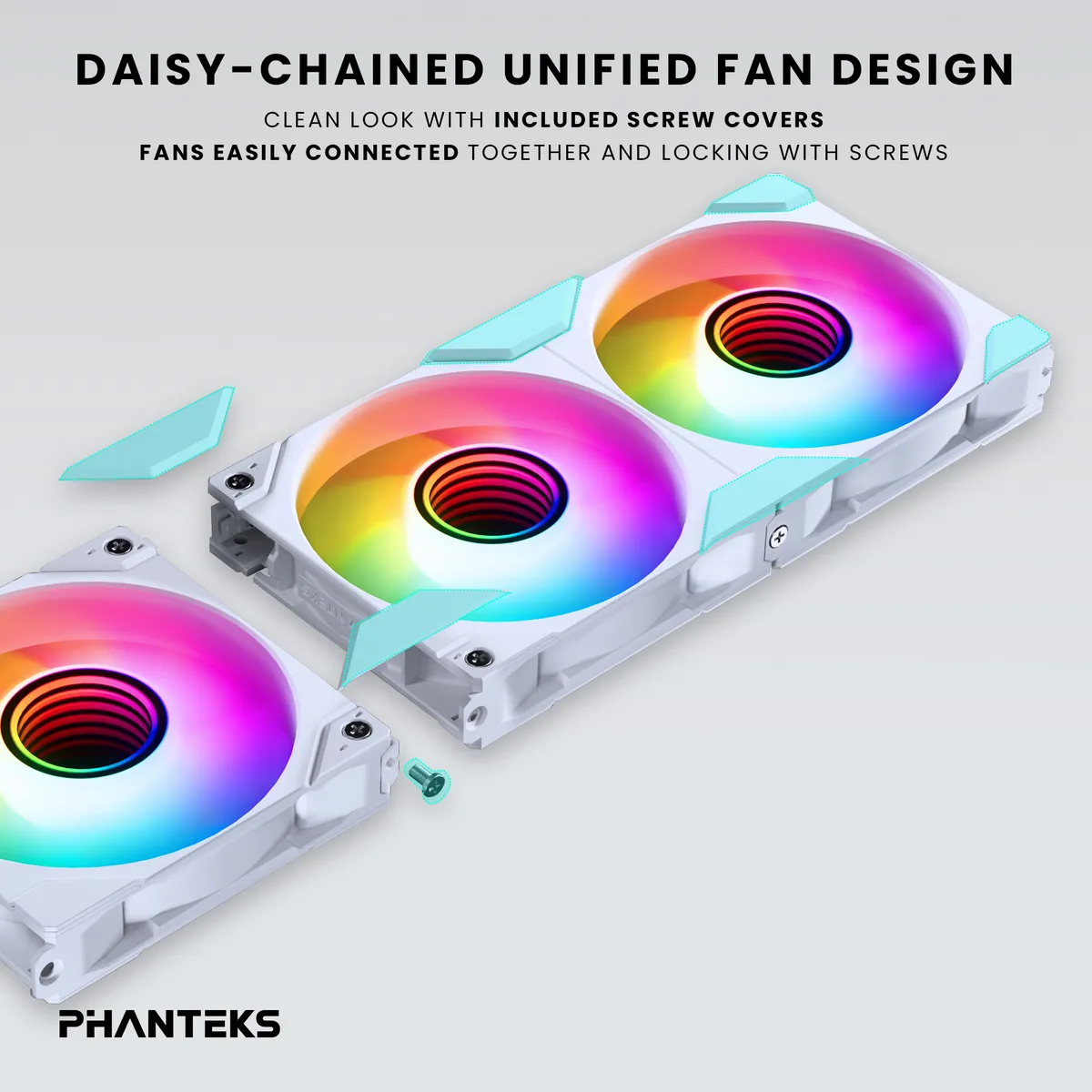

Daisy-chain build integration

The unified frame lets the three fans interlock side by side so only one Linq6 lead reaches the motherboard or a Phanteks NexLinq hub, freeing internal routing space. Two 500 mm extension cables and a motherboard adapter are included for flexible placement on radiators, heatsinks or case mounts. Fourteen mounting screws plus corner and bridge covers complete the hardware kit.

Builders wanting tidy ARGB cooling

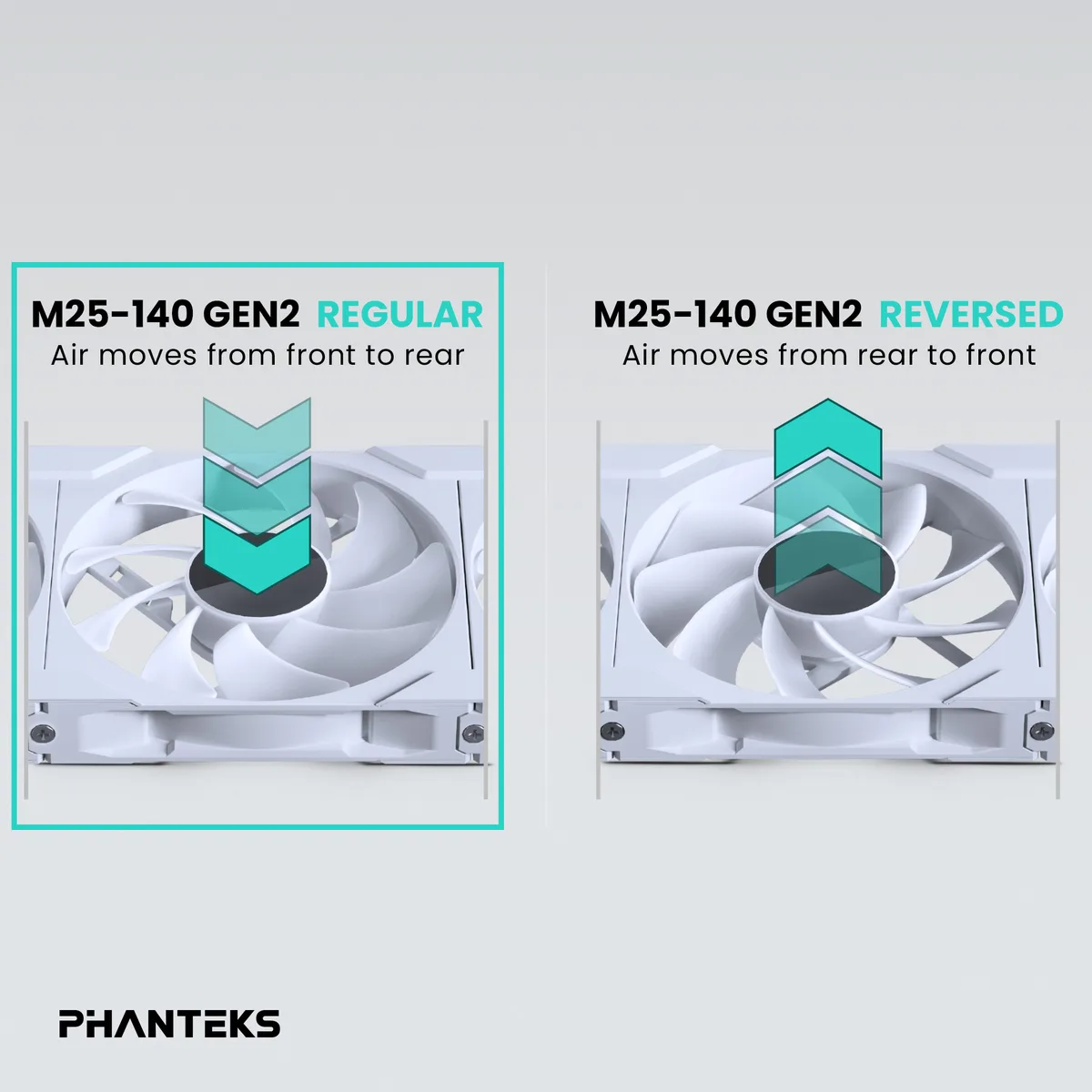

This kit suits builders who want high-static-pressure airflow and synchronized lighting without cable clutter. It is not for systems that lack a 4-pin PWM header or a 5 V addressable RGB header, nor for users who prefer to control each fan independently without a hub. Reverse-airflow variants are sold separately.

Highlights

  • Daisy-chain frame links three 140 mm fans with one cable
  • Linq6 connector merges PWM and D-RGB control into single wire
  • 78 CFM airflow at 1800 RPM cools radiators and heatsinks
  • Hydraulic bearing runs as quiet as 36.4 dBA at full speed
  • White matte blades plus infinity-mirror lighting with included screw covers

Specifications

BrandPhanteks
ModelM25-140 Gen2 Regular
Part NumberPH-F140M25_G2_DWT01_3P
Fan Counts3 Fans
Fan ControllerNo Controller
TypeCase Fan
Fan Size140mm
Fan Thickness25mm
Bearing TypeHydraulic
RPM350-1800 +/- 10% RPM Max
Air Flow101.78 CFM Max
Air Pressure2.23 mmH2O Max
Noise Level36.4 dBA Max
Power ConnectorPWM, 2-Fase/4-poles
ColorWhite Matte Blade / White Fan Frame
LEDDRGB
Dimensions140 x 140 x 25 mm
Package ContentsM25-140 Gen2 Fan: 3x
Fan Screws: 14x
500mm Linq6 Extension Cable: 2x
500mm Linq6 M/B Adapter cable: 1x
Screw Cover Corner: 8x (4xL, 4xR)
Screw Cover Bridge: 4x
Installation Guide: 1x
Shipping weight0.93 kg
Package size470 × 171 × 64 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will three 140 mm fans running at 1800 RPM exceed my case's clearance or mounting points?

Each fan is 140 mm square and 25 mm thick with standard 140 mm mounting holes, so they fit any case designed for 140 mm fans; the 14 included screws secure all three units.

How loud are these fans when they run continuously at the maximum 36.4 dBA rating?

At full 1800 RPM the trio reaches 36.4 dBA, which is a noticeable but moderate hum; lower PWM speeds down to 350 RPM drop noise significantly for all-day use.

My motherboard has only one 4-pin PWM header — can I still control all three fans and their DRGB lighting?

Yes, the Linq6 daisy-chain cables and included 500 mm motherboard adapter let you run all three fans and DRGB from a single 4-pin PWM header.
