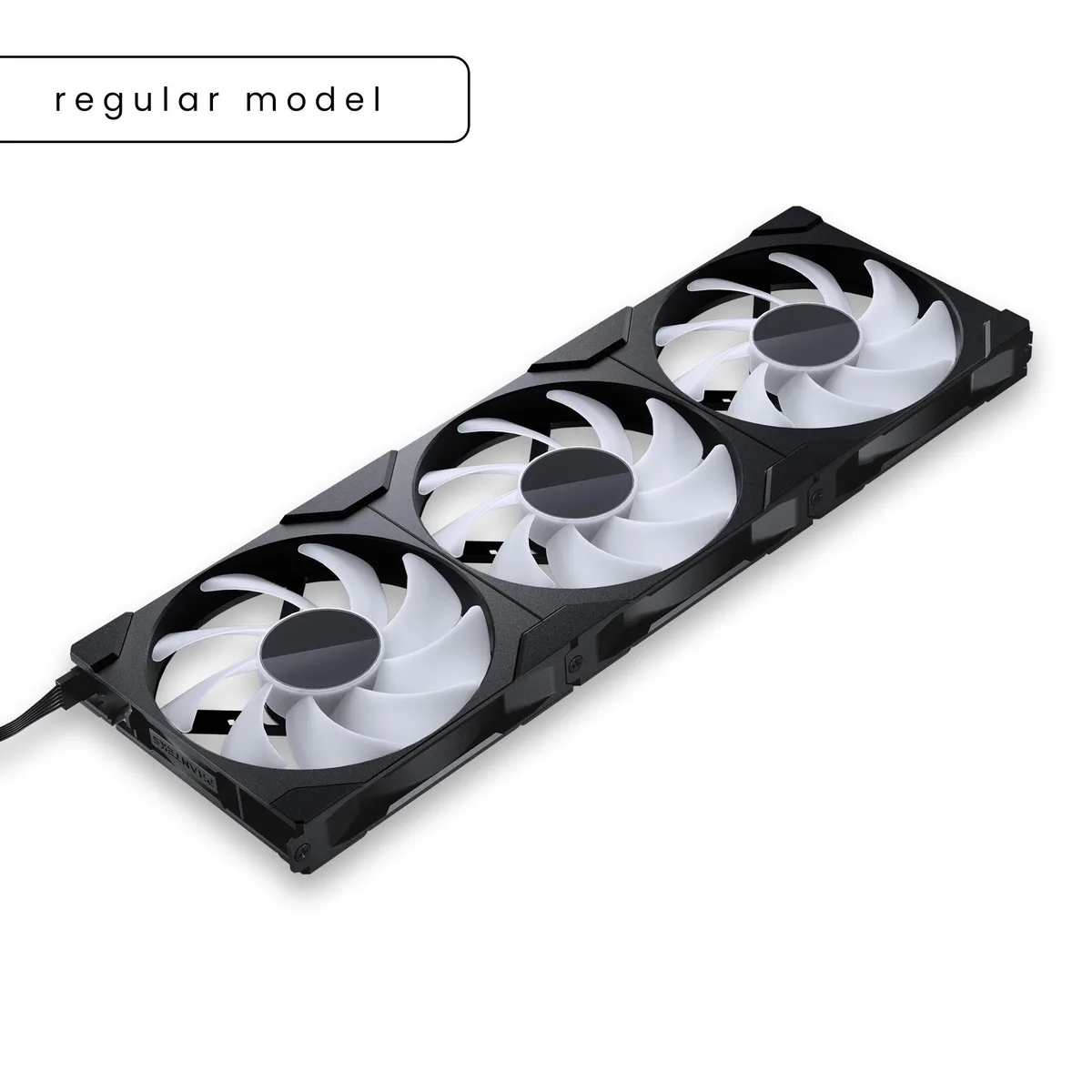

Three 140mm black frame fans with white matte blades and infinity mirror ARGB centre, daisy-chain Linq6 cables and screw covers shown

Phanteks

Phanteks PH-F140M25_G2_DBK01_3P 140mm case fan triple pack

SKU CH-YA6C-Y0SAK MPN PH-F140M25_G2_DBK01_3P

Three 140 mm hydraulic-bearing fans deliver up to 101.78 CFM and 2.23 mmH₂O static pressure at 1800 RPM with daisy-chain Linq6 cabling and integrated D-RGB infinity-mirror lighting

  • Fan Counts3 Fans
  • Fan ControllerNo Controller
  • TypeCase Fan
  • Fan Size140mm
  • Fan Thickness25mm
  • Bearing TypeHydraulic

Fan Size 140mm

Style Regular

Model M25 Gen2

Option Triple Fans

  • Clean daisy-chain build with unified frame locking fans together
  • Single Linq6 cable handles both PWM control and D-RGB lighting
  • High static pressure of 2.23 mmH₂O pushes air through radiators
  • 78 CFM maximum airflow at 1800 RPM for strong cooling
  • Hydraulic bearing runs up to 36.4 dBA for quiet operation

Three-pack 140 mm ARGB fans

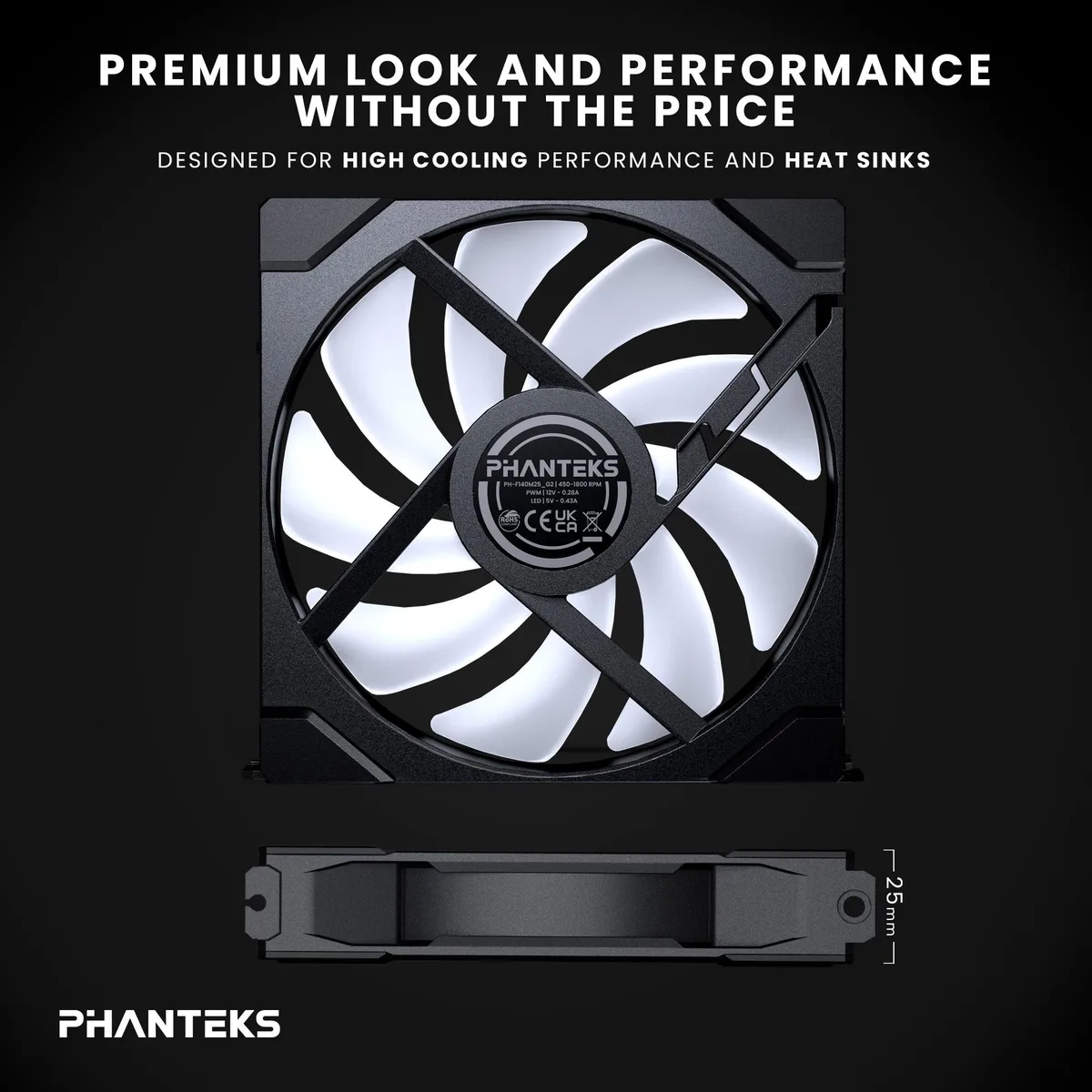

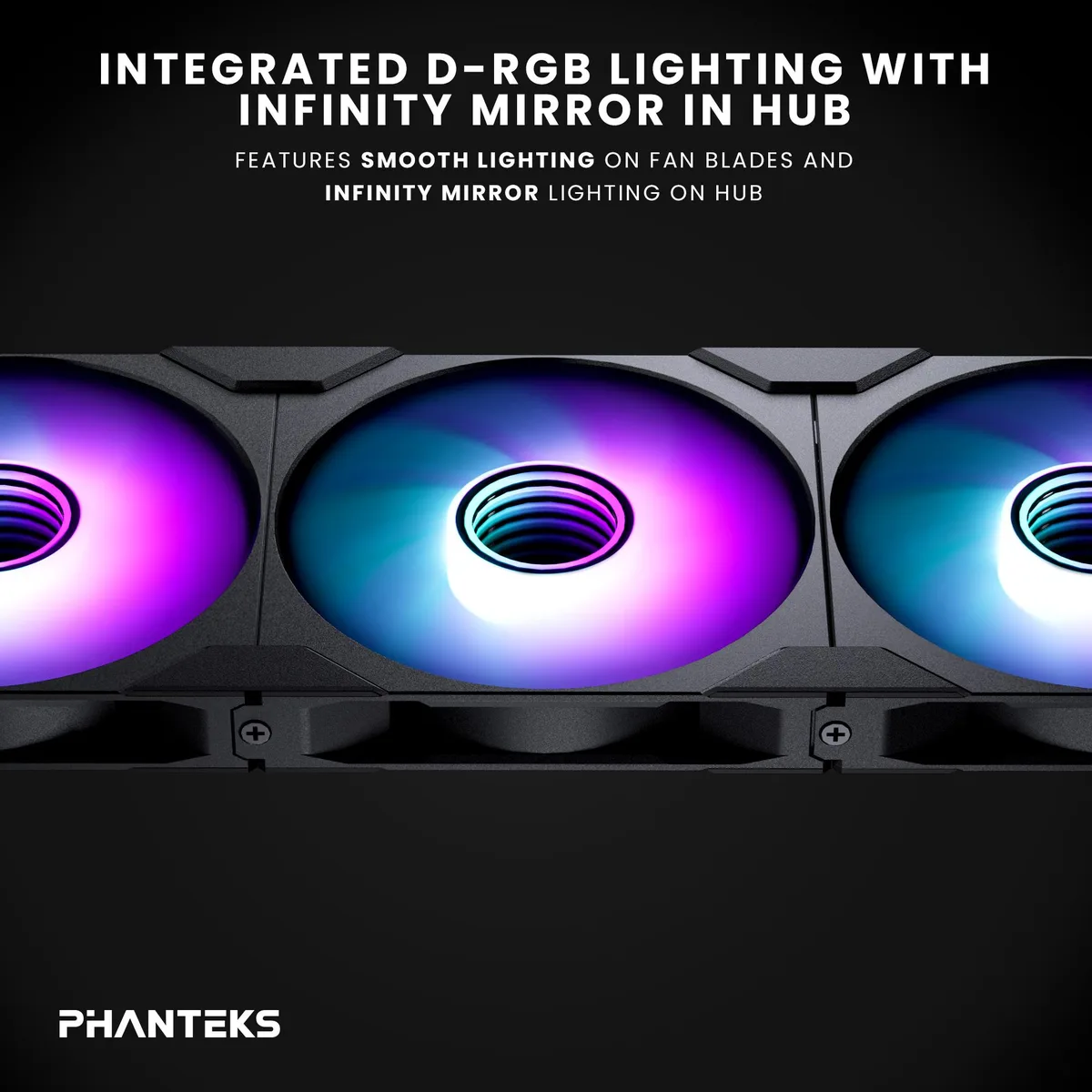

The Phanteks M25-140 Gen2 triple pack supplies three 140 mm hydraulic-bearing fans with 25 mm thickness. Each unit runs at 350-1800 RPM and moves up to 101.78 CFM at 2.23 mmH₂O static pressure. DRGB lighting with an infinity mirror effect is built in and controlled through a single Linq6 cable that also carries the PWM signal.

Builders who want tidy daisy-chained lighting

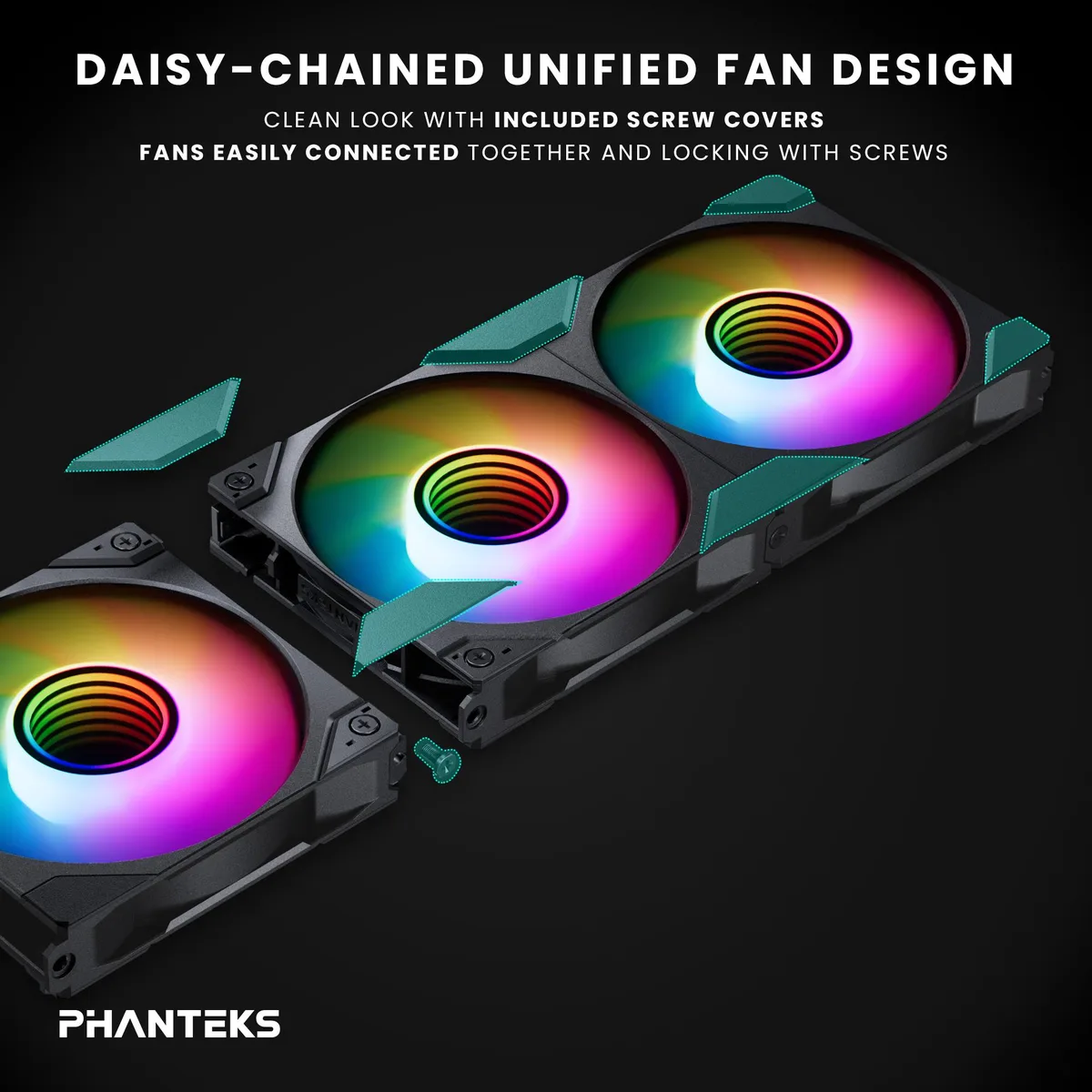

The unified frame lets the three fans interlock and share one cable run, so cable routing stays clean and the screw covers give a finished look. The pack includes Linq6 extension and adapter cables for motherboard or Phanteks NexLinq hub connection. Buyers who need a standalone hardware controller in the box or who prefer non-illuminated fans should look elsewhere.

Radiator and heatsink cooling headroom

At maximum speed the trio delivers 101.78 CFM per fan with 2.23 mmH₂O pressure, enough for dense radiators and large tower coolers. Noise tops out at 36.4 dBA, so the fans remain audible under full load. At the 350 RPM floor airflow drops considerably, limiting low-speed silence for high-restriction loops.

Highlights

  • Clean daisy-chain build with unified frame locking fans together
  • Single Linq6 cable handles both PWM control and D-RGB lighting
  • High static pressure of 2.23 mmH₂O pushes air through radiators
  • 78 CFM maximum airflow at 1800 RPM for strong cooling
  • Hydraulic bearing runs up to 36.4 dBA for quiet operation

Specifications

BrandPhanteks
ModelM25-140 Gen2 Regular Triple Pack
Part NumberPH-F140M25_G2_DBK01_3P
Fan Counts3 Fans
Fan ControllerNo Controller
TypeCase Fan
Fan Size140mm
Fan Thickness25mm
Bearing TypeHydraulic
RPM350-1800 +/- 10% RPM Max
Air Flow101.78 CFM Max
Air Pressure2.23 mmH2O Max
Noise Level36.4 dBA Max
Power ConnectorPWM, 2-Fase/4-poles
ColorWhite Matte Blade / Black Fan Frame
LEDDRGB
Dimensions140 x 140 x 25 mm
Package ContentsM25-140 Gen2 Fan: 3x
Fan Screws: 14x
500mm Linq6 Extension Cable: 2x
500mm Linq6 Adapter Cable: 1x
Screw Cover Corner: 8x (4xL, 4xR)
Screw Cover Bridge: 4x
Installation Guide: 1x
Shipping weight0.93 kg
Package size457 × 165 × 51 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Do I need a motherboard header or separate hub to run the three fans and their D-RGB lighting?

The triple pack uses Linq6 connectors that carry both PWM control and D-RGB signals in one cable; connect the chain to a single 4-pin PWM header and a 5 V D-RGB header, or to a Phanteks NexLinq hub for app control.

Will the unified frame and screw covers still fit if I mount these fans on a radiator with 25 mm thickness?

Each fan is 25 mm thick and the daisy-chain frame adds no extra depth, so standard 140 mm radiator screw holes align normally and the included corner and bridge covers snap on after installation.

How can I verify the fans are spinning and lighting correctly after I build the loop?

At full speed the fans reach 1800 RPM with 101.78 CFM airflow and 2.23 mmH2O pressure at 36.4 dBA; the D-RGB infinity-mirror effect should illuminate smoothly through the Phanteks NexLinq app or motherboard RGB software.
