Three white 140mm case fans with DRGB lighting rings and thick 30mm frames

Phanteks

Phanteks PH-F140D30_DRGB_PWM_WT01_3P 140mm 30mm DRGB PWM case fan 3-pack

SKU CH-9XJN-P9VGS MPN PH-F140D30_DRGB_PWM_WT01_3P

Three 140 mm fans with 30 mm thick frames, fluid-dynamic bearings and addressable DRGB lighting deliver up to 71.93 CFM at 29.5 dB(A)

  • Fan Counts3 Fans
  • TypeCase Fan
  • Fan Size140mm
  • Fan Thickness30mm
  • Bearing TypeFluid Dynamic
  • RPM250-1800 +/- 10% RPM

Fan Size 140mm

Style Regular

Model D30

Option Triple Fans

Struck-through versions exist but are not stocked here.

  • Three fans in one pack simplify multi-fan builds
  • 30 mm thick frame pushes air through radiators and filters
  • Fluid-dynamic bearing runs at 250-1800 RPM with 29.5 dB(A) noise

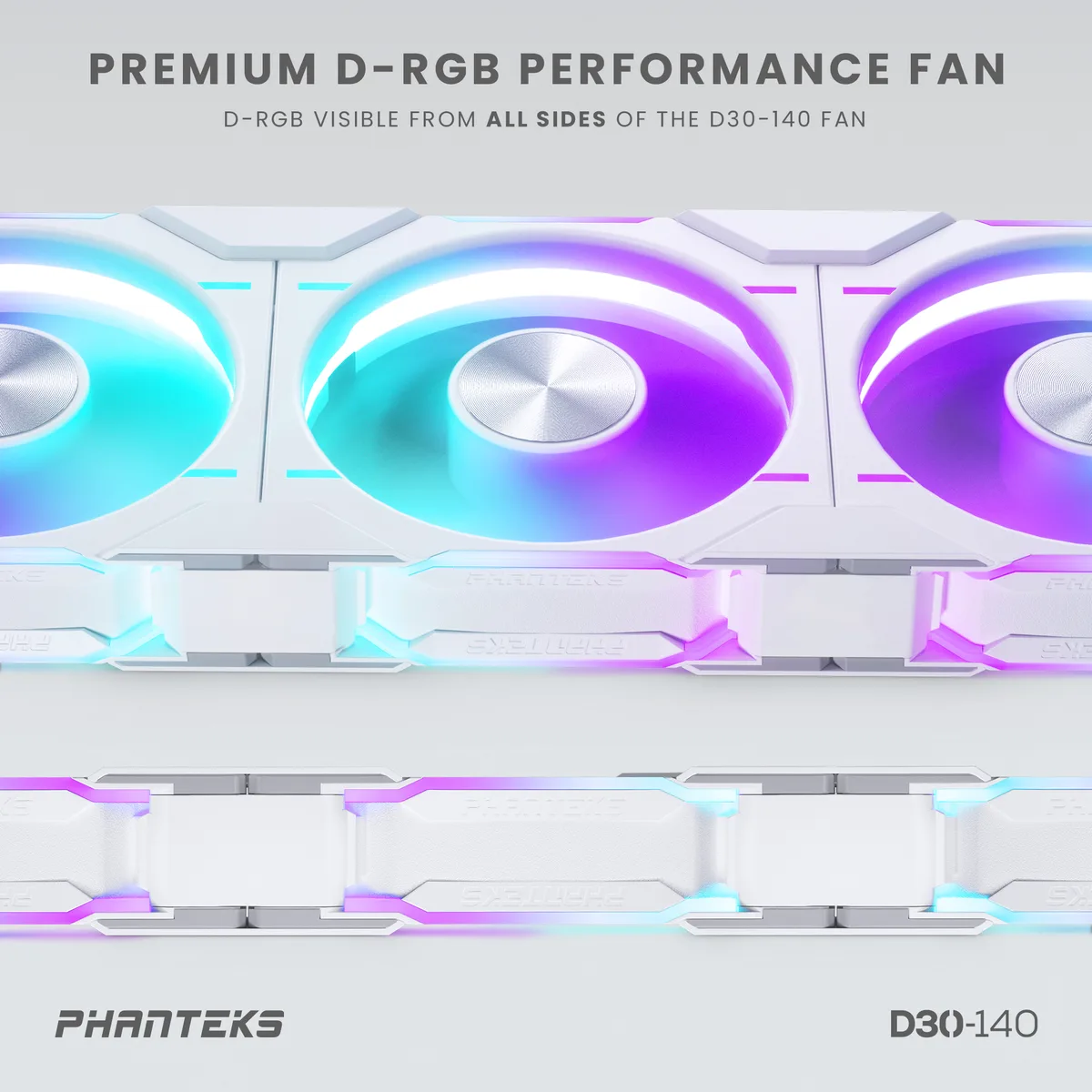

  • DRGB lighting visible from all sides syncs with motherboard software
  • Daisy-chain linking cuts cable clutter with included bridge clips

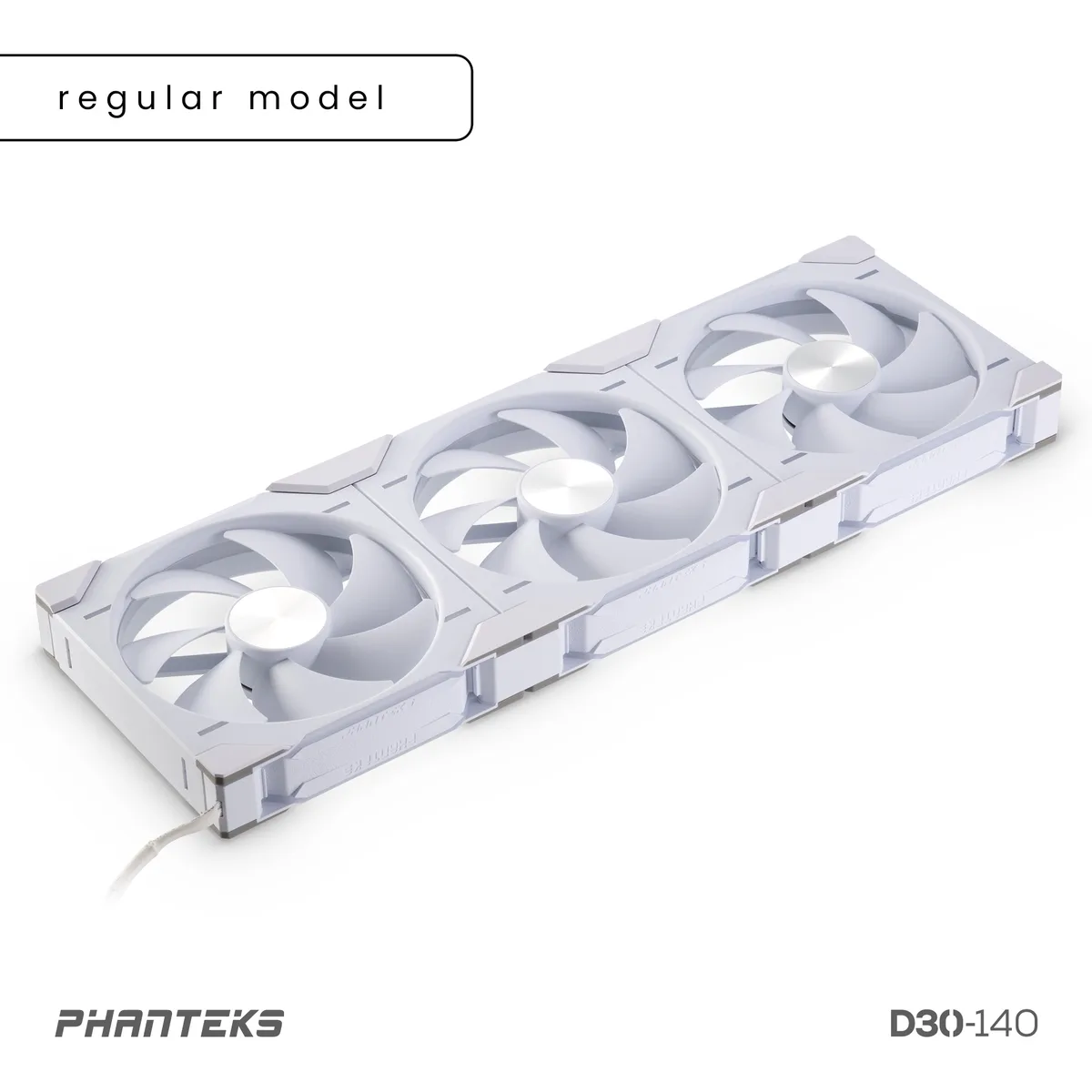

Three-pack 140mm DRGB PWM fans

This set contains three 140mm case fans with a 30mm thick frame, fluid-dynamic bearings and addressable DRGB lighting. A 4-pin PWM connector lets the motherboard control speed from 250 to 1800 RPM. The white finish suits light-themed builds and the fans are brand-new units.

71.93 CFM peak airflow at 29.5 dB(A)

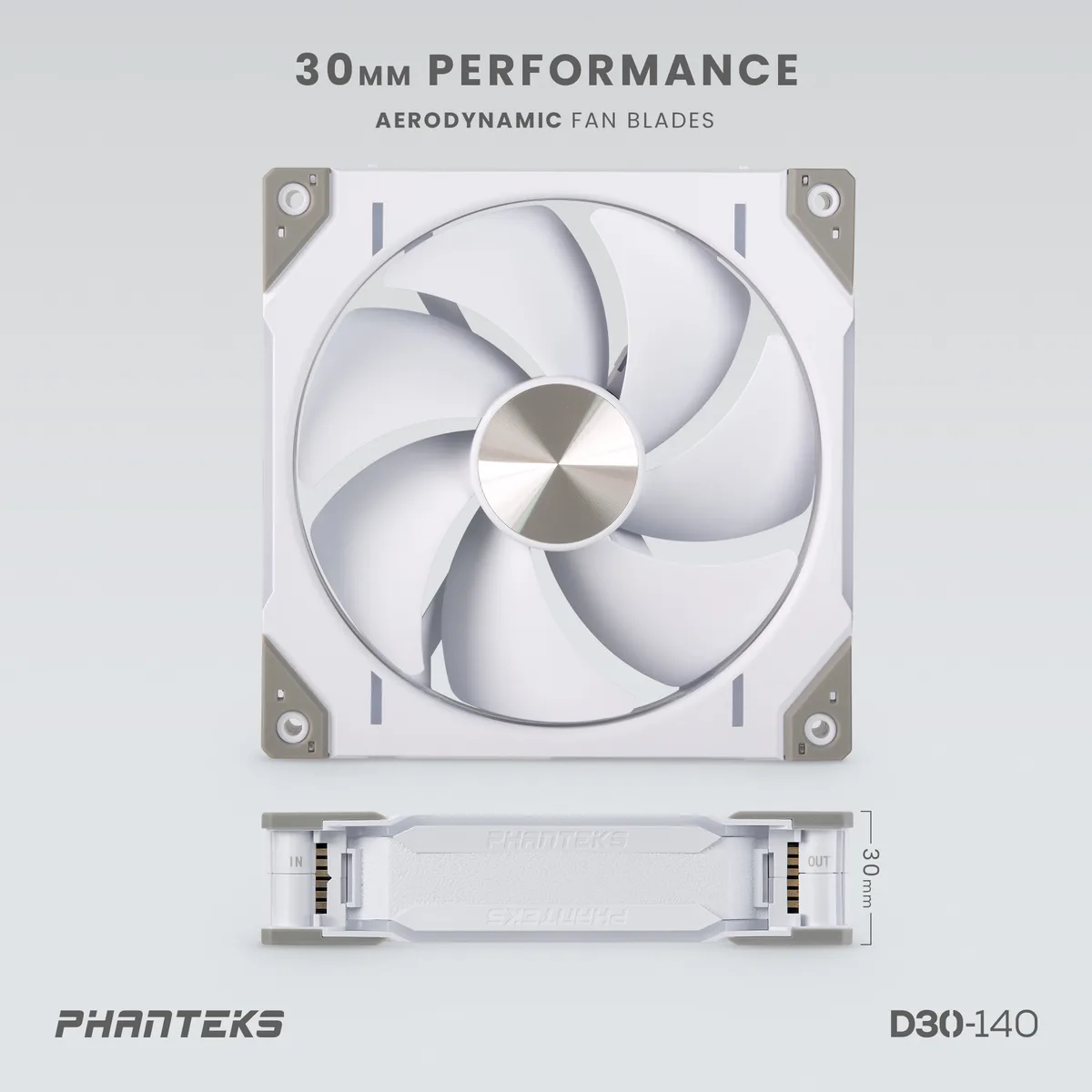

At maximum speed the fans move 71.93 CFM while producing 29.5 dB(A), giving strong pressure for radiators or restrictive mesh. The 30mm depth helps maintain static pressure where thinner fans lose effectiveness. Speed drops to 250 RPM for near-silent idle operation.

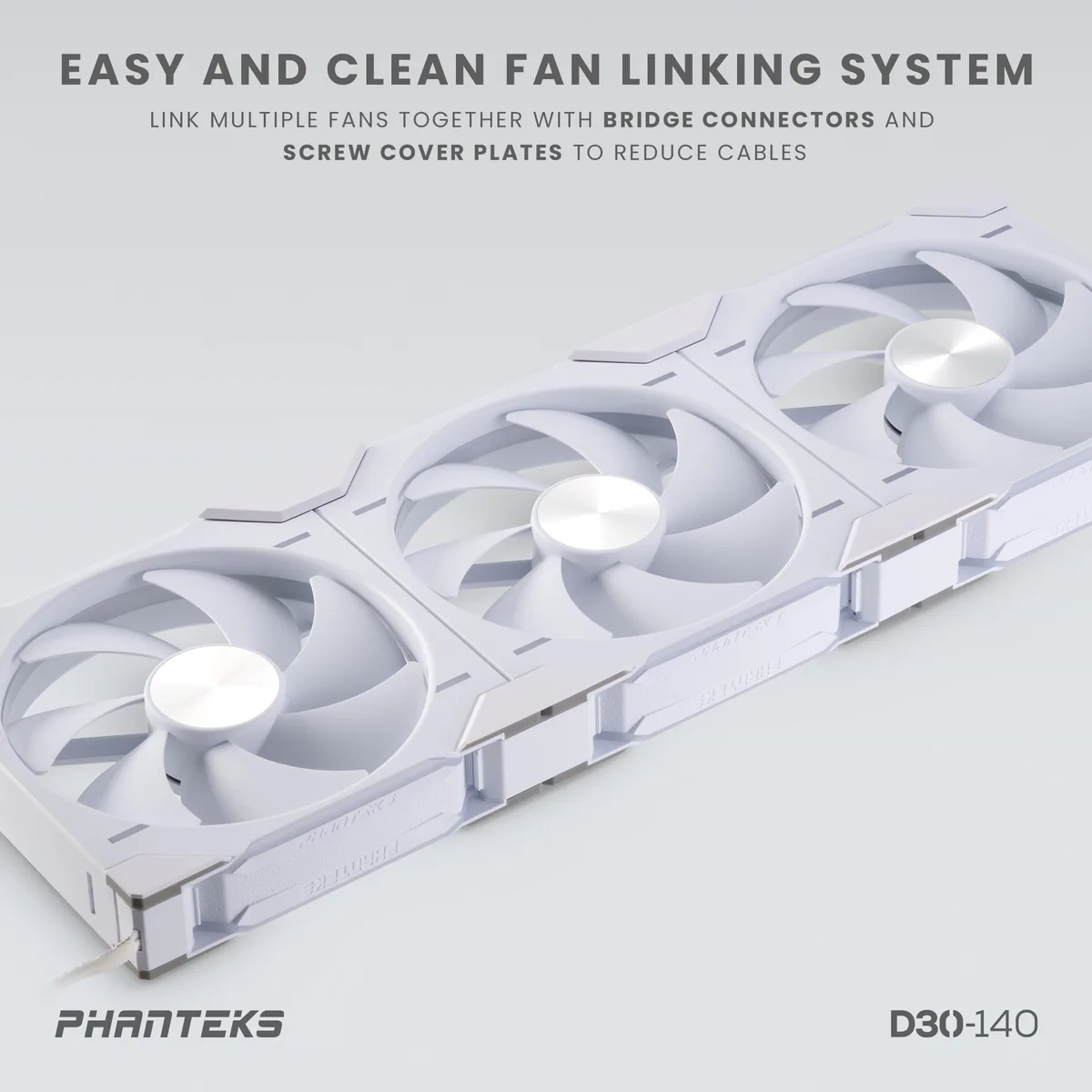

Daisy-chain linking with screw covers and RGB

The bundle includes corner clips, bridge clips and screw-cover corners that let multiple fans connect into a single clean unit with hidden cables. Twelve fan screws, twelve UNC 6-32 and twelve M4 radiator screws cover case and radiator mounting. A DRGB motherboard adapter enables lighting sync without a Phanteks controller.

Highlights

  • Three fans in one pack simplify multi-fan builds
  • 30 mm thick frame pushes air through radiators and filters
  • Fluid-dynamic bearing runs at 250-1800 RPM with 29.5 dB(A) noise
  • DRGB lighting visible from all sides syncs with motherboard software
  • Daisy-chain linking cuts cable clutter with included bridge clips

Specifications

BrandPhanteks
ModelPH-F140D30_DRGB_PWM_WT01_3P
Fan Counts3 Fans
TypeCase Fan
Fan Size140mm
Fan Thickness30mm
Bearing TypeFluid Dynamic
RPM250-1800 +/- 10% RPM
Air Flow71.93 CFM Max
Noise Level29.5 dB(A)
Power Connector4 Pin
ColorWhite
LEDDRGB
Dimensions140 x 140 x 30 mm / 5.51" x 5.51" x 1.18"
Package Contents3 x PH-F140D30_DRGB_PWM_WT01
12 x Fan Screw
12 x UNC 6-32 Radiator Screw 36mm
12 x M4 Radiator Screw 36mm
2 x Corner Clip Cable, 6x Corner Clip
2 x Bridge Clip, 2xg Bridge Clip Connector
8 x Screw Cover Corner (4L, 4R)
4 x Screw Cover Bridge
1 x D-RGB M/B Adapter
Shipping weight1.36 kg
Package size196 × 143 × 100 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will the 30 mm thick 140 mm fans fit alongside my existing 25 mm fans without clearance issues?

Each fan measures 140 x 140 x 30 mm, so they are 5 mm thicker than standard 25 mm models; verify your case, radiator or heatsink has the extra depth before mixing them.

How can I confirm the DRGB lighting and PWM control are working correctly after installation?

Connect the 4-pin PWM and 3-pin DRGB headers to a compatible motherboard; the fans should spin between 250 and 1800 RPM and the lighting should respond to your motherboard’s DRGB software.

Which mounting screws and cables are included in the 3-pack and what must I source separately?

The box contains 12 fan screws, 12 UNC 6-32 radiator screws, 12 M4 radiator screws, corner clips, bridge clips, screw covers and one DRGB motherboard adapter; you only need a motherboard with a 4-pin fan header and a 3-pin 5 V DRGB header.
