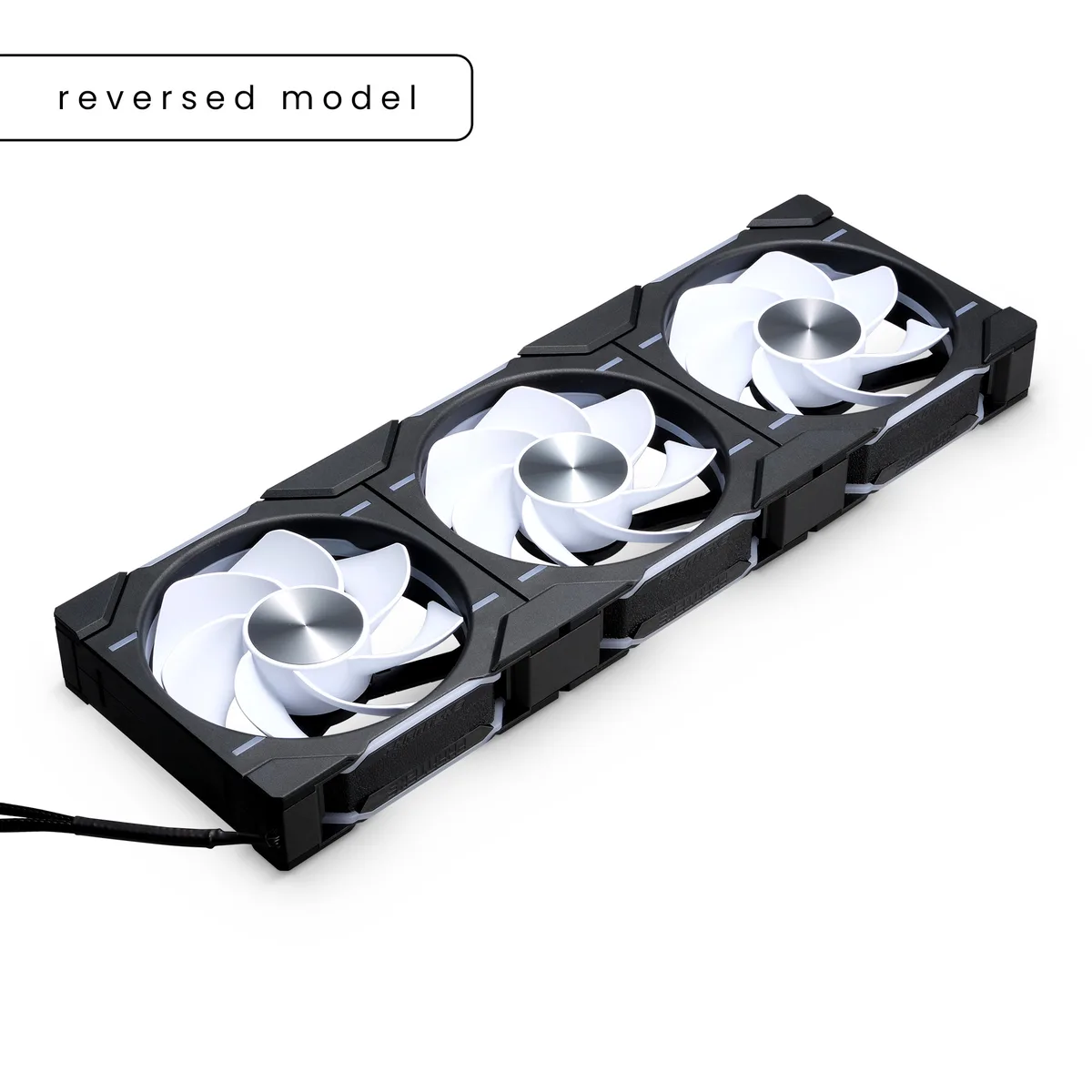

Three black frame 120mm fans with white matte blades and DRGB halos, 30mm thick

Phanteks

Phanteks PH-F120D30R_DRGB_PWM_BK01_3P D30-120 120mm 30mm reverse airflow case fan 3-pack

SKU CH-N80R-ZMFWZ MPN PH-F120D30R_DRGB_PWM_BK01_3P

Three 120 mm reverse-airflow fans with 30 mm thick frames deliver 61.5 CFM at up to 2000 RPM while running at 31.8 dB(A)

  • Fan Counts3 Fans
  • TypeCase Fan
  • CompatibilityCase
  • Fan Size120mm
  • Fan Thickness30mm
  • Bearing TypeFDB (Fluid Dynamic Bearing)

Fan Size 120mm

Style Reversed

  • Regular / No DRGB
  • Regular
  • Reversed

Model D30

Option Triple Fans

Struck-through versions exist but are not stocked here.

  • Reverse airflow keeps blade lighting unobstructed

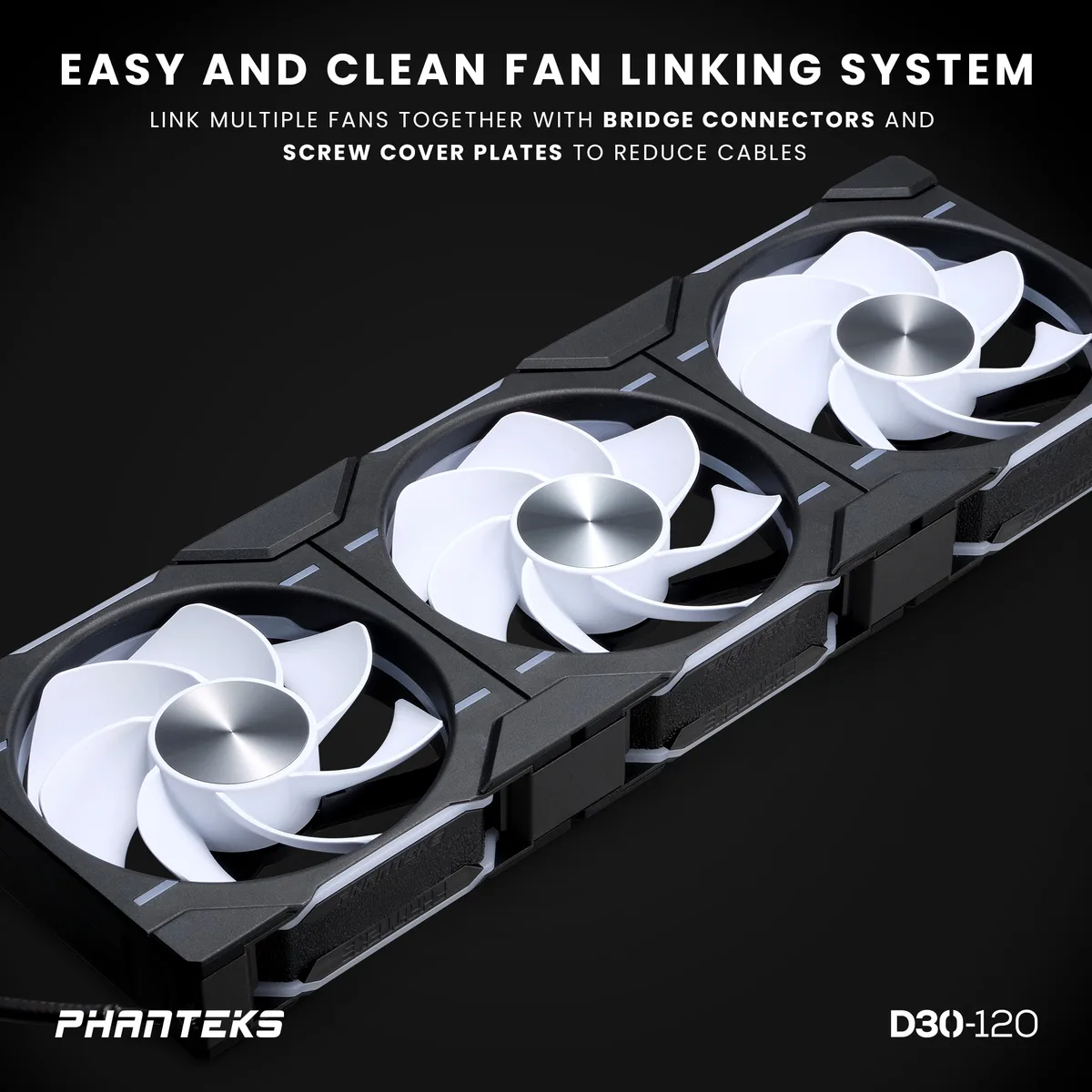

  • Daisy-chain linking cuts cable clutter for clean builds
  • 30 mm thick frame pushes air through radiators and filters

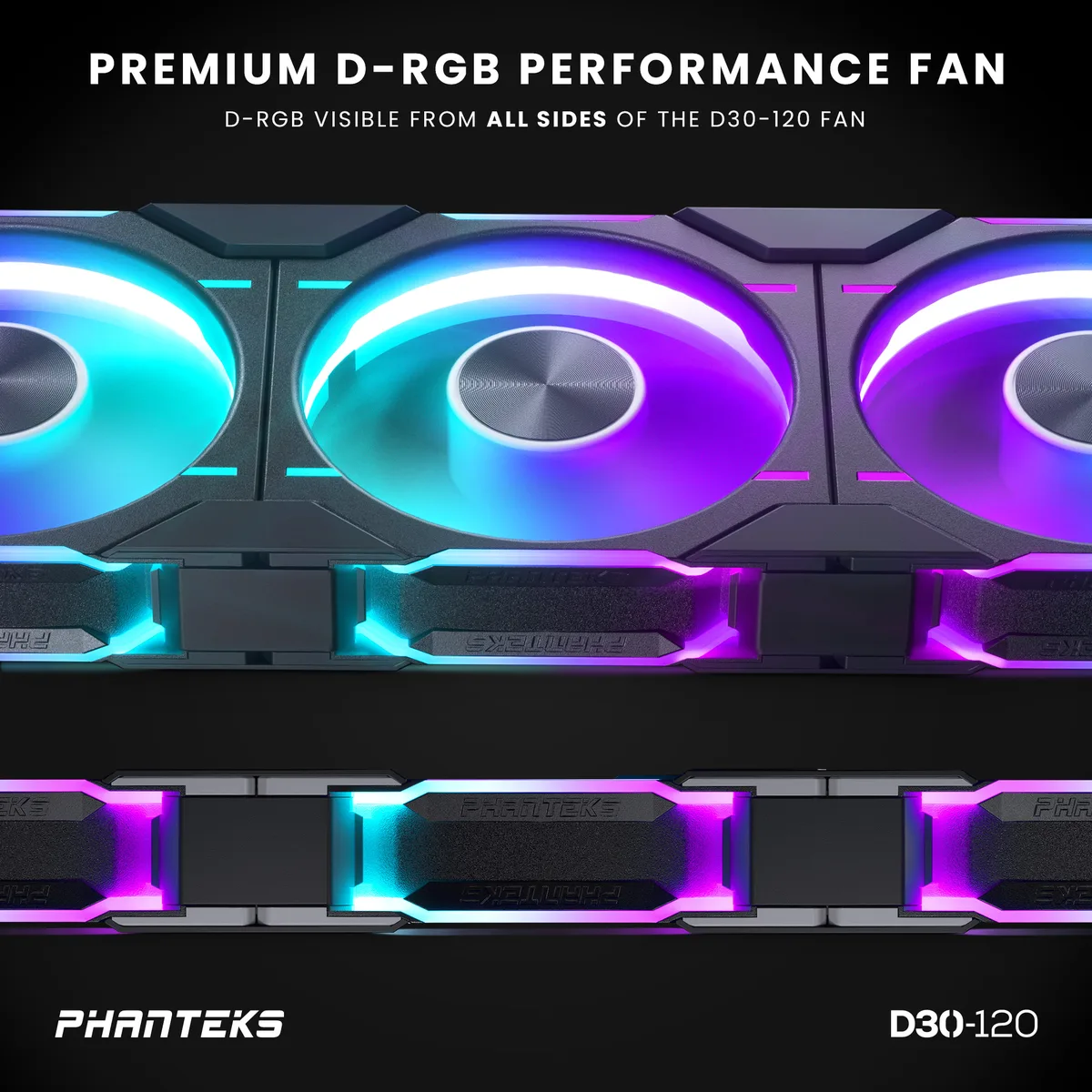

  • DRGB halos reflect off white matte blades for vivid illumination
  • Fluid dynamic bearing runs 250-2000 RPM at 31.8 dB(A)

Phanteks D30-120 reverse airflow 3-pack

This set contains three 120 mm case fans with a 30 mm thick frame designed for reverse airflow direction. The white matte blades and black frames feature integrated DRGB lighting visible from all sides. A fluid dynamic bearing supports a speed range of 250 to 2000 RPM. The pack suits builders who want coordinated lighting and high static pressure in a single purchase.

PWM control and daisy-chain limits

Each fan connects via a standard 4-pin PWM header for automatic speed control up to 2000 RPM. The included linking system lets multiple units share a single header and cable run, reducing clutter inside the case. Maximum airflow reaches 61.5 CFM at a noise level of 31.8 dB(A). Builders without a PWM header or with limited header count must check motherboard compatibility before installing.

30 mm thickness decides fit

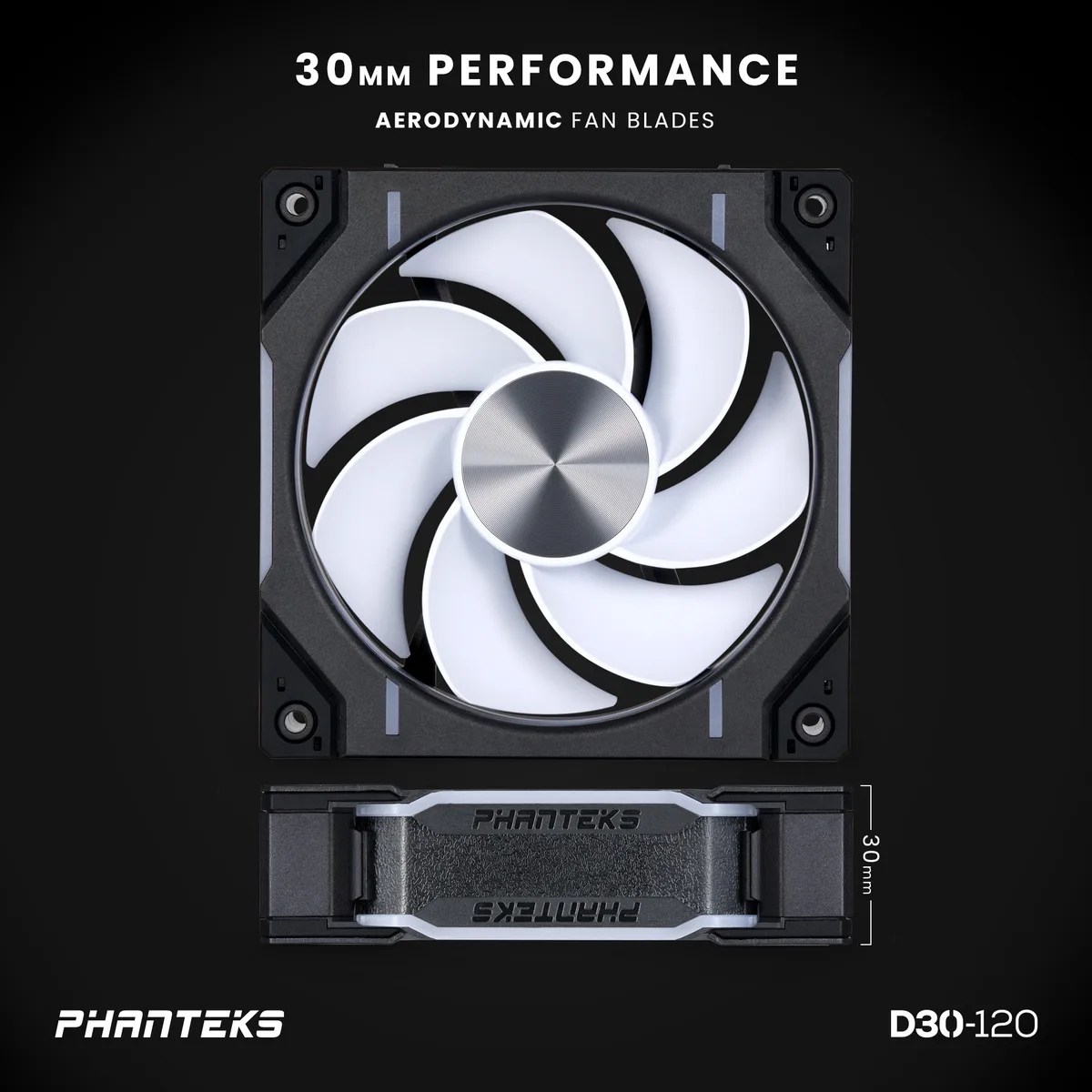

The 30 mm frame depth is the critical dimension that determines whether these fans clear radiators, mesh panels or dust filters in your chassis. Standard 25 mm fan mounts may not accommodate the extra 5 mm without modification. Buyers with slim cases or tight clearance around the CPU socket should verify internal space before ordering.

Highlights

  • Reverse airflow keeps blade lighting unobstructed
  • Daisy-chain linking cuts cable clutter for clean builds
  • 30 mm thick frame pushes air through radiators and filters
  • DRGB halos reflect off white matte blades for vivid illumination
  • Fluid dynamic bearing runs 250-2000 RPM at 31.8 dB(A)

Specifications

BrandPhanteks
SeriesD30-120
ModelD30-120, Black, Reversed, 3 Pack
Part NumberPH-F120D30R_DRGB_PWM_BK01_3P
Fan Counts3 Fans
TypeCase Fan
CompatibilityCase
Fan Size120mm
Fan Thickness30mm
Bearing TypeFDB (Fluid Dynamic Bearing)
RPM250-2000±10% RPM
Air FlowMax. Airflow 61.5 CFM
Noise Level31.8 dB(A)
Power Connector4-Pin PWN
ColorColor White Matte blade / Black Fan Frame
LEDDRGB
Dimensions120 x 120 x 30 mm
Shipping weight1.00 kg
Package size182 × 127 × 102 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

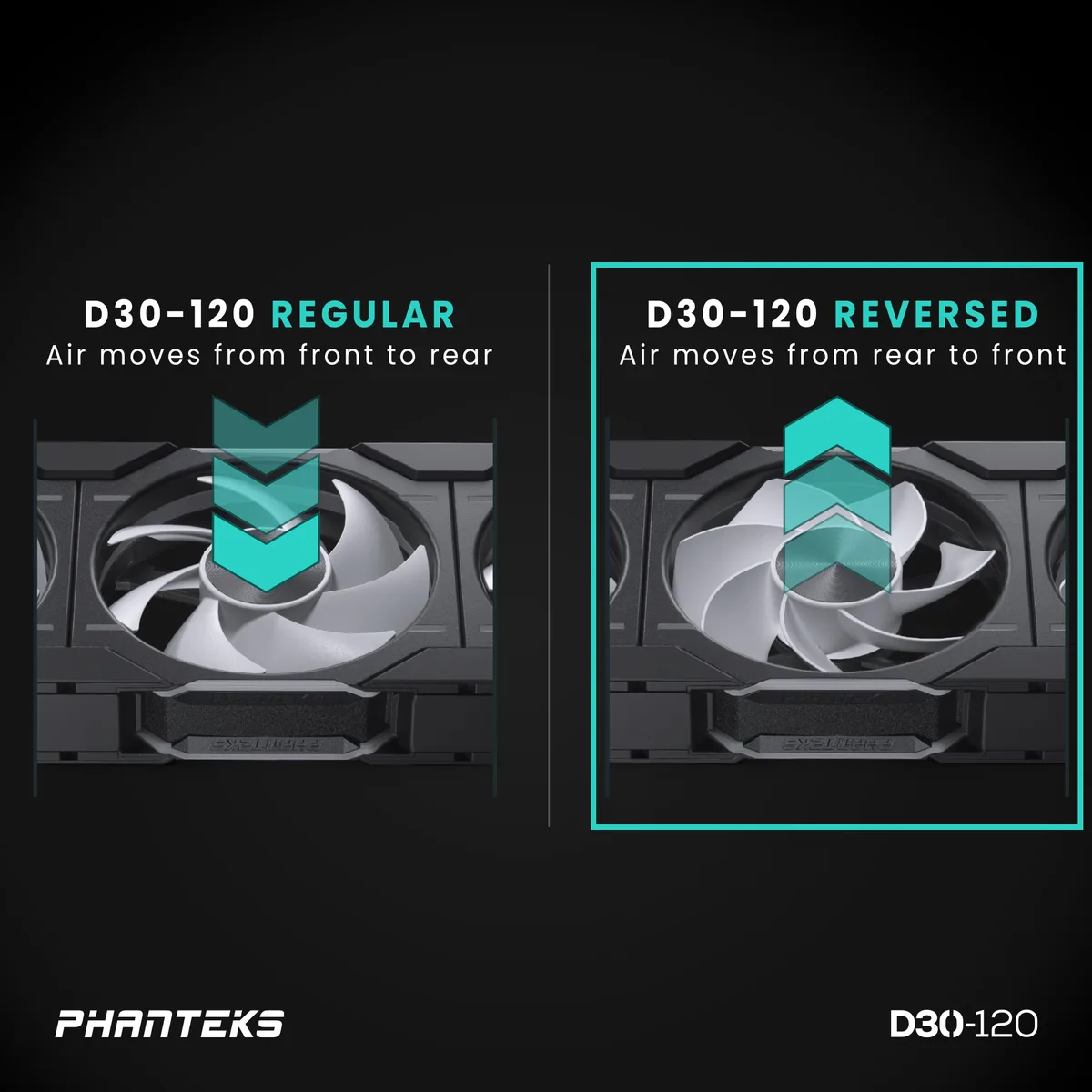

Should I pick the regular or the reverse airflow version for my build?

Choose the reverse airflow model when you want the fan blades to face inward while the lighting ring stays visible, such as on a radiator push configuration; pick the regular version for standard intake or exhaust where the blades face outward.

What does the 61.5 CFM maximum airflow deliver inside a case?

At full speed the fan moves up to 61.5 CFM, providing strong static pressure through a 30 mm thick frame that handles radiator fins or dense dust filters without choking.

How does the 4‑pin PWM connector limit control options?

The 4‑pin PWM header lets the motherboard vary speed from 250 to 2000 RPM, so the fan can run near-silent at idle and ramp to full pressure when temperatures rise.
