Phanteks
Phanteks PH-F120MP_BK_PWM 120 mm PWM case fan 500-1800 rpm 53.3 CFM 25 dB UFB bearing
A 120 mm PWM case fan with UFB bearing delivering 53.3 CFM at 500-1800 rpm and 25 dB noise
- Fan Counts1 Fan
- Fan ControllerNo Controller
- TypeRadiator Fan
- CompatibilityRadiator, Case
- Fan Thickness25mm
- Bearing TypeUFB (Updraft Floating Balance)
- High static pressure clears dense radiator fins
- PWM control adjusts speed from 500 to 1800 rpm
- UFB bearing gives longer life and stable rotation
- 3 CFM airflow at only 25 dB noise
- Eight larger rubber dampers cut vibration further
120 mm PWM radiator fan

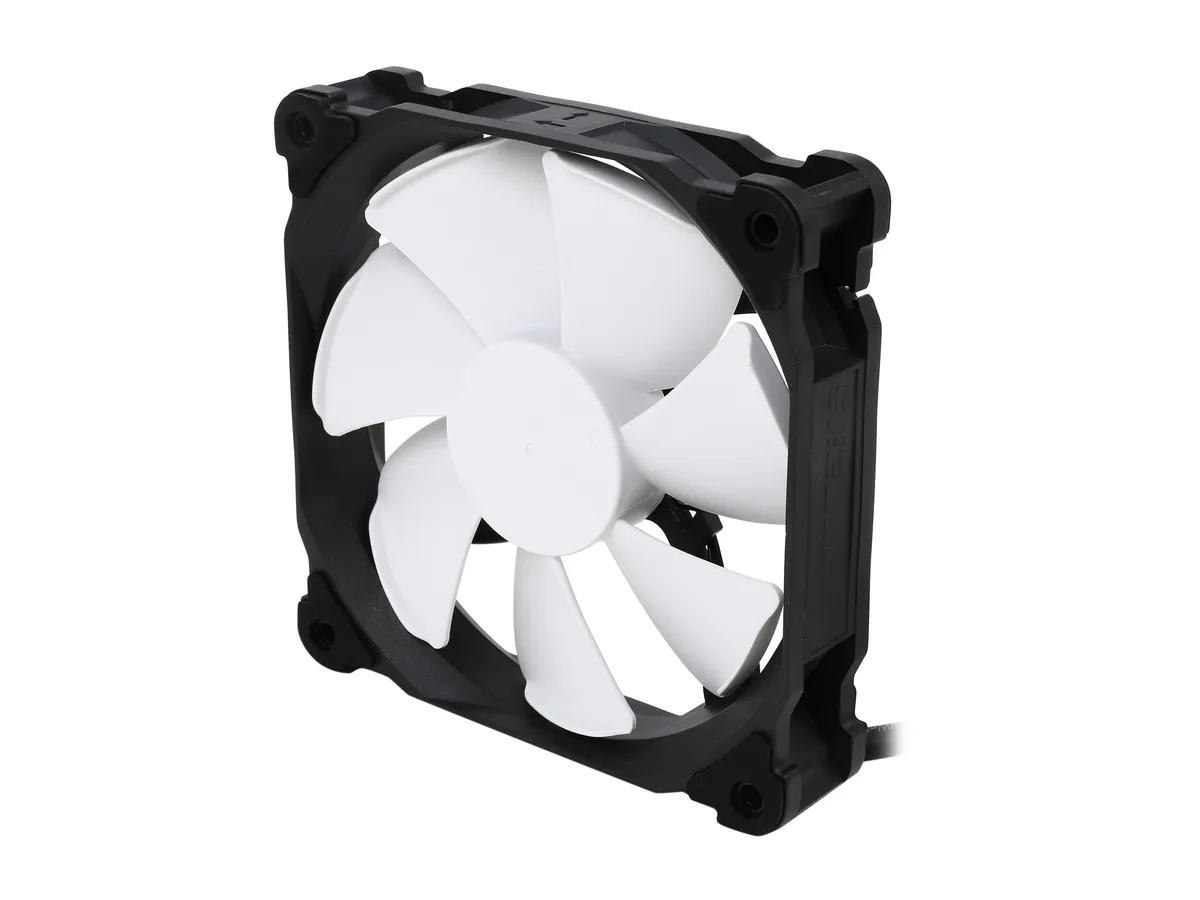

The Phanteks PH-F120MP is a 120 mm PWM case fan built for high static pressure. It suits builders who need focused airflow through dense radiator fins or restrictive case meshes. The single fan operates without an external controller. Buyers who want RGB illumination or a bundled multi-fan kit should look elsewhere.
UFB bearing and rubber dampers

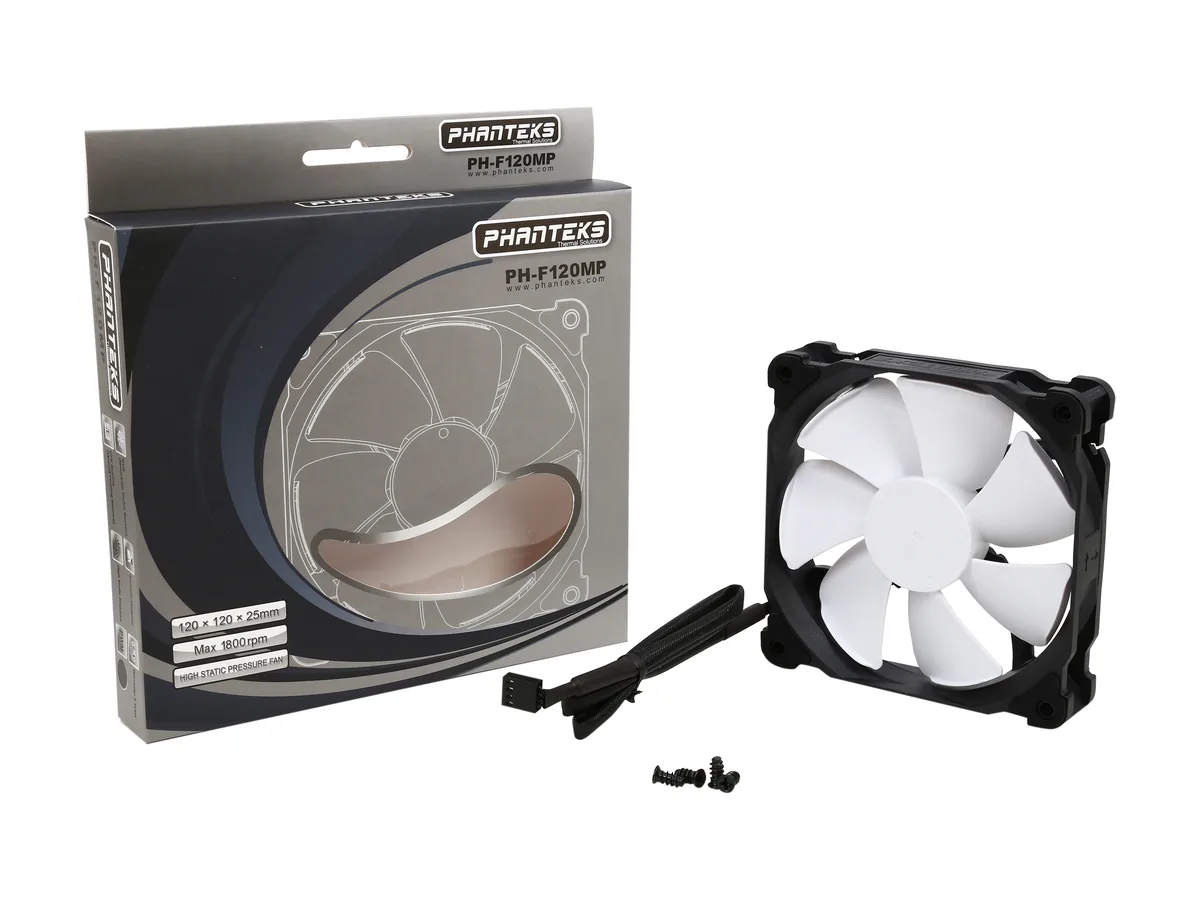

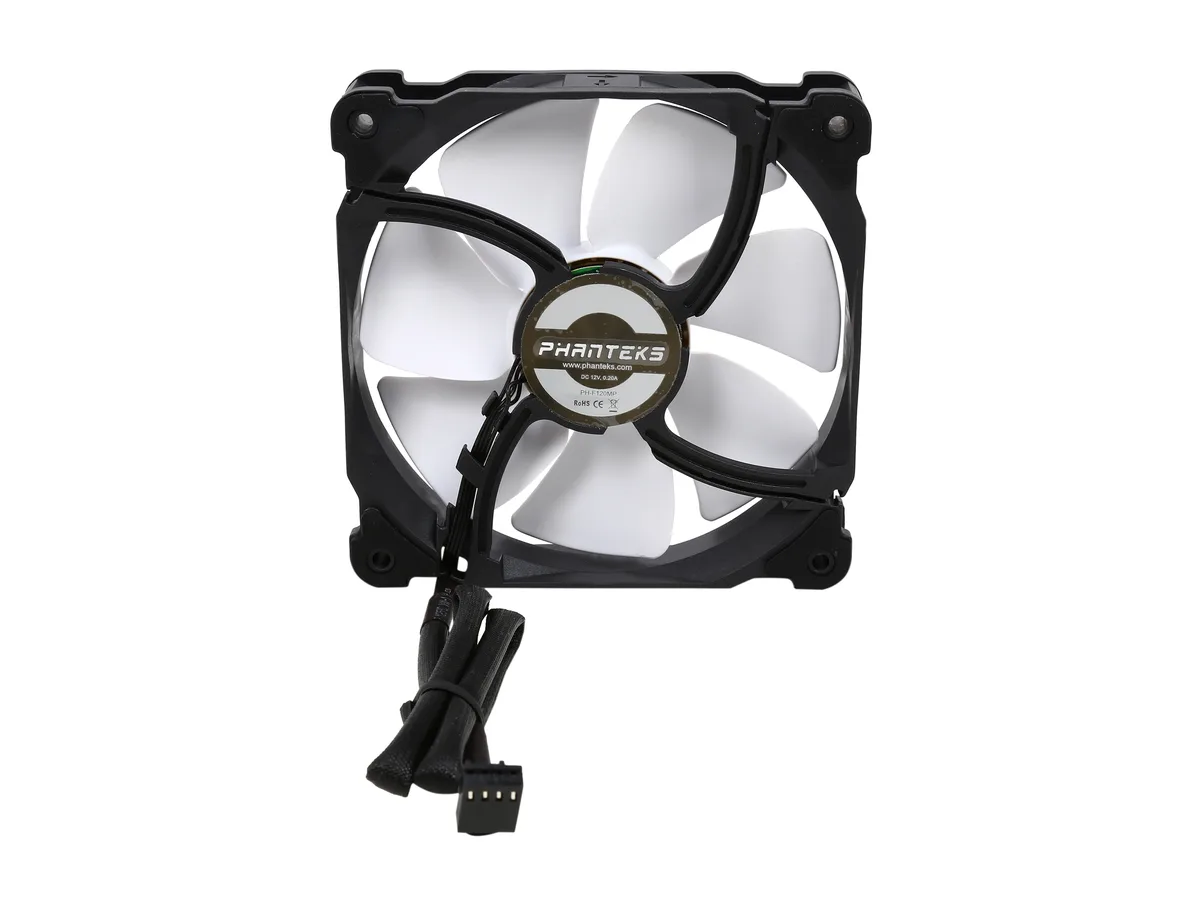

The fan uses an Updraft Floating Balance bearing for reduced friction and a longer service life. Eight enlarged rubber pads come pre-installed on the corners to absorb vibration transferred to the chassis. A standard 4-pin connector plugs directly into a motherboard header for PWM control. The 25 mm thickness fits typical 120 mm mounting points.
500-1800 rpm range and 25 dB noise
Speed adjusts between 500 and 1800 rpm with a ±250 rpm tolerance, delivering up to 53.3 CFM of airflow. At typical operating points the acoustic rating is 25 dB(A). The nine-blade Maelström Vortex Booster II design aims to keep turbulence low while maintaining pressure across radiator fins. Power draw scales with the PWM duty cycle set by the board.
Highlights
- High static pressure clears dense radiator fins
- PWM control adjusts speed from 500 to 1800 rpm
- UFB bearing gives longer life and stable rotation
- 3 CFM airflow at only 25 dB noise
- Eight larger rubber dampers cut vibration further
Specifications
| Brand | Phanteks |
|---|---|
| Model | PH-F120MP |
| Fan Counts | 1 Fan |
| Fan Controller | No Controller |
| Type | Radiator Fan |
| Compatibility | Radiator, Case |
| Fan Thickness | 25mm |
| Bearing Type | UFB (Updraft Floating Balance) |
| RPM | 500 - 1800 + / - 250 rpm |
| Air Flow | 53.3 CFM |
| Noise Level | 25 dB (A) |
| Power Connector | 4 Pin |
| Color | White |
| LED | Non-LED |
| Features | The PH-F120MP, a high static pressure fan, can have the ability to overcome the airflow restriction caused by high fin density. PH-F120MP produces high static air pressure allowing for a direct and focused airflow making them ideal for the densely packed fins of a radiator. The PH-F120MP has a larger base size with a magnetic brushless DC motor to avoid the effects of resonance and for rotational stability. To create better structural strength, Phanteks redesigned the back frame of the PH-F120MP. Phanteks fans now comes with pre-installed rubber pads to help reduce vibration occurren |
| Dimensions | 120.00 x 120.00 x 25.00mm |
| Shipping weight | 0.24 kg |
| Package size | 203 × 201 × 30 mm |
Questions about this item
What does the 4-pin PWM connector let the 500-1800 rpm range actually do?
The 4-pin PWM connector lets the motherboard vary the speed continuously between 500 and 1800 rpm so the fan only spins as fast as the thermal load requires.
Will the 25 mm thickness and 120 mm square frame clear my radiator and case mounts?
Yes — the fan measures 120 x 120 x 25 mm, the standard size for 120 mm radiator and case mounting holes.
How do I fit the eight pre-installed rubber pads so they actually damp vibration?
Push each rubber pad through the fan's corner holes until the flange seats flat, then mount the fan with the pads sandwiched between frame and radiator or case.
