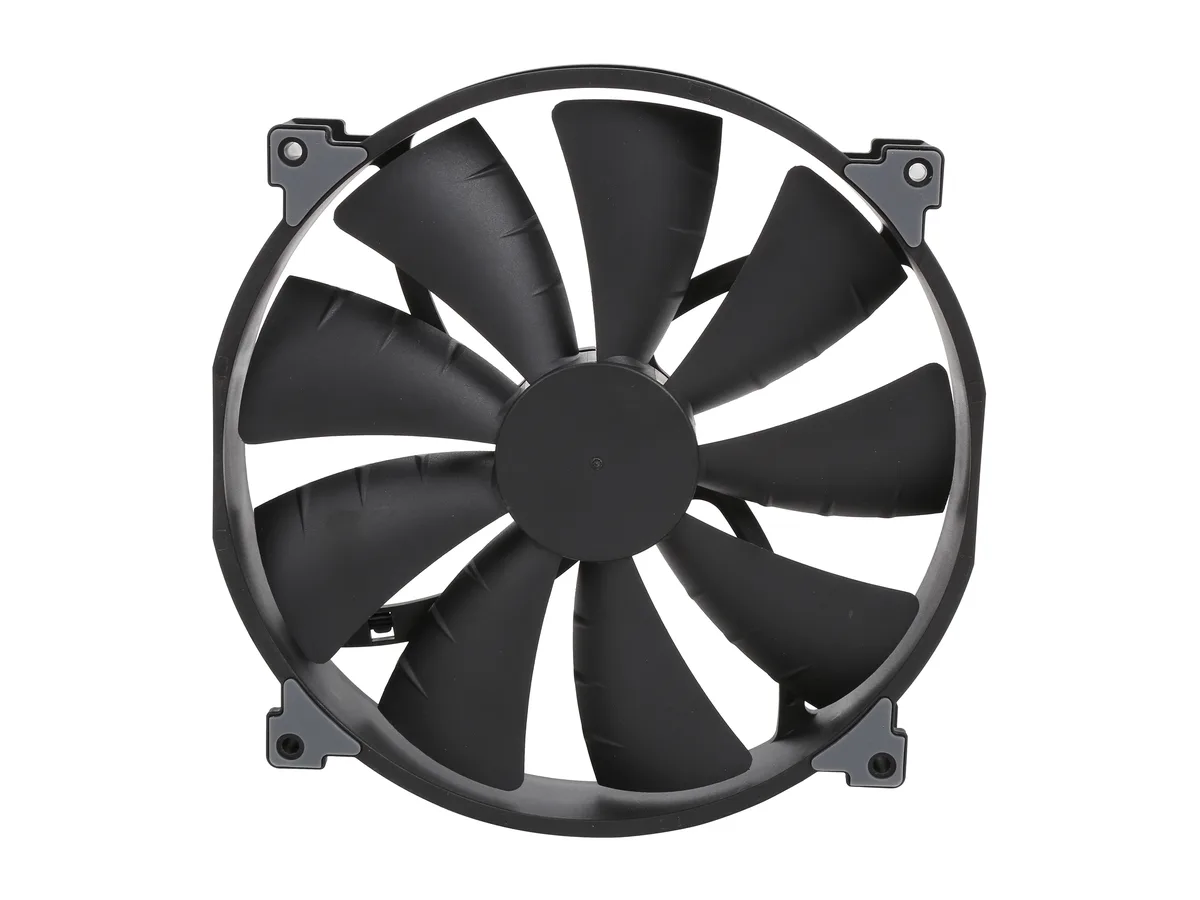

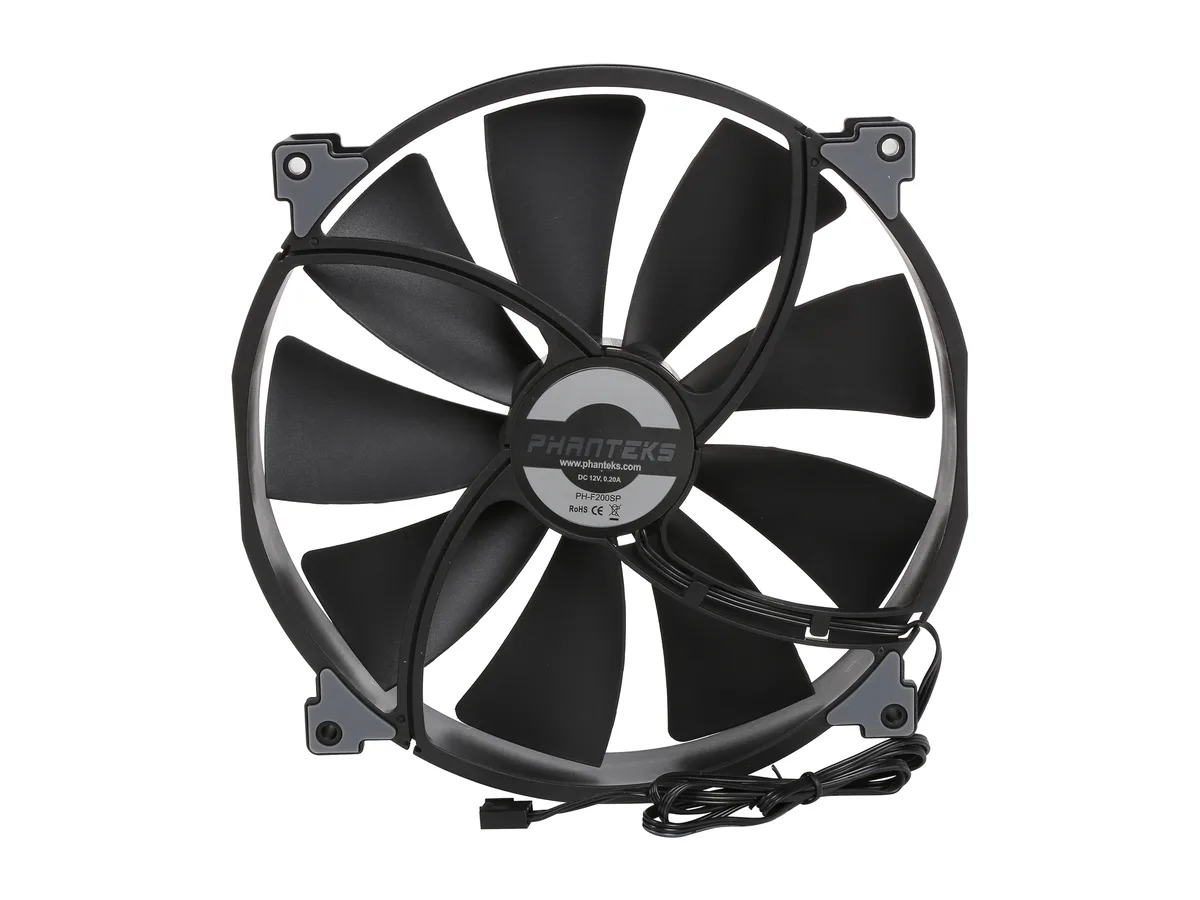

Black 200mm square case fan with nine angled blades, 30mm thick frame, 400mm extension cable and four mounting screws

Phanteks

Phanteks PH-F200SP_BBK 200mm Case Fan 850 RPM 110.1 CFM 25 dB UFB Bearing

SKU CH-QZVY-B52J6 MPN PH-F200SP_BBK

A 200 mm case fan delivering 110.1 CFM at 850 RPM with 25 dB noise using a UFB bearing

  • Fan Counts1 Fan
  • Fan ControllerNo Controller
  • TypeCase Fan
  • CompatibilityCase
  • Fan Size200mm
  • Fan Thickness30mm
  • 200 mm frame moves 110.1 CFM for high-volume case cooling
  • UFB bearing with MOSS and SSC reduces vibration for longer life
  • 850 RPM ± 250 RPM keeps noise at 25 dB(A)
  • Nine angled MVB blades create focused downdraft airflow
  • Includes 400 mm extension cable and four mounting screws

200mm Premier Case Fan

The Phanteks PH-F200SP_BBK is a single 200mm case fan built for high static pressure and low noise. Its nine MVB blades are angled to create a controlled downdraft vortex that moves 110.1 CFM at 850 RPM. A UFB bearing with MOSS and SSC systems provides rotational stability and long life. Acoustic dampers and an optimised frame keep noise to 25 dB(A).

Builders upgrading large-case airflow

This fan suits systems with 200mm mounting points that need strong pressure performance for restrictive layouts. It includes a 400mm extension cable and screws for straightforward installation. Builders whose cases only accept smaller mounting patterns cannot use this unit. Buyers wanting PWM speed control via a 4-pin header should look elsewhere.

3-pin power connector

The fan connects through a standard 3-pin header, delivering fixed-voltage operation without pulse-width modulation. This single specification determines whether the fan matches your motherboard or controller capabilities.

Highlights

  • 200 mm frame moves 110.1 CFM for high-volume case cooling
  • UFB bearing with MOSS and SSC reduces vibration for longer life
  • 850 RPM ± 250 RPM keeps noise at 25 dB(A)
  • Nine angled MVB blades create focused downdraft airflow
  • Includes 400 mm extension cable and four mounting screws

Specifications

BrandPhanteks
ModelPH-F200SP_BBK
Fan Counts1 Fan
Fan ControllerNo Controller
TypeCase Fan
CompatibilityCase
Fan Size200mm
Fan Thickness30mm
Bearing TypeUFB (Updraft Floating Balance)
RPM850 +/- 250 rpm
Air Flow110.1 CFM
Noise Level25 dB (A)
Power Connector3 Pin
ColorBlack
FeaturesThe new PH-F200SP blades are angled lower to achieve higher air pressure. The redesigned MVB blades generate better performance and better airflow. It improves the balance of airflow and air pressure when being used as a case fan. The PH-F200SP has a larger base size with a magnetic brushless DC motor to avoid the effects of resonance and for rotational stability. With noise reduction challenges in mind, we modified the component for lower actuator noise, PCBA for lower electromagnetic noise, brushless motor structure for lower operating noise and frame rib for lower wind and vibrati
Dimensions200 x 200 x 30 mm

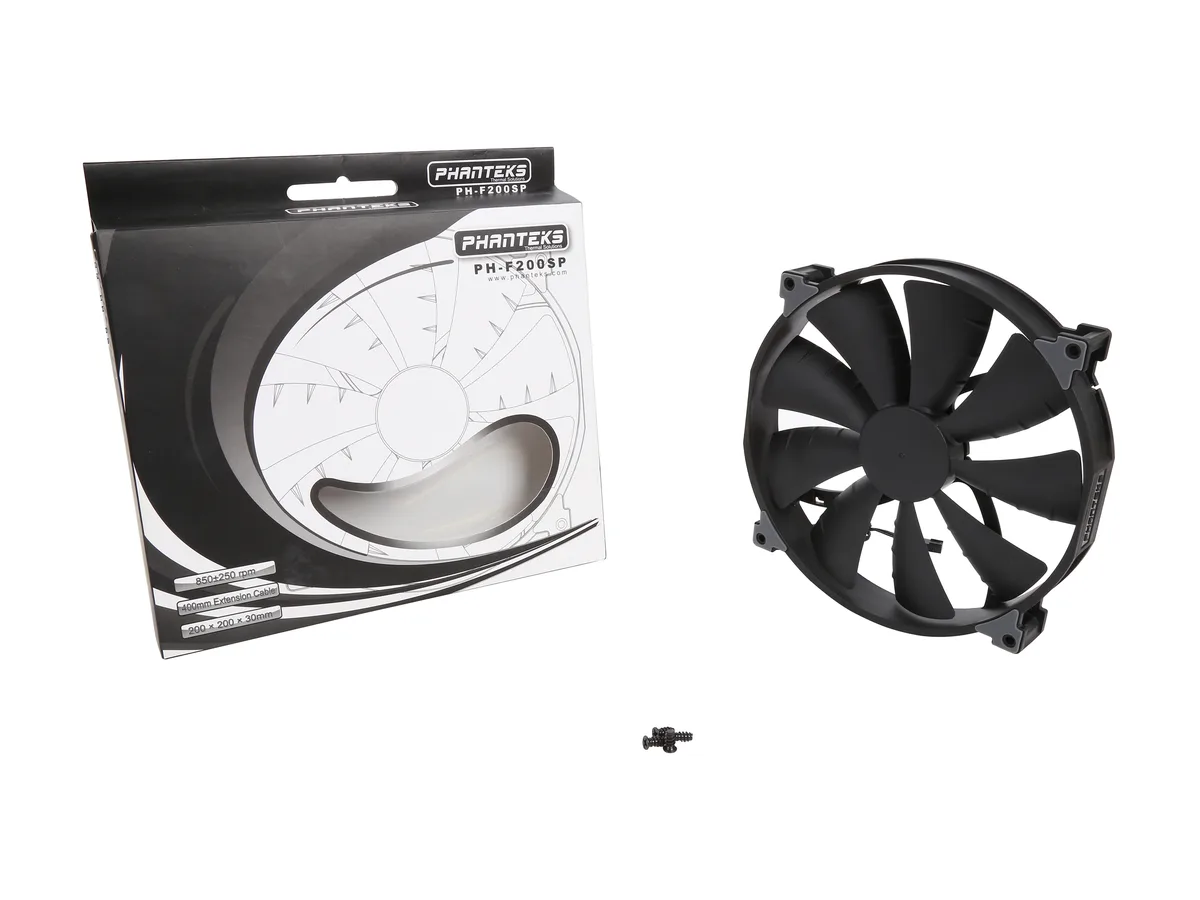

Package Contents1 x 200 mm Premium Fan
1 x 400 mm Extension Cable
4 x Fan Screws
Shipping weight0.40 kg
Package size251 × 213 × 36 mm

Other versions of this model

1 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How can I confirm the 200mm fan is running at the intended 850 RPM after installation?

Use BIOS hardware monitor or fan-control software to verify the speed reads 850 RPM ±250 RPM under load.

Which accessories are included and what must I purchase separately for a 3-pin connection?

The box contains the 200mm fan, a 400mm extension cable and four mounting screws; no extra parts are needed for a standard 3-pin header.

Should I choose the 110.1 CFM model or a different airflow version for a 200mm slot?

This SKU delivers 110.1 CFM at 25 dB(A); no other airflow variant of the PH-F200SP_BBK is offered.
