Large 200 mm square case fan black frame white blades 30 mm thick

Phanteks

Phanteks PH-F200SP_BK 200mm Case Fan 850 rpm 110.1 CFM 25.0 dB(A)

SKU CH-ZKQG-6QFY7 MPN PH-F200SP_BK

A 200 mm case fan delivering 110.1 CFM at 25.0 dB(A) with UFB bearing and angled MVB blades

  • TypeCase Fan
  • CompatibilityCase
  • Fan Size200mm
  • Bearing TypeUFB (Updraft Floating Balance)
  • RPM850 +/- 250 rpm
  • Air Flow110.1 CFM
  • 200 mm diameter moves 110.1 CFM for strong case airflow
  • 850 rpm ±250 keeps noise low at 25.0 dB(A)
  • UFB bearing reduces vibration and extends operational life
  • Redesigned MVB blades improve air-pressure balance across surfaces
  • Includes 400 mm extension cable and four mounting screws

200 mm case airflow upgrade

The Phanteks PH-F200SP_BK is a 200 mm case fan built for high-volume air movement in compatible chassis. Its nine Maelström Vortex Booster blades are angled lower to increase static pressure while maintaining broad airflow coverage. The black frame and white blades suit clean internal aesthetics.

UFB bearing runs at 850 rpm with 25.0 dB(A)

At the rated 850 ± 250 rpm the fan delivers 110.1 CFM while the Updraft Floating Balance bearing keeps operating noise to 25.0 dB(A). The MOSS and SSC systems balance the hub-tip ratio to suppress vibration and extend rotational stability. The reinforced back frame adds structural rigidity for continuous duty.

Extension cable and screws simplify routing

The box includes a 400 mm extension cable so the 3-pin connector can reach distant headers without strain. Four dedicated fan screws secure the 200.00 x 200.00 x 30.00 mm frame to standard mounting points. No software or lighting controllers are bundled.

Highlights

  • 200 mm diameter moves 110.1 CFM for strong case airflow
  • 850 rpm ±250 keeps noise low at 25.0 dB(A)
  • UFB bearing reduces vibration and extends operational life
  • Redesigned MVB blades improve air-pressure balance across surfaces
  • Includes 400 mm extension cable and four mounting screws

Specifications

BrandPhanteks
ModelPH-F200SP_BK
TypeCase Fan
CompatibilityCase
Fan Size200mm
Bearing TypeUFB (Updraft Floating Balance)
RPM850 +/- 250 rpm
Air Flow110.1 CFM
Noise Level25.0 dB(A)
Power Connector3 Pin
ColorBlack Frame / White Blades
FeaturesThe new PH-F200SP blades are angled lower to achieve higher air pressure.
The redesigned MVB blades generate better performance and better airflow. It improves the balance of airflow and air pressure when being used as a case fan.
The PH-F200SP has a larger base size with a magnetic brushless DC motor to avoid the effects of resonance and for rotational stability.
With noise reduction challenges in mind, we modified the component for lower actuator noise, PCBA for lower electromagnetic noise, brushless motor structure for lower operating noise and frame rib for lower wind and vibrati
Dimensions200.00 x 200.00 x 30.00mm

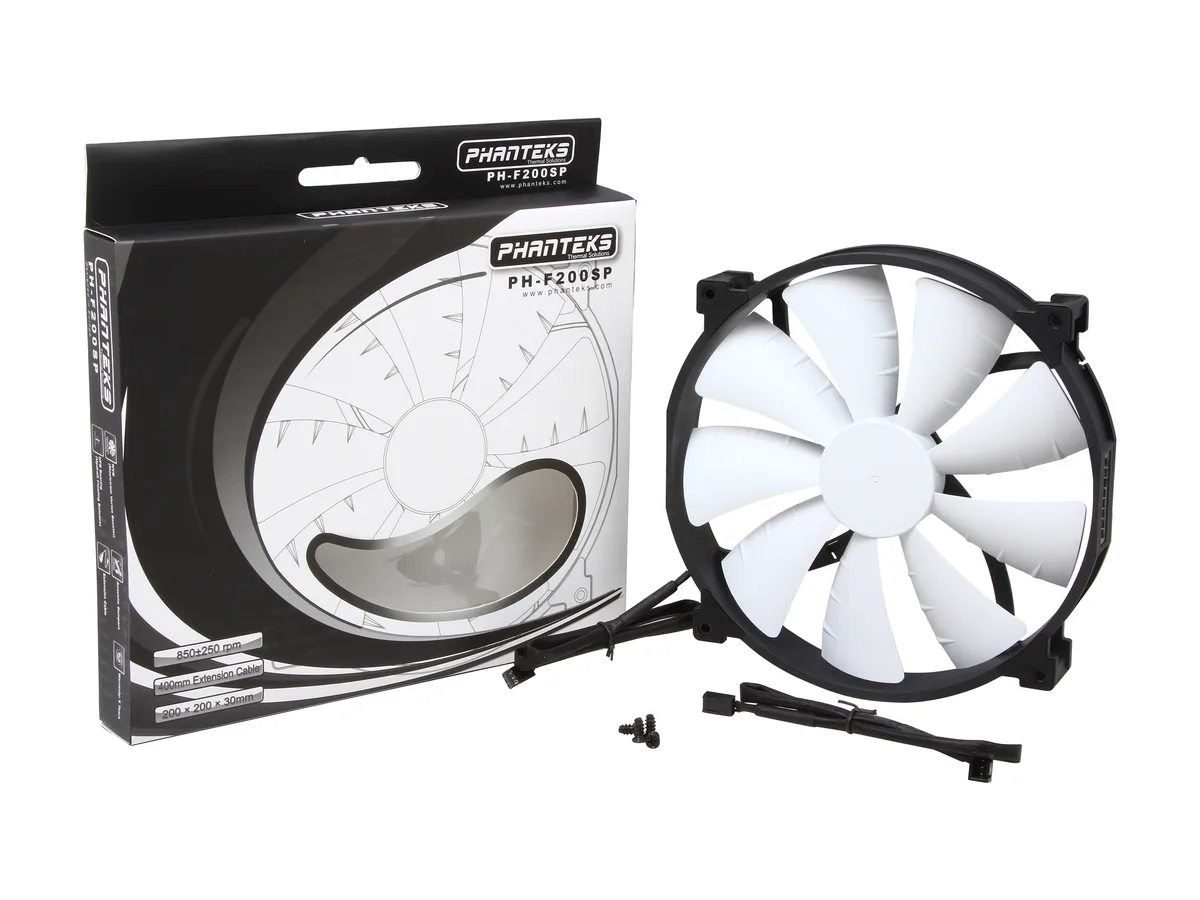

Package Contents1 x 200 mm Premium Fan
1 x 400 mm Extension Cable
4 x Fan Screws
Shipping weight0.40 kg
Package size257 × 246 × 38 mm

Other versions of this model

1 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How do I install the 200mm fan and its 400mm extension cable in my case?

Mount the fan using the four supplied screws through the 200mm frame holes, then connect the 3‑pin header to the motherboard or use the 400mm extension cable to reach a distant fan header.

What maintenance will the UFB bearing need over time?

The Updraft Floating Balance bearing is sealed and lubricated for life, so no re‑oiling or user service is required; only occasional dust removal from the blades and frame is needed.

At what noise level does the fan become noticeable during continuous operation?

The fan runs at 25.0 dB(A) at its rated 850 rpm, and the UFB bearing is designed to keep vibration‑induced noise low even under sustained load.
