Phanteks Glacier EZ-Fit 360 D30 white DIY water-cooling kit with CPU block, reservoir, 360mm radiator, three 120mm fans

Phanteks

Phanteks PH-GEF_KIT360-D30_DWT 360mm DIY cooling

SKU CH-S5J3-E03TP MPN PH-GEF_KIT360-D30_DWT

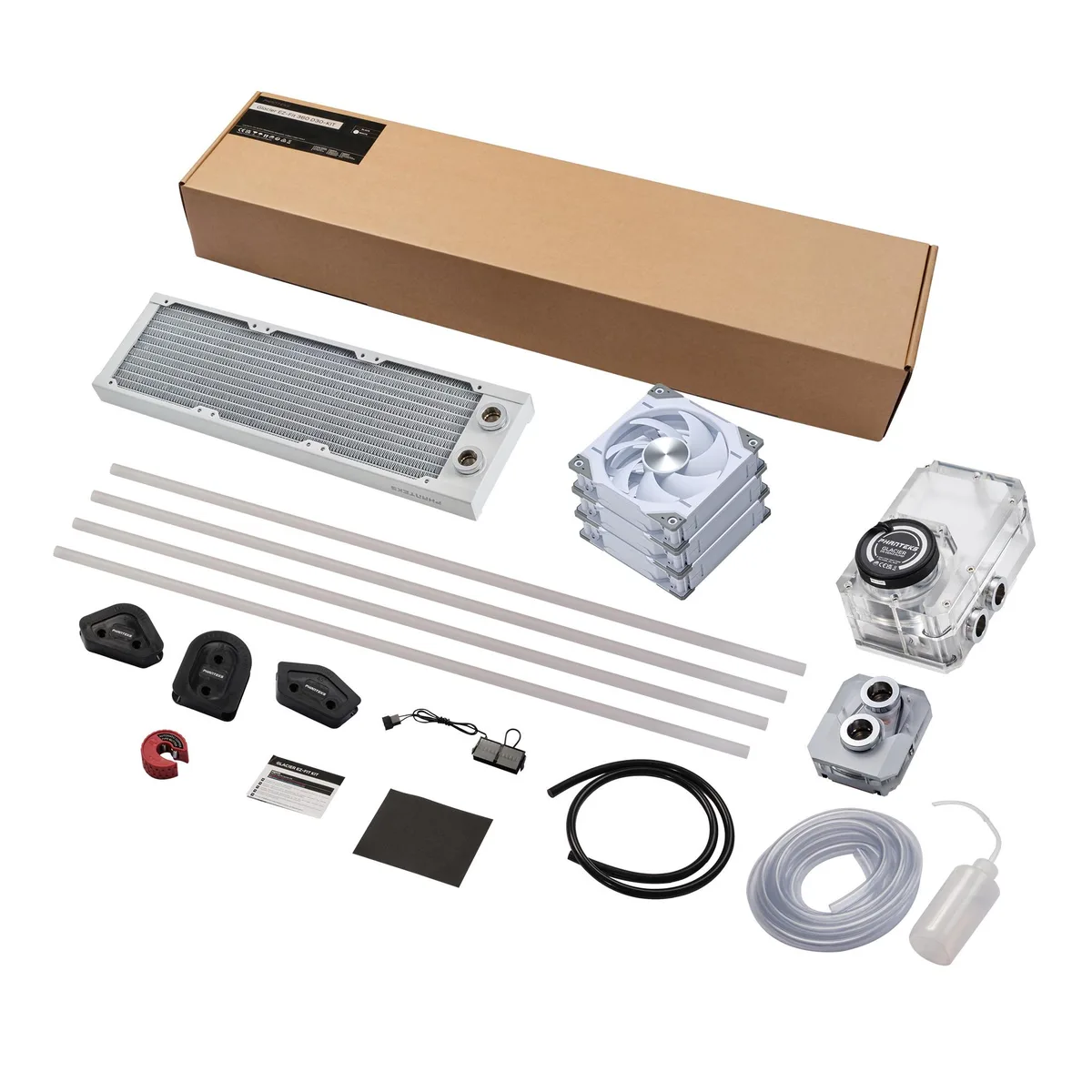

Complete DIY water-cooling kit with 360mm radiator, CPU block, reservoir, three 120mm RGB fans, 3 metres of clear PVC tubing.

  • TypeComplete DIY Water-Cooling Kit
  • Block CompatibilityIntel: LGA 1700 AMD: AM4 /AM5
  • Block Dim.72 x 64 x 25.7mm (2.83 x 2.52 x 1in)
  • Radiator Size360mm
  • Fan Size3 Fan Slots (120 mm)
  • Tube Dim.3 meters
  • Complete kit includes every part for a custom loop

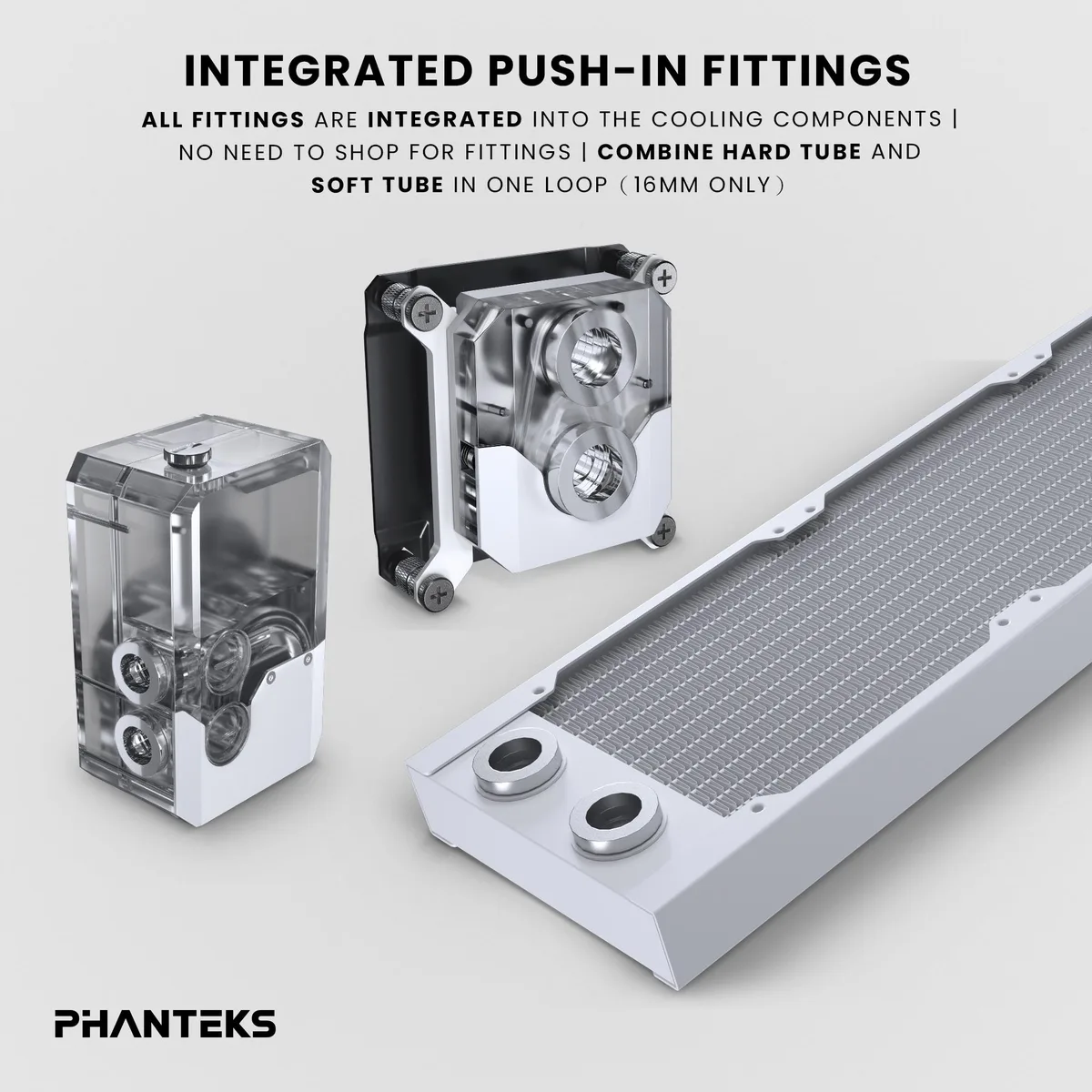

  • Integrated fittings on blocks, radiator and reservoir simplify assembly
  • 360 mm radiator with three 120 mm fans delivers high heat capacity
  • CPU block fits Intel LGA 1700 and AMD AM4/AM5 sockets

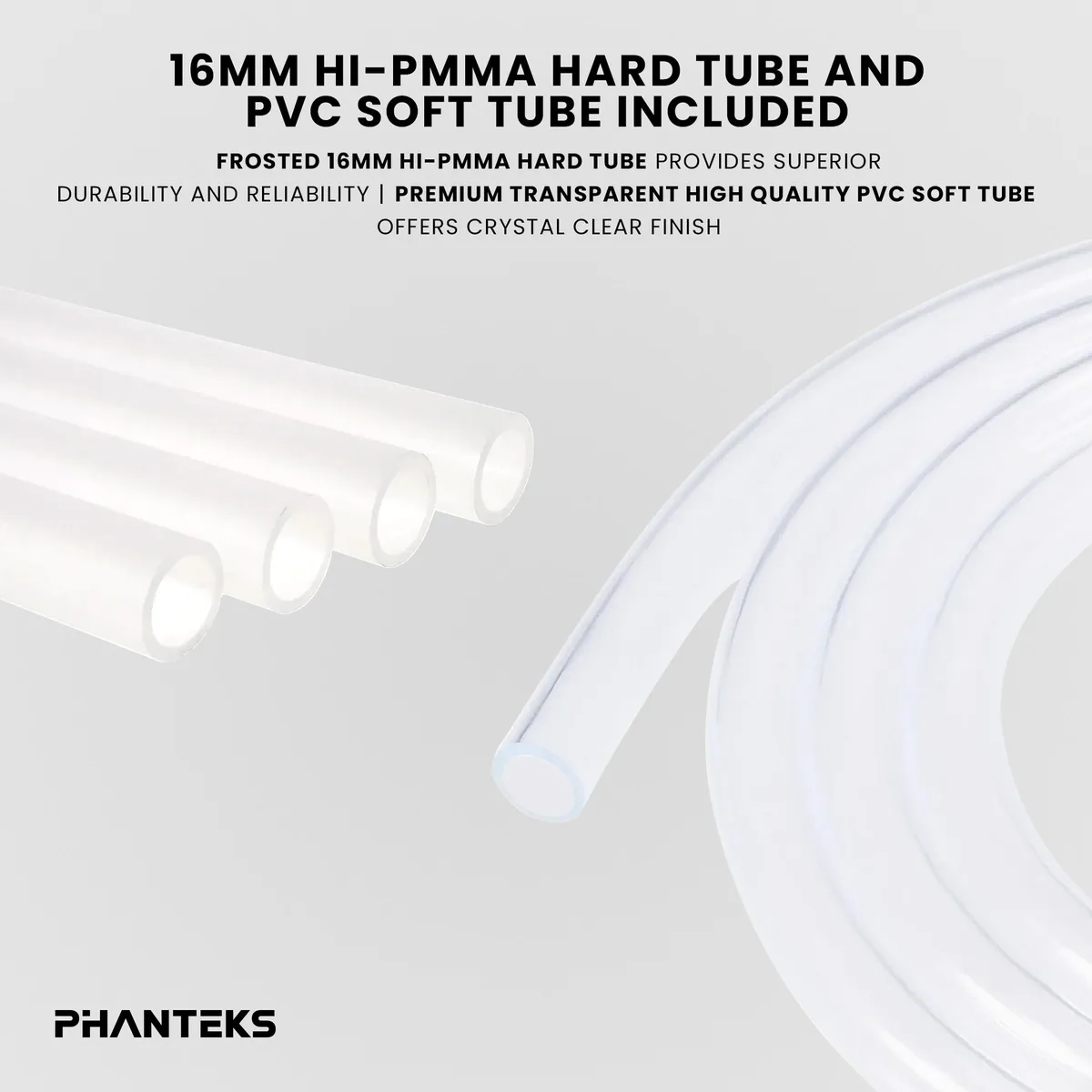

  • Bending tools and 3 m clear PVC tubing enable hard-tube builds

Complete DIY Water-Cooling Kit

The Phanteks Glacier EZ-Fit 360 D30-KIT is a complete DIY water-cooling kit that includes a CPU block, reservoir, 360mm radiator, three 120mm fans, hard tubing and bending tools. It supports Intel LGA 1700 and AMD AM4/AM5 sockets. The white finish and RGB lighting suit builders who want a coordinated aesthetic. Everything required for a custom loop arrives in one box.

Upgrade From Air Or AIO Cooling

This kit replaces stock air coolers or closed-loop AIOs when lower noise and higher thermal headroom are priorities. The jump is worth it if the case fits a 360mm radiator and the builder wants full control over tubing runs. It is not for buyers who need a drop-in solution without case modifications or who prefer maintenance-free cooling.

Installation With Included Tools

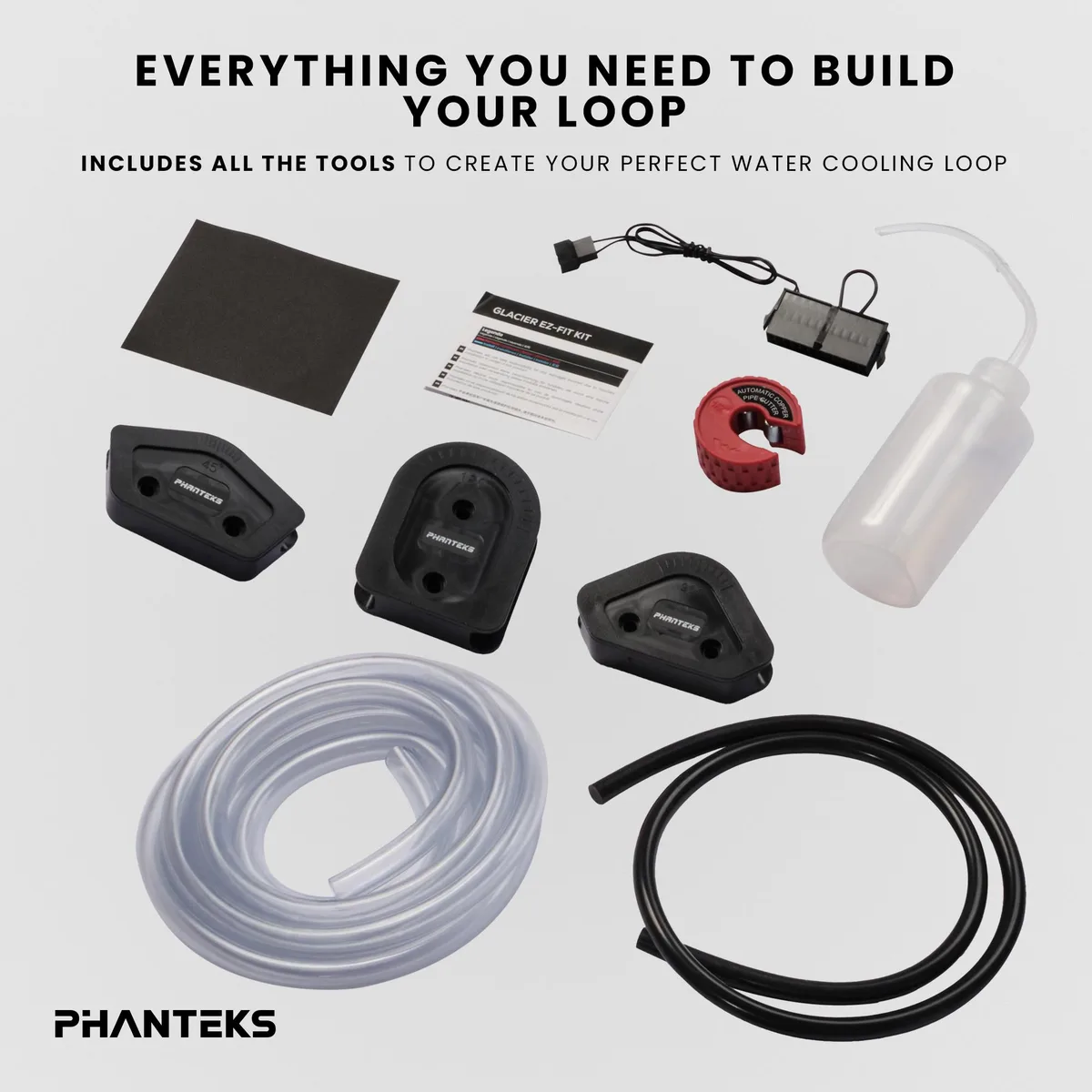

Integrated fittings on the block, radiator and reservoir simplify assembly, while the supplied tube cutter, bending insert, guides and sandpaper help shape the 3 meters of clear PVC tubing. The 24-pin jumper allows pump testing before the system powers on. Common issues include measuring tube lengths incorrectly and leaving air bubbles trapped in the loop.

Highlights

  • Complete kit includes every part for a custom loop
  • Integrated fittings on blocks, radiator and reservoir simplify assembly
  • 360 mm radiator with three 120 mm fans delivers high heat capacity
  • CPU block fits Intel LGA 1700 and AMD AM4/AM5 sockets
  • Bending tools and 3 m clear PVC tubing enable hard-tube builds

Specifications

BrandPhanteks
ModelPH-GEF_KIT360-D30_DWT
TypeComplete DIY Water-Cooling Kit
Block CompatibilityIntel: LGA 1700
AMD: AM4 /AM5
Block Dim.72 x 64 x 25.7mm (2.83 x 2.52 x 1in)
Radiator Size360mm
Fan Size3 Fan Slots (120 mm)
Tube Dim.3 meters
Tube MaterialClear PVC
Package ContentsPH-GEF_RAD363_WT 1x
PH-GEF­_CPU450_DWT 1x
PH-GEF_RES140_DWT 1x
PH-GEF_ST16_CL 1x
PH-GEF_HT16_FR 4x
PH-F120D30_DRGB_PWM_WT01_3P 1x
Tube Cutter 1x
Bending Insert 1x
Bending Guides 1x
Squeeze Bottle 1x
24-Pin Jumper 1x
Sandpaper 1x
Tool Set Manual 1x
GLACIER EZ-FIT KIT Manual 1x
Shipping weight7.33 kg
Package size978 × 406 × 244 mm

Questions about this item

What clearance does the 360mm radiator and 120mm fans need inside my case?

The radiator is 360mm long and uses three 120mm fan slots; verify your case supports a 360mm radiator with 30mm thickness plus fan depth.

How do I bend the 16mm hard tubes without kinking them?

Use the supplied bending insert and guides, heat the clear PVC tube evenly, then bend over the guide; the tube cutter and sandpaper prepare clean ends for the compression fittings.

When should I replace the clear PVC tubing and coolant?

Inspect tubing every 12 months for clouding or plasticiser buildup; drain, flush with distilled water, and refill with fresh coolant at that interval.
