Phanteks
Phanteks PH-P1000G_02 1000W ATX power supply
Fully modular 1000W ATX power supply with 80 PLUS Gold efficiency, a 12VHPWR connector for modern GPUs, hybrid fanless mode and a 120mm fluid dynamic bearing fan
- ColorBlack
- TypeATX
- Maximum Power1000 W

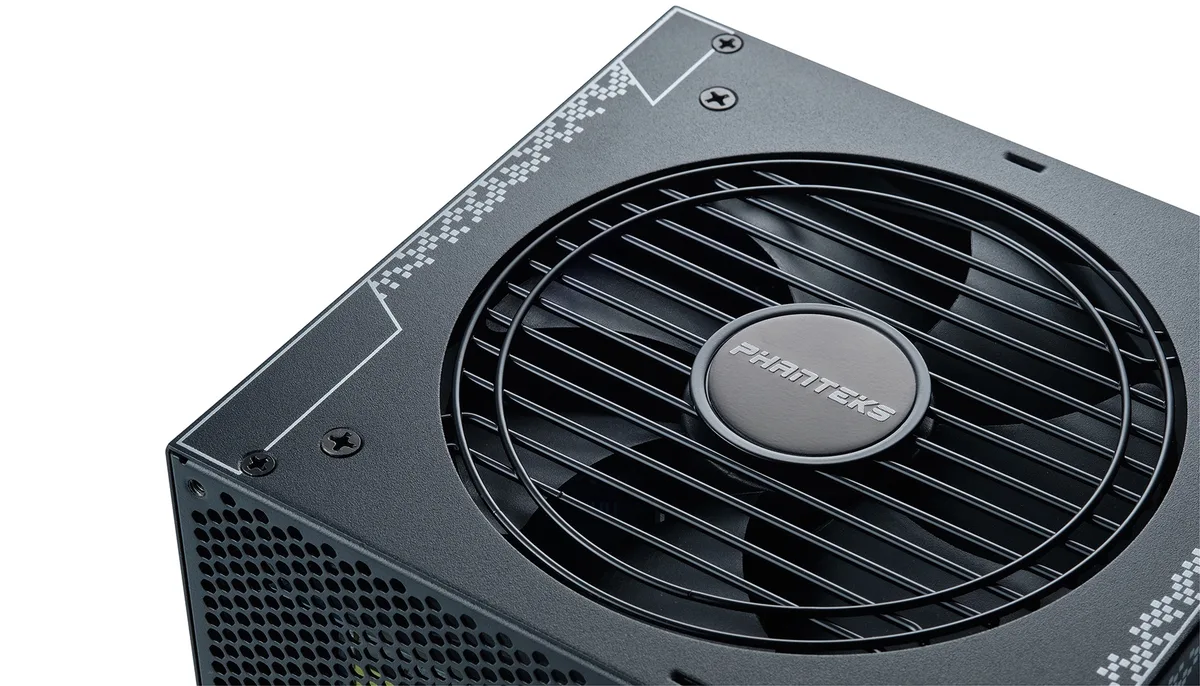

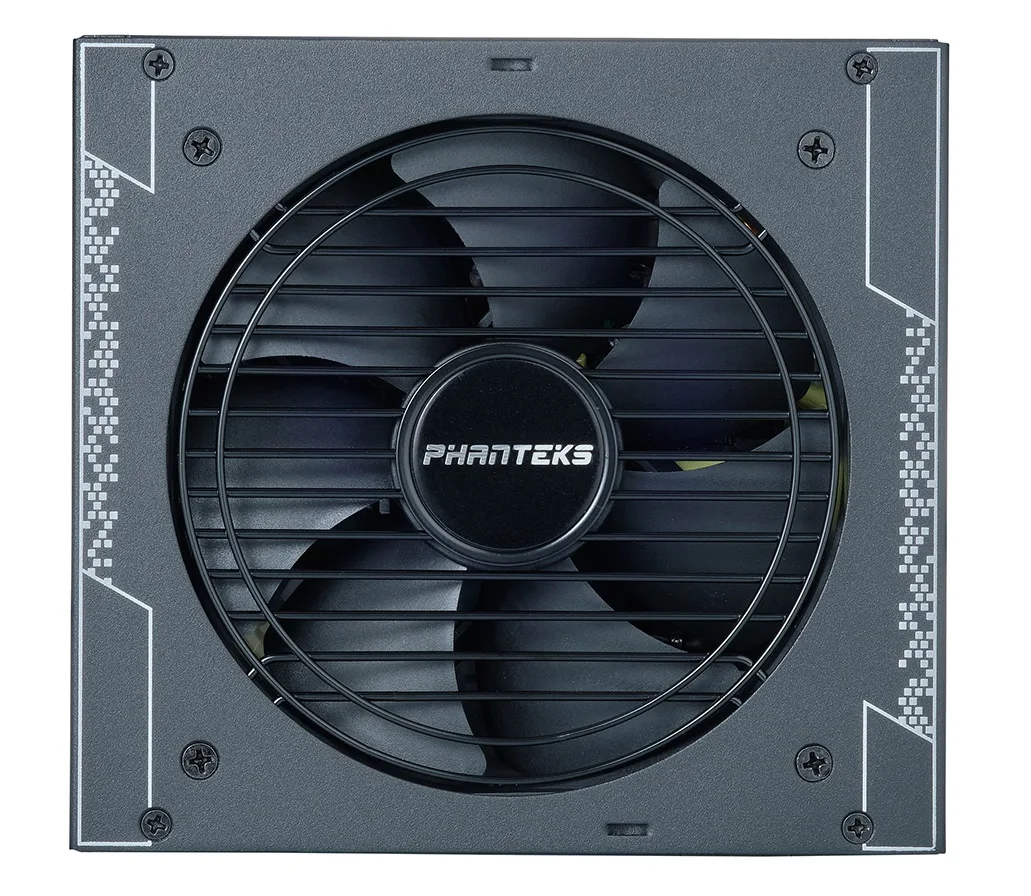

- Fans1 x 120mm Fluid Dynamic Bearing Fan
- Main Connector24Pin
- PCI-Express Connector5 x 6+2-Pin
Options ATX 80+ Gold (1000W) Black

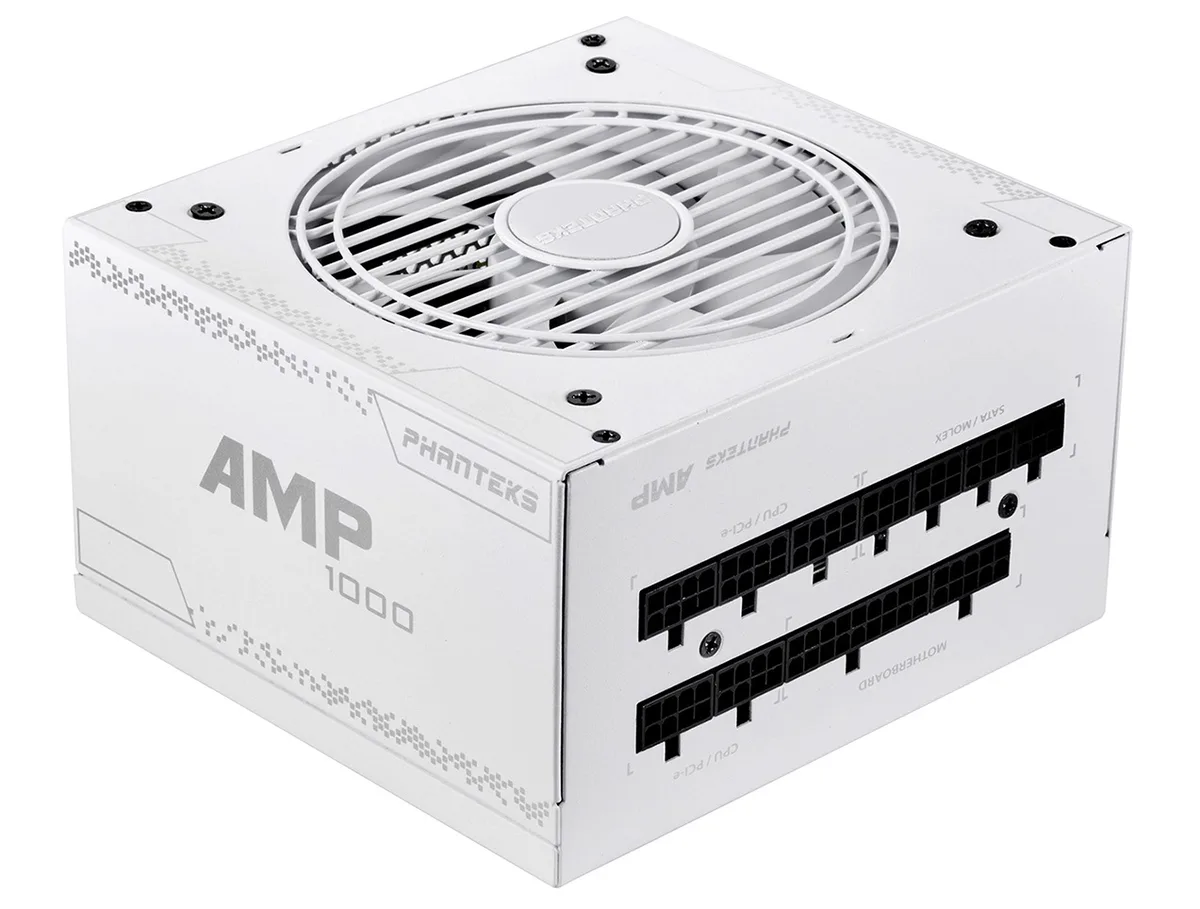

- ATX 80+ Gold (1000W) White
- ATX 80+ Gold (1000W) Black
- Delivers 1000 W for high-end builds
- 80 PLUS Gold efficiency cuts energy waste
- Fully modular 220 mm design simplifies cable routing
- Includes 12VHPWR connector for latest GPUs

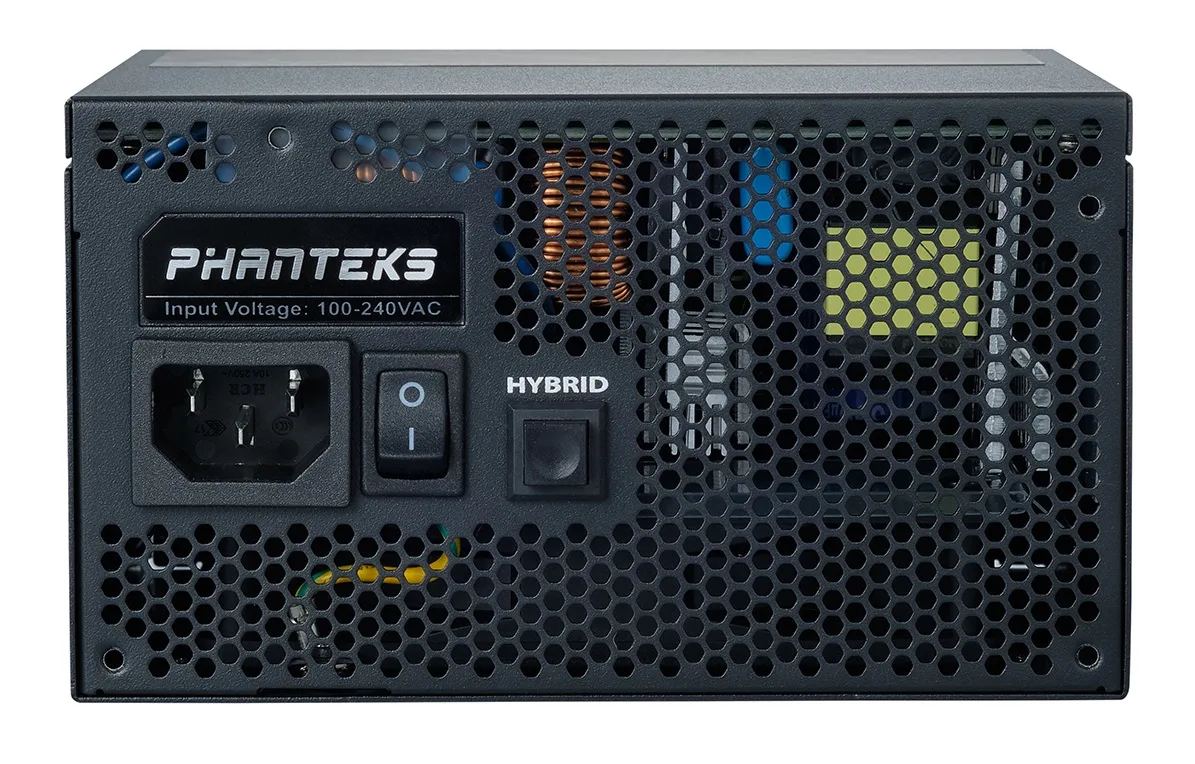

- Hybrid fanless mode keeps operation silent at low load
Phanteks AMP 1000W Gold ATX Unit

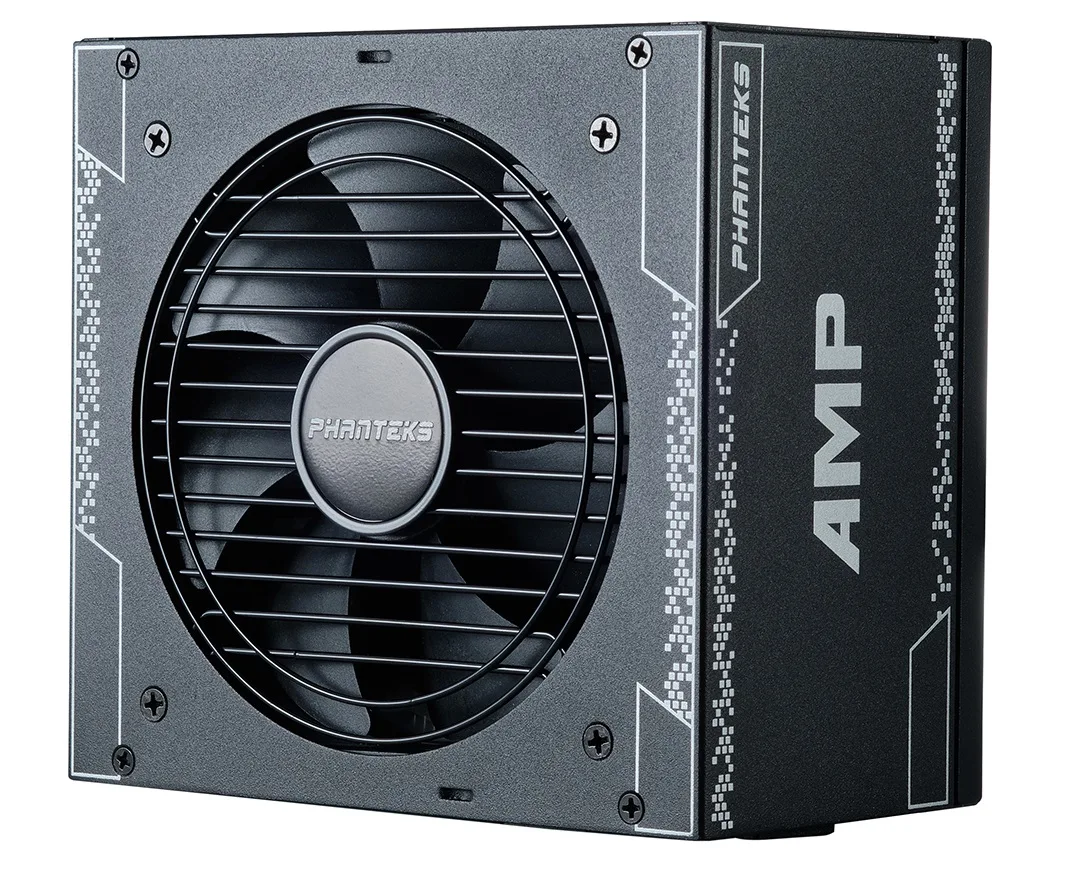

This Phanteks AMP series power supply delivers 1000 W through a fully modular ATX design. It holds 80 PLUS Gold certification and includes a 12VHPWR cable for modern graphics cards. A 120 mm fluid dynamic bearing fan runs in a hybrid mode that stops the fan at low loads. The unit measures 220 mm in length.
Suits Builds Needing 12VHPWR
The 16+4 pin 12VHPWR connector and five 6+2 pin PCIe cables support high-end GPUs without adapters. Two 8-pin CPU cables handle dual EPS boards. Four SATA power connectors serve SSDs and hard drives. Molex and floppy adapters are included for legacy devices. Systems that do not require the 12VHPWR connector or 1000 W output can use a smaller unit.
12VHPWR Cable Included Decides Fit For New GPUs
The boxed 12VHPWR GPU cable (16+4P, 750 mm) is the specification that determines whether this PSU matches a graphics card with a native 12VHPWR port. Without that cable a separate adapter or different power supply would be required. The fully modular layout lets you connect only the cables your build actually needs.
Highlights
- Delivers 1000 W for high-end builds
- 80 PLUS Gold efficiency cuts energy waste
- Fully modular 220 mm design simplifies cable routing
- Includes 12VHPWR connector for latest GPUs
- Hybrid fanless mode keeps operation silent at low load
Specifications
| Brand | Phanteks |
|---|---|
| Series | AMP Series |
| Model | PH-P1000G_02 |
| Color | Black |
| Type | ATX |
| Maximum Power | 1000 W |
| Fans | 1 x 120mm Fluid Dynamic Bearing Fan |
| Main Connector | 24Pin |
| PCI-Express Connector | 5 x 6+2-Pin |
| SATA Power Connector | 4 |
| Max PSU Length | 220 mm |
| Modular | Full Modular |
| Energy-Efficient | 80 PLUS GOLD Certified |
| Protection | OPP (Over Power Protection) OVP (Over Voltage Protection) SCP (Short Circuit Protection) OCP (Over Current Protection) OTP (Over Temperature Protection) No-Load protection Reset Protection |
| Input Voltage | 100 - 240 V |
| Input Frequency Range | 50/60 Hz |
| Input Current | 13- 6.5A |
| Output | 12V@83A, 5V@25A, 3.3V@25A, [email protected] , +5VSB@3A |
| MTBF | >100,000 hrs at 25 degree celsius, excluding DC Fan |

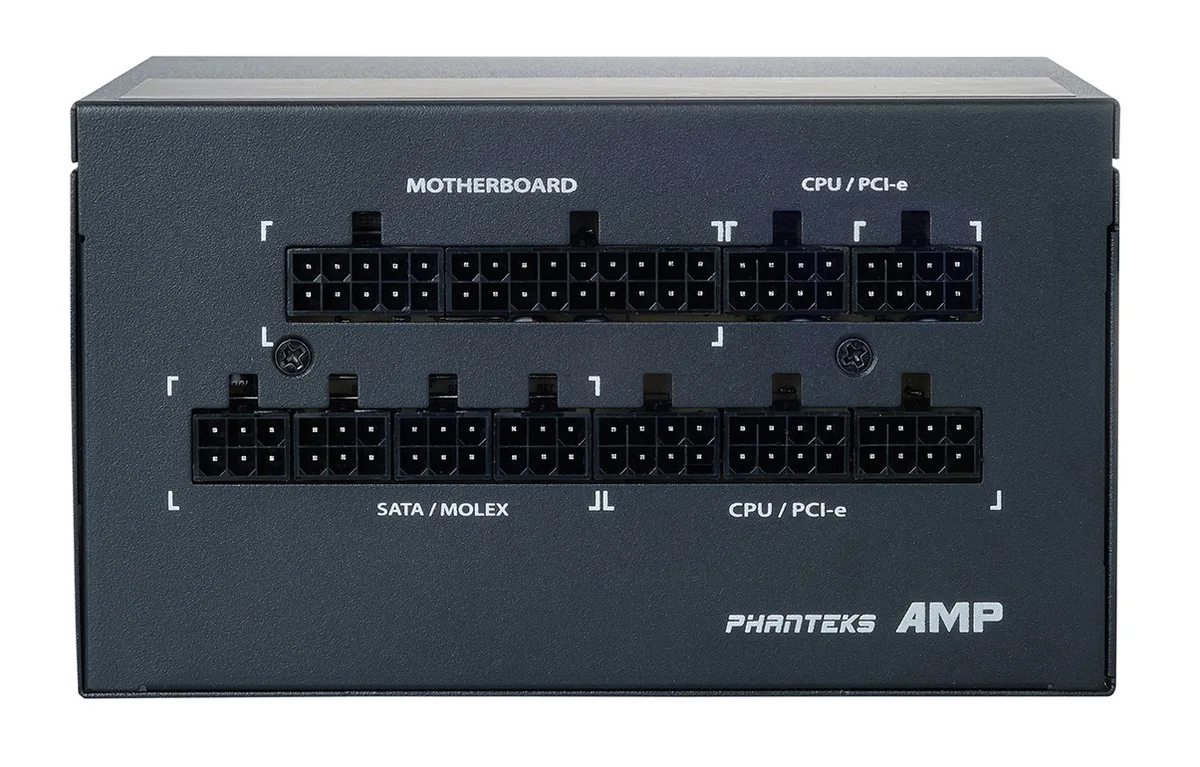

| Connectors | 1x 18Pin+10Pin MB 24P (610mm) 2x 8pin CPU 4+4P (650mm) 1x 12VHPWR GPU 16+4P (750mm) 3x 8pin PCI-E 6+2P/6+2P(750mm-675mm/75mm) 2x 6pin 4SATA 90° (860mm-410mm/150mm/150mm/150mm) 1x 6pin 2SATA 180° (450mm-300/150mm) 1x 6pin 3Molex (690mm-450mm/120mm/120mm) 1x 6pin 2Molex (470mm-350/120mm) 1x 4pin 1Molex to SATA (300-150mm/150mm) |
| Features | - Ultra-High Efficiency, 80 PLUS Gold Certified - Revolt PRO Link Certified - Gold-Plated High Current Terminals - 120mm Fluid Dynamic Bearing Fan - Ultra-High Power Density, Compact Size - Silent Hybrid Fan Control - Multi-GPU Support |
| Dimensions | 5.5" x 5.9" x 3.4" |
| Weight | 3.66 lbs |
| Package Content | 1x PH-P1000G 80+ Gold fully modular Power Supply 1x Power cord 1x User’s manual 1x PSU Bag 1x Cable Bag 1x Zip tie bag 1x Screw Pack 1x Velcro Pack |
| Shipping weight | 3.18 kg |
| Package size | 312 × 184 × 117 mm |
Other versions of this model
1 more in the same range
Same family, different memory, cooler or clock — compare before you commit.
Questions about this item
Does the 220 mm length fit a standard mid-tower case?
At 220 mm the unit is shorter than many 1000 W designs, so it fits most mid-tower cases; check your case manual for the exact PSU clearance.
Can I power a modern GPU that needs the 12VHPWR connector?
Yes, a native 12VHPWR 16+4 pin cable (750 mm) is included in the box.
What does the hybrid fan mode do in practice?
The 120 mm fluid-dynamic-bearing fan stops completely at low load and spins only when temperature rises, giving silent operation during idle.
