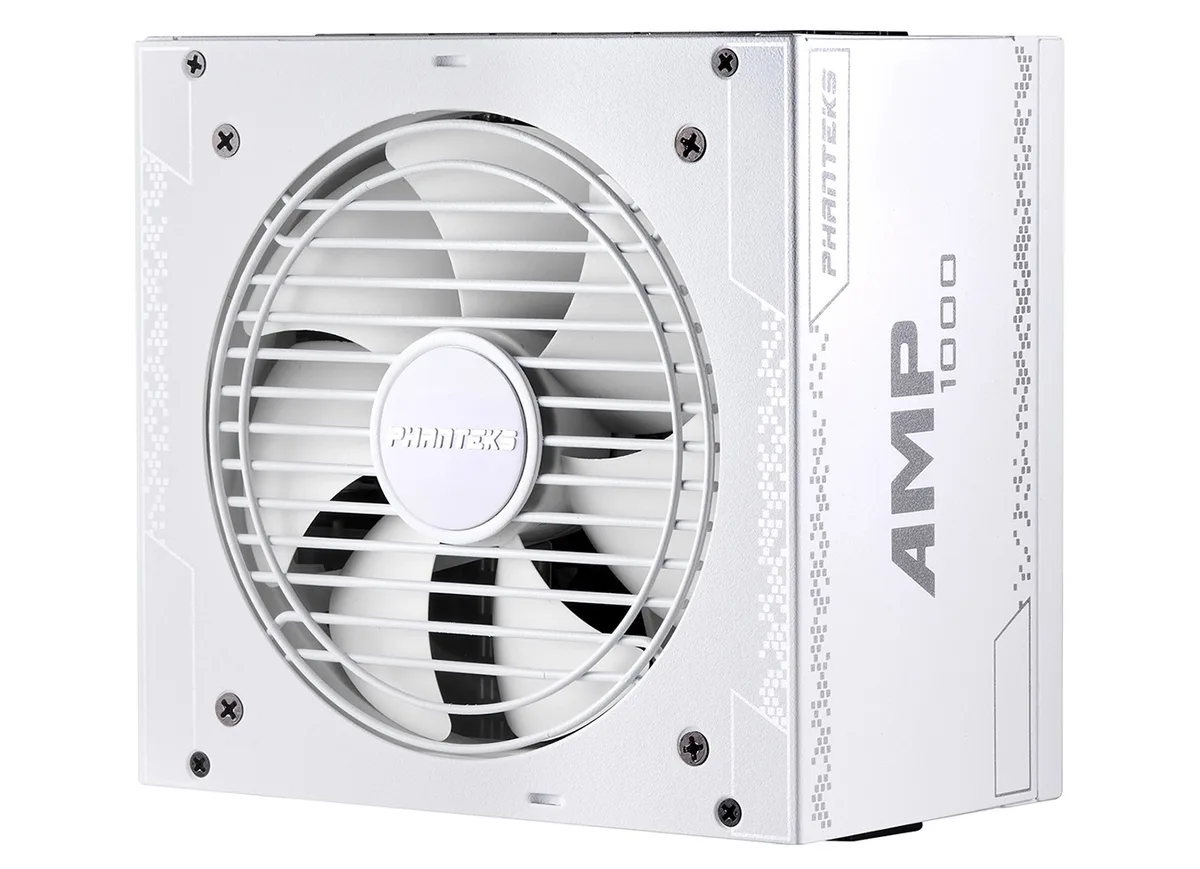

White ATX power supply unit with 120mm fan and modular cable ports

Phanteks

Phanteks PH-P1000G_WT02 1000W ATX power supply

SKU CH-BQEY-ZD2BB MPN PH-P1000G_WT02

Fully modular 1000W ATX unit with 80 PLUS Gold efficiency, a 12VHPWR cable, hybrid fanless mode and Revolt PRO Link certification

  • ColorWhite
  • TypeATX
  • Maximum Power1000 W
  • Fans1 x 120mm Fluid Dynamic Bearing Fan
  • Main Connector24Pin
  • PCI-Express Connector5 x 6+2-Pin

Options ATX 80+ Gold (1000W) White

  • Ready for next-gen graphics with included 12VHPWR connector
  • 80 PLUS Gold efficiency reduces waste heat and running cost
  • Fully modular white-sleeved cables keep the build clean
  • Hybrid fanless mode stops the 120 mm fan at low load
  • Revolt PRO Link certified for redundant or expanded power

1000W Fully Modular ATX Supply

The Phanteks AMP 1000W V2 is a fully modular ATX power supply built for high-performance desktop builds. Its white sleeved cables and compact 220mm length suit clean, space-efficient assemblies. The unit delivers 1000W continuous power with 80 PLUS Gold certified efficiency. A 120mm fluid dynamic bearing fan runs in a hybrid fanless mode at low loads.

12VHPWR And Multi-GPU Connectivity

The supply includes a native 12VHPWR 16+4 pin cable for modern graphics cards alongside three 6+2 pin PCIe connectors. Two 4+4 pin CPU cables and four SATA power connectors handle mainstream storage and peripherals. Full modularity lets builders connect only the cables required for their specific configuration. Input voltage ranges from 100 to 240V at 50 or 60Hz.

Revolt PRO Link Redundancy Upgrade

Revolt PRO Link certification allows the unit to pair with a compatible Phanteks Revolt PRO module for increased output or redundant operation. This jump is worthwhile when a single 1000W unit approaches its limit or when uptime demands a fallback rail. Protection circuits cover over-power, over-voltage, short-circuit, over-current, over-temperature, no-load and reset events. MTBF exceeds 100000 hours at 25°C.

Highlights

  • Ready for next-gen graphics with included 12VHPWR connector
  • 80 PLUS Gold efficiency reduces waste heat and running cost
  • Fully modular white-sleeved cables keep the build clean
  • Hybrid fanless mode stops the 120 mm fan at low load
  • Revolt PRO Link certified for redundant or expanded power

Specifications

BrandPhanteks
SeriesAMP Series
ModelPH-P1000G_WT02
ColorWhite
TypeATX
Maximum Power1000 W
Fans1 x 120mm Fluid Dynamic Bearing Fan
Main Connector24Pin
PCI-Express Connector5 x 6+2-Pin
SATA Power Connector4
Max PSU Length220 mm
ModularFull Modular
Energy-Efficient80 PLUS GOLD Certified
ProtectionOPP (Overpower Protection)
OVP (Over Voltage Protection)
SCP (Short Circuit Protection)
OCP (Over Current Protection)
OTP (Over Temperature Protection)
No-Load protection
Reset Protection
Input Voltage100 - 240 V
Input Frequency Range50/60 Hz
Input Current13- 6.5A
Output12V@83A, 5V@25A, 3.3V@25A, [email protected] , +5VSB@3A
MTBF>100,000 hrs at 25 degree celsius, excluding DC Fan
Connectors1x 18Pin+10Pin MB 24P (610mm)
2x 8pin CPU 4+4P (650mm)
1x 12VHPWR GPU 16+4P (750mm)
3x 8pin PCI-E 6+2P/6+2P(750mm-675mm/75mm)
2x 6pin 4SATA 90° (860mm-410mm/150mm/150mm/150mm)
1x 6pin 2SATA 180° (450mm-300/150mm)
1x 6pin 3Molex (690mm-450mm/120mm/120mm)
1x 6pin 2Molex (470mm-350/120mm)
1x 4pin 1Molex to SATA (300-150mm/150mm)
Features- Ultra-High Efficiency, 80 PLUS Gold Certified
- Revolt PRO Link Certified
- Gold-Plated High Current Terminals
- 120mm Fluid Dynamic Bearing Fan
- Ultra-High Power Density, Compact Size
- Silent Hybrid Fan Control
- Multi-GPU Support
Dimensions5.5" x 5.9" x 3.4"
Weight3.66 lbs
Package Content1x PH-P1000G 80+ Gold fully modular Power Supply
1x Power cord
1x User’s manual
1x PSU Bag
1x Cable Bag
1x Zip tie bag
1x Screw Pack
1x Velcro Pack
Shipping weight3.18 kg
Package size312 × 184 × 117 mm

Other versions of this model

1 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will the 12VHPWR cable reach my GPU in a standard mid-tower case?

The included 12VHPWR cable is 750 mm long which covers most mid-tower layouts

Can I run this unit fanless during light loads?

Hybrid Fanless Mode stops the 120 mm fluid dynamic bearing fan at low temperatures for silent operation

Does the fully modular design include enough SATA connectors for four drives?

Yes the package provides six SATA power plugs across two cables so four drives are supported
