Small green circuit board with black chips and gold edge connector

PNY Technologies, Inc.

PNY Technologies, Inc. CS1030 M280CS1030-1TB-RB 1TB internal SSD

SKU CH-F5R1-50VM5 MPN M280CS1030-1TB-RB

A 1TB M.2 2280 SATA SSD delivering up to 2100 MB/s reads and 1700 MB/s writes for faster boot and application loading

  • Device TypeInternal Solid State Drive (SSD)
  • Used ForConsumer
  • Form FactorM.2 2280
  • Capacity1TB
  • Memory Components3D NAND

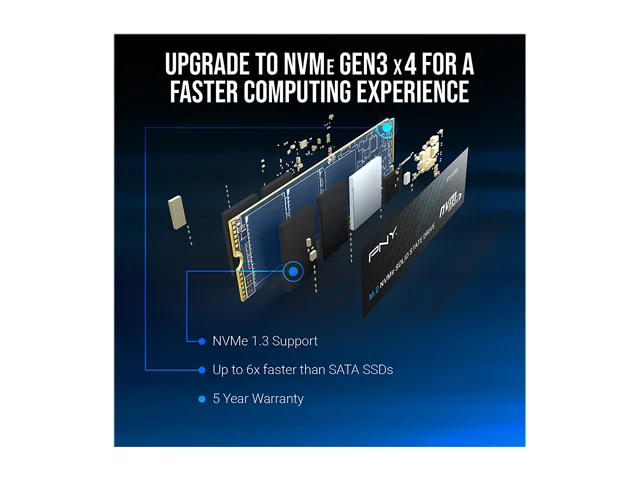

  • InterfacePCI-Express 3.0 x4, NVMe 1.3

Options 1TB CS1030

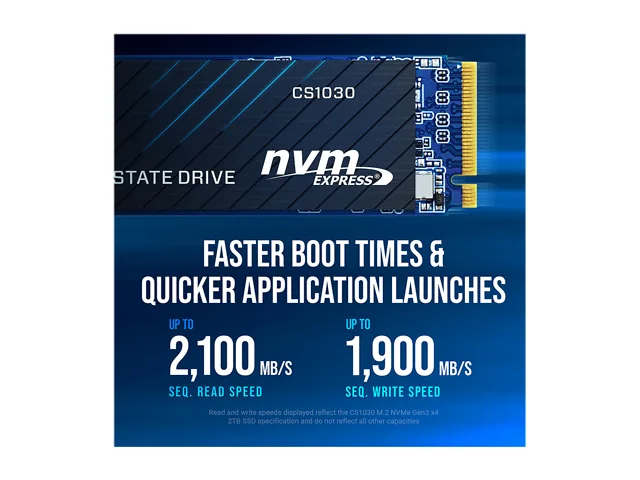

  • Faster boot and app launches with sequential reads up to 2100 MB/s
  • Quicker file saves and transfers with sequential writes up to 1700 MB/s
  • Low power draw extends laptop battery life during demanding workloads
  • No moving parts withstand shocks and vibration for reliable daily use
  • Operates from 0°C to 70°C for stable performance in typical environments

1 TB PCIe 3.0 x4 NVMe SSD

This PNY CS1030 drive brings 1 TB of 3D NAND storage to NVMe enabled laptops and desktops. It replaces a SATA SSD with a PCI Express 3.0 x4 interface that supports NVMe 1.3. Sequential reads reach up to 2100 MBps and writes up to 1700 MBps for faster boot up and quicker application launch.

Thermals noise and power

The drive operates from 0°C to 70°C and can be stored from -40°C to 85°C. With no moving parts it runs silently and draws ultra low power, helping battery life in laptops. The M.2 2280 form factor measures 22.00mm wide, 80.00mm deep and 4.00mm high at 6.60g.

Bundled value

No accessories or software are included in the package. The MTBF rating of 2000000 hours reflects the durability of the 3D NAND components. Buyers who need a heatsink, cloning utility or mounting screw must source those separately.

Highlights

  • Faster boot and app launches with sequential reads up to 2100 MB/s
  • Quicker file saves and transfers with sequential writes up to 1700 MB/s
  • Low power draw extends laptop battery life during demanding workloads
  • No moving parts withstand shocks and vibration for reliable daily use
  • Operates from 0°C to 70°C for stable performance in typical environments

Specifications

BrandPNY
SeriesCS1030
ModelM280CS1030-1TB-RB
Device TypeInternal Solid State Drive (SSD)
Used ForConsumer
Form FactorM.2 2280
Capacity1TB
Memory Components3D NAND
InterfacePCI-Express 3.0 x4, NVMe 1.3
Max Sequential ReadUp to 2100 MBps
Max Sequential WriteUp to 1700 MBps
MTBF2,000,000 hours
FeaturesSequential Read of up to 2,100 MB/s and Write of up to 1,700 MB/s
Faster boot up and quicker application launch
Better overall system performance
Highly durable, with not moving parts and can withstand extreme environments
Low power consumption, cool and quiet operation
Operating Temperature0°C ~ +70°C
Storage Temperature-40°C ~ +85°C
Height4.00mm
Width22.00mm
Depth80.00mm
Weight6.60g
Shipping weight0.03 kg
Package size148 × 100 × 16 mm

Other versions of this model

3 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How do I install the M.2 2280 drive, and what step is often missed?

Insert the drive at an angle into the PCI-Express 3.0 x4 slot, press it flat, and secure it with the motherboard screw; the step often missed is fastening that screw, which keeps the drive from lifting and losing contact.

What maintenance or replacement will the 3D NAND SSD need later?

No mechanical maintenance is required; the drive has no moving parts and a 2,000,000-hour MTBF, so replacement is only needed if the NAND wears out after very heavy write cycles.

What limit appears first during sustained writes on this 1TB model?

The sequential write speed caps at 1700 MBps, and the controller will throttle once the operating temperature reaches 70°C to protect the 3D NAND.
