Green rectangular M.2 2280 circuit board with black chips and gold edge connector

PNY Technologies, Inc.

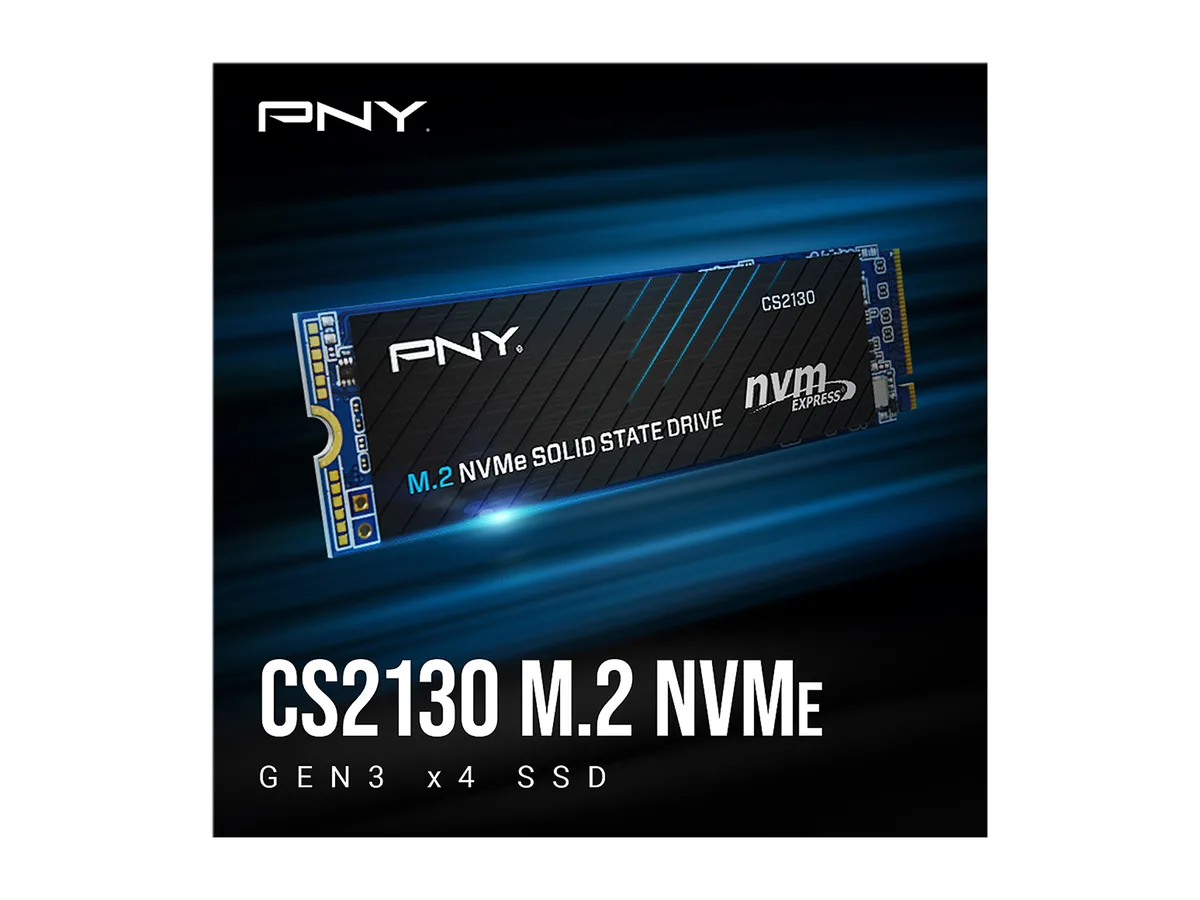

PNY Technologies, Inc. M280CS2130-2TB-RB CS2130 2TB internal SSD

SKU CH-AKQ1-5WJPW MPN M280CS2130-2TB-RB

M.2 2280 2TB NVMe drive with 3D NAND, PCIe 3.0 x4 interface and up to 3500 MB/s read and 3000 MB/s write speeds

  • Device TypeInternal Solid State Drive (SSD)
  • Used ForConsumer
  • Form FactorM.2 2280
  • Capacity2TB
  • Memory Components3D NAND
  • InterfacePCI-Express 3.0 x4, NVMe 1.3

Options 2TB CS2130

  • Sequential read up to 3500 MB/s for fast boot and load times
  • Sequential write up to 3000 MB/s speeds up file saves and installs
  • 3D NAND delivers up to 30 times more robustness than HDDs
  • PCIe 3.0 x4 NVMe 1.3 interface provides high bandwidth and low latency
  • 2,000,000 hours MTBF ensures long-term reliability

CS2130 2TB NVMe drive for SATA replacement

The PNY CS2130 is a 2TB internal SSD in M.2 2280 form factor that uses a PCI-Express 3.0 x4 interface with NVMe 1.3 protocol. It is built with 3D NAND and targets users upgrading from a SATA based solid state drive in an NVMe enabled PC or Mac computer. The drive delivers sequential read speeds up to 3500 MBps and write speeds up to 3000 MBps for faster boot up and quicker application launch.

Sustained load behaviour within thermal limits

Rated for an operating range of 0°C to +70°C, the drive maintains its low power consumption and quiet operation during extended workloads. The 3D NAND memory components provide enhanced reliability rated up to 30 times more robust than HDDs, while the MTBF of 2000000 hours supports consistent performance without a heatsink under typical consumer sustained write patterns.

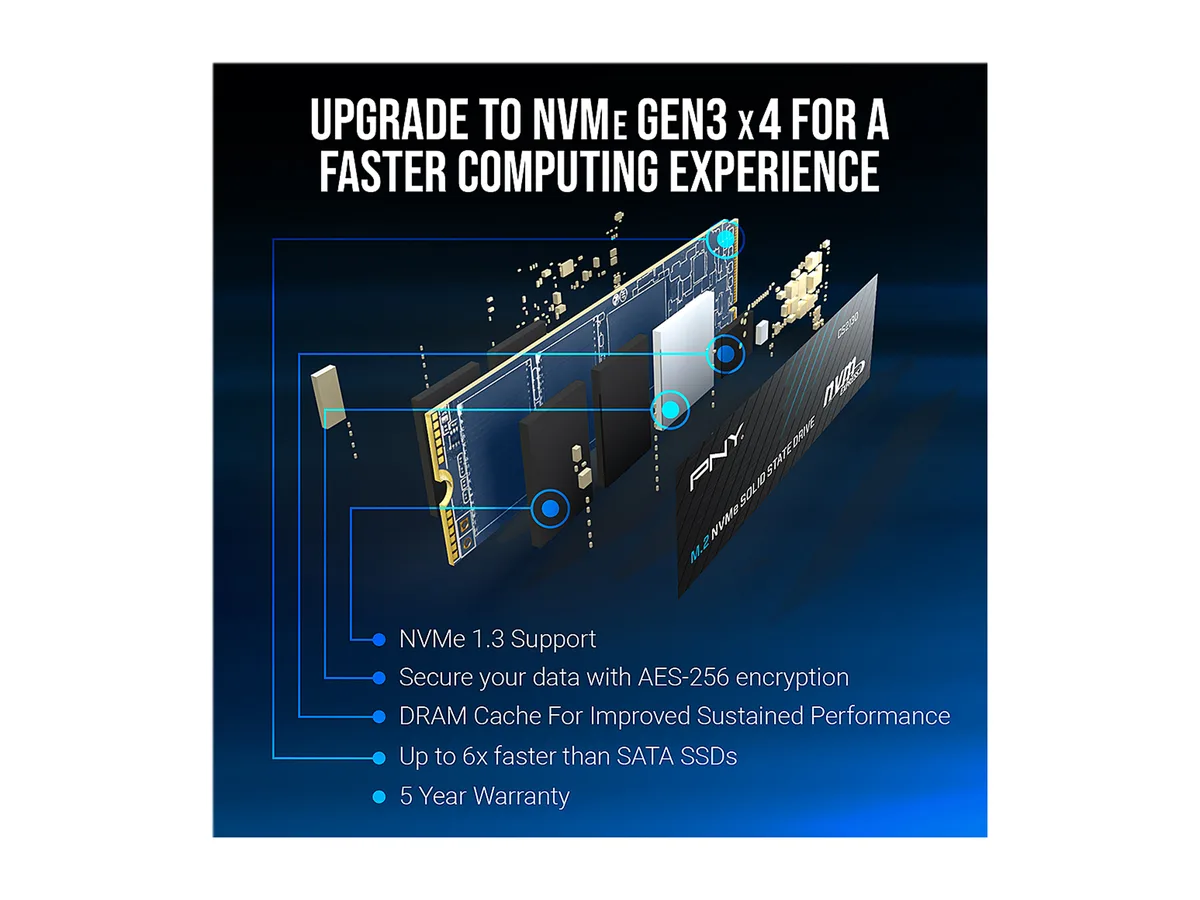

Upgrade path from SATA SSD to NVMe Gen3 x4

This model replaces a SATA based solid state drive when the host system has an M.2 slot wired for PCI-Express 3.0 x4 NVMe operation. The jump is worth it when the platform can use the NVMe protocol to achieve up to 6 times the performance of SATA SSDs, delivering super-fast OS boot times and application loads for demanding applications and high-end games.

Highlights

  • Sequential read up to 3500 MB/s for fast boot and load times
  • Sequential write up to 3000 MB/s speeds up file saves and installs
  • 3D NAND delivers up to 30 times more robustness than HDDs
  • PCIe 3.0 x4 NVMe 1.3 interface provides high bandwidth and low latency
  • 2,000,000 hours MTBF ensures long-term reliability

Specifications

BrandPNY
SeriesCS2130
ModelM280CS2130-2TB-RB
Device TypeInternal Solid State Drive (SSD)
Used ForConsumer
Form FactorM.2 2280
Capacity2TB
Memory Components3D NAND
InterfacePCI-Express 3.0 x4, NVMe 1.3
Max Sequential ReadUp to 3500 MBps
Max Sequential WriteUp to 3000 MBps
MTBF2,000,000 hours
HeatSinkwithout HeatSink
FeaturesSequential Read of up to 3,500 MB/s and Write of up to 3,000 MB/s
Faster boot up and quicker application launch
Better overall system performance
Reliable storage
Low power consumption, cool and quiet operation
Operating Temperature0°C ~ +70°C
Storage Temperature-40°C ~ +85°C
Height4.00mm
Width22.00mm
Depth80.00mm
Weight6.60g
Shipping weight1.56 kg
Package size147 × 99 × 15 mm

Other versions of this model

3 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How much power does the CS2130 2TB draw and does it run hot during all-day use?

The drive is designed for low power consumption with cool and quiet operation and an operating temperature range of 0°C to 70°C.

What slot and protocol must my motherboard provide for this M.2 2280 drive?

It requires an M.2 2280 slot wired for PCI-Express 3.0 x4 with NVMe 1.3 support.

Will this NVMe SSD work in a laptop that currently uses a SATA M.2 drive?

No, the CS2130 uses the NVMe protocol over PCI-Express 3.0 x4 and is not compatible with SATA-only M.2 slots.
