Black dual-fan ATX graphics card, 240 mm long, 2-slot design

PowerColor

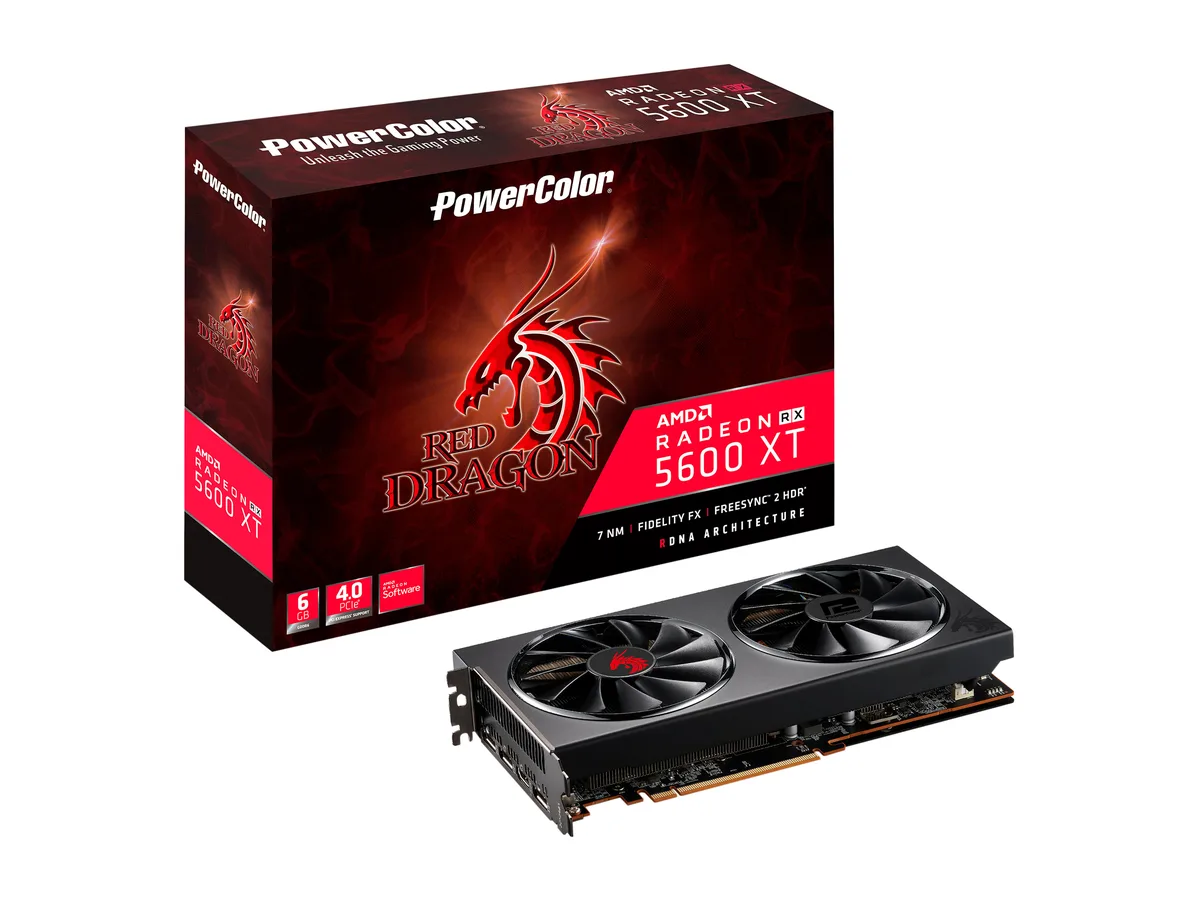

PowerColor 5600XT 6GBD6-3DHR/OC graphics card

SKU CH-H280-0KFZZ MPN 5600XT 6GBD6-3DHR/OC

Refurbished Radeon RX 5600 XT graphics card with 6GB GDDR6 memory on a 192-bit bus, 1560 MHz game clock, 1620 MHz boost clock, and 2304 stream processors

  • InterfacePCI Express 4.0
  • Chipset ManufacturerAMD
  • GPU SeriesAMD Radeon RX 5600 Series
  • GPURadeon RX 5600 XT
  • Core Clock1560 MHz
  • Boost Clock1620 MHz
  • 0 Gbps GDDR6 memory keeps textures sharp at high settings
  • 6 GB 192-bit frame buffer handles 1080p and 1440p workloads
  • 1560 MHz game clock and 1620 MHz boost clock sustain smooth frame rates
  • Three DisplayPort and one HDMI port drive up to 4096 x 2160 resolution
  • PCI Express 4.0 interface and 160 W TDP fit standard ATX builds

Ready for 1440p gaming

The PowerColor RED DRAGON Radeon RX 5600 XT delivers 6GB of GDDR6 memory on a 192-bit bus with a 14.0 Gbps effective clock. Its 2304 stream processors run at a 1560 MHz game clock and 1620 MHz boost clock over a PCI Express 4.0 interface. This card targets smooth 1440p play in modern titles.

Check power and space first

Your power supply must provide at least 500W and an available 8-pin PCIe connector for the 160W board. The dual-slot, ATX-form-factor card measures 240 mm in length, so verify case clearance before ordering. A motherboard with a PCIe 4.0 slot ensures full bandwidth, though the card works in 3.0 slots at reduced speed.

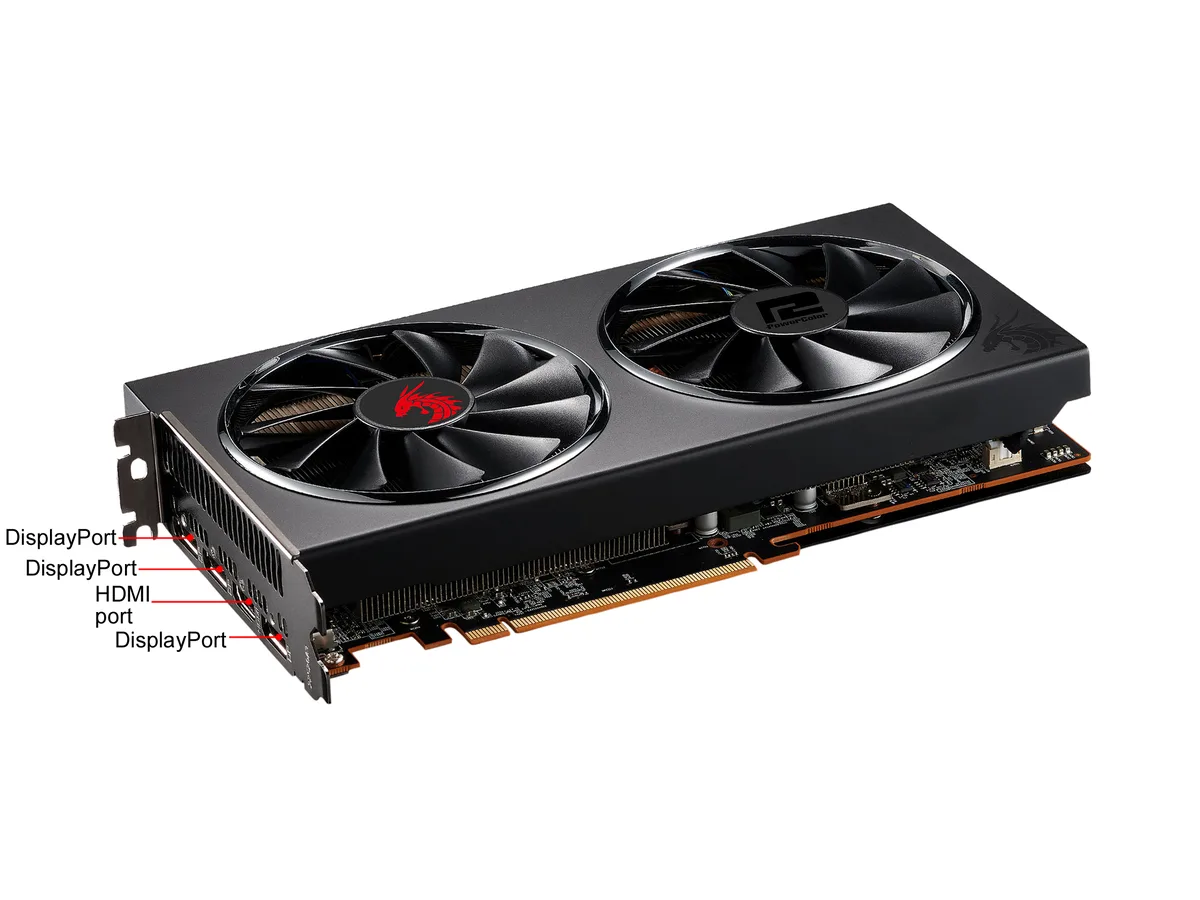

Dual-fan cooler and four outputs

The black shroud houses two fans that exhaust heat inside the chassis, so case airflow matters. One HDMI and three DisplayPort connectors support up to 4096 x 2160 resolution across multiple monitors. Radeon FreeSync 2 HDR and VR readiness are included for variable-refresh gaming and headset compatibility.

Highlights

  • 0 Gbps GDDR6 memory keeps textures sharp at high settings
  • 6 GB 192-bit frame buffer handles 1080p and 1440p workloads
  • 1560 MHz game clock and 1620 MHz boost clock sustain smooth frame rates
  • Three DisplayPort and one HDMI port drive up to 4096 x 2160 resolution
  • PCI Express 4.0 interface and 160 W TDP fit standard ATX builds

Specifications

BrandPowerColor
SeriesRED DRAGON
ModelAXRX 5600XT 6GBD6-3DHR/OC
InterfacePCI Express 4.0
Chipset ManufacturerAMD
GPU SeriesAMD Radeon RX 5600 Series
GPURadeon RX 5600 XT
Core Clock1560 MHz
Boost Clock1620 MHz
Stream Processors2304
Effective Memory Clock14.0 Gbps
Memory Size6GB
Memory Interface192-Bit
Memory TypeGDDR6
DirectXDirectX 12
OpenGLOpenGL 4.6
HDMI1 x HDMI
DisplayPort3 x DisplayPort
ColorBlack
Max Resolution4096 x 2160
Eyefinity SupportYes
CrossFireX SupportYes (support DirectXR12/Vulkan)
Virtual Reality ReadyYes
CoolerDouble Fans
Thermal Design Power160W
System RequirementsMinimum System Power Requirement: 500W
Power Connector8-Pin
FeaturesMicrosoft Windows 10 Support
PCIe 4.0 Support
Radeon FreeSync 2 HDR
RX 5600 GDDR6 Memory
Vulkan ‍👉Check gaming pc with Windows 11 Pro
Form FactorATX
Max GPU Length240 mm
Card Dimensions (L x H)9.45" x 4.65"
Slot Width2 Slots
Shipping weight1.22 kg
Package size381 × 292 × 84 mm

Questions about this item

What comes with the PowerColor RED DRAGON Radeon RX 5600 XT and what must I buy separately?

The card includes one HDMI and three DisplayPort outputs, a dual-fan cooler occupying two slots, and requires an 8-pin power connector; you must supply a power supply rated at least 500 W and a PCI Express 4.0 slot

Which version of the Radeon RX 5600 XT should I choose based on the listed specifications?

This model provides 6 GB of GDDR6 memory on a 192-bit bus running at 14.0 Gbps, a game clock of 1560 MHz and a boost clock of 1620 MHz with 2304 stream processors

What does the 1620 MHz boost clock mean once the card is installed in a real system?

The 1620 MHz boost clock is the peak frequency the GPU can reach under load, paired with 14.0 Gbps memory and 2304 stream processors to deliver 1080p and 1440p gaming performance within a 160 W thermal design power
