Brass 60-degree rotary elbow fitting male female G 1/4in

PrimoChill

PrimoChill 60 Degree SX Rotary Elbow Fitting G 1/4in Male Female diy cooling

SKU CH-E56S-X8NGS

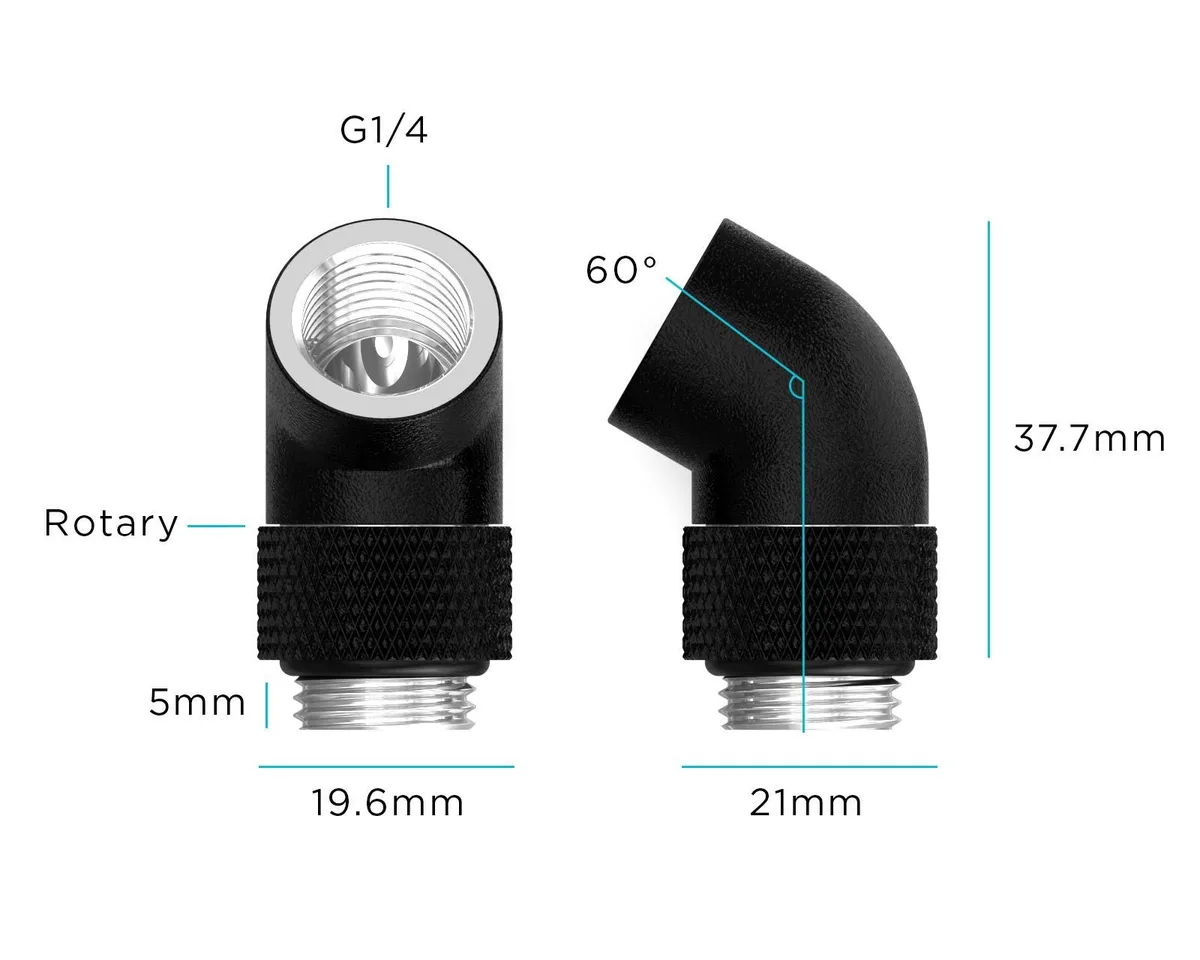

A 60-degree rotary elbow fitting redirects custom-loop tubing at unconventional angles with a coated brass body and G 1/4 male-to-female threads

  • TypeCPU Block

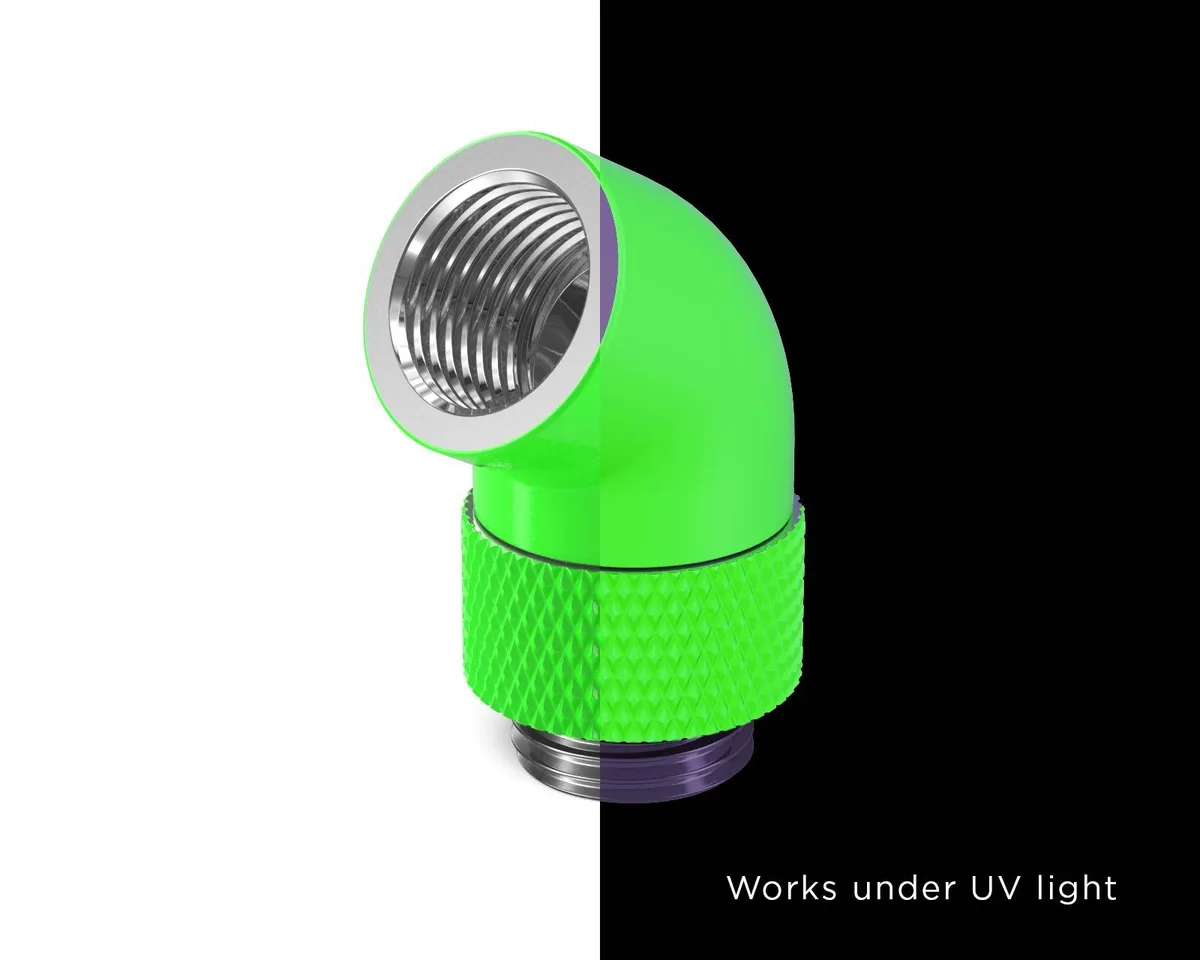

Option UV Green

Show 10 more configurations

Struck-through versions exist but are not stocked here.

  • Redirects tubing runs at unconventional angles with 60-degree rotary elbow
  • Rotary function aims connection in any direction 60 degrees from mount
  • Coated brass construction provides durable corrosion-resistant fitting
  • Male and female G 1/4 threads ensure standard water-cooling compatibility
  • Includes installed O-ring on male threaded side for immediate seal

Quick 60° Loop Redirect

This PrimoChill rotary elbow fitting changes a G 1/4 male port into a female port angled 60 degrees from the mount. The SX rotary joint lets you aim the connection in any direction before tightening, making tight tubing runs around components straightforward. Coated brass construction resists corrosion inside custom water-cooling loops.

Rotary Freedom With One Seal

The fitting ships with an O-ring already installed on the male threaded side so you can assemble the loop immediately. Rotary action removes the need to calculate exact bend radii for hard tubing or fight kinks in soft tubing. A pressure valve elsewhere in the loop is advised because the moving joint can, on rare occasions, dislodge and break the seal if disturbed.

For Builders Needing Angular Flexibility

This suits custom-loop builders who must route tubing at unconventional angles around graphics cards, reservoirs or motherboard heatsinks. It is not for installers who want a permanent rigid joint with zero maintenance, nor for loops that cannot accommodate a pressure valve or periodic joint checks.

Highlights

  • Redirects tubing runs at unconventional angles with 60-degree rotary elbow
  • Rotary function aims connection in any direction 60 degrees from mount
  • Coated brass construction provides durable corrosion-resistant fitting
  • Male and female G 1/4 threads ensure standard water-cooling compatibility
  • Includes installed O-ring on male threaded side for immediate seal

Specifications

TypeCPU Block

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will the coated brass material or the installed O-ring on the male G 1/4 thread need replacement over time?

The coated brass body is durable for long-term loop use. The installed O-ring on the male G 1/4 thread is a wear item; keep spares and replace it if you see weeping or during routine loop maintenance.

What is the first limit that appears when the rotary joint is adjusted repeatedly under pressure?

The 60-degree rotary joint can dislodge if moved often, which disengages the seals. The manufacturer advises pressing the joints back in, rotating them, then pressure-testing before reuse.

How much heat or noise does this fitting add when the loop runs continuously?

The fitting adds no noise and negligible heat; it is a passive brass adapter. The only operational concern is the rotary seal — use a pressure valve and check for leaks after any repositioning.
