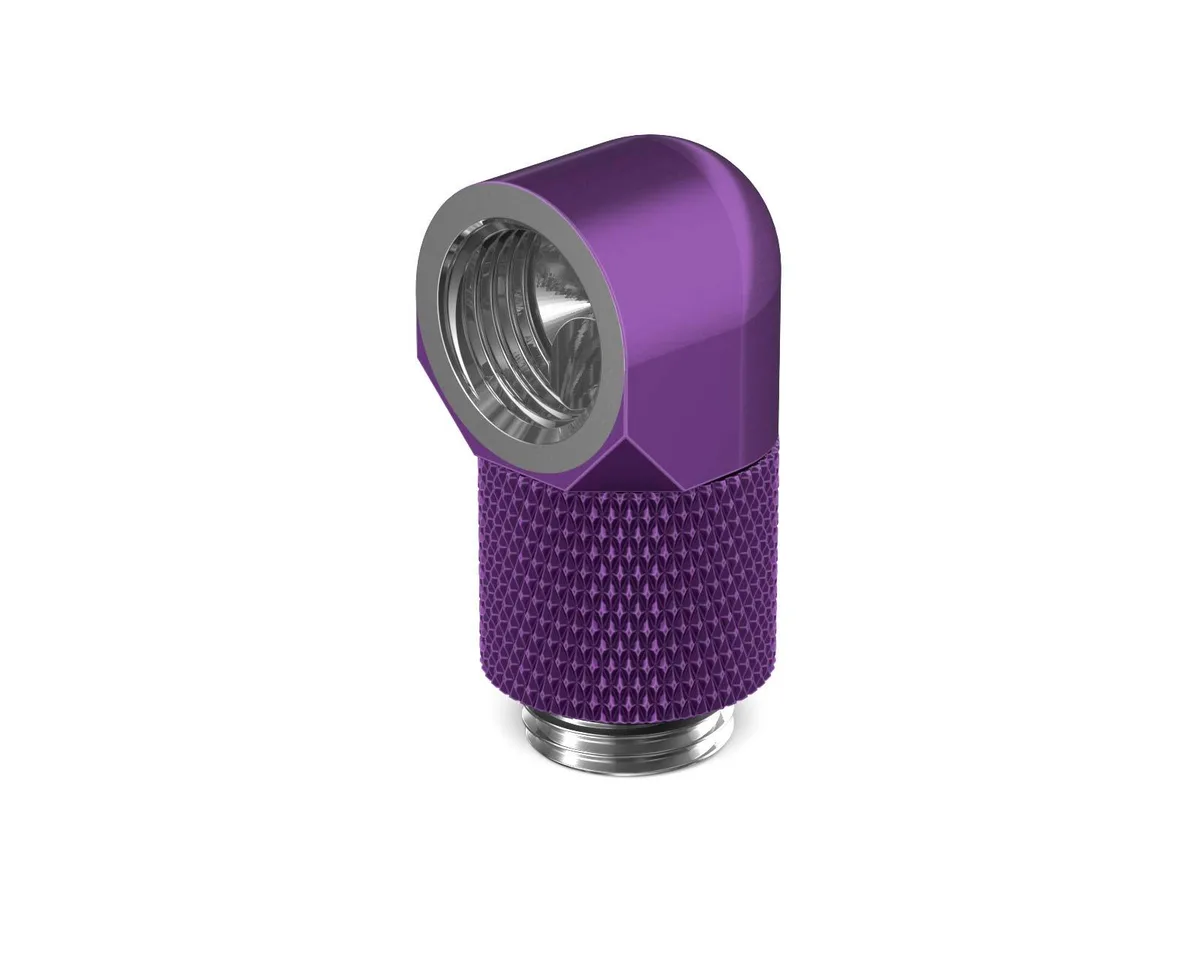

Candy purple brass 90 degree rotary elbow fitting with 15mm extension

PrimoChill

PrimoChill G1/4 90° Rotary 15mm Extension Elbow Fitting Candy Purple

SKU CH-KZPJ-N28J1

A G1/4 rotary elbow fitting with 15 mm extension and 360-degree swivel for tight liquid-cooling loops

  • TypeFittings
  • 360° rotary lets you aim the connection in any direction
  • 90° elbow redirects tubing runs away from components at unconventional angles
  • 15 mm extension adds clearance when nearby parts block a straight fitting
  • Brass construction with SX powder-coated finish in Candy Purple
  • Installed base height of 15 mm keeps the loop profile low

Direction change for custom loops

This G1/4 rotary elbow lets builders reroute tubing 90 degrees from the port while adding a 15 mm stand-off. The 360 degree swivel means the outlet can face any angle without stressing the connected fitting.

Clearance and reach

The 15 mm extension lifts the run clear of neighbouring blocks or reservoirs when a straight coupling would hit them. Total height is 37.7 mm with 5 mm of thread engagement so the installed base sits 15 mm above the port face.

Rotary seal alignment

The brass body rotates freely through 360 degrees after tightening so the final orientation is set by hand, not by thread timing. Builders who need a fixed-angle elbow without rotation should choose a non-rotary model instead.

Highlights

  • 360° rotary lets you aim the connection in any direction
  • 90° elbow redirects tubing runs away from components at unconventional angles
  • 15 mm extension adds clearance when nearby parts block a straight fitting
  • Brass construction with SX powder-coated finish in Candy Purple
  • Installed base height of 15 mm keeps the loop profile low

Specifications

TypeFittings

Questions about this item

Will the G1/4 thread on this 90° rotary elbow fit the existing G1/4 ports on my older radiator and pump?

Yes, the fitting uses standard G1/4 threads on both male and female ends, so it connects directly to any component with matching G1/4 ports.

How can I verify the 360° rotary joint is moving freely after I install it in the loop?

With the system off, gently twist the female end; it should rotate smoothly through the full 360° range without binding, letting you aim the 90° bend as needed.

Does the box include any extra O-rings or sealing washers, or do I need to buy them separately?

The package contains only the single brass elbow fitting with its pre-installed seals; no spare O-rings or washers are supplied.
