Qnap
Qnap TS-432PXU-2G-US 4-bay rackmount NAS 2GB DDR4 2×10GbE 2×2.5GbE
A 1U rackmount NAS with four drive bays, dual 10GbE and dual 2.5GbE ports, quad-core ARM processor and 2GB DDR4 memory expandable to 16GB
- Port RJ-452 x 10GbE + 2 x 2.5GbE
- Port USBUSB 3.2 Gen 1 port: 4
- HDD Interface4 x SATA (4 x Bay)
- Form Factor4-Bay
- ProcessorAnnapurnaLabs Alpine AL324 64-bit ARM® Cortex-A57 4-core 1.7
- Installed Memory2GB
- Quad-core ARM processor at 1.7 GHz powers multi-tasking NAS workloads
- Dual 10GbE SFP+ ports deliver high-speed network throughput
- Dual 2.5GbE RJ-45 links provide faster-than-gigabit connectivity
- Four drive bays support up to 88 TB raw capacity
- Memory expandable to 16 GB via DDR4 SODIMM slot

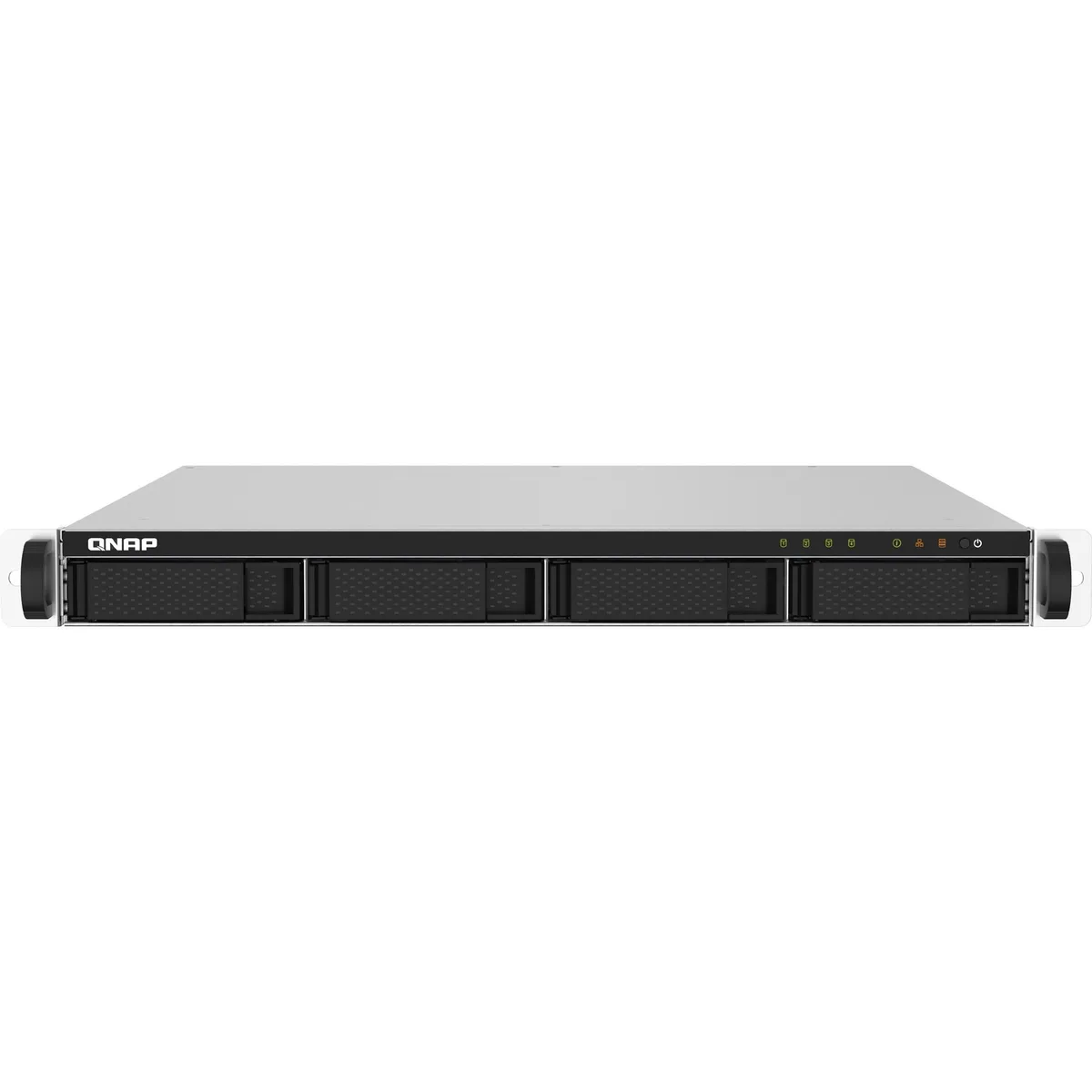

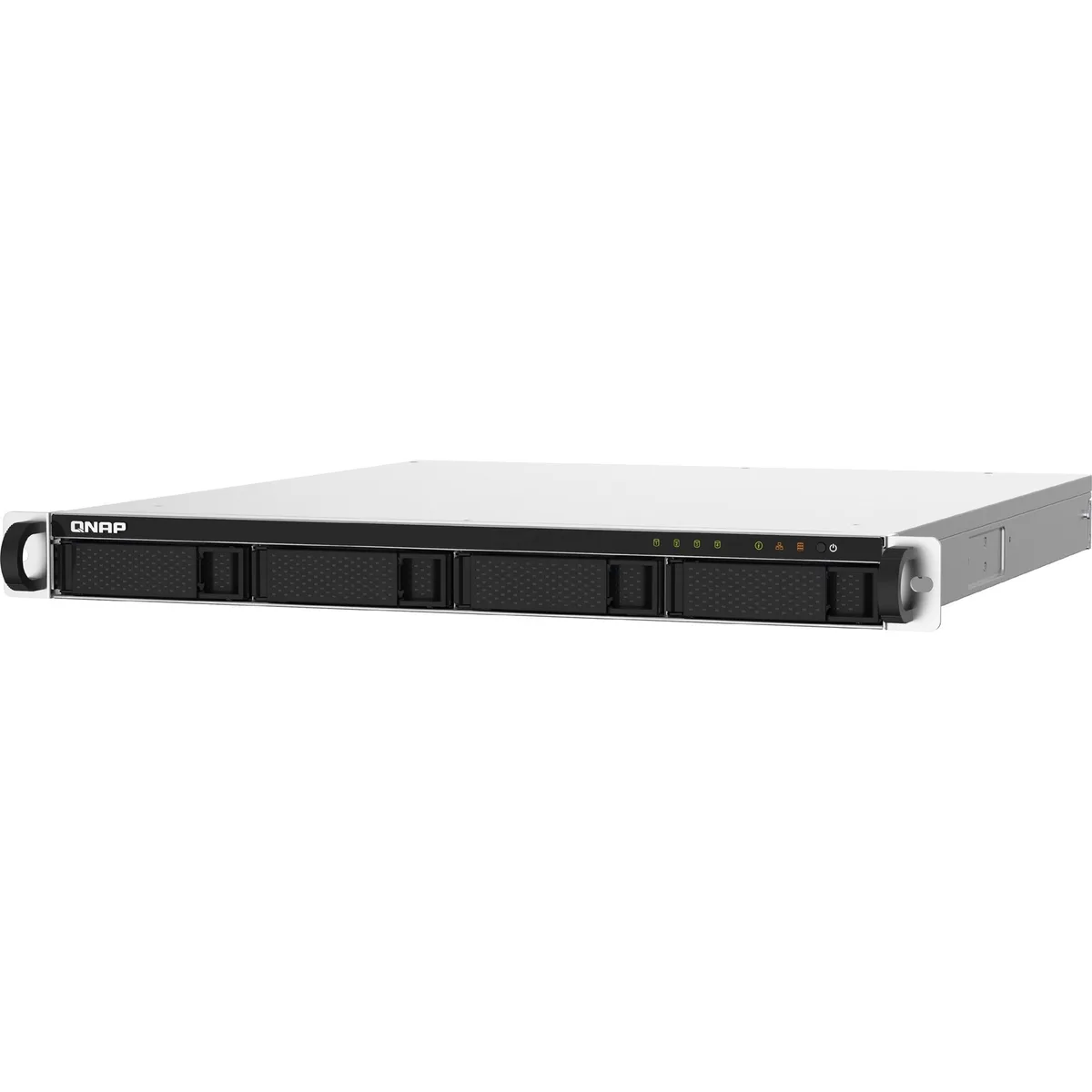

4-bay 1U rackmount NAS
The Qnap TS-432PXU-2G-US is a 1U rackmount network-attached storage server with four SATA drive bays. It runs on an AnnapurnaLabs Alpine AL324 quad-core ARM Cortex-A57 processor at 1.7GHz with 2GB of installed DDR4 memory. The unit includes a 250W power supply and operates at a typical 39.558W.
Network connectivity and expansion

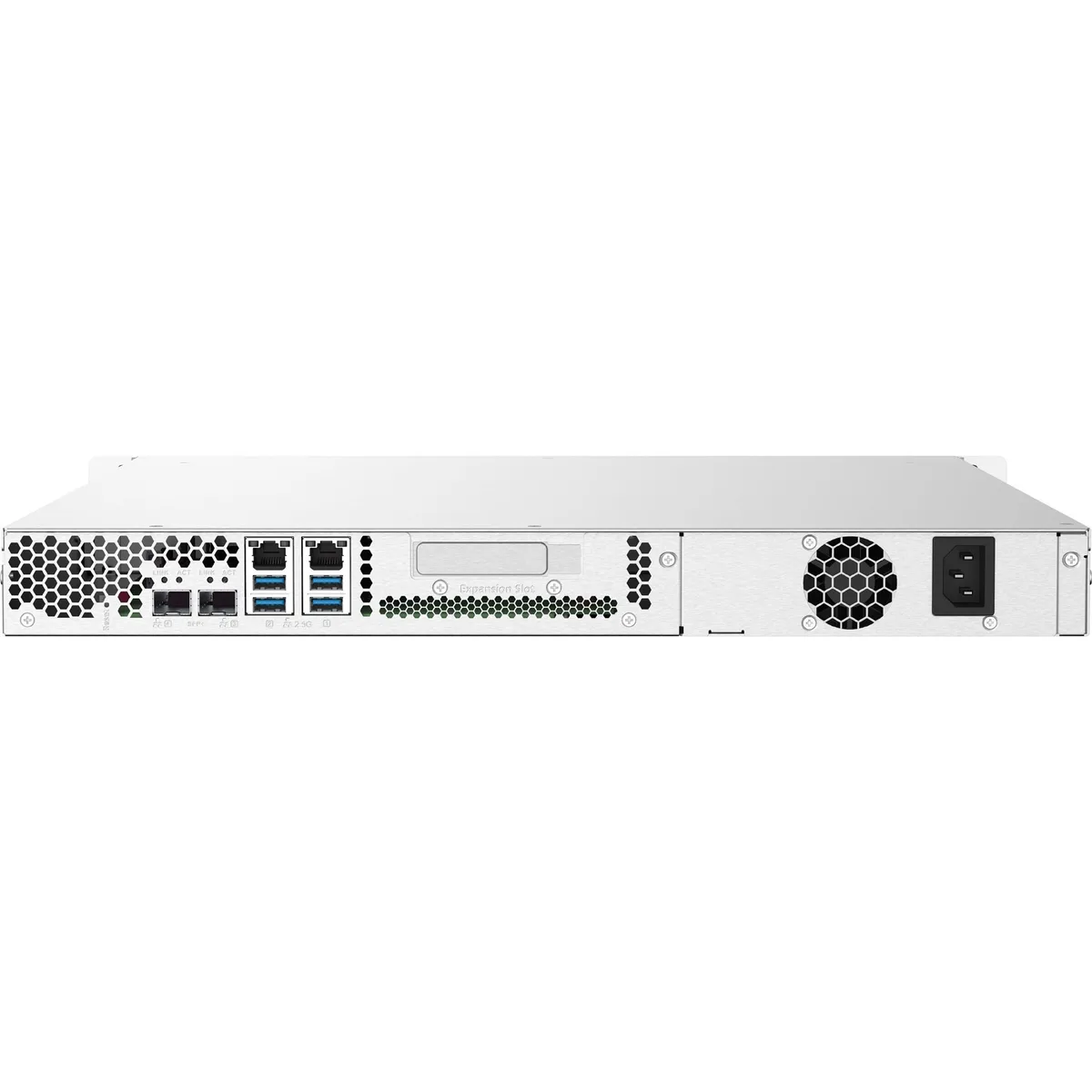

Two 10GbE RJ-45 ports and two 2.5GbE RJ-45 ports provide high-speed wired networking for backup and media streaming. Four USB 3.2 Gen 1 ports allow direct attachment of external drives or peripherals. A single PCIe Gen2 x2 slot is available for add-in cards such as additional network adapters. Builds that require 10GbE SFP+ transceivers or a redundant power supply cannot use this model.
DDR4 SODIMM memory limit
The system ships with 2GB of DDR4 RAM in one SODIMM slot and supports a maximum of 16GB total capacity. Buyers planning virtualisation workloads or heavy multi-user access should budget for a memory upgrade before deployment.
Highlights
- Quad-core ARM processor at 1.7 GHz powers multi-tasking NAS workloads
- Dual 10GbE SFP+ ports deliver high-speed network throughput
- Dual 2.5GbE RJ-45 links provide faster-than-gigabit connectivity
- Four drive bays support up to 88 TB raw capacity
- Memory expandable to 16 GB via DDR4 SODIMM slot
Specifications
| Brand | QNAP |
|---|---|
| Model | TS-432PXU-2G-US |
| Port RJ-45 | 2 x 10GbE + 2 x 2.5GbE |
| Port USB | USB 3.2 Gen 1 port: 4 |
| HDD Interface | 4 x SATA (4 x Bay) |
| Form Factor | 4-Bay |
| Processor | AnnapurnaLabs Alpine AL324 64-bit ARM® Cortex-A57 4-core 1.7GHz processor |
| Installed Memory | 2GB |
| Max Memory Capacity | 16GB |
| Memory Slot | 1 x DDR4 SODIMM |
| Included HDD Capacity | Diskless System |
| Max Capacity | 88TB |
| Drive Compatibility | 3.5-inch SATA hard disk drives 2.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
| LEDs | HDD 1-4, Status, LAN, Storage expansion |
| Power | 250W PSU, 100 - 240V |
| Power Consumption | Operating Mode, Typical 39.558 W |
| Usage | Backup & stream media through personal cloud |
| Temperature | Operating Temperature 0 - 40 °C (32°F - 104°F) Storage Temperature -20 - 70°C (-4°F - 158°F) |
| Humidity | 5-95% RH non-condensing, wet bulb: 27°C (80.6°F) |
| Dimensions | 44 × 439 × 499 mm |
| Weight | Weight (Net) 6.53 kg Weight (Gross) 9.53 kg |
| Shipping weight | 9.21 kg |
| Package size | 660 × 616 × 165 mm |
Questions about this item
What bandwidth does the 10GbE RJ-45 interface cap at?
Each of the two 10GbE RJ-45 ports caps at ten gigabits per second.
Which drive form factors fit the four bays?
The four bays accept 3.5-inch SATA hard drives, 2.5-inch SATA hard drives and 2.5-inch SATA solid state drives.
How is a memory upgrade installed and what step is often missed?
Power off the NAS, open the chassis, insert one DDR4 SODIMM module into the single slot, close the chassis and power on; the step often missed is fully seating the module until the retention clips click.
