Qnap
Qnap TS-832PXU-RP-4G-US 2U 8-bay rackmount NAS 4GB DDR4
An 8-bay 2U rackmount NAS with dual 10GbE SFP+ and dual 2.5GbE ports, redundant power supplies, and 4GB DDR4 memory expandable to 16GB
- Port RJ-452 x 10GbE + 2 x 2.5GbE
- HDD Interface8 x SATA (8 x Bay)
- Form Factor8-Bay
- ProcessorAnnapurnaLabs Alpine AL324 64-bit ARM® Cortex-A57 4-core 1.7
- Installed Memory4GB
- Max Memory Capacity16GB
- Quad-core ARM processor handles heavy multi-user workloads
- 2 x 10GbE and 2 x 2.5GbE ports deliver high-speed network throughput
- Redundant 250W power supplies keep the system running during a PSU failure
- 8 drive bays support up to 176TB of raw SATA storage
- 4GB DDR4 installed, expandable to 16GB via one DIMM slot
Eight-bay rackmount NAS for multi-user environments

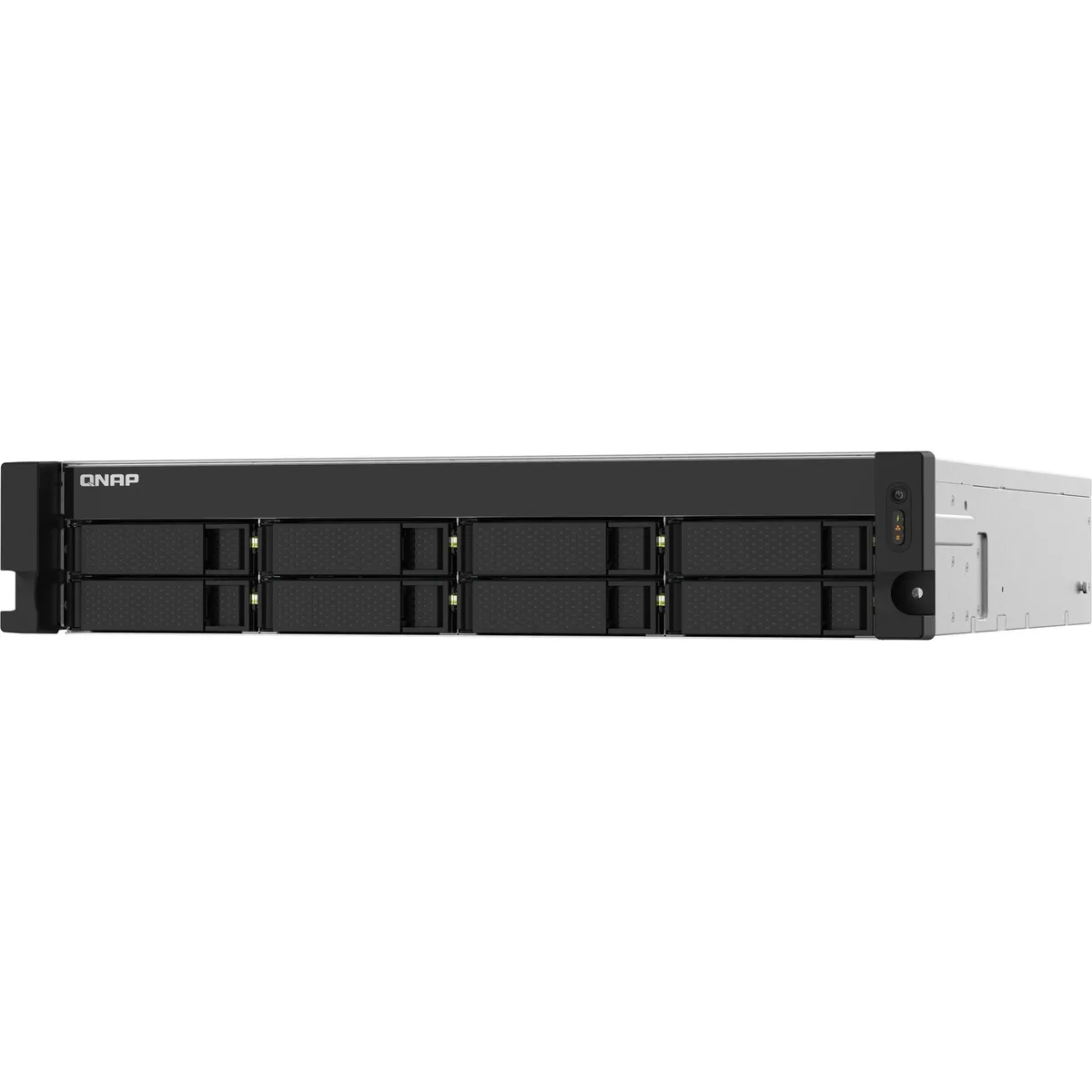

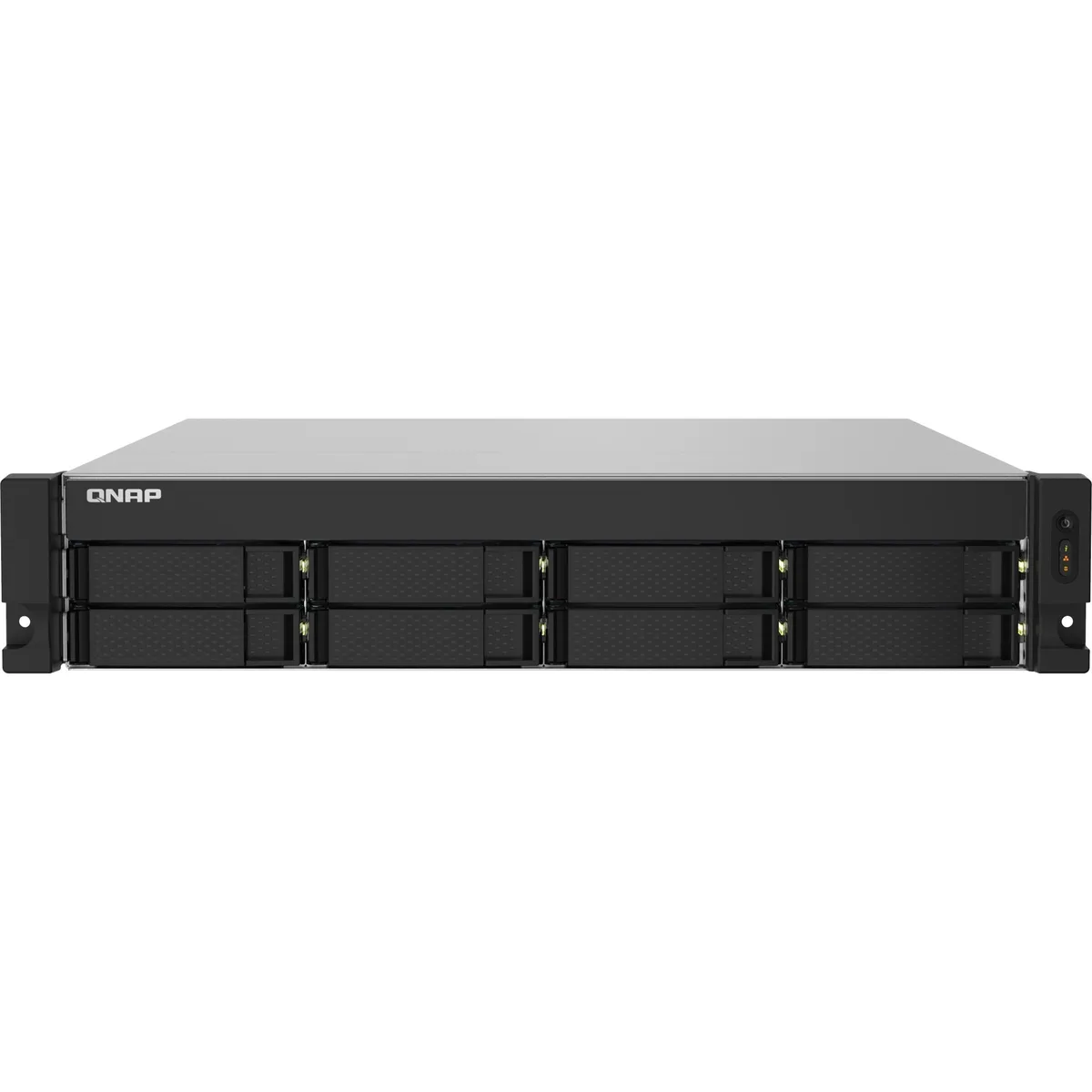

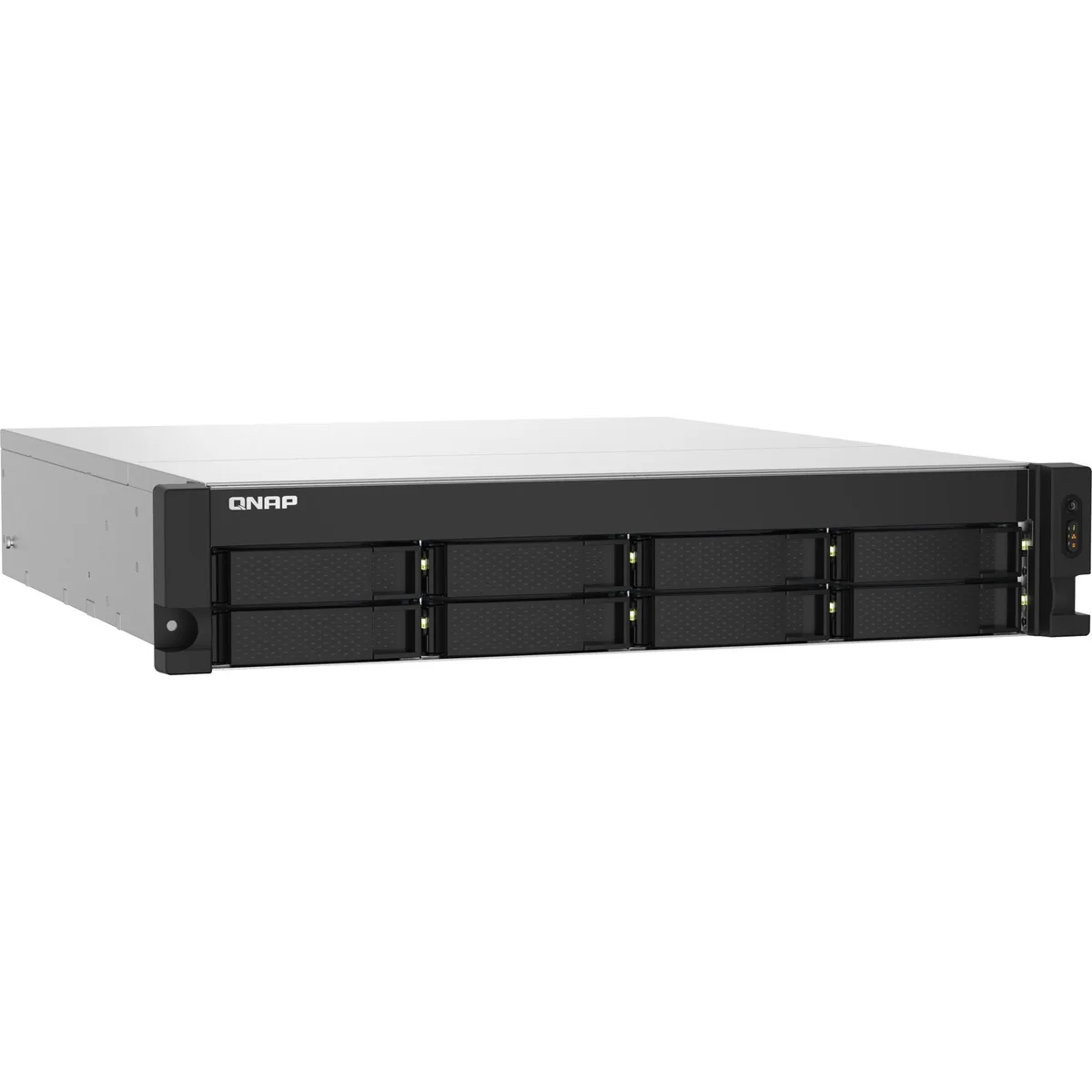

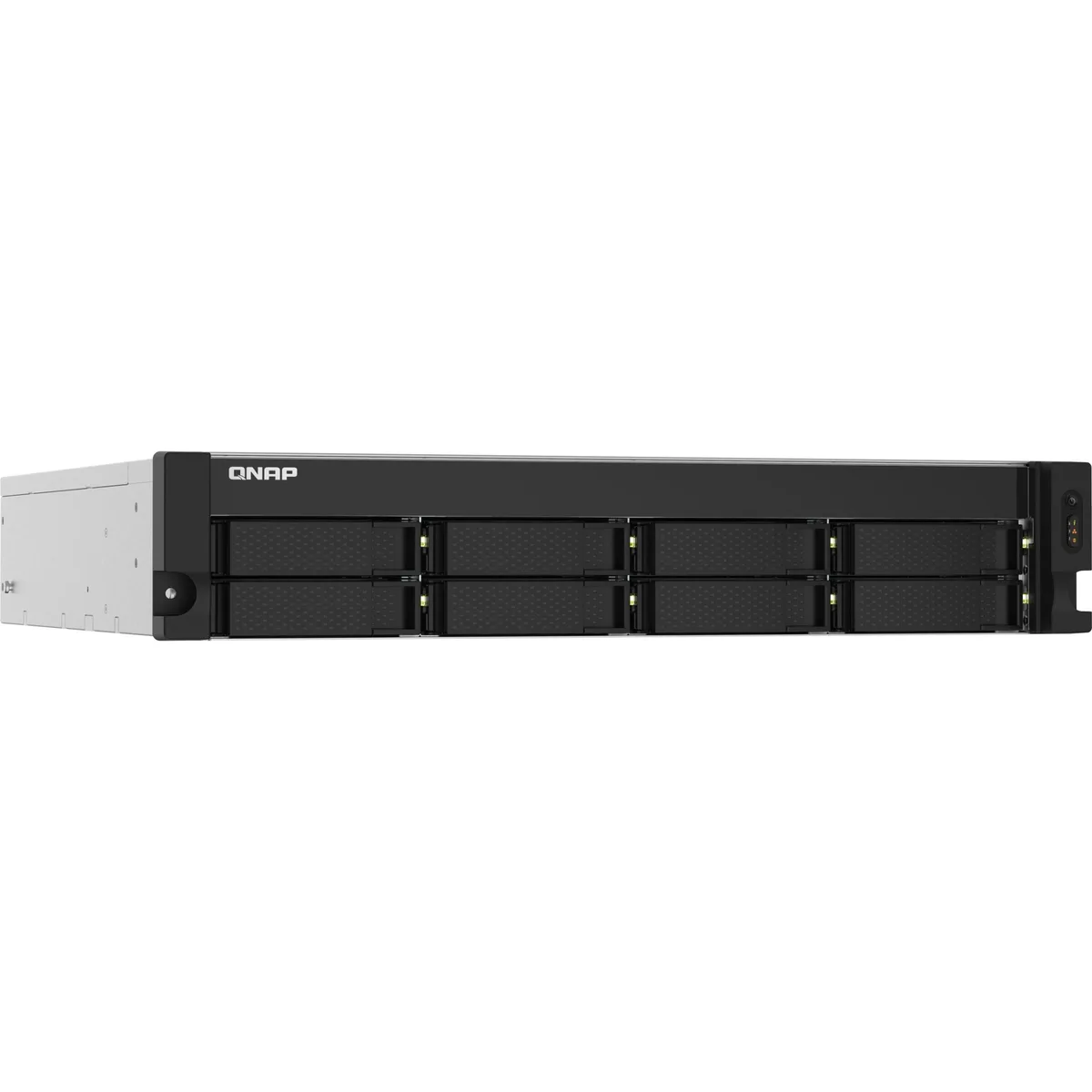

The Qnap TS-832PXU-RP-4G-US is a 2U rackmount network-attached storage unit with eight SATA drive bays. It runs on an AnnapurnaLabs Alpine AL324 quad-core ARM Cortex-A57 processor clocked at 1.7GHz with 4GB of installed DDR4 memory. Dual redundant 250W power supplies and connectivity through two 10GbE SFP+ ports plus two 2.5GbE RJ-45 ports are included. The diskless chassis supports up to 176TB of raw capacity.
Suited for teams needing high-throughput file
This platform fits organisations that serve many concurrent users and require redundant power for uptime assurance. The ARM-based architecture and DDR4 memory ceiling of 16GB limit virtualisation density and heavy database workloads. Buyers who need more than eight internal bays or a different processor architecture should consider a different platform.
Maximum raw capacity of 176TB across eight SATA bays
The eight-bay chassis accepts 3.5-inch and 2.5-inch SATA hard drives or SSDs up to a combined 176TB. This ceiling is the decisive figure for capacity planning; any requirement beyond it cannot be met by this unit.
Highlights
- Quad-core ARM processor handles heavy multi-user workloads
- 2 x 10GbE and 2 x 2.5GbE ports deliver high-speed network throughput
- Redundant 250W power supplies keep the system running during a PSU failure
- 8 drive bays support up to 176TB of raw SATA storage
- 4GB DDR4 installed, expandable to 16GB via one DIMM slot
Specifications
| Brand | QNAP |
|---|---|
| Model | TS-832PXU-RP-4G-US |
| Port RJ-45 | 2 x 10GbE + 2 x 2.5GbE |
| HDD Interface | 8 x SATA (8 x Bay) |
| Form Factor | 8-Bay |
| Processor | AnnapurnaLabs Alpine AL324 64-bit ARM® Cortex-A57 4-core 1.7GHz processor |
| Installed Memory | 4GB |
| Max Memory Capacity | 16GB |
| Memory Slot | 1 x DDR4 DIMM |
| Included HDD Capacity | Diskless System |
| Max Capacity | 176TB |
| Drive Compatibility | 3.5-inch SATA hard disk drives 2.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
| LEDs | HDD 1-8, Status, LAN, Storage expansion |
| Power | 250W (x2) PSU, 100 - 240V |
| Power Consumption | Operating Mode, Typical 69.191 W |
| Usage | Ultra high prerformance for large number of users |
| Temperature | Operating Temperature 0 - 40 °C (32°F - 104°F) Storage Temperature -20 - 70°C (-4°F - 158°F) |
| Humidity | 5-95% RH non-condensing, wet bulb: 27°C (80.6°F) |
| Dimensions | 3.5 × 18.98 × 21.02 inch |
| Weight | Weight (Net) 24.12 lbs Weight (Gross) 37.19 lbs |
| Shipping weight | 12.70 kg |
| Package size | 711 × 559 × 254 mm |
Questions about this item
Does the TS-832PXU-RP-4G-US ship with any drives or must I supply all eight myself?
The unit is a diskless system so you must provide every drive; it accepts up to eight 3.5-inch SATA HDDs, 2.5-inch SATA HDDs or 2.5-inch SATA SSDs.
With one DDR4 DIMM slot and 4 GB already installed, should I add an 8 GB or a 12 GB module to reach the 16 GB limit?
Install a single 12 GB DDR4 DIMM to reach the 16 GB maximum; the board has only one slot so the existing 4 GB module would be replaced.
How do the two 10 GbE SFP+ ports and two 2.5 GbE RJ-45 ports behave under the typical 69.191 W operating load?
Both 10 GbE SFP+ and both 2.5 GbE RJ-45 links remain fully active at line rate while the system draws a typical 69.191 W, thanks to the quad-core 1.7 GHz AL324 processor and redundant 250 W power supplies.
