Silver 2U rackmount server chassis with front drive bays, two USB 3.0 ports, LED indicators and dual 80mm PWM fans

Rosewill

Rosewill RSV-Z2800U 2U server chassis 4x3.5" 2x2.5" bays 2x80mm PWM fans 2xUSB 3.0

SKU CH-0FTD-C8VE9 MPN RSV-Z2800U

A 2U rackmount chassis holds four 3.5" and two 2.5" drives, fits Micro-ATX boards, and includes two 80mm PWM fans

  • Chassis TypeRackmount
  • Form Factor2U
  • ColorSilver
  • Case Material1.0mm SGCC
  • Motherboard CompatibilityMicro ATX / Mini ITX
  • LED IndicatorsPower status, HDD activity, LAN activity

Chassis Type 2U · 6 Bays · 17.7" Depth · Micro ATX

  • Holds four 3.5" and two 2.5" drives for dense storage
  • Two pre-installed 80mm PWM fans deliver quiet front-to-rear airflow
  • Fits Micro-ATX boards with four low-profile expansion slots

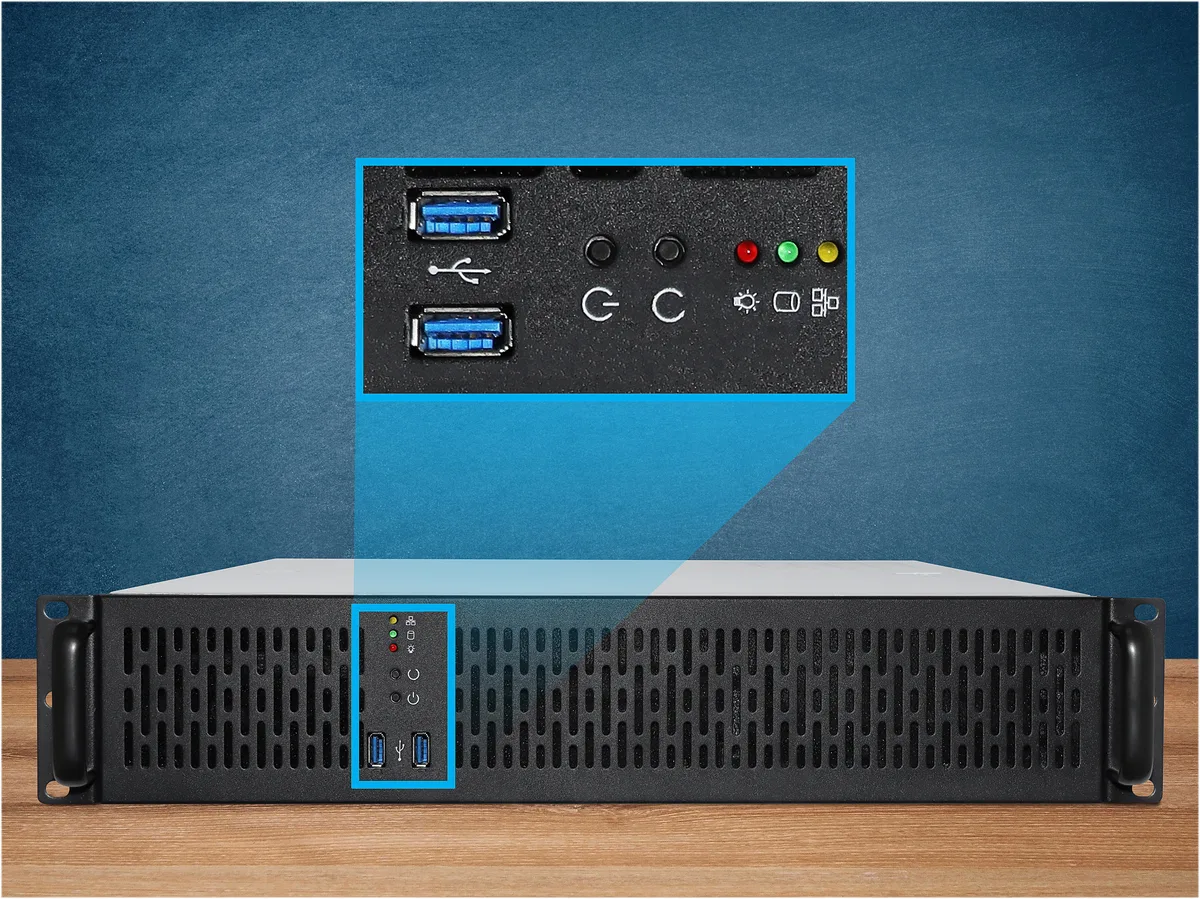

  • Front-panel LEDs show power, drive and network status at a glance
  • Two USB 3.0 ports give fast peripheral access without reaching the rear

Compact 2U rackmount chassis

The Rosewill RSV-Z2800U is a 2U silver server case built from 1.0 mm SGCC steel. It accepts Micro-ATX and Mini-ITX motherboards and provides four internal 3.5 inch bays plus two 2.5 inch device slots. Two front USB 3.0 ports and LED indicators for power, drive and network activity complete the front panel.

Build integration and expansion

Four low-profile expansion slots sit behind the motherboard tray and support cards up to 150 mm long. The power supply bay takes a PS2 form-factor unit no longer than 180 mm. CPU coolers are limited to 70 mm height, so only low-profile heatsinks will fit. The layout leaves room for one extra 80 mm fan if additional airflow is desired.

Thermals and acoustics

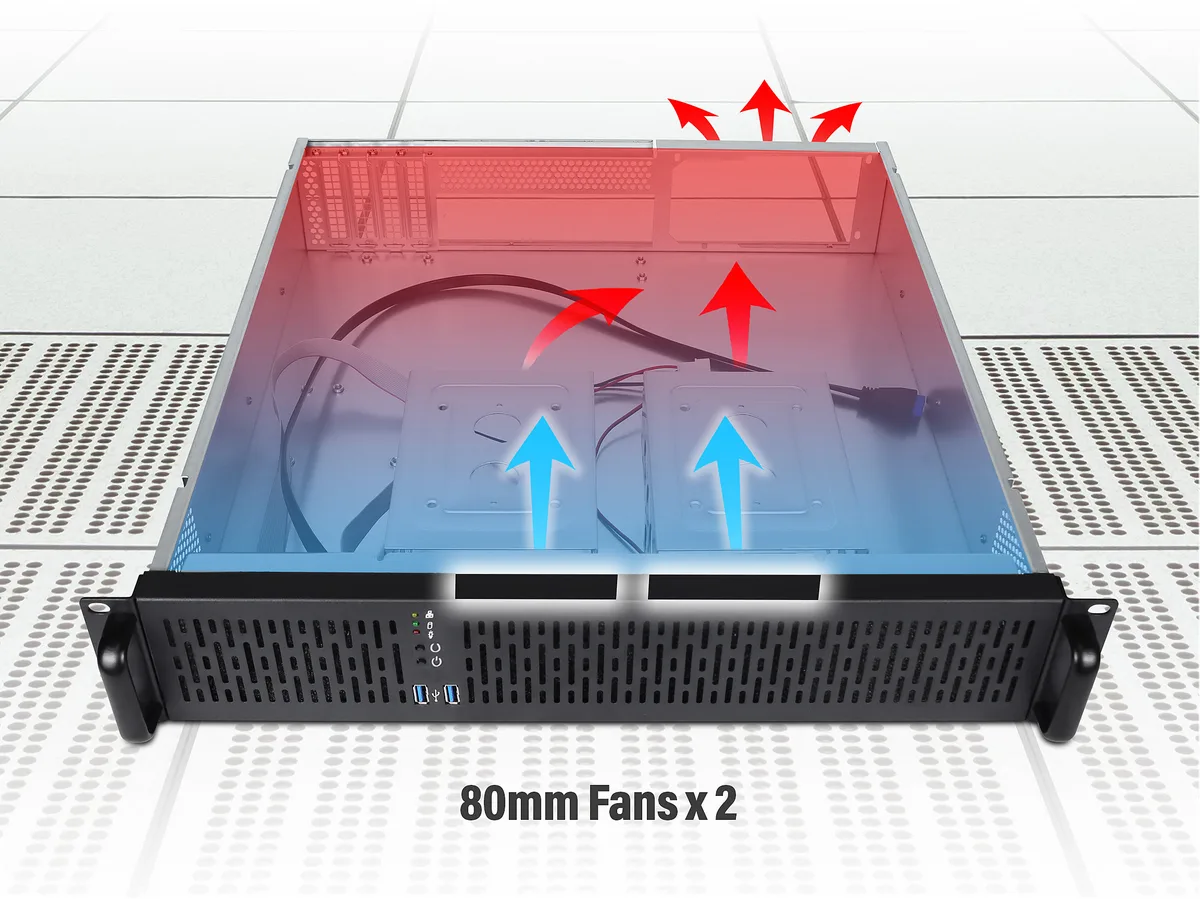

Two 80 mm PWM fans are pre-installed at the front and pull air across the drive bays and motherboard. Fan speed scales with temperature, keeping noise low during light loads while providing extra airflow when drives or the CPU are under sustained use. The 2U height and perforated front panel help exhaust heat through the rear expansion slots.

Highlights

  • Holds four 3.5" and two 2.5" drives for dense storage
  • Two pre-installed 80mm PWM fans deliver quiet front-to-rear airflow
  • Fits Micro-ATX boards with four low-profile expansion slots
  • Front-panel LEDs show power, drive and network status at a glance
  • Two USB 3.0 ports give fast peripheral access without reaching the rear

Specifications

BrandRosewill
ModelRSV-Z2800U
Chassis TypeRackmount
Form Factor2U
ColorSilver
Case Material1.0mm SGCC
Motherboard CompatibilityMicro ATX / Mini ITX
LED IndicatorsPower status, HDD activity, LAN activity
Internal 3.5" Drive Bays4
Internal 2.5" Drive Bays2
Expansion Slots4
Max CPU Cooler Height70 mm
Max GPU LengthLow-Profile 150 mm
Max PSU Length180 mm PS2 (ATX)
Front Ports2 x USB 3.0
Fan OptionsFront: 2 x 80mm fans (2 x 80mm fan included)
FeaturesSupports PS2 Power Supply form factor

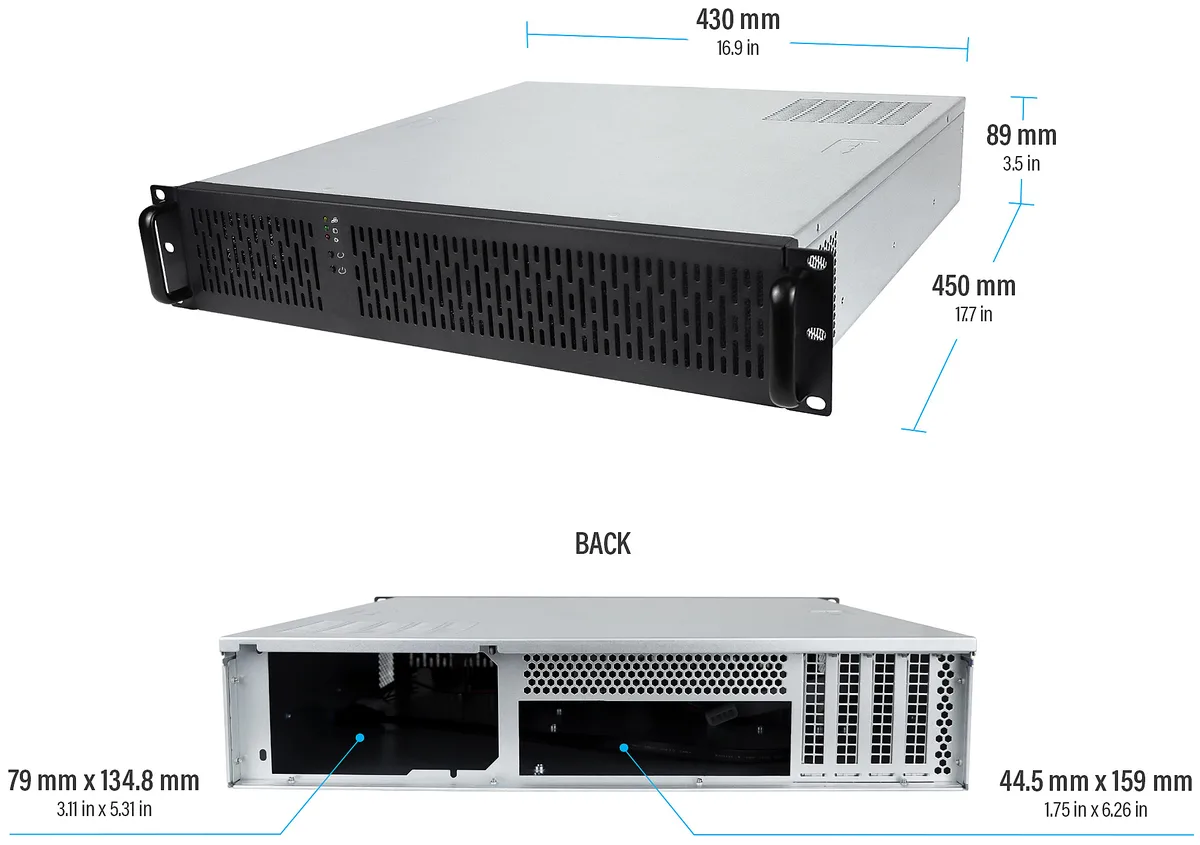

Dimensions430mm x 89mm x 450mm (16.93" x 3.5" x 17.72")
Weight5.25kg (11.57lbs)
Package ContentsRSV-Z2800U Server Case
Screws
QIG
Shipping weight6.50 kg
Package size545 × 520 × 175 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How many 3.5-inch drives fit in the four internal bays and can I add more?

The chassis provides four internal 3.5-inch bays and two extra 2.5-inch slots, allowing up to six 3.5-inch hard drives total.

How loud and hot does the chassis run with the two 80mm PWM fans operating continuously?

Two pre-installed 80mm front PWM fans cool the drives and motherboard; a third 80mm fan can be added for extra airflow if needed.

What motherboard, power supply and CPU cooler must I already own to build in this 2U case?

It accepts Micro-ATX or Mini-ITX boards, a PS2-form-factor PSU up to 180mm long, and a CPU cooler no taller than 70mm.
