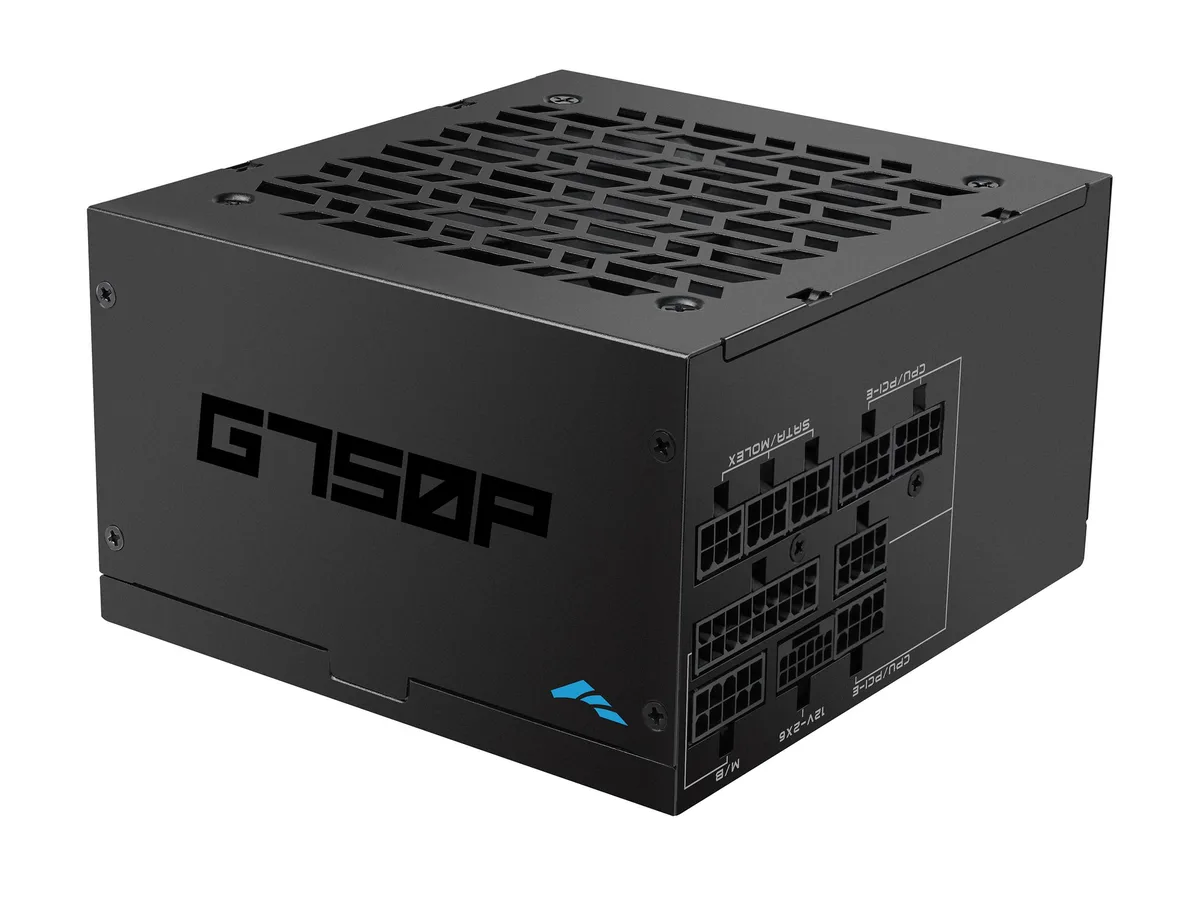

Rectangular black PSU with modular sockets and a 120mm fan grille

SAMA

SAMA GP750 750W ATX 3.1 Fully Modular Power Supply

SKU CH-MJBZ-51QSX MPN GP750

Fully modular 750 W ATX 3.1 power supply with a 12V-2x6 connector for 450 W GPU support and Cybenetics Gold efficiency

  • TypeATX 12V
  • Maximum Power750 W
  • SLIReady
  • CrossFireReady
  • ModularYes
  • Fans120mm FDB Fan (Fluid Dynamic Bearing)

Certification Series Gold GP Series

Wattage 750W

Color Black

  • ATX 3.1 and PCIe 5.1 ready with 12V-2x6 connector delivering 450W to new GPUs
  • Cybenetics Gold certified for over 90% efficiency at 50% load cutting heat and waste
  • Full Bridge LLC plus DC-DC topology keeps voltage steady under 100% load
  • Fully modular cables let you fit only what you need for clean airflow
  • 120mm FDB fan runs quiet while cooling a 750W single rail at 62.4A

ATX 3.1 750 W Fully Modular PSU

The SAMA GP750 is a fully modular ATX 3.1 power supply rated at 750 W. It targets builders assembling modern gaming PCs or high-performance workstations. The unit includes a PCIe 5.1 ready 12V-2x6 connector for current graphics cards. Its modular design lets users connect only the cables their build requires.

Capacity and headroom

The single +12 V rail delivers 62.4 A for 748.8 W of combined output, covering most single-GPU configurations with margin. The 12V-2x6 connector is rated for 450 W, supporting high-end GPUs under heavy load. Efficiency exceeds 90 % at typical 50 % load, lowering waste heat. Protection circuits guard against over-voltage and overload conditions.

12V-2x6 connector decides fit

The defining specification is the 12V-2x6 (12+4) pin connector capable of 450 W delivery. This determines whether the PSU matches a graphics card that requires the PCIe 5.1 power interface. Systems using older 6+2 pin GPUs will use the two supplied (6+2) pin cables instead. Six SATA power connectors handle storage and peripherals.

Highlights

  • ATX 3.1 and PCIe 5.1 ready with 12V-2x6 connector delivering 450W to new GPUs
  • Cybenetics Gold certified for over 90% efficiency at 50% load cutting heat and waste
  • Full Bridge LLC plus DC-DC topology keeps voltage steady under 100% load
  • Fully modular cables let you fit only what you need for clean airflow
  • 120mm FDB fan runs quiet while cooling a 750W single rail at 62.4A

Specifications

BrandSAMA
ModelGP750 Black
SeriesGP Series
Part NumberG0750-BKGFFGP1-US
TypeATX 12V
Maximum Power750 W
SLIReady
CrossFireReady
ModularYes
Fans120mm FDB Fan (Fluid Dynamic Bearing)
PFCActive
Main Connector20+4 Pin
+12V RailsSingle Rail (62.4A, 748.8W)
PCI-Express Connector2x (6+2)Pin, 1x (12+4)Pin
SATA Power Connector6
Hold-up Time> 12 ms @ 100% load
Efficiency'>90% @ Typical Load (50% Load)
Energy-Efficient80 PLUS PLATINUM Certified
Over Voltage ProtectionYes
Overload ProtectionYes
Input Voltage100 - 240 V
Input Frequency Range50-60 Hz
Input Current10A
MTBF100,000 Hours
ApprovalsCE / TUV / cTUVus / FCC / ICES / UKCA / EAC, RoHS / WEEE / ErP 2014
Connectors2 x 8 pin (4+4) EPS (CPU)
ColorBlack
Haswell SupportYes
Max PSU Length140 mm
ProtectionOTP / OCP / OPP / SCP / OVP / UVP / SIP / NLO
Power Rating750W
Peak Power750W
Dimensions140 x 150 x 86mm
Weight1.55kg
Package ContentGP750+Cable +accessory+Quick Start Guide
Frequency Range50-60 Hz
+3.3V Max. Current20A
+5V Max. Current20A
+12V1 Max. Current62.4A
+12V6 Max. Current62.4A
-12V Max. Current0.4A
+5VSB Max. Current3A
Floppy Connector0
Fans Total Quantity1
Top Fans Size120mm
Top Fans Bearing TypeFDB
Top Fans RPMtba
Rear Fans Sizetba
Over Load ProtectionYes
Short Circuit ProtectionYes
Under Voltage ProtectionYes
Over Current ProtectionYes
Over Power ProtectionYes
Over Temperature ProtectionYes

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will the 12V-2x6 connector work with my existing 8-pin GPU cables?

The 12V-2x6 connector is native for PCIe 5.1 cards; use the included 6+2 pin cables for older GPUs instead of adapting the new connector.

How can I confirm the unit is delivering stable power after installation?

Check that the 120mm FDB fan spins at low RPM under idle and that system voltages in BIOS or monitoring software stay within ATX limits on the single +12V rail.

Which cables come pre-attached and which must be added from the box?

No cables are pre-attached; the fully modular set includes one 20+4 pin, two 6+2 pin PCIe, one 12+4 pin, and six SATA connectors.
