Black rectangular ATX power supply with fixed cables and 120mm fan

SAMA

SAMA B750BK 750W ATX 3.1 power supply

SKU CH-02YK-9JQ5V MPN B750BK

ATX 3.1 unit with a 12V-2x6 connector supplying 450W for PCIe 5.1 graphics cards, Cybenetics Bronze certified at 85 percent typical load, APFC plus LLC plus DC-DC topology, single +12V rail.

  • TypeATX 3.1
  • Maximum Power750 W
  • SLIReady
  • CrossFireReady
  • ModularNo
  • Fans120mm Sleeve Fan

Certification Series Bronze B Series

Wattage 750W

Color Black

  • ATX 3.1 ready with 450 W 12V-2x6 connector for new GPUs
  • Cybenetics Bronze certified at 85 % typical-load efficiency
  • APFC LLC plus DC-DC topology keeps voltage stable under load
  • Full protection suite guards against over-voltage, over-current and over-temperature
  • 750 W single-rail output powers SLI and CrossFire builds

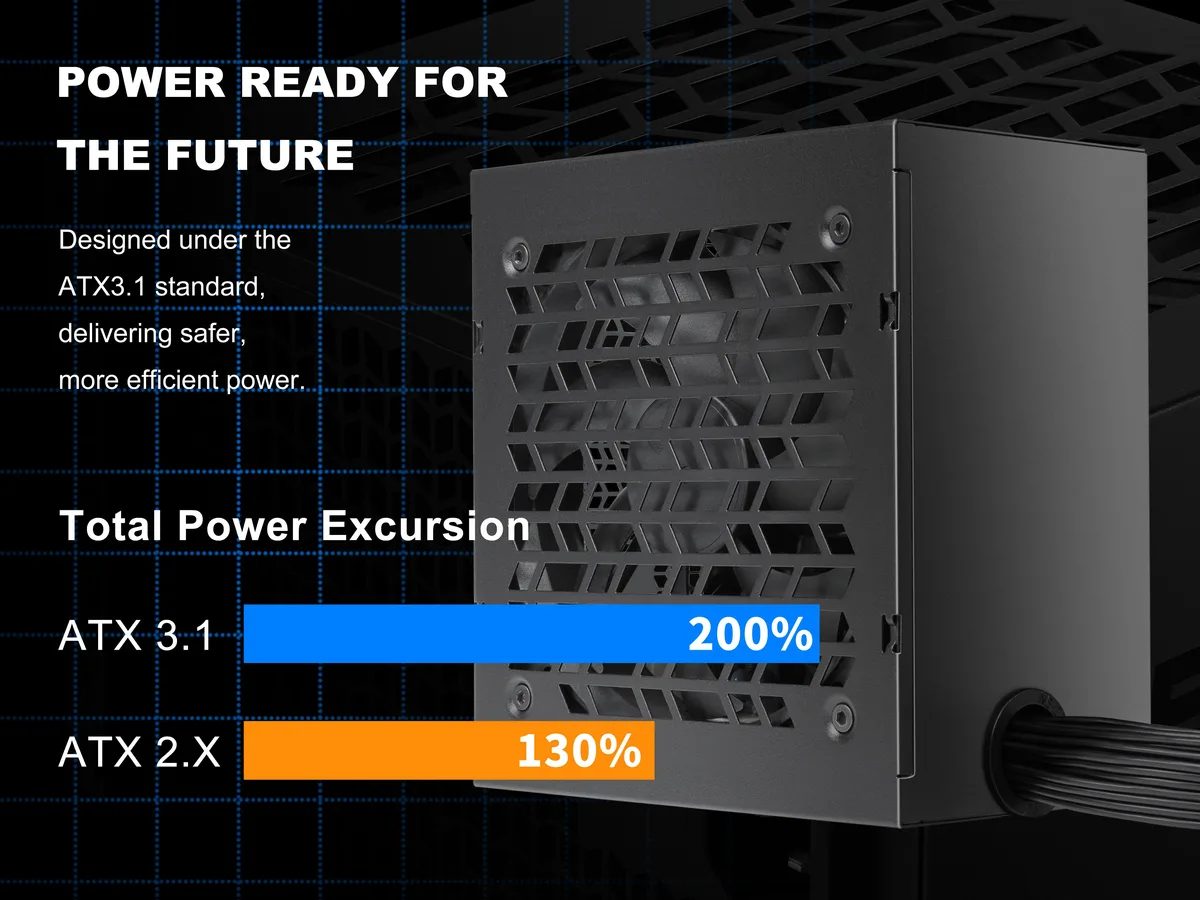

Ready for modern graphics cards

The SAMA B750BK is a 750W ATX 3.1 power supply built for gaming PCs that need a 12V-2x6 connector rated at 450W. It carries Cybenetics Bronze and 80 PLUS Bronze certifications for verified efficiency. The non-modular design keeps cable management simple for standard builds.

Check your case and cables

This unit uses a fixed cable set including two 6+2 pin PCIe leads and six SATA connectors. Verify your chassis has room for a non-modular PSU and that your graphics card matches the supplied 12V-2x6 or 6+2 pin plugs. The single +12V rail and APFC + LLC + DC-DC topology deliver stable voltage under load.

Good fit for mainstream gaming rigs

It suits builders who want ATX 3.1 readiness and 450W on the new connector without paying for fully modular cables. If you need detachable cables for a compact case or custom sleeving, a modular unit would be a better choice.

Highlights

  • ATX 3.1 ready with 450 W 12V-2x6 connector for new GPUs
  • Cybenetics Bronze certified at 85 % typical-load efficiency
  • APFC LLC plus DC-DC topology keeps voltage stable under load
  • Full protection suite guards against over-voltage, over-current and over-temperature
  • 750 W single-rail output powers SLI and CrossFire builds

Specifications

BrandSAMA
ModelB750BK
SeriesB750 Series
Part NumberB0750-BKBFWA31-US
TypeATX 3.1
Maximum Power750 W
SLIReady
CrossFireReady
ModularNo
Fans120mm Sleeve Fan
PFCActive
+12V RailsSingle
PCI-Express Connector1x (6+2) Pin+(6+2) Pin 550+150mm, 1x (6+2) Pin 550mm
SATA Power Connector6
Hold-up Time> 12 ms @ 100% load
Efficiency'>85% @ Typical Load (50% Load)
Energy-Efficient80 PLUS BRONZE Certified
PSU Noise Leveltba
Over Voltage ProtectionYes
Overload ProtectionYes
Input Voltage100 - 240 V
Input Frequency Range50-60 Hz
Input Current10A
Output750W
MTBF100,000 Hours
ApprovalsCB / CE / TUV / cTUVus / FCC / ICES / UKCA / EAE
ColorBlack
Haswell SupportYes
Max PSU Length140mm
ProtectionUVP / OVP / OCP / OPP / OTP / NLP / SCP
Cable Spec1x MB ATX 24Pin 550mm
1x CPU (4+4)Pin+(4+4)Pin 700+150mm
1x PCI-E (6+2)Pin+(6+2)Pin 550+150mm
1x PCI-E (6+2)Pin 550mm
1x 12V-2x6 (12+4)Pin 600mm
2x (SATA+SATA+SATA+Molex) 450+150+150+150mm
Power Rating750W
Dimensions140 x 150 x 86mm
Weight1.43kg
Package ContentB750+Cable +accessory+Quick Start Guide
+3.3V Max. Current15A
+5V Max. Current15A
+12V1 Max. Current62.4A
-12V Max. Current0.4A
+5VSB Max. Current2.5A
Main Connector1x ATX 24Pin 550mm
Fans Total Quantity1
Top Fans Size120mm
Over Load ProtectionYes
Short Circuit ProtectionYes
Under Voltage ProtectionYes
Over Current ProtectionYes
Over Power ProtectionYes
Over Temperature ProtectionYes

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Does this PSU include the 12V-2x6 connector required for new PCIe 5.1 graphics cards?

Yes, the unit is ATX 3.1 compliant and ships with a 12V-2x6 connector rated for 450 W to support next-generation GPUs

Will the fixed cables reach the motherboard and drives in a standard ATX tower?

The PCIe cables are 550 mm and 150 mm long, and six SATA connectors are provided for drives in typical chassis layouts

What efficiency certification does this model carry?

It holds both 80 PLUS Bronze and Cybenetics Bronze ratings, guaranteeing at least 85 % efficiency at 50 % load
