SAMA
SAMA XP 850W ATX 3.0 power supply
Fully modular 850W ATX 3.0 unit with 80 Plus Platinum efficiency, PCIe 5.0 support and a 140mm ECO fan for quiet, high-temperature operation
- ColorBlack
- TypeATX 12V
- Maximum Power850 Watt
- Fans1 x 140mm ECO Intelligent Fan
- Main Connector20+4 Pin
- PCI-Express Connector4 (6+2pin)
Options ATX3.0 Platinum-850w Black

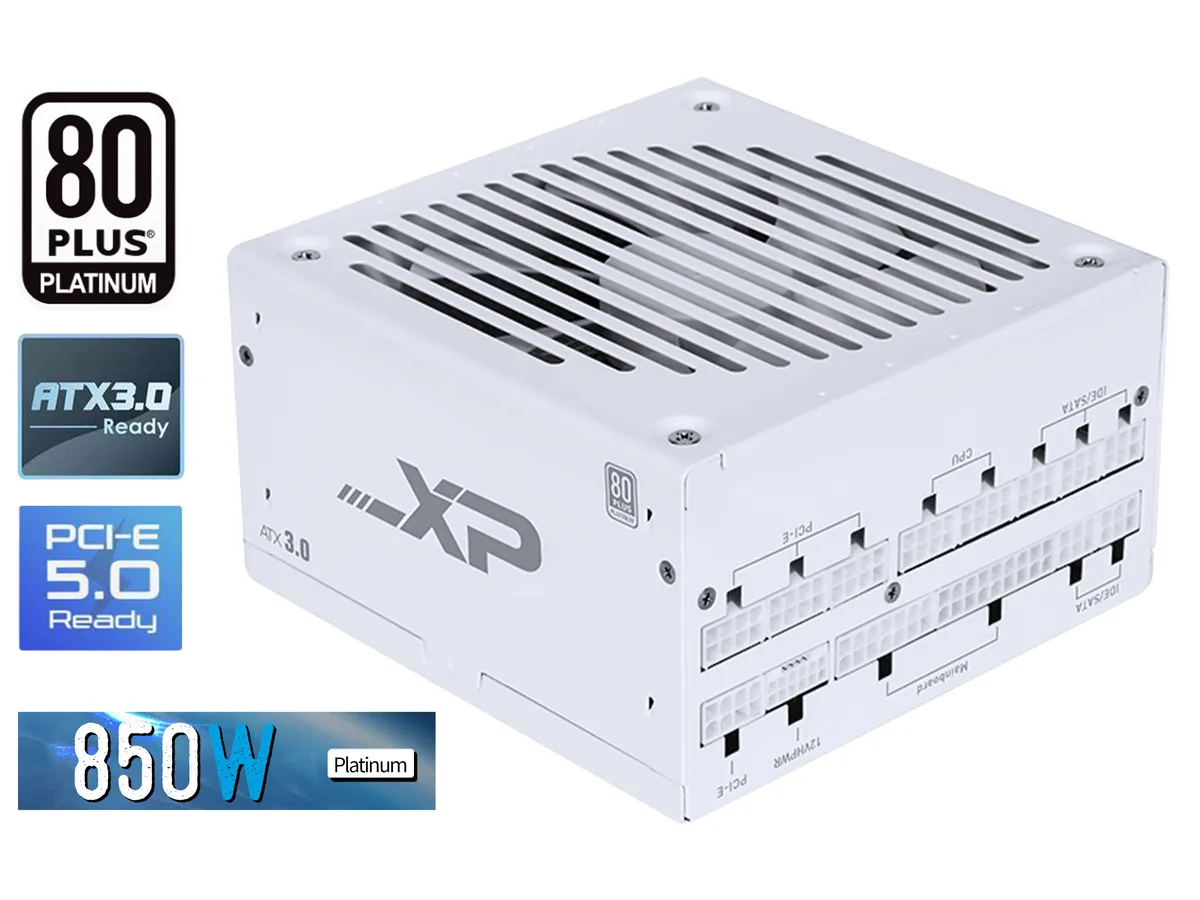

- ATX3.0 Platinum-850W white
- ATX3.0 Platinum-850w Black
- 80 PLUS Platinum certified efficiency saves energy
- 850 W output powers 3090 4070 4080 4090 GPUs
- 140 mm ECO fan adjusts speed for quiet operation
- ATX 3.0 compliant with PCIe 5.0 12VHPWR connector
- Fully modular cables simplify build and improve airflow

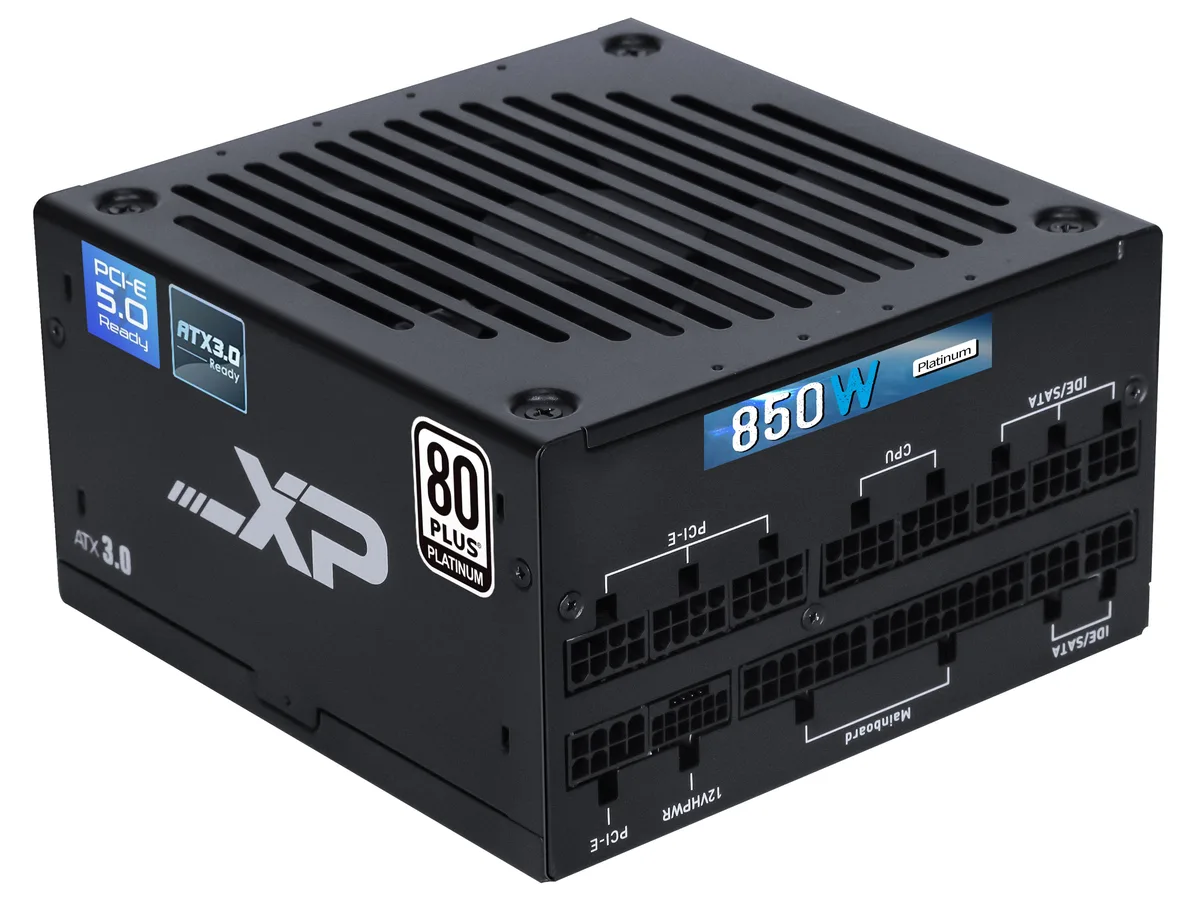

Fully Modular ATX 3.0 Power Supply
This 850W unit delivers Platinum-rated efficiency and PCIe 5.0 support for modern PC builds. A 140mm ECO fan adjusts speed by load and temperature for quiet operation. Japanese capacitors and full modular cabling simplify assembly and improve airflow.

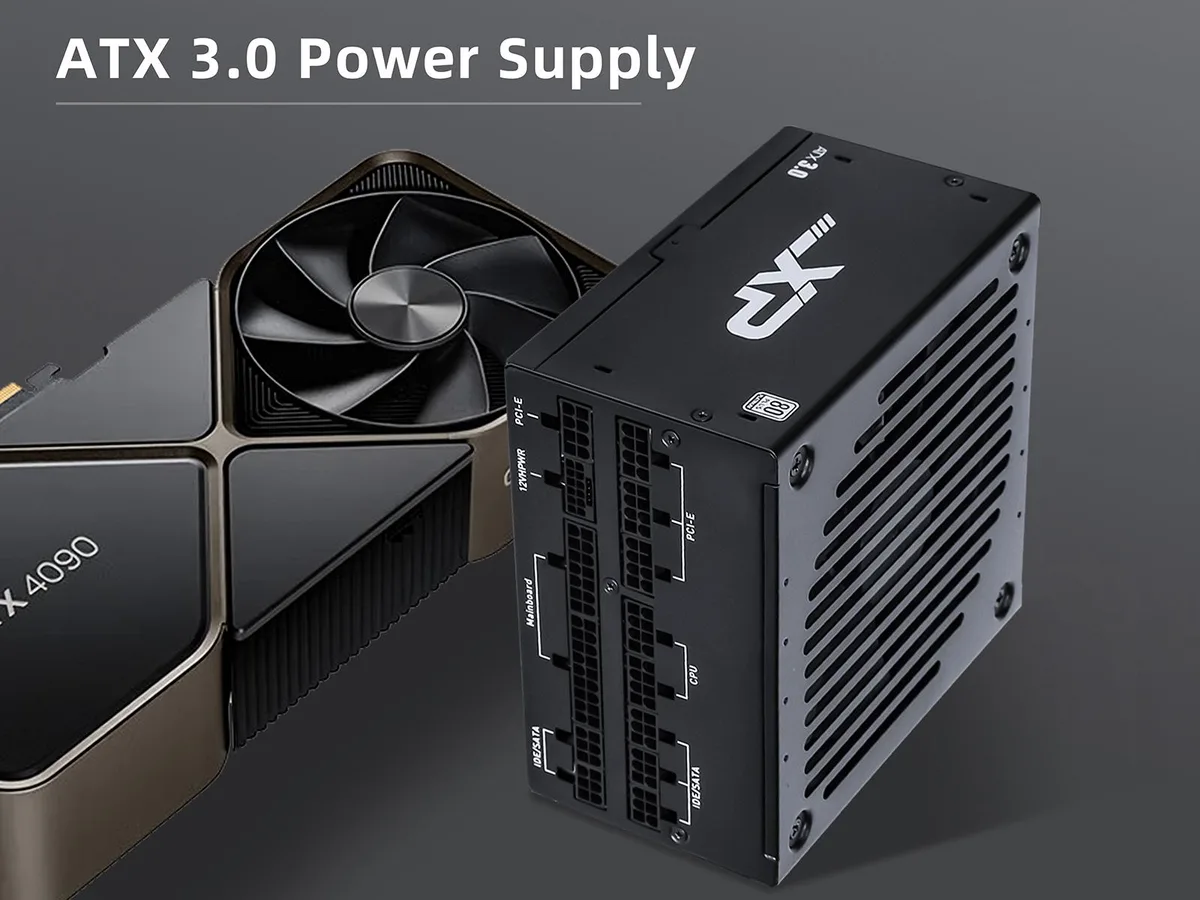

Suited for High-End GPU Builds

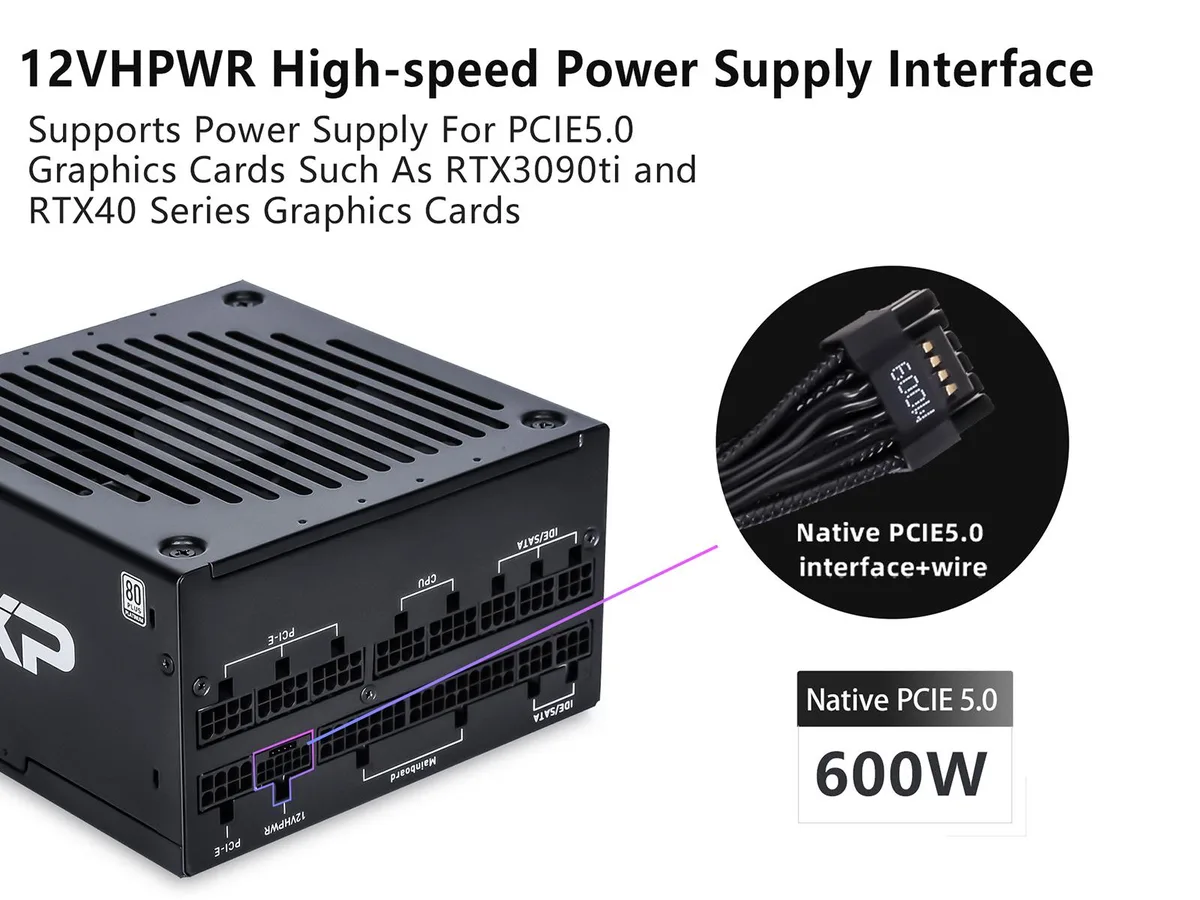

The 12VHPWR connector and four PCIe 6+2-pin cables handle cards such as the 3090 4070 4080 4090 tier. Dual EPS connectors support multi-CPU platforms. Builders needing lower wattage or non-modular designs should consider other models.
Platinum Efficiency at 50°C
Certified 80 Plus Platinum, the supply maintains its rating after a 50°C reliability test. Active PFC and full-range 100-240V input ensure stable power worldwide. This thermal headroom is the deciding factor for sustained heavy loads.
Highlights
- 80 PLUS Platinum certified efficiency saves energy
- 850 W output powers 3090 4070 4080 4090 GPUs
- 140 mm ECO fan adjusts speed for quiet operation
- ATX 3.0 compliant with PCIe 5.0 12VHPWR connector
- Fully modular cables simplify build and improve airflow
Specifications
| Brand | SAMA |
|---|---|
| Series | XP Series |
| Model | 850W |
| Color | Black |
| Type | ATX 12V |
| Maximum Power | 850 Watt |
| Fans | 1 x 140mm ECO Intelligent Fan |
| Main Connector | 20+4 Pin |
| PCI-Express Connector | 4 (6+2pin) |
| Max PSU Length | 140 mm |
| Modular | Yes |
| Energy-Efficient | 80 PLUS PLATINUM Certified |
| Over Voltage Protection | Yes |
| Overload Protection | Yes |
| Input Voltage | 100 - 240 V |
| Connectors | 2 x 8 pin (4+4) EPS (CPU) |
| Power Rating | 850W |
| PFC | Active |
| SLI | Ready |
| CrossFire | Ready |
| Dimensions | H3.39" x W5.91" x D5.91" |
| SATA Power Connector | 5 |
| Fans Total Quantity | 1 |
