White fully modular ATX power supply with 140mm fan and sleeved cables

SAMA

SAMA XP 850W White ATX 3.0 Power Supply

SKU CH-PZD3-W1PGN MPN 850W

Fully modular 850W ATX 3.0 unit with 80 PLUS Platinum efficiency, PCIe 5.0 support, 140mm ECO fan and 150mm depth

  • ColorWhite
  • TypeATX 12V
  • Maximum Power850W
  • Fans1 x 140mm ECO Intelligent Fan
  • Main Connector20+4Pin
  • PCI-Express Connector2 x 6-Pin

Options ATX3.0 Platinum-850W white

  • 80 PLUS Platinum certified for 850 W efficient power delivery
  • 140 mm ECO intelligent fan adjusts speed for quieter operation
  • Fully modular design keeps cable routing clean and simple
  • ATX 3.0 and PCIe 5.0 ready with 12VHPWR connector included
  • Tested at 50 °C for reliable high-temperature performance

Power Supply Type and Efficiency

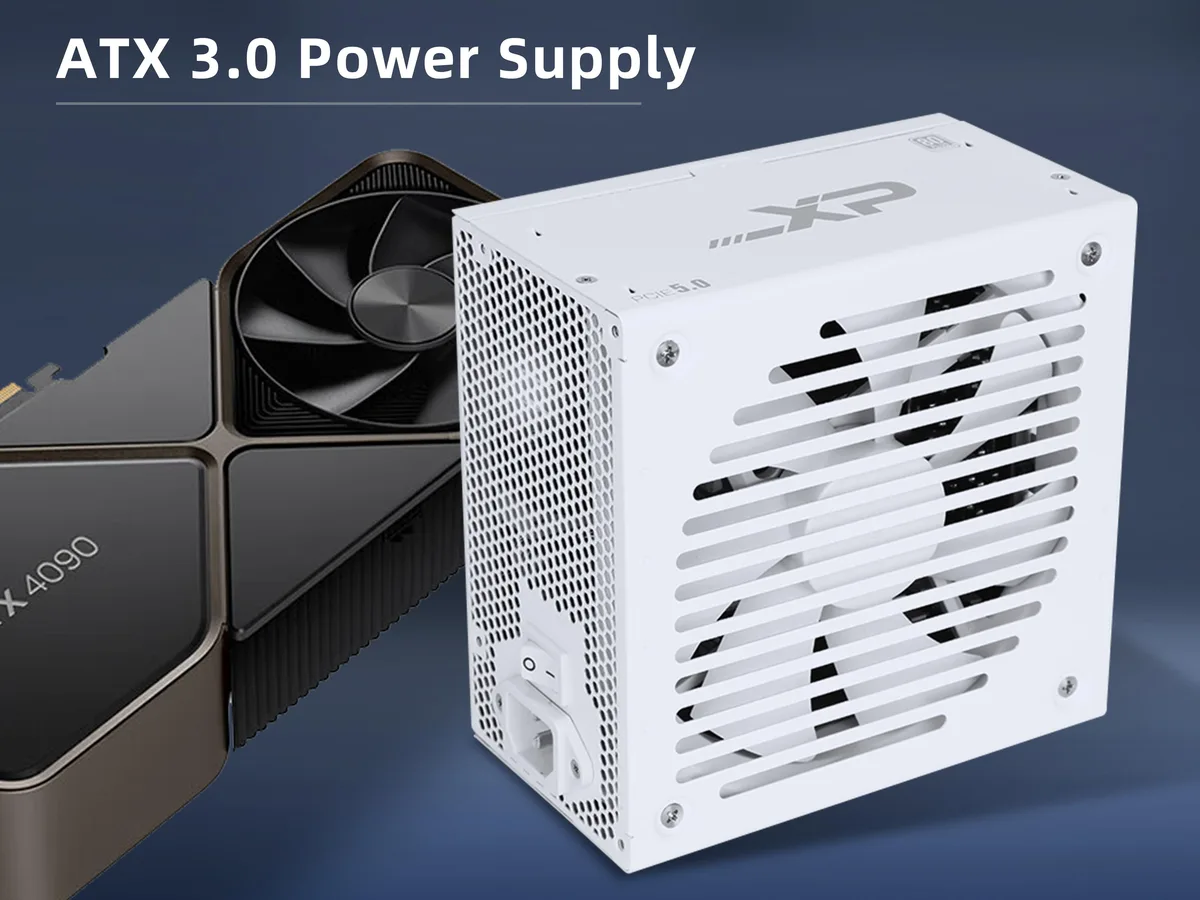

The SAMA XP 850W is an ATX 3.0 power supply with 80 PLUS Platinum certification. It delivers 850W of continuous power through a fully modular design. A 140mm intelligent ECO fan adjusts speed based on load and temperature.

Suitability and Limits

This unit suits builds that require ATX 3.0 and PCIe 5.0 native support, including the 12VHPWR connector. It fits cases accepting a 150mm deep PSU. Builds needing more than 850W or a different form factor should consider other options.

Deciding Specification

The 12VHPWR connector is the key specification for modern GPU compatibility. It enables direct connection to PCIe 5.0 graphics cards without adapters. Verify your graphics card requires this connector before purchasing.

Highlights

  • 80 PLUS Platinum certified for 850 W efficient power delivery
  • 140 mm ECO intelligent fan adjusts speed for quieter operation
  • Fully modular design keeps cable routing clean and simple
  • ATX 3.0 and PCIe 5.0 ready with 12VHPWR connector included
  • Tested at 50 °C for reliable high-temperature performance

Specifications

BrandSAMA
SeriesXP Series
Model850W
ColorWhite
TypeATX 12V
Maximum Power850W
Fans1 x 140mm ECO Intelligent Fan
Main Connector20+4Pin
PCI-Express Connector2 x 6-Pin
SLIYes
Max PSU Length150mm (5.91")
ModularFully Modular
Energy-Efficient80 PLUS PLATINUM Certified
Over Voltage ProtectionYes
Overload ProtectionYes
Input Voltage100 - 240 V
Connectors2 x 8 pin (4+4) EPS (CPU)
Power Rating850W
DimensionsH3.39" x W5.91" x D5.91"

Other versions of this model

1 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Which cables come in the box and what must I purchase separately?

The unit ships fully modular with a 20+4 pin motherboard cable, two 8-pin (4+4) EPS cables, two 6-pin PCIe cables and a 12VHPWR cable for PCIe 5.0 graphics cards. No extra cables are required for a standard build.

How do I decide between the available versions or capacities of this model?

This listing covers the single 850 W white variant in the XP series; there are no other capacities or colours shown, so the choice is simply whether 850 W matches your system power budget.

What does the 850 W rating mean once the PSU is installed in a real PC?

It guarantees up to 850 W continuous output at 50 °C ambient with 80 PLUS Platinum efficiency, meeting ATX 3.0 transient-response requirements for modern GPUs.
