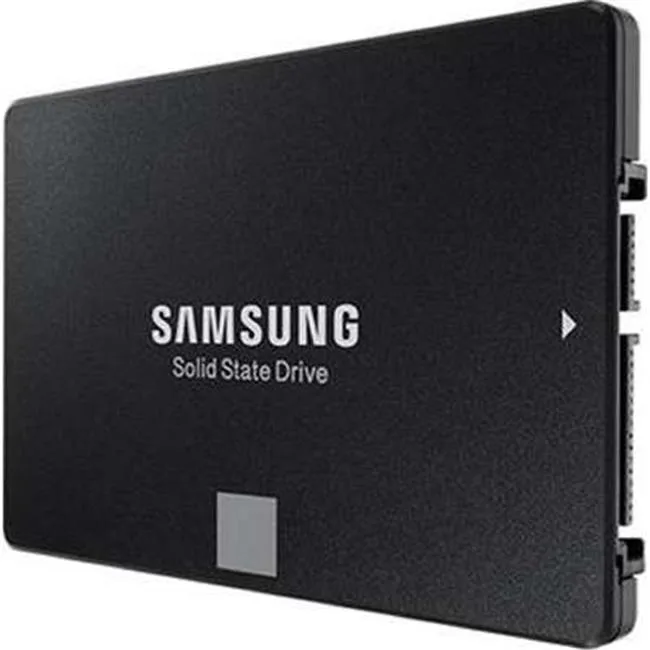

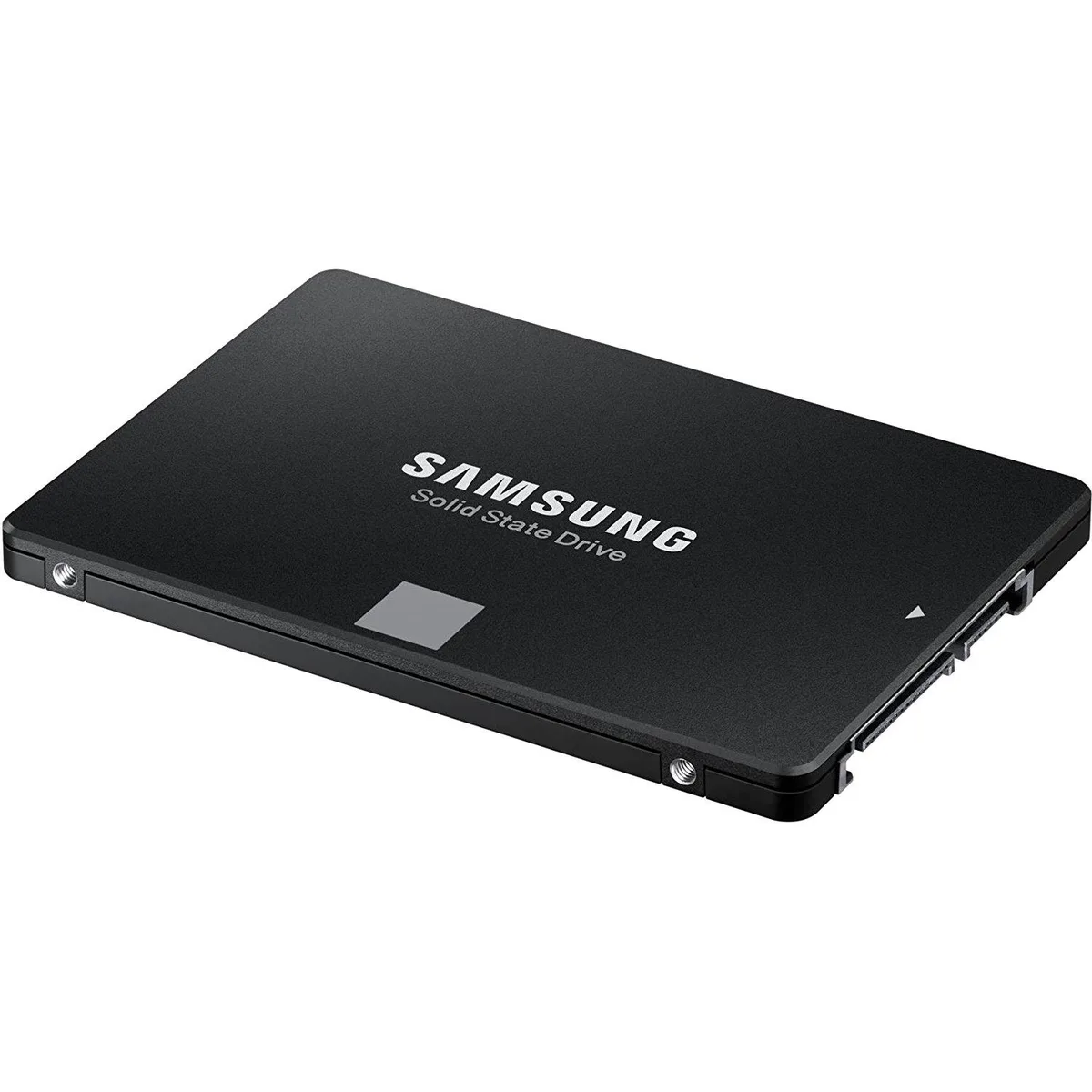

Black rectangular 2.5 inch SATA SSD with silver label

SAMSUNG

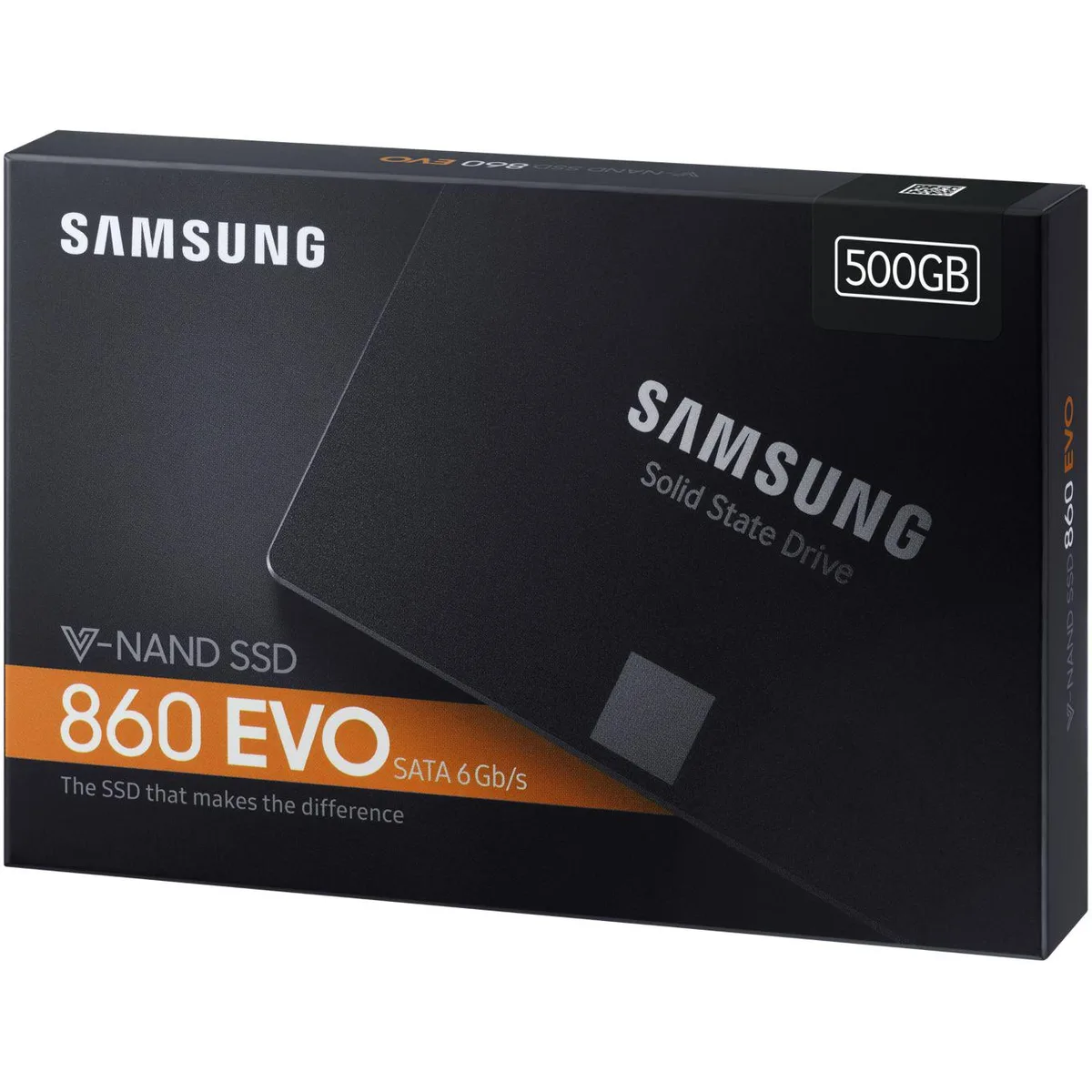

SAMSUNG 860 EVO 500GB 2.5" SATA internal SSD MZ-76E500E

SKU CH-2Q93-GNDCE MPN MZ-76E500E

A 2.5" SATA internal SSD with 500GB capacity, up to 550 MBps sequential read and 520 MBps sequential write speeds, plus 300TBW endurance

  • Device TypeInternal Solid State Drive (SSD)
  • Used ForConsumer
  • Form Factor2.5"
  • Capacity500GB
  • Memory Components3D NAND
  • InterfaceSATA III

Options 500GB

  • Faster boot and app loading with sequential reads up to 550 MBps
  • Smoother multitasking from random reads up to 98,000 IOPS
  • Quicker file saves and installs with sequential writes up to 520 MBps
  • Responsive write performance at up to 90,000 random write IOPS
  • Long-term reliability rated at 300 TBW endurance

Samsung 860 EVO 500GB SATA SSD

The Samsung 860 EVO 500GB is a 2.5 inch internal solid state drive built for consumer desktops and laptops. It uses 3D NAND memory and a SATA III interface with an MJX controller. Sequential reads reach up to 550 MBps and writes up to 520 MBps. Random read performance hits up to 98,000 IOPS at QD32.

Upgrade from mechanical hard drives

This drive replaces a traditional 2.5 inch hard disk in any system with a SATA III port. The jump is worth it when boot times, application launches and file copies feel sluggish on spinning media. Endurance is rated at 300 TBW for typical consumer workloads. The 7mm height fits most standard drive bays and caddies.

Check SATA port and physical space

Verify your motherboard or laptop has a free SATA III connector and a 2.5 inch bay that accepts a 7mm high drive. Confirm the operating temperature range of 0°C to 70°C suits your chassis airflow. No extra drivers are required for modern operating systems. Ensure your power supply provides a standard SATA power connector.

Highlights

  • Faster boot and app loading with sequential reads up to 550 MBps
  • Smoother multitasking from random reads up to 98,000 IOPS
  • Quicker file saves and installs with sequential writes up to 520 MBps
  • Responsive write performance at up to 90,000 random write IOPS
  • Long-term reliability rated at 300 TBW endurance

Specifications

BrandSAMSUNG
Series860 EVO Series
ModelMZ-76E500E
Device TypeInternal Solid State Drive (SSD)
Used ForConsumer
Form Factor2.5"
Capacity500GB
Memory Components3D NAND
InterfaceSATA III
ControllerMJX
Max Sequential ReadUp to 550 MBps
Max Sequential WriteUp to 520 MBps
4KB Random ReadRandom (QD1): Up to 10,000 IOPS
Random (QD32): Up to 98,000 IOPS
4KB Random WriteRandom (QD1): Up to 42,000 IOPS
Random (QD32): Up to 90,000 IOPS
FeaturesReliability (TBW): 300TBW
Operating Temperature0°C ~ +70°C
Height7.00mm
Width70.00mm
Depth100.00mm
Weight90.00g
Shipping weight0.13 kg
Package size143 × 98 × 23 mm

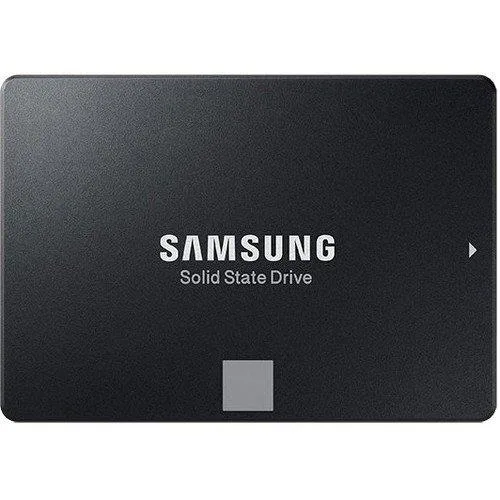

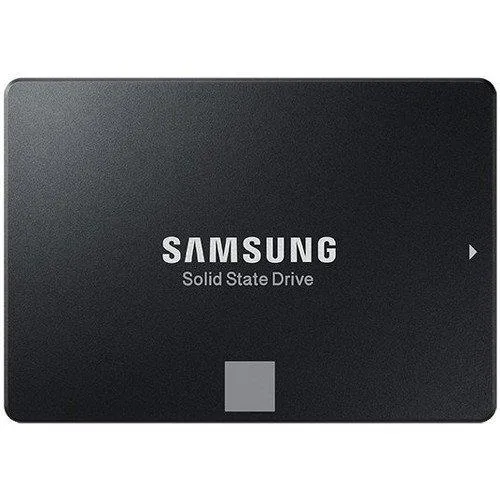

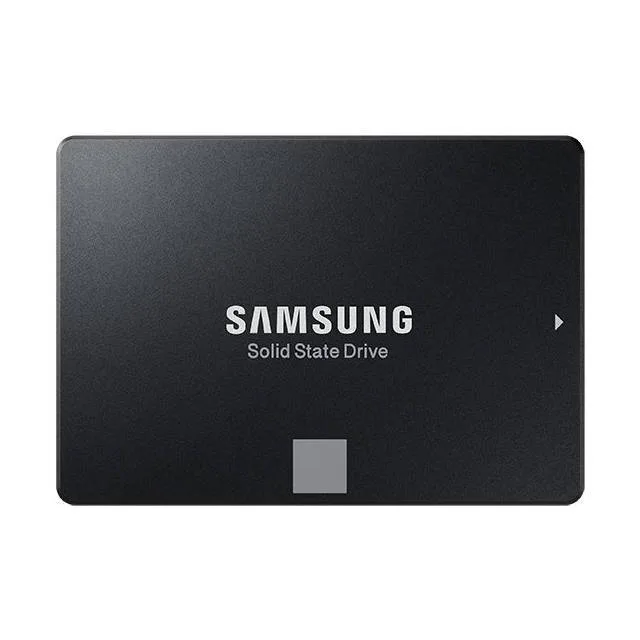

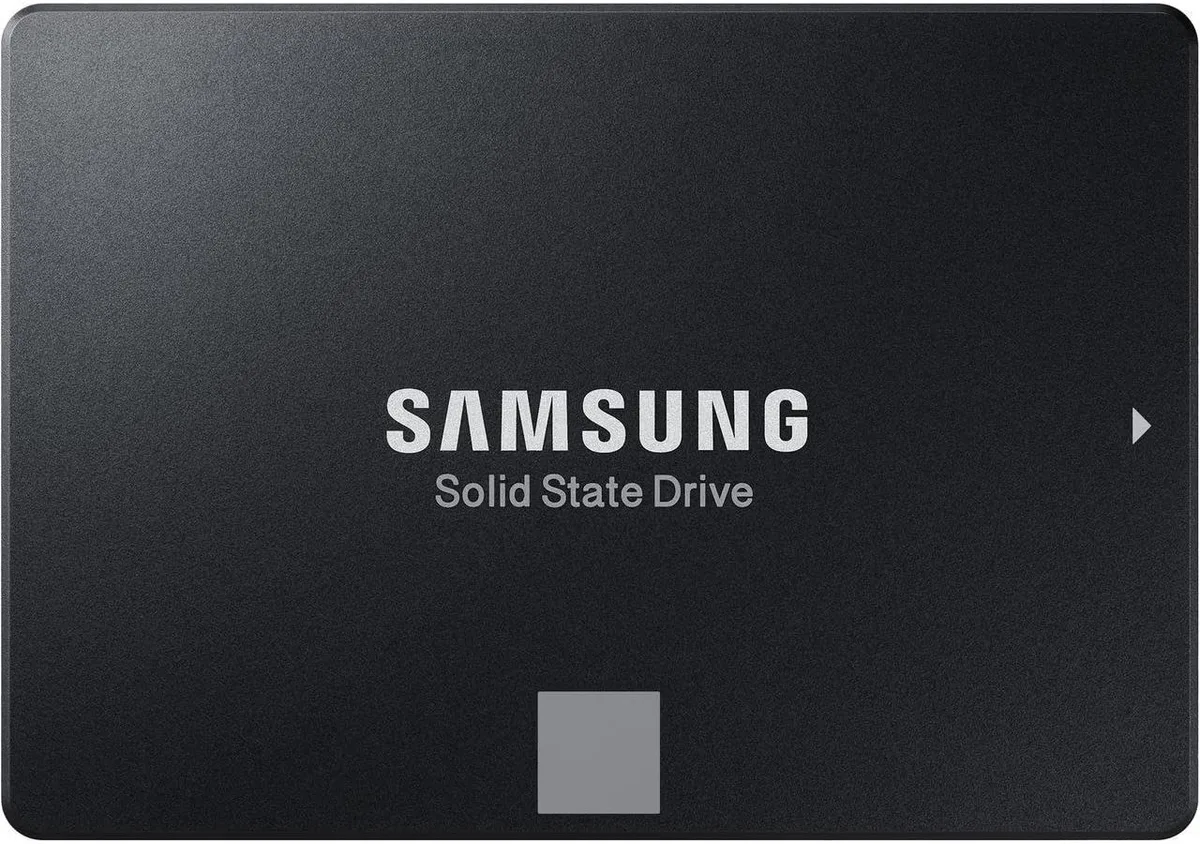

Other versions of this model

4 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will the 2.5-inch 7 mm drive fit my laptop bay?

The drive measures 100.00 mm long, 70.00 mm wide and 7.00 mm high, matching the standard 2.5-inch 7 mm bay used in most laptops.

Do I need to secure the drive with screws or a bracket during installation?

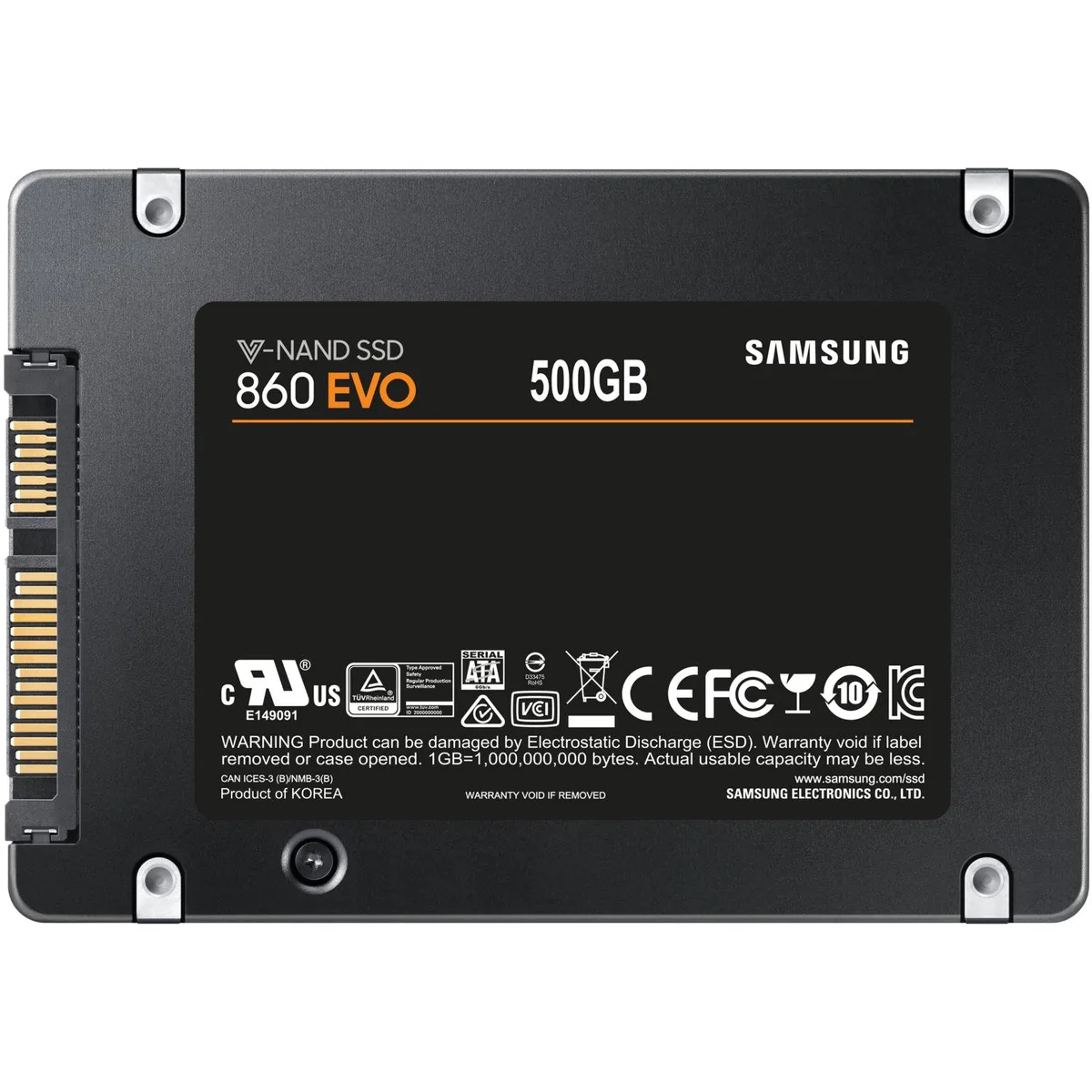

Mount the drive using the four bottom screw holes on the 2.5-inch frame; the common mistake is leaving it loose, which can disconnect the SATA connector under vibration.

How many terabytes can be written before the 3D NAND wears out?

The endurance rating is 300 TBW, so the 500 GB 3D NAND drive is warranted for up to 300 terabytes of total data written.
