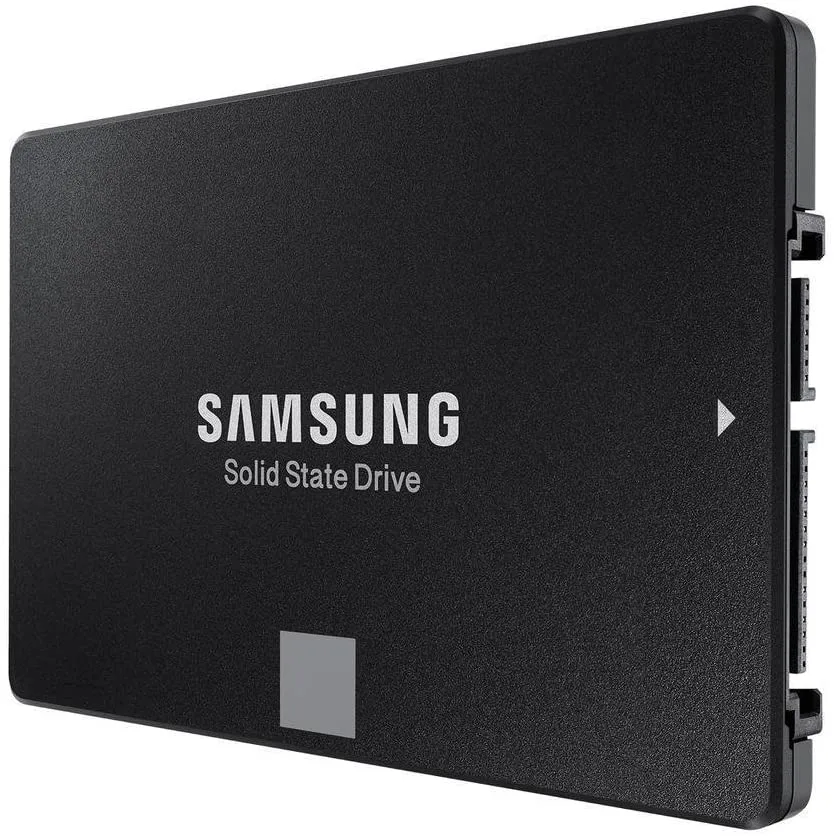

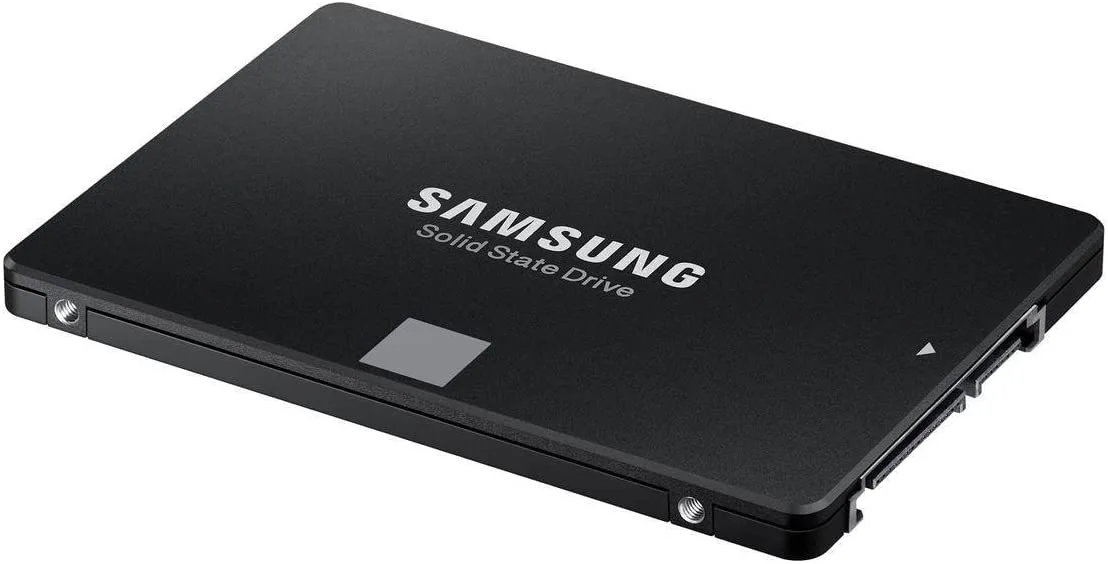

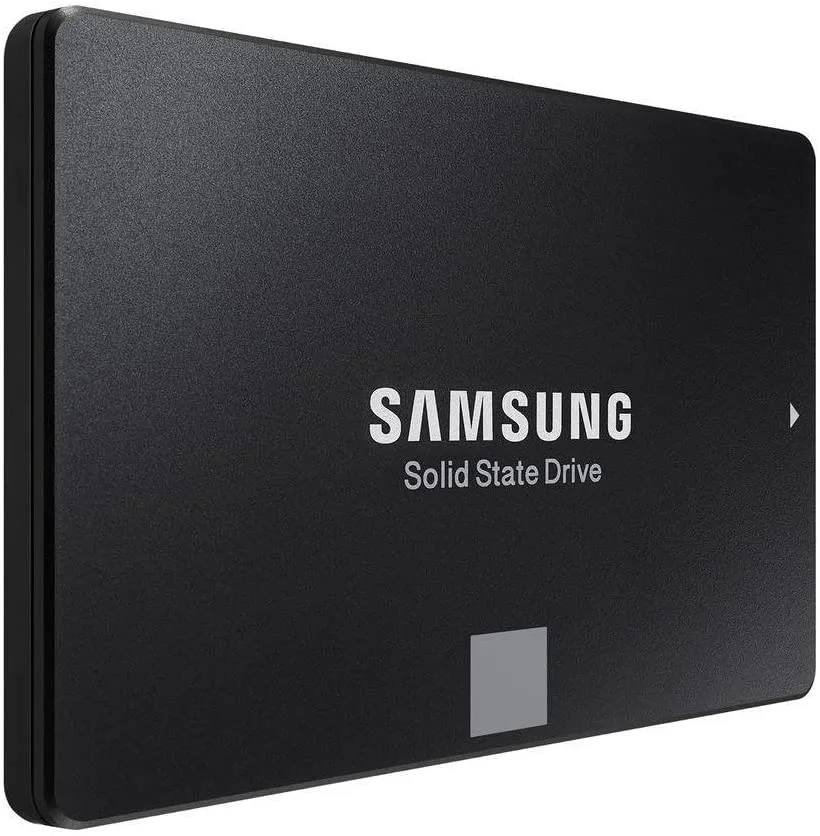

A black rectangular 2.5 inch SATA SSD with silver label

SAMSUNG

SAMSUNG 860 EVO MZ-76E4T0E 4TB 2.5" SATA internal SSD

SKU CH-BA8E-TQ0PN MPN MZ-76E4T0E

A 4 TB 2.5 inch SATA internal SSD delivering sequential speeds up to 550 MBps read and 520 MBps write with 4 GB LPDDR4 cache and 64-layer V-NAND

  • Device TypeInternal Solid State Drive (SSD)
  • Used ForConsumer
  • Form Factor2.5"
  • Capacity4TB
  • Memory ComponentsV-NAND 3-bit MLC
  • InterfaceSATA III

Options 4TB

  • Up to 550 MB/s sequential read for fast boot
  • Up to 520 MB/s sequential write for quick saves
  • 98,000 random read IOPS for snappy multitasking
  • 1,500,000-hour MTBF ensures long-term reliability
  • 64-layer V-NAND stacks cells vertically for high density

Samsung 860 EVO 4TB SATA SSD

The Samsung 860 EVO MZ-76E4T0E is a 2.5-inch internal solid state drive with a 4TB capacity. It uses a SATA III interface and Samsung V-NAND 3-bit MLC memory with a Samsung MJX controller and 4GB LPDDR4 cache. It is built for everyday computing in mainstream PCs and laptops.

Installation and common issues

The drive fits any standard 2.5-inch SATA bay and connects with a regular SATA data and power cable. No special drivers are required for modern operating systems. A frequent mistake is connecting the drive to a SATA II port, which limits the sequential speeds well below the rated 550 MBps read and 520 MBps write.

Deciding specification — 4TB capacity

The single figure that determines fit is the 4TB capacity. It provides space for large media libraries, games and backups on a SATA platform. The drive is rated for up to 2400 TBW over five years with an MTBF of 1500000 hours. Active power draw peaks at 4.0W and averages 3.0W, while idle power is a maximum of .5W.

Highlights

  • Up to 550 MB/s sequential read for fast boot
  • Up to 520 MB/s sequential write for quick saves
  • 98,000 random read IOPS for snappy multitasking
  • 1,500,000-hour MTBF ensures long-term reliability
  • 64-layer V-NAND stacks cells vertically for high density

Specifications

BrandSAMSUNG
Series860 EVO Series
ModelMZ-76E4T0E
Part NumberMZ-76E4T0E
Device TypeInternal Solid State Drive (SSD)
Used ForConsumer
Form Factor2.5"
Capacity4TB
Memory ComponentsV-NAND 3-bit MLC
InterfaceSATA III
ControllerSamsung MJX
Cache4GB LPDDR4
Max Sequential ReadUp to 550 MBps
Max Sequential WriteUp to 520 MBps
4KB Random Read4KB, QD32: Up to 98,000 IOPS
4KB, QD1: Up to 10,000 IOPS
4KB Random Write4KB, QD32: Up to 90,000 IOPS
4KB, QD1: Up to 42,000 IOPS
MTBF1,500,000 hours
FeaturesSamsung V-NAND Technology
Samsung's V-NAND flash memory helps to overcome the limitations of conventional planar NAND architecture. It stacks 64 cell layers vertically over one another rather than trying to fit itself onto a fixed horizontal space, in order to provide high density and performance with a small footprint.
Fast Read/Write Performance
The 860 PRO performs at sequential write speeds up to 520 MB/s and sequential read speeds up to 550 MB/s with a robust a robust algorithm-based Samsung MJX controller (up to 1 GHz).
Relentless Endurance
With an industry warranty offering up
Power Consumption (Idle)Idle: Max. 0.5W (4TB)
Device Sleep: 2 mW (4TB)
Power Consumption (Active)Active Read/Write: Max. 4.0W (4TB) / Avg. 3.0W (4TB)
Operating Temperature0°C ~ +70°C
Max Shock Resistance1,500G & 0.5 ms (Half sine)
Height7.00mm
Width70.00mm
Depth100.00mm
Weight95.25g
Shipping weight0.14 kg
Package size145 × 98 × 21 mm

Other versions of this model

4 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How can I confirm the 860 EVO is delivering the rated 550 MBps sequential read after installation?

Run a benchmark such as CrystalDiskMark using a 1 GiB test file on a SATA III port; the sequential read result should approach 550 MBps and the 4 KB QD32 random read should reach about 98,000 IOPS.

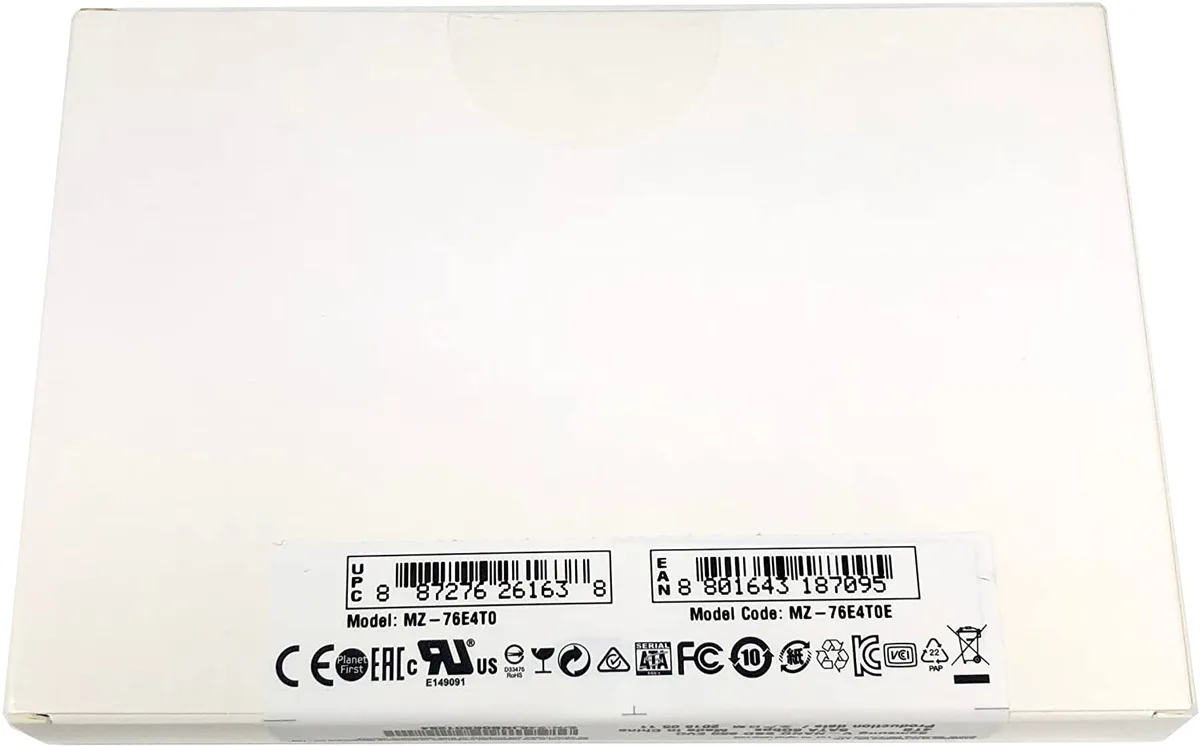

What does the white-box package contain and what must I supply myself?

The box holds only the 2.5" 4 TB drive; you must provide a SATA data cable, a SATA power connection and a 2.5" drive bay or adapter for your chassis.

Which capacity in the 860 EVO range matches the 2,400 TBW endurance figure?

The 4 TB model carries the 2,400 TBW rating for the five-year warranty period; smaller capacities have lower TBW values.
