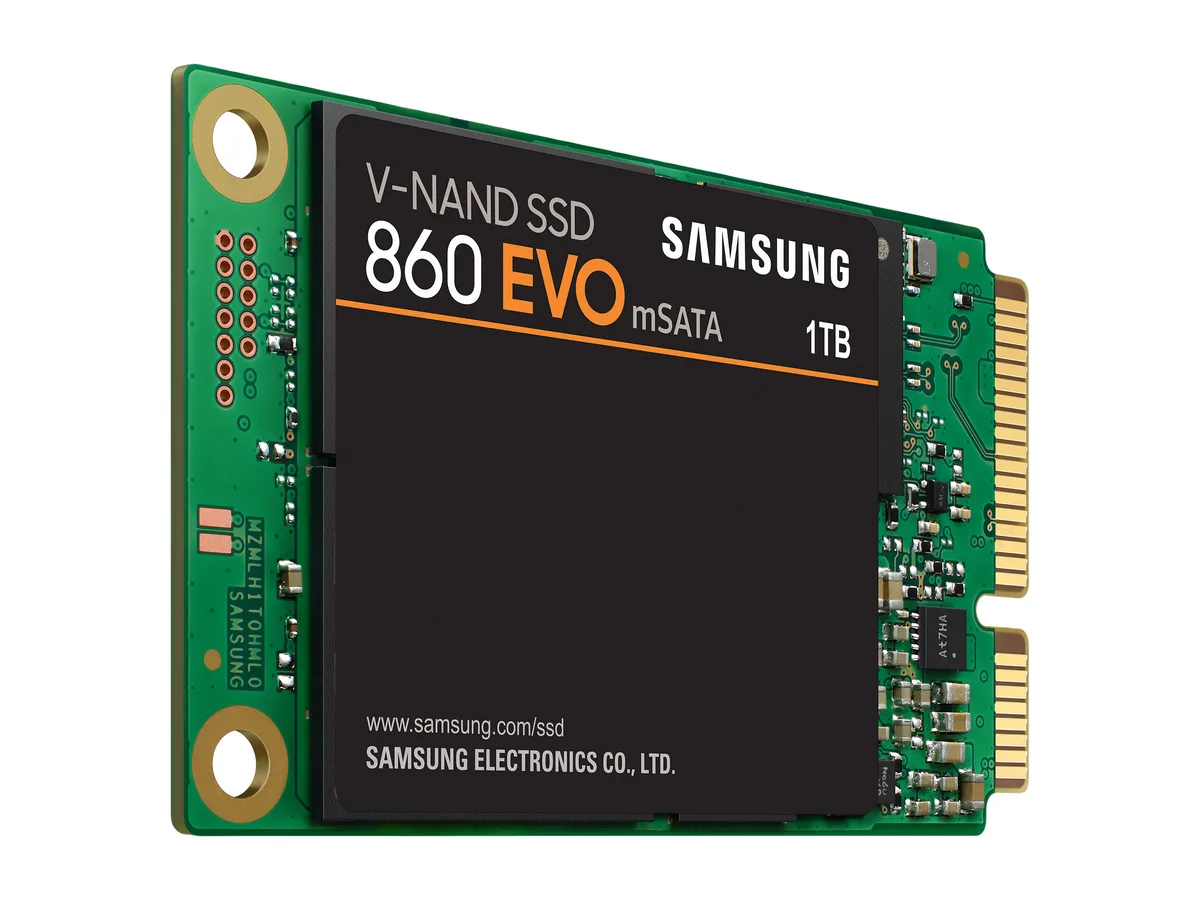

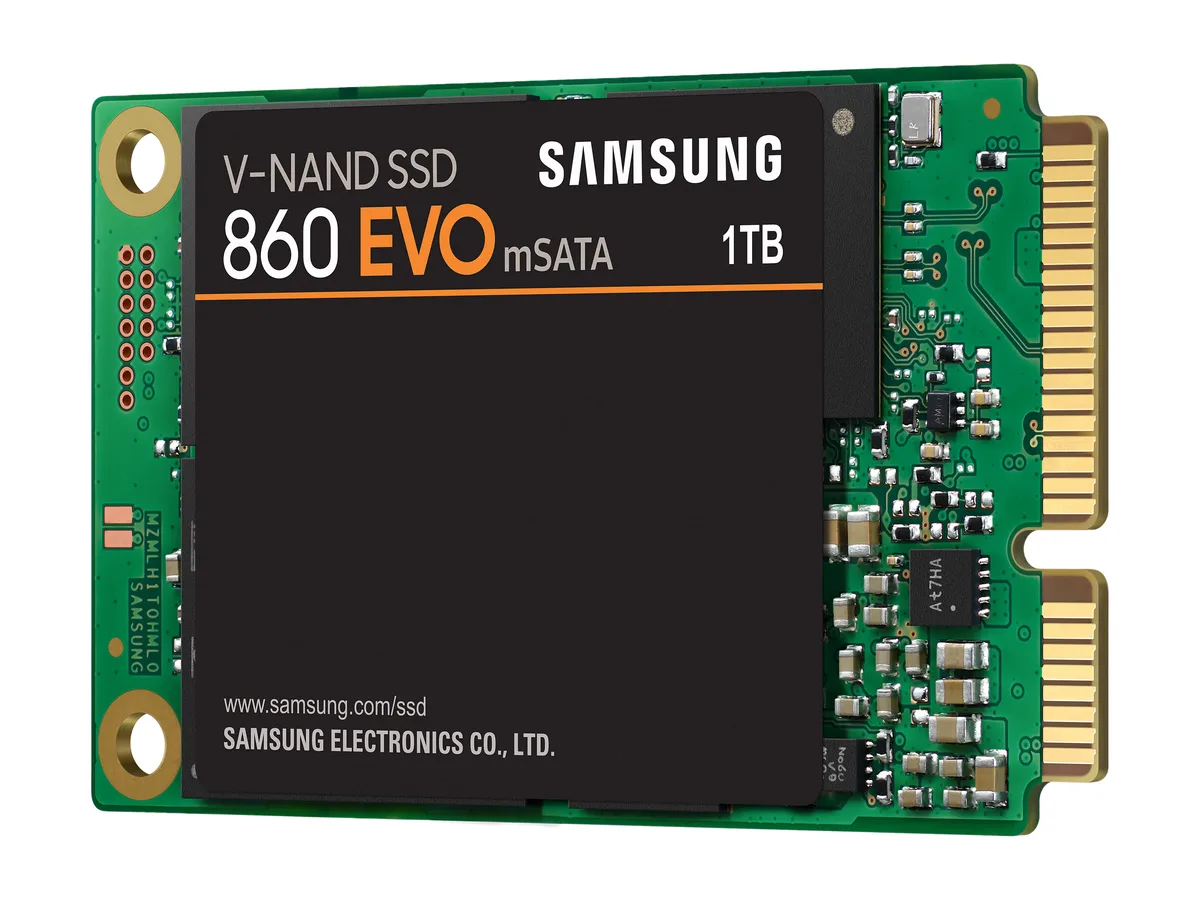

Small rectangular mSATA SSD with black label and gold edge connector

SAMSUNG

SAMSUNG 860 EVO mSATA 1TB internal SSD MZ-M6E1T0BW

SKU CH-MY02-QDSYH

A 1TB mSATA internal SSD with V-NAND 3-bit MLC, SATA III interface, sequential reads up to 550 MBps and writes up to 520 MBps, AES 256-bit encryption, and a 1.5 million hour MTBF

  • Device TypeInternal Solid State Drive (SSD)
  • Used ForConsumer
  • Form FactormSATA
  • Capacity1TB
  • Memory ComponentsV-NAND 3-bit MLC
  • InterfaceSATA III

Options 1TB

  • 550 MB/s read speed for fast boot and app loads
  • 520 MB/s write speed moves large files quickly
  • 97K IOPS random read handles multitasking smoothly
  • AES 256-bit hardware encryption protects data without software overhead
  • 1500000-hour MTBF and 1500G shock resistance for long-term reliability

860 EVO mSATA 1TB for mainstream PCs

The Samsung 860 EVO mSATA 1TB is an internal solid-state drive built for consumer laptops and desktops. It uses V-NAND 3-bit MLC memory and a Samsung MJX controller with 1GB Low Power DDR4 cache. Sequential reads reach 550 MBps and writes 520 MBps, with random read IOPS of 97,000 and write IOPS of 88,000 at QD32. AES 256-bit encryption and TCG Opal support protect data.

mSATA form factor fits compatible slots

Installation requires an available mSATA slot and SATA III interface on the host system; the drive has no moving parts and draws 3.0W average active power. Common issues include inserting the module into an M.2 slot that only supports PCIe, or disabling AHCI in BIOS which limits Trim and queued Trim benefits. The 0°C to 70°C operating range and 1,500G shock resistance suit mobile use.

1TB capacity handles large media libraries

The 1TB drive stores operating systems, applications and sizable 4K video or 3D project files with headroom for future growth. TurboWrite buffer expands to 78 GB for sustained write bursts, while MTBF of 1,500,000 hours and GC algorithm maintain endurance. Heavy sustained workloads exceeding the 4.5W burst power envelope or sequential throughput limits will see performance taper.

Highlights

  • 550 MB/s read speed for fast boot and app loads
  • 520 MB/s write speed moves large files quickly
  • 97K IOPS random read handles multitasking smoothly
  • AES 256-bit hardware encryption protects data without software overhead
  • 1500000-hour MTBF and 1500G shock resistance for long-term reliability

Specifications

BrandSAMSUNG
Series860 EVO Series
ModelMZ-M6E1T0BW
Device TypeInternal Solid State Drive (SSD)
Used ForConsumer
Form FactormSATA
Capacity1TB
Memory ComponentsV-NAND 3-bit MLC
InterfaceSATA III
ControllerSamsung MJX Controller
CacheSamsung 1GB Low Power DDR4 SDRAM
Max Sequential ReadUp to 550 MBps
Max Sequential WriteUp to 520 MBps
4KB Random ReadQD32: Up to 97,000 IOPS
QD1: Up to 10,000 IOPS
4KB Random WriteQD32: Up to 88,000 IOPS
QD1: Up to 42,000 IOPS
MTBF1,500,000 hours
FeaturesTrim Support
AES Encryption: AES 256-bit Encryption (Class 0) TCG / Opal IEEE1667 (Encrypted drive)
S.M.A.R.T. Support
GC (Garbage Collection): Auto Garbage Collection Algorithm
WWN Support: World Wide Name supported
Device Sleep Mode Support
Management SW: Magician Software for SSD management
Power Consumption (Active)Average: 3.0W
Maximum: 4.5W (Burst mode)
Operating Temperature0°C ~ +70°C
Max Shock Resistance1,500G & 0.5 ms (Half sine)
Height4.90mm
Width29.90mm
Depth50.80mm
Weight80.00g

Other versions of this model

2 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How do I confirm the Samsung 860 EVO mSATA 1TB is performing correctly after installation?

Check that the drive reports 1TB capacity in BIOS and OS, then run a benchmark to verify sequential reads near 550 MBps and writes near 520 MBps; S.M.A.R.T. data should show zero reallocated sectors and temperature within 0°C to 70°C.

What ships with the MZ-M6E1T0BW and what must I source separately?

The box contains the 1TB mSATA SSD with Samsung MJX controller, 1GB Low Power DDR4 cache, V-NAND 3-bit MLC, AES 256-bit encryption and 1,500,000 hour MTBF; you must supply an mSATA slot and SATA III cable or adapter.

Which capacity of the 860 EVO mSATA line should I choose for my workload?

This SKU is the 1TB model offering up to 550 MBps read, 520 MBps write, 97,000 random read IOPS and 88,000 random write IOPS; select it when you need that capacity and performance tier.
