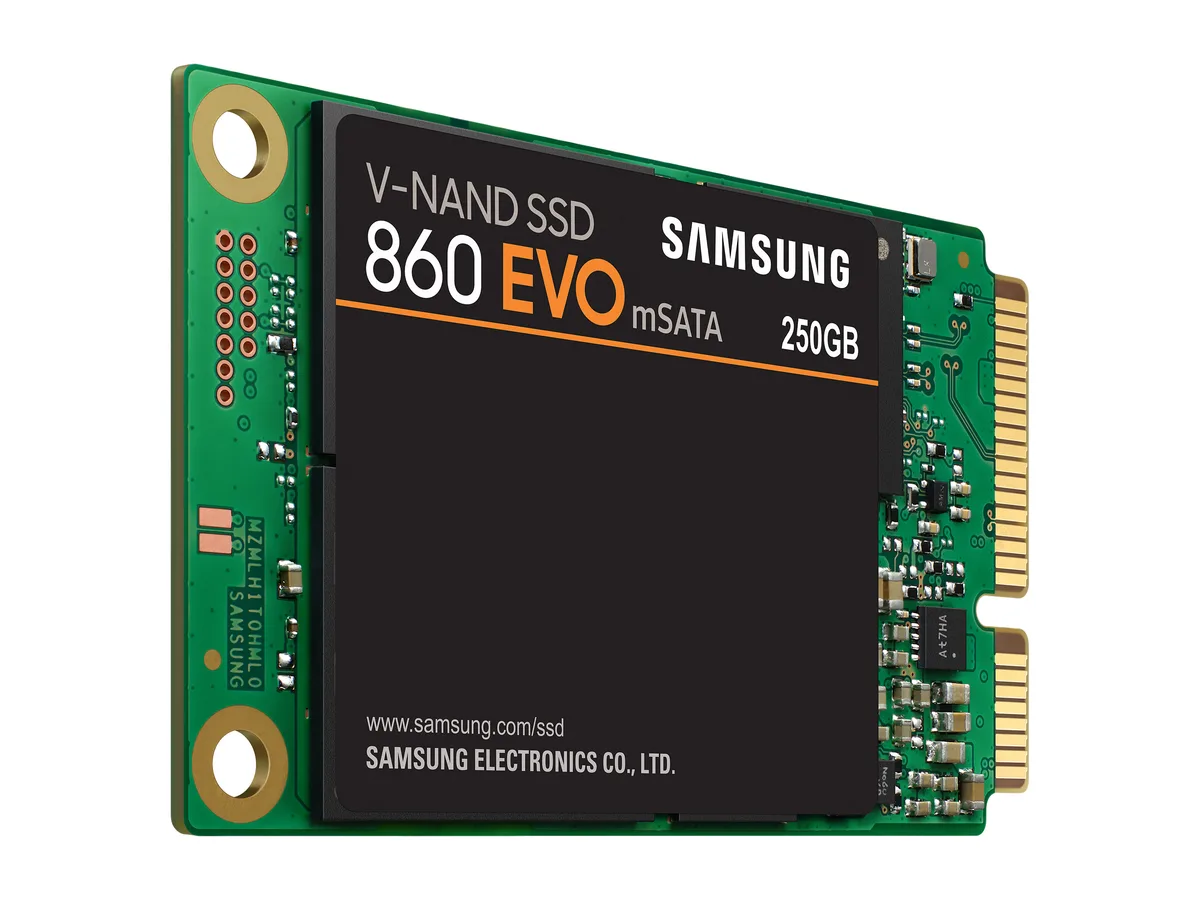

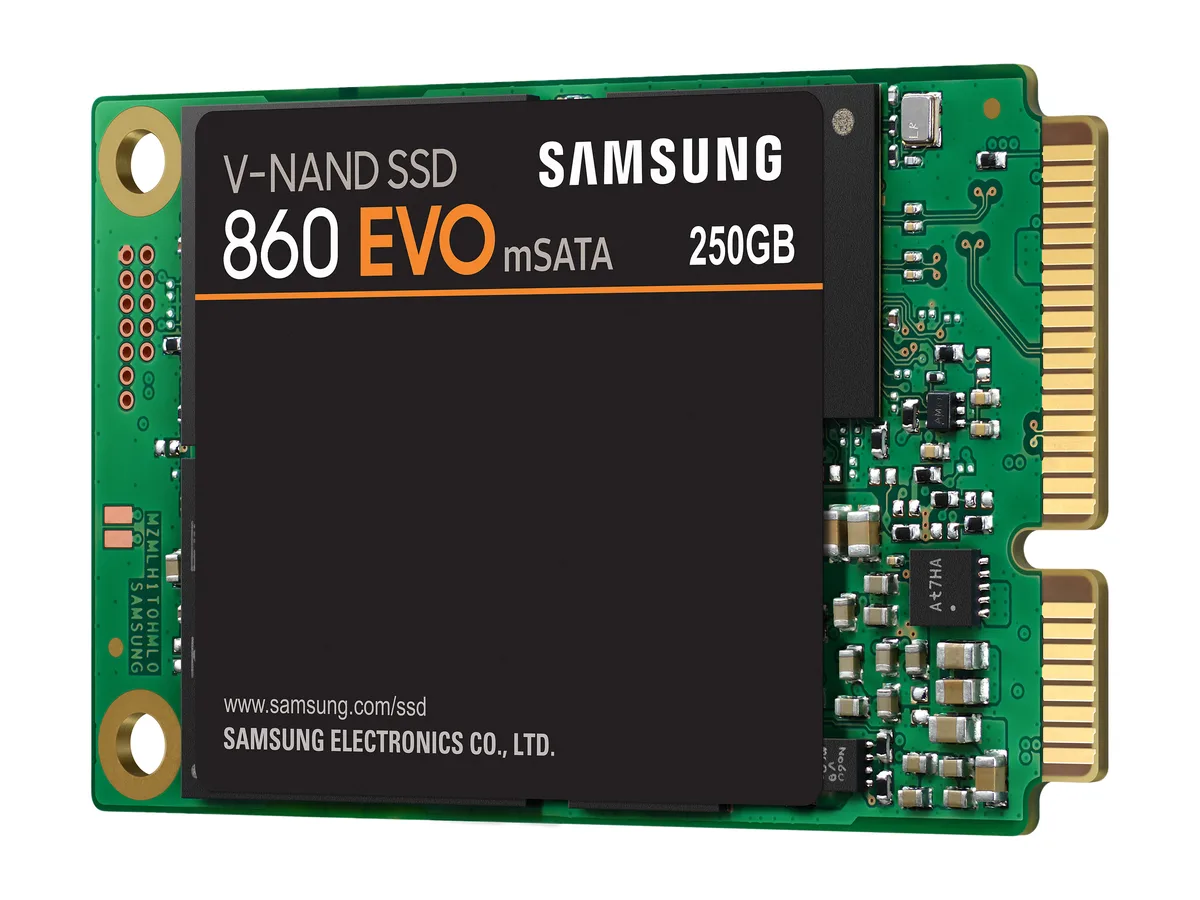

Small rectangular mSATA SSD with black circuit board and silver label

SAMSUNG

SAMSUNG 860 EVO mSATA 250GB internal SSD

SKU CH-PHBQ-P6VQD

mSATA 250GB SATA III SSD with V-NAND 3-bit MLC, up to 550 MBps read and 520 MBps write, AES 256-bit encryption and 1,500,000-hour MTBF

  • Device TypeInternal Solid State Drive (SSD)
  • Used ForConsumer
  • Form FactormSATA
  • Capacity250GB
  • Memory ComponentsV-NAND 3-bit MLC
  • InterfaceSATA III

Options 250GB

  • Faster boot and app loading with sequential read up to 550 MBps
  • Quick file saves and installs with sequential write up to 520 MBps
  • Responsive multitasking from random read up to 97000 IOPS
  • Data protected by AES 256-bit encryption TCG Opal IEEE1667
  • Low power draw averages 2.2W active for cooler operation

250 GB mSATA SSD for compact systems

The Samsung 860 EVO MZ-M6E250BW is a 250 GB internal solid-state drive built for consumer laptops and small-form-factor desktops that accept an mSATA module. It uses the SATA III interface and Samsung V-NAND 3-bit MLC memory to deliver solid-state responsiveness without a 2.5-inch bay.

mSATA form factor and SATA III connection

The mSATA card plugs directly into a compatible slot on the motherboard, removing the need for drive cages or data cables. A Samsung MJX controller manages the flash, while Trim support, S.M.A.R.T. monitoring and an auto garbage-collection algorithm maintain consistent performance over the drive's life. AES 256-bit hardware encryption with TCG Opal and IEEE 1667 compliance protects data at rest.

Low power draw and wide temperature range

Average active consumption is 2.2 W with a 4.5 W burst maximum, and the drive operates from 0 °C to 70 °C. With no moving parts it runs silently and withstands shocks of 1,500 G for 0.5 ms. The controller's device-sleep support further reduces energy use during idle periods, and a 1.5 million-hour MTBF rating reflects the design's durability.

Highlights

  • Faster boot and app loading with sequential read up to 550 MBps
  • Quick file saves and installs with sequential write up to 520 MBps
  • Responsive multitasking from random read up to 97000 IOPS
  • Data protected by AES 256-bit encryption TCG Opal IEEE1667
  • Low power draw averages 2.2W active for cooler operation

Specifications

BrandSAMSUNG
Series860 EVO Series
ModelMZ-M6E250BW
Part NumberMZ-M6E250
Device TypeInternal Solid State Drive (SSD)
Used ForConsumer
Form FactormSATA
Capacity250GB
Memory ComponentsV-NAND 3-bit MLC
InterfaceSATA III
ControllerSamsung MJX Controller
Max Sequential ReadUp to 550 MBps
Max Sequential WriteUp to 520 MBps
4KB Random ReadRandom (QD1): Up to 10,000 IOPS; Random (QD32): Up to 97,000 IOPS
4KB Random WriteRandom (QD1): Up to 42,000 IOPS; Random (QD32): Up to 88,000 IOPS
MTBF1,500,000 hours
FeaturesTrim Support: Yes
AES Encryption: AES 256-bit Encryption (Class 0) TCG / Opal IEEE1667 (Encrypted drive)
S.M.A.R.T. Support: Yes
GC (Garbage Collection): Auto Garbage Collection Algorithm
WWN Support: World Wide Name supported
Device Sleep Mode Support: Yes
Software: Magician Software for SSD management
Power Consumption (Active)Average: 2.2W
Maximum: 4.5W (Burst mode)
Operating Temperature0°C ~ +70°C
Max Shock Resistance1,500G & 0.5 ms (Half sine)
Height4.83mm
Width29.97mm
Depth50.80mm
Weight81.65g
Package ContentSSD only ( new - 0 days, 0 hours) in plastivc case, no retail box or other papers

Other versions of this model

2 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What practical limit does the SATA III interface put on this mSATA drive?

The SATA III link caps real-world throughput at 550 MBps read and 520 MBps write, so the Samsung MJX controller cannot exceed those figures even though the V-NAND 3-bit MLC flash is faster.

What slot and clearance does the mSATA form factor require?

It needs a standard mSATA connector (full-size, not half-size) and a 70 °C operating-temperature envelope, so the motherboard or adapter must expose a full mSATA socket with adequate airflow.

How is the drive initialised and what step do people skip?

After physical insertion, enable AHCI in the BIOS, partition the 250 GB volume in the OS, then run Samsung Magician to activate TRIM, AES 256-bit encryption and the TurboWrite cache — the Magician step is the one most often missed.
