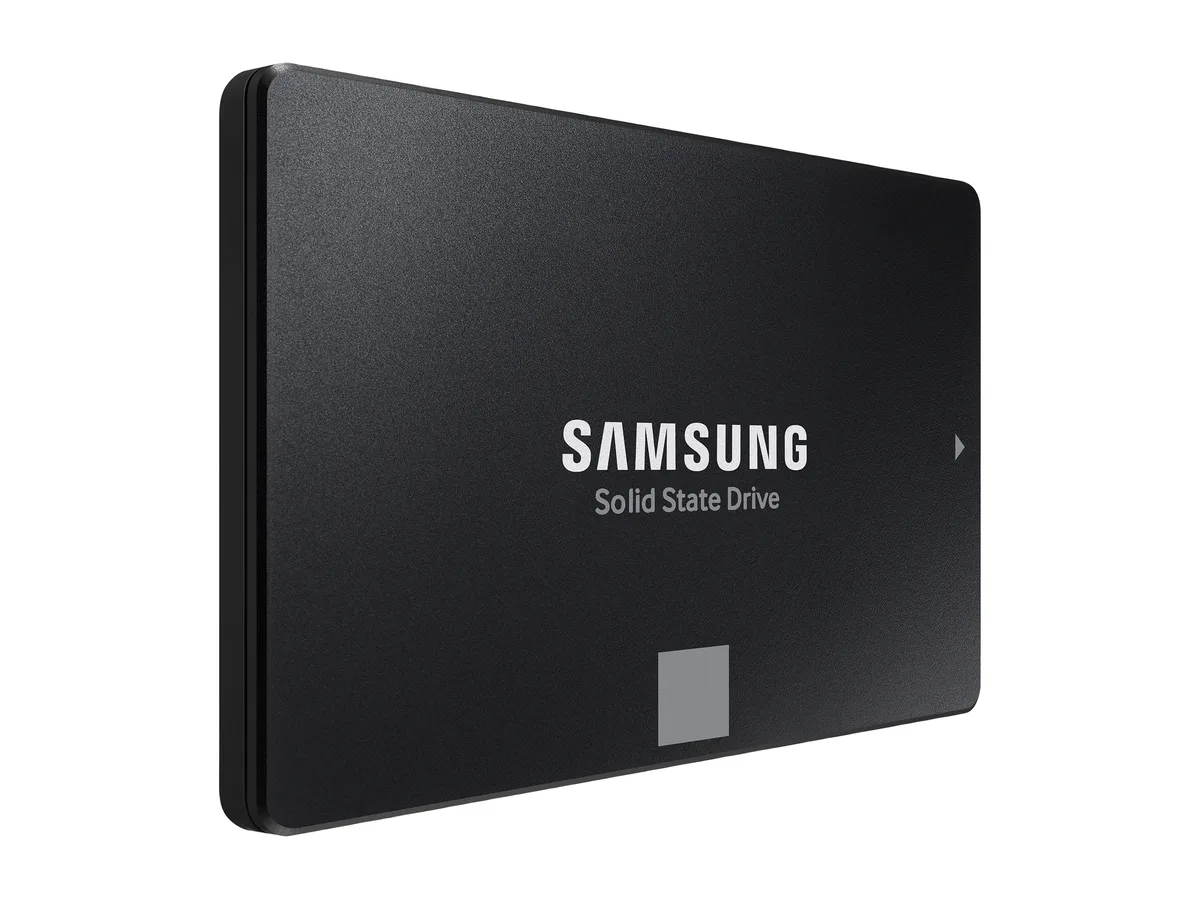

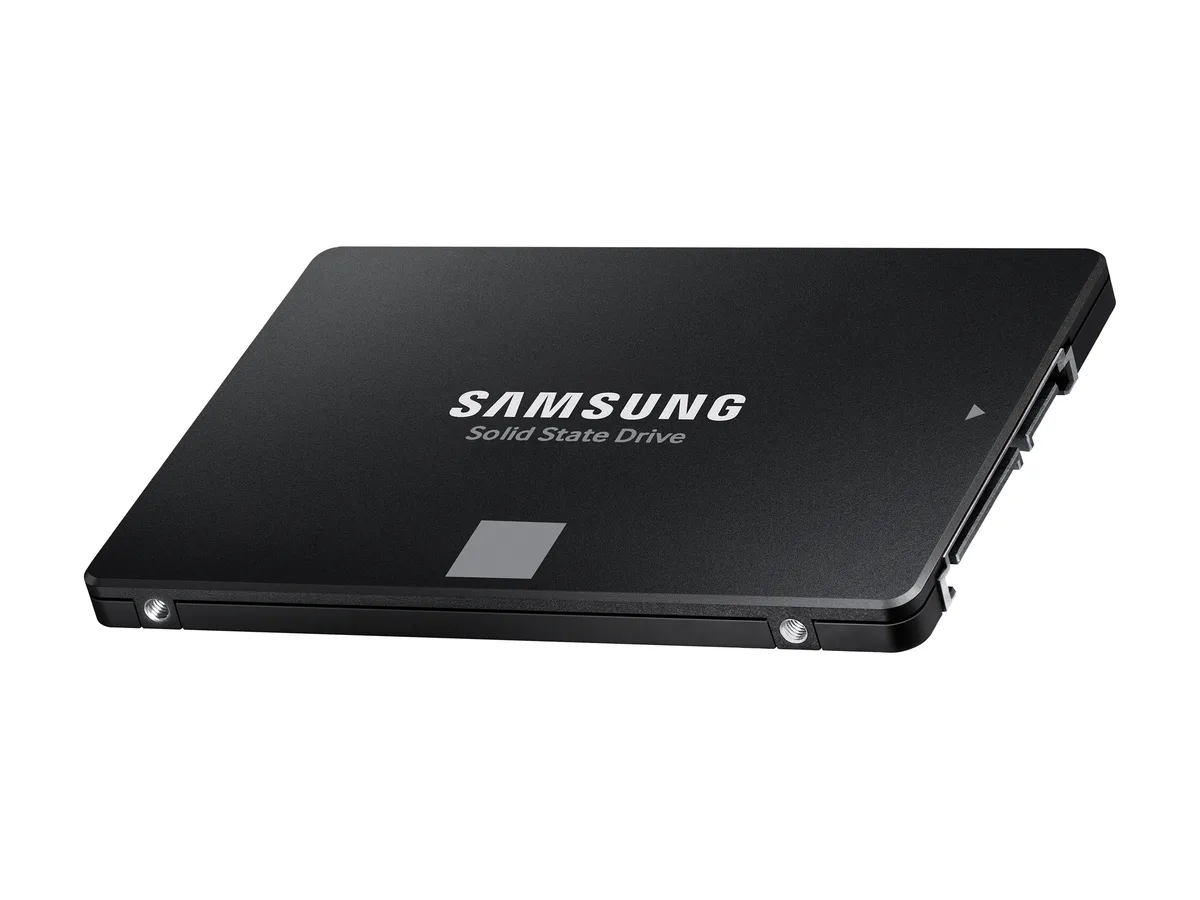

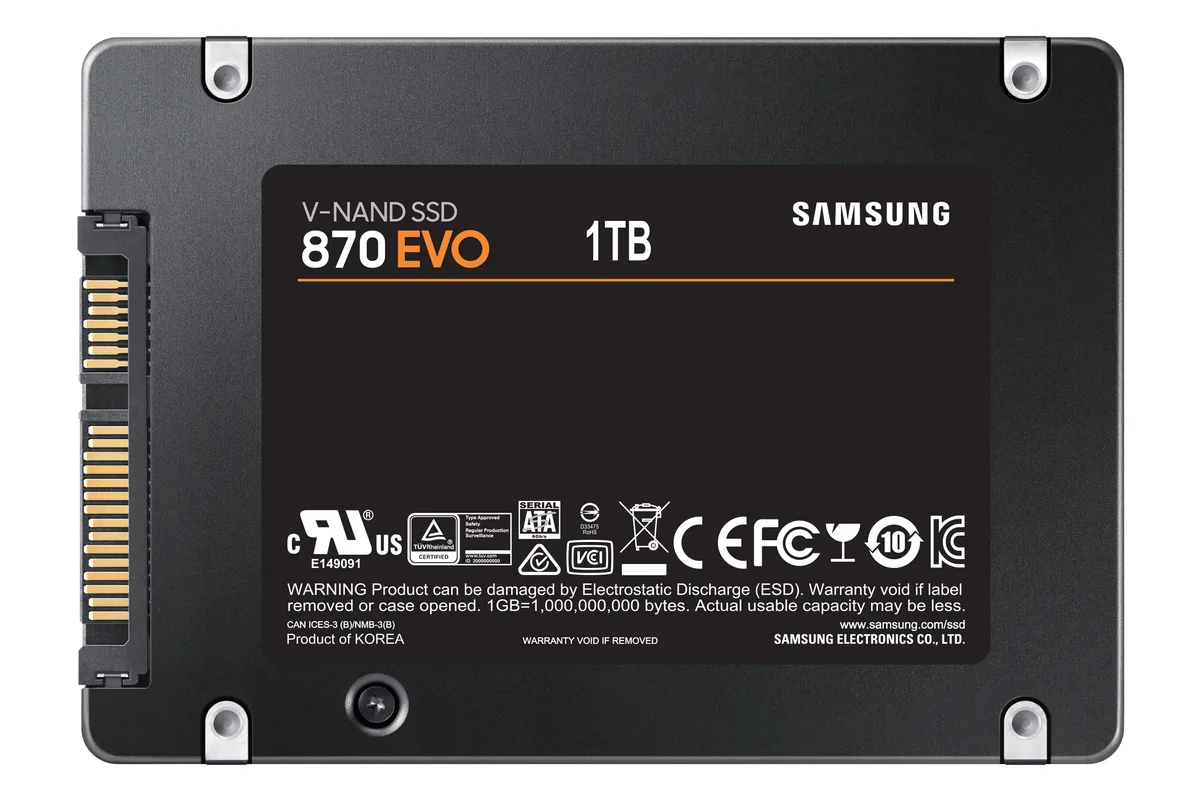

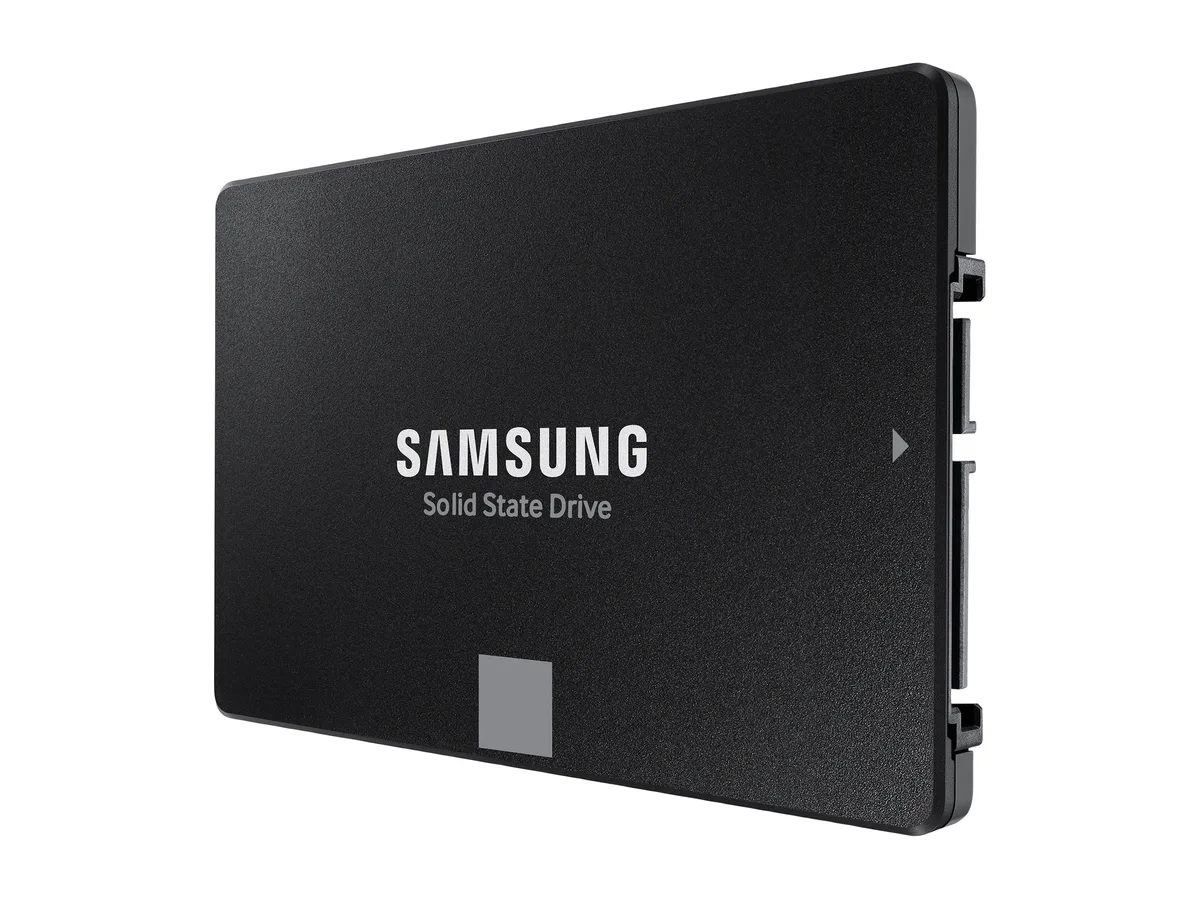

Rectangular black metal 2.5 inch SATA SSD with silver label

SAMSUNG

SAMSUNG 870 EVO 1TB 2.5" SATA III Internal SSD MZ-77E1T0B/AM

SKU CH-G6JS-BM4FD MPN MZ-77E1T0B/AM

A 1 TB 2.5" SATA III internal SSD with V-NAND, 1 GB cache and AES 256 encryption delivering up to 560 MB/s read and 530 MB/s write

  • Device TypeInternal Solid State Drive (SSD)
  • Used ForConsumer
  • Form Factor2.5"
  • Capacity1TB
  • Memory ComponentsV-NAND
  • InterfaceSATA III

Options 1TB

  • Up to 560 MB/s sequential read for fast boot and load times
  • Up to 530 MB/s sequential write for quick file saves and transfers
  • 600 TBW endurance rating supports heavy workloads over the drive life
  • AES 256-bit hardware encryption protects data without software overhead
  • 1 GB DRAM cache and V-NAND maintain consistent performance during sustained use

Samsung 870 EVO 1TB SATA SSD

The Samsung 870 EVO is a 1TB 2.5-inch internal solid-state drive that uses V-NAND memory and a SATA III interface. It is built for consumers who want a straightforward storage upgrade for a desktop PC or laptop without changing platform architecture. A 1GB cache and AES 256-bit hardware encryption with TCG Opal 2.0 and IEEE 1667 support are included.

Fits standard 2.5-inch SATA bays

The drive slides into any standard 2.5-inch SATA bay and connects with the existing SATA data and power cables, so no adapter brackets or new cables are required. Its low idle draw of 30 mW and average active consumption of 2.5 W leave more headroom for other components in a laptop power budget. Compatibility testing covers major chipsets, motherboards, NAS units and video recording devices, reducing integration risk.

Sustained write performance

The 870 EVO maximises the SATA interface limit with sequential speeds up to 560 MB/s read and 530 MB/s write, and a larger variable buffer helps maintain those rates during long transfers. Endurance is rated at 600 TBW with an MTBF of 1,500,000 hours, indicating consistent behaviour under heavy workloads such as 8K video processing. Active power peaks at 4.0 W and shock resistance is rated at 1500 G for physical durability.

Highlights

  • Up to 560 MB/s sequential read for fast boot and load times
  • Up to 530 MB/s sequential write for quick file saves and transfers
  • 600 TBW endurance rating supports heavy workloads over the drive life
  • AES 256-bit hardware encryption protects data without software overhead
  • 1 GB DRAM cache and V-NAND maintain consistent performance during sustained use

Specifications

BrandSAMSUNG
Series870 EVO Series
ModelMZ-77E1T0B/AM
Device TypeInternal Solid State Drive (SSD)
Used ForConsumer
Form Factor2.5"
Capacity1TB
Memory ComponentsV-NAND
InterfaceSATA III
ProtocolSATA
Cache1GB
EncryptionClass 0 (AES 256) TCG/Opal v2.0, MS eDrive (IEEE1667)
Max Sequential ReadUp to 560 MBps
Max Sequential WriteUp to 530 MBps
Terabytes Written (TBW)600TB
MTBF1,500,000 hours
FeaturesTHE SSD ALL-STAR - The latest 870 EVO has indisputable performance, reliability and compatibility built upon Samsung's pioneering technology.
EXCELLENCE IN PERFORMANCE - Enjoy professional-level SSD performance with 870 EVO, which maximizes the SATA interface limit to 560/530 MB/s sequential speeds, accelerates write speeds and maintains long-term high performance with a larger variable buffer.
INDUSTRY-DEFINING RELIABILITY - Meet the demands of every task - from everyday computing to 8K video processing, with up to 600 TBW.
MORE COMPATIBLE THAN EVER - 870 EVO has been compatibility
Power Consumption (Idle)Max. 30 mW
Power Consumption (Active)Average: 2.5W
Maximum: 4.0W
Max Shock Resistance1500G
Height7.00mm
Width69.85mm
Depth100.00mm
Weight86.18g
Shipping weight0.09 kg
Package size146 × 98 × 24 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What is the endurance limit of the 1TB 870 EVO before the warranty expires?

The drive is rated for 600 terabytes written, which is the endurance figure Samsung uses for the five-year limited warranty period.

How much power does the 870 EVO draw when it is serving data continuously?

Active power averages 2.5 watts and peaks at 4.0 watts, while idle consumption is a maximum of 30 milliwatts.

Which host connector must the system provide for this 2.5 inch SATA SSD to operate?

A standard 2.5-inch SATA data and power connector running the SATA protocol is required.
