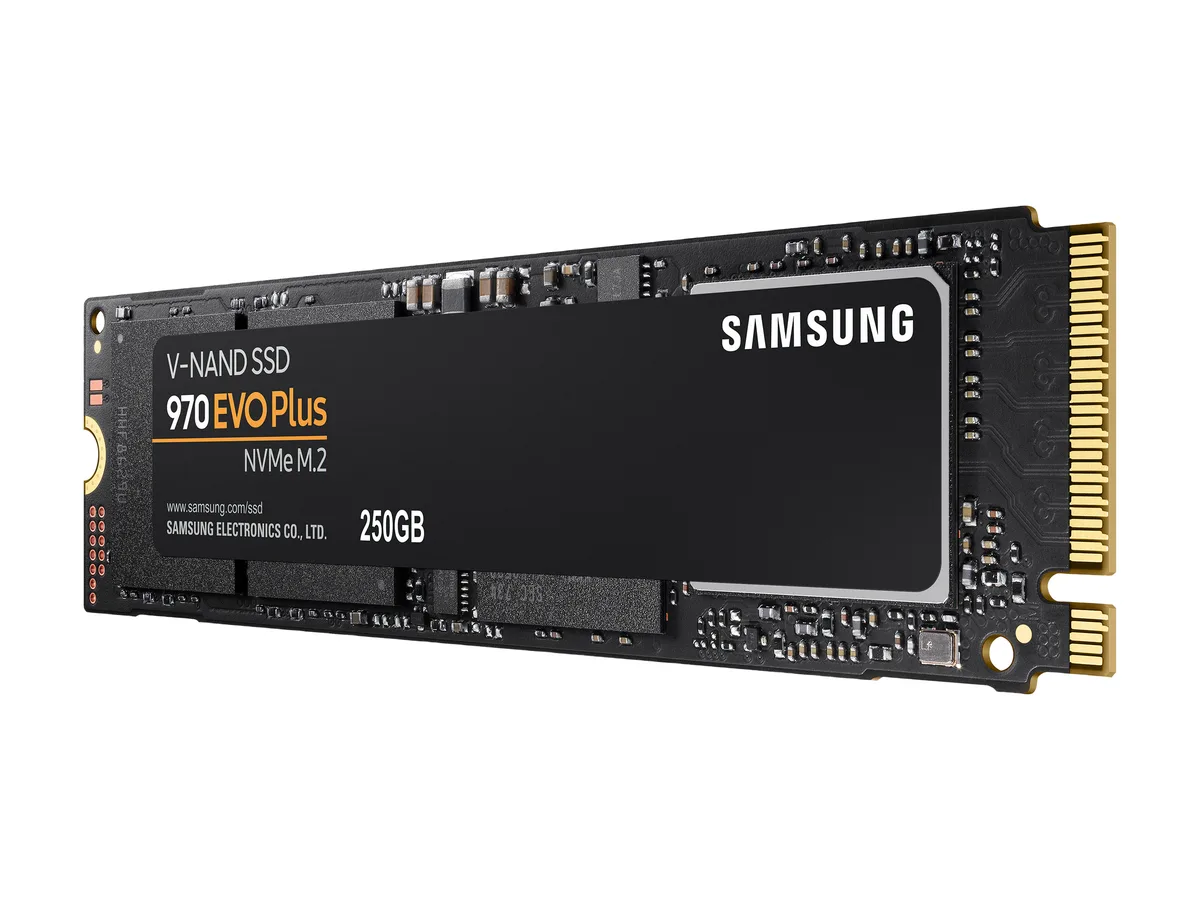

Green printed circuit board M.2 2280 stick with black controller and silver Samsung label

SAMSUNG

SAMSUNG 970 EVO PLUS M.2 2280 250GB internal SSD MZ-V7S250B/AM

SKU CH-MEFF-4JMTY MPN MZ-V7S250B/AM

A 250 GB M.2 2280 internal SSD delivering up to 3500 MBps sequential read and 2300 MBps sequential write with AES 256-bit encryption

  • Device TypeInternal Solid State Drive (SSD)
  • Used ForConsumer
  • Form FactorM.2 2280
  • Capacity250GB
  • Memory ComponentsV-NAND 3-bit MLC
  • InterfacePCIe Gen 3.0 x4, NVMe 1.3

Options 250GB

  • Fast boot and load times with up to 3500 MB/s sequential read
  • Smooth multitasking from up to 250000 random read IOPS at QD32
  • Hardware-level data protection via AES 256-bit encryption and TCG Opal 2.0
  • Consistent performance under load using Dynamic Thermal Guard temperature control
  • Long-term reliability rated at 150 TBW and 1500000 hours MTBF

Samsung 970 EVO Plus 250GB NVMe SSD

The Samsung 970 EVO Plus MZ-V7S250B/AM is a 250GB internal solid state drive built for consumers who need fast NVMe storage. It uses a PCIe Gen 3.0 x4 interface and Samsung V-NAND 3-bit MLC memory controlled by the Phoenix controller. The M.2 2280 form factor fits standard desktop and laptop slots.

Idle power 30 mW and Dynamic Thermal Guard

In normal use the drive draws a maximum of 30 mW when idle. Samsung Dynamic Thermal Guard monitors temperature and adjusts performance to keep the SSD within safe thermal limits without added noise. The 512MB Low Power DDR4 cache helps sustain throughput during typical workloads.

Samsung Magician software and AES 256-bit encryption

Samsung Magician software provides firmware updates, performance benchmarking and secure erase tools for ongoing optimisation. Hardware AES 256-bit full disk encryption supports TCG/Opal V2.0 and IEEE1667 standards for data protection. The drive is rated for 150 TBW and a 1,500,000 hour MTBF.

Highlights

  • Fast boot and load times with up to 3500 MB/s sequential read
  • Smooth multitasking from up to 250000 random read IOPS at QD32
  • Hardware-level data protection via AES 256-bit encryption and TCG Opal 2.0
  • Consistent performance under load using Dynamic Thermal Guard temperature control
  • Long-term reliability rated at 150 TBW and 1500000 hours MTBF

Specifications

BrandSAMSUNG
Series970 EVO PLUS
ModelMZ-V7S250B/AM
Part NumberMZ-V7S250B/AM
Device TypeInternal Solid State Drive (SSD)
Used ForConsumer
Form FactorM.2 2280
Capacity250GB
Memory ComponentsV-NAND 3-bit MLC
InterfacePCIe Gen 3.0 x4, NVMe 1.3
ControllerSamsung Phoenix
CacheSamsung 512MB Low Power DDR4 SDRAM
EncryptionAES 256-bit Full Disk Encryption, TCG/Opal V2.0, Encrypted Drive (IEEE1667)
Max Sequential ReadUp to 3500 MBps
Max Sequential WriteUp to 2300 MBps
4KB Random ReadQD32: Up to 250,000 IOPS
QD1: Up to 17,000 IOPS
4KB Random WriteQD32: Up to 550,000 IOPS
QD1: Up to 60,000 IOPS
MTBF1,500,000 hours
FeaturesReliability: 150 TBW
Always Evolving SSD
The ultimate in performance, upgraded. Faster than the 970 EVO, the 970 EVO Plus is powered by the latest V-NAND technology and firmware optimization. It maximizes the potential of NVMe bandwidth for unbeatable computing.
Level up Performance
The 970 EVO Plus reaches sequential read/write speeds up to 3,500/2,300 MB/s, up to 53% faster than the 970 EVO. Powered by the latest V-NAND technology - which brings greater NAND performance and higher power efficiency - along with optimized firmware, a proven Phoenix controller, and Intelligent TurboWr
Power Consumption (Idle)Max. 30 mW
Power Consumption (Active)Average: 5W
Maximum: 8W (Burst mode)
Operating Temperature0°C ~ +70°C
Max Shock Resistance1,500G & 0.5 ms (Half sine)
Height2.38mm
Width22.15mm
Depth80.15mm
Weight8.00g
Shipping weight0.09 kg
Package size145 × 98 × 24 mm

Other versions of this model

3 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How do I install the M.2 2280 NVMe drive and what step do people often miss?

Insert the drive at an angle into the motherboard M.2 slot, press it flat and secure it with the single screw; the step often missed is enabling the NVMe controller or PCIe 3.0 x4 mode in BIOS so the drive appears at full speed.

What maintenance or replacement will the 250 GB V-NAND SSD need later?

The drive has a 150 TBW endurance rating and 1.5 million-hour MTBF; no user maintenance is required, but once written data approaches 150 TB the NAND cells near their warranted limit and the drive should be replaced.

What limit appears first under sustained heavy writes on this PCIe 3.0 x4 NVMe SSD?

The Dynamic Thermal Guard throttles performance when the controller temperature rises during prolonged writes, so thermal throttling is the first limit you will encounter before the 150 TBW endurance is reached.
