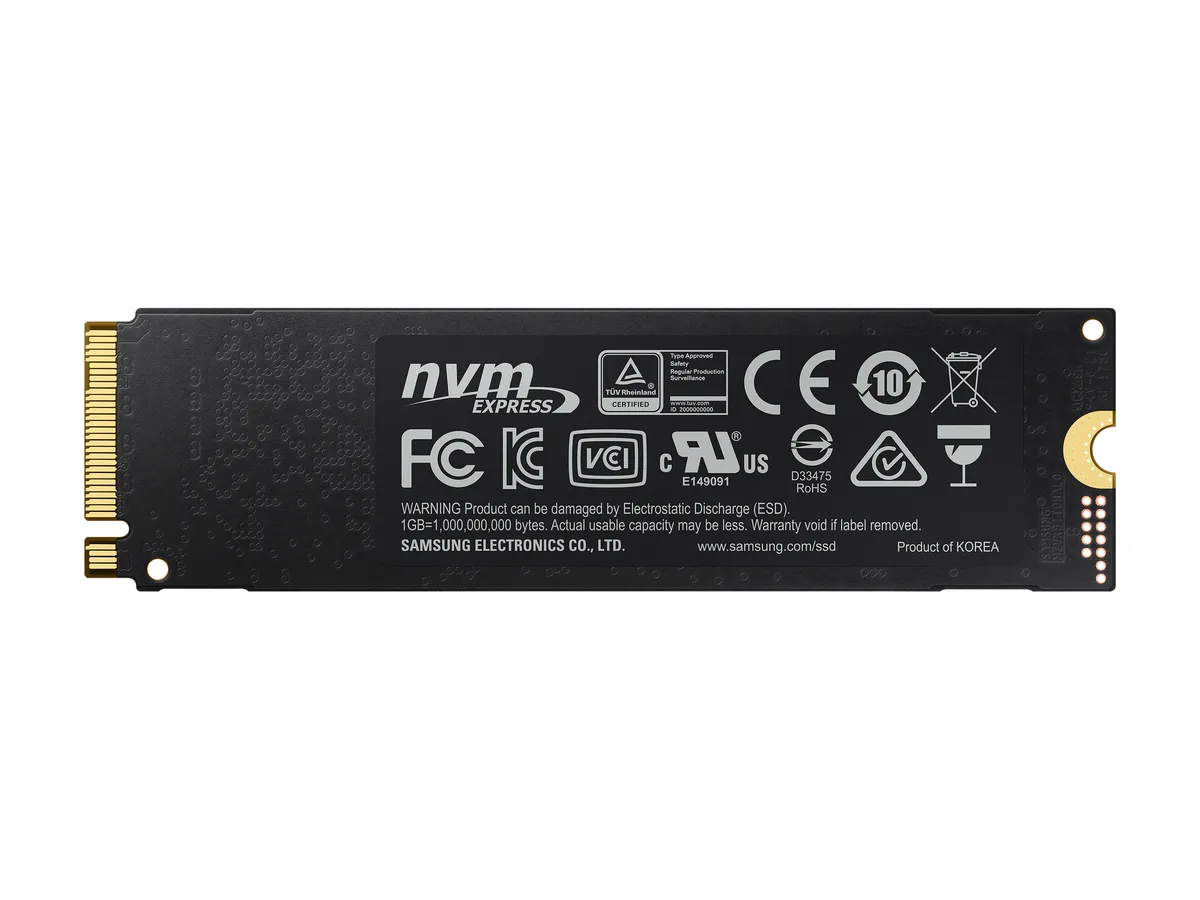

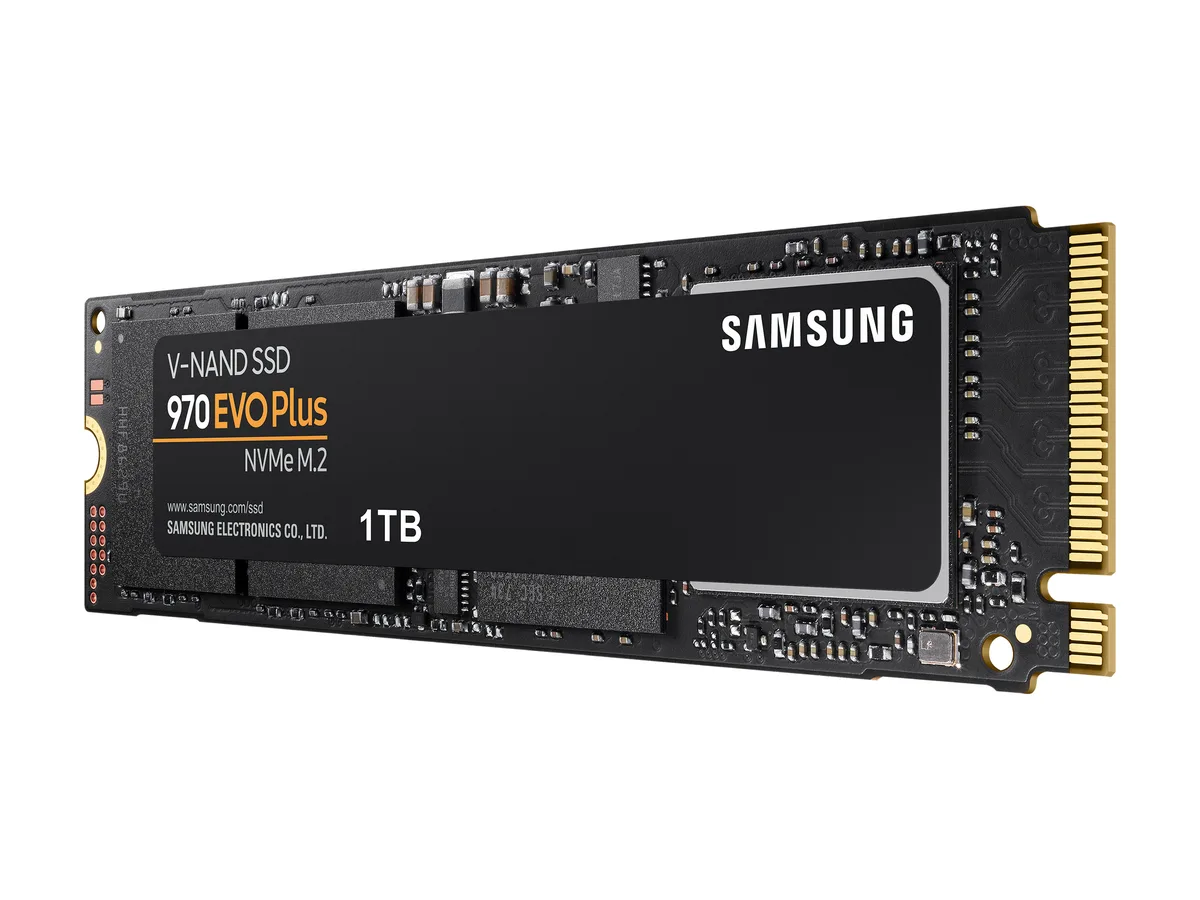

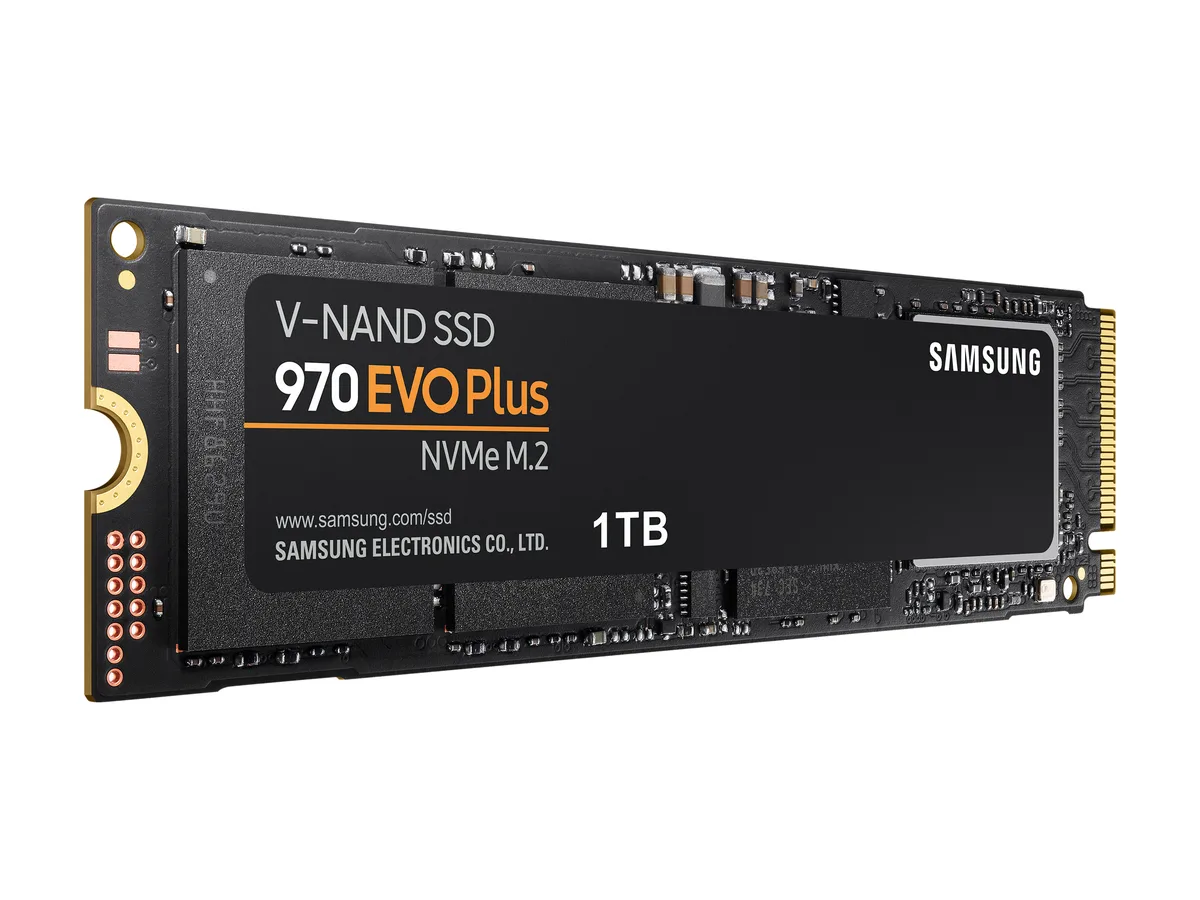

Small green circuit board with gold edge connector and black controller chip

SAMSUNG

SAMSUNG 970 EVO PLUS MZ-V7S1T0B/AM 1TB internal SSD

SKU CH-0V8Y-PBDPE MPN MZ-V7S1T0B/AM

M.2 2280 internal SSD with 1TB V-NAND storage, PCIe Gen 3.0 x4 NVMe 1.3 interface, up to 3500 MBps read and 3300 MBps write speeds, 600 TBW endurance and AES 256-bit encryption

  • Device TypeInternal Solid State Drive (SSD)
  • Used ForConsumer
  • Form FactorM.2 2280
  • Capacity1TB
  • Memory ComponentsV-NAND 3-bit MLC
  • InterfacePCIe Gen 3.0 x4, NVMe 1.3

Options 1TB

  • Up to 3500 MB/s sequential read speeds accelerate large-file workflows
  • Up to 3300 MB/s sequential write speeds shorten save and export times
  • 600 TBW endurance rating supports heavy daily write workloads
  • AES 256-bit hardware encryption protects stored data without software overhead
  • Dynamic Thermal Guard throttles heat to sustain performance under load

Samsung 970 EVO Plus 1TB M.2 2280

This internal SSD uses a PCIe Gen 3.0 x4 interface with NVMe 1.3 protocol. It is built for consumer desktops and laptops that need fast storage for operating systems, games, and creative workloads. The drive delivers up to 3500 MBps sequential read and 3300 MBps sequential write speeds.

V-NAND 3-bit MLC with 1GB DDR4 cache

The M.2 2280 form factor fits standard motherboard slots without adapters. Samsung Phoenix controller manages the V-NAND memory and the 1GB Low Power DDR4 SDRAM cache for sustained performance. AES 256-bit encryption with TCG Opal and IEEE 1667 support protects data at rest.

Dynamic Thermal Guard manages heat

The controller monitors temperature and throttles to maintain optimal operating limits during heavy writes. Rated endurance is 600 TBW with a 1,500,000 hour MTBF. Random read reaches 600,000 IOPS at QD32 and 19,000 IOPS at QD1; random write reaches 550,000 IOPS at QD32 and 60,000 IOPS at QD1.

Highlights

  • Up to 3500 MB/s sequential read speeds accelerate large-file workflows
  • Up to 3300 MB/s sequential write speeds shorten save and export times
  • 600 TBW endurance rating supports heavy daily write workloads
  • AES 256-bit hardware encryption protects stored data without software overhead
  • Dynamic Thermal Guard throttles heat to sustain performance under load

Specifications

BrandSAMSUNG
Series970 EVO PLUS
ModelMZ-V7S1T0B/AM
Part NumberMZ-V7S1T0B/AM
Device TypeInternal Solid State Drive (SSD)
Used ForConsumer
Form FactorM.2 2280
Capacity1TB
Memory ComponentsV-NAND 3-bit MLC
InterfacePCIe Gen 3.0 x4, NVMe 1.3
ControllerSamsung Phoenix
CacheSamsung 1GB Low Power DDR4 SDRAM
EncryptionAES 256-bit Encryption (Class 0)
TCG/Opal IEEE1667 (Encrypted drive)
Max Sequential ReadUp to 3500 MBps
Max Sequential WriteUp to 3300 MBps
4KB Random ReadQD32: Up to 600,000 IOPS
QD1: Up to 19,000 IOPS
4KB Random WriteQD32: Up to 550,000 IOPS
QD1: Up to 60,000 IOPS
Terabytes Written (TBW)600TB
MTBF1,500,000 hours
FeaturesAlways Evolving SSD
The ultimate in performance, upgraded. Faster than the 970 EVO, the 970 EVO Plus is powered by the latest V-NAND technology and firmware optimization. It maximizes the potential of NVMe bandwidth for unbeatable computing.
Level up Performance
The 970 EVO Plus reaches sequential read/write speeds up to 3,500/3,300 MB/s, up to 53% faster than the 970 EVO. Powered by the latest V-NAND technology - which brings greater NAND performance and higher power efficiency - along with optimized firmware, a proven Phoenix controller, and Intelligent TurboWrite boost speed.
Desi
Power Consumption (Idle)Max. 30 mW
Power Consumption (Active)Average: 6W
Maximum: 9W (Burst mode)
Operating Temperature0°C ~ +70°C
Max Shock Resistance1,500G & 0.5 ms (Half sine)
Height2.38mm
Width22.15mm
Depth80.15mm
Weight8.00g
Shipping weight0.09 kg
Package size155 × 97 × 23 mm

Other versions of this model

3 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What does the PCIe Gen 3.0 x4 NVMe 1.3 interface cap sequential speeds at?

The PCIe Gen 3.0 x4 NVMe 1.3 interface caps sequential read at 3500 MB/s and sequential write at 3300 MB/s.

What physical slot and form factor does the M.2 2280 drive require?

It requires an M.2 2280 slot that accepts a single-sided 80 mm module.

How is the drive installed and what step is often missed?

Insert the drive at an angle into the M.2 slot, secure it with the motherboard screw, then enable NVMe in BIOS so the OS detects it.
