Samsung 970 PRO M.2 2280 SSD green circuit board gold edge connector black controller chip silver label

SAMSUNG

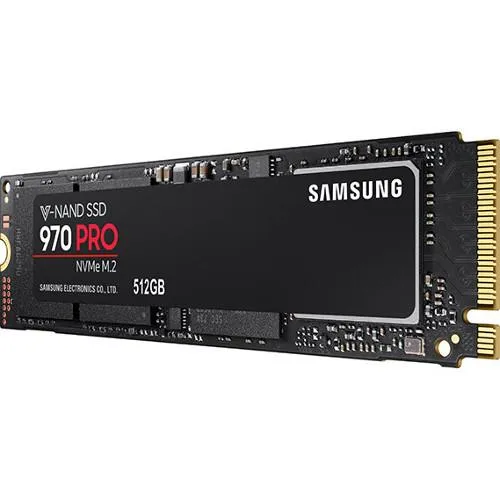

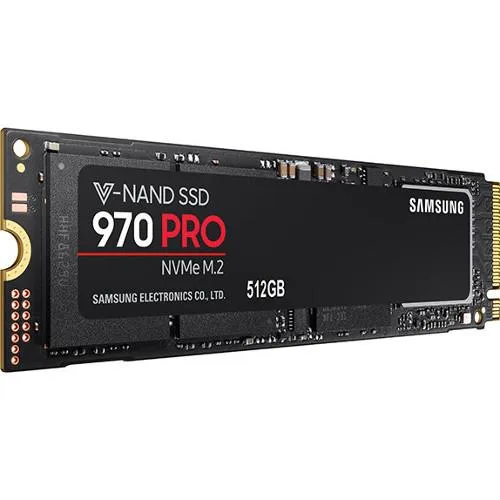

SAMSUNG 970 PRO MZ-V7P512E 512GB internal SSD

SKU CH-4BG8-ANFEF MPN MZ-V7P512E

M.2 2280 NVMe drive with 512GB V-NAND 2-bit MLC, PCIe Gen 3.0 x4, sequential speeds up to 3500/2300 MBps and 370K/500K IOPS random performance

  • Device TypeInternal Solid State Drive (SSD)
  • Used ForConsumer
  • Form FactorM.2 2280
  • Capacity512GB
  • Memory ComponentsV-NAND 2-bit MLC
  • InterfacePCIe Gen 3.0 x4, NVMe 1.3
  • Sequential reads up to 3500 MB/s accelerate large-file workflows
  • Sequential writes up to 2300 MB/s sustain heavy write workloads
  • Random reads reach 370000 IOPS for responsive multitasking
  • Random writes hit 500000 IOPS to handle bursty I/O
  • Phoenix controller with 512MB DDR4 cache delivers consistent low-latency performance

Samsung 970 PRO 512GB NVMe SSD

The Samsung 970 PRO MZ-V7P512E is a 512GB internal solid state drive using the M.2 2280 form factor. It connects via a PCIe Gen 3.0 x4 interface with NVMe 1.3 protocol. The drive employs V-NAND 2-bit MLC memory and a Samsung Phoenix controller with 512MB of Low Power DDR4 SDRAM cache.

Suited for heavy client workloads not server use

This drive is designed for high-performance client PC applications and engineering workloads requiring fast sequential and random access. The supplier notes it is not designed for server or data centre applications and warranty does not support such usage. Buyers building enterprise arrays should look at drives rated for those environments.

Sequential read up to 3500 MBps

The maximum sequential read speed is rated at 3500 MBps with sequential write up to 2300 MBps. Random read reaches 370,000 IOPS at QD32 and random write reaches 500,000 IOPS at QD32. These figures determine whether the drive meets the throughput needs of the intended workload.

Highlights

  • Sequential reads up to 3500 MB/s accelerate large-file workflows
  • Sequential writes up to 2300 MB/s sustain heavy write workloads
  • Random reads reach 370000 IOPS for responsive multitasking
  • Random writes hit 500000 IOPS to handle bursty I/O
  • Phoenix controller with 512MB DDR4 cache delivers consistent low-latency performance

Specifications

BrandSAMSUNG
Series970 PRO
ModelMZ-V7P512E
Device TypeInternal Solid State Drive (SSD)
Used ForConsumer
Form FactorM.2 2280
Capacity512GB
Memory ComponentsV-NAND 2-bit MLC
InterfacePCIe Gen 3.0 x4, NVMe 1.3
ControllerSamsung Phoenix
Cache512MB Low Power DDR4 SDRAM
Max Sequential ReadUp to 3500 MBps
Max Sequential WriteUp to 2300 MBps
4KB Random ReadQD32: 370,000 IOPS
QD1: 15,000 IOPS
4KB Random WriteQD32: 500,000 IOPS
QD1: 55,000 IOPS
MTBF1,500,000 hours
FeaturesNon-Volatile Memory Express (NVMe)
970 PRO 512GB NVMe SSDs with a newly enhanced Phoenix controller outperform our previous 960 PRO 512GB model with exceptionally fast sequential read/write speeds up to 3,500/2,300 MB/s and random read/write speeds up to 370/500K IOPS. They also support PCI Express (PCIe) Gen 3 x4 lanes to provide high bandwidth and low latency, making them perfect for business professionals who need cutting edge-performance for high-end computing.
Dynamic Thermal Guard
This feature constantly monitors and works to maintain ideal temperatures to protect the integrity
Power Consumption (Idle)30 mW (max)
Power Consumption (Active)Average: 5.2W / Maximum: 8.5W (Burst mode)
Operating Temperature0°C ~ +70°C
Max Shock Resistance1,500G & 0.5 ms (Half sine)
Height2.38mm
Width22.15mm
Depth80.15mm
Weight8.00g
Shipping weight0.08 kg
Package size175 × 102 × 25 mm

Questions about this item

Does the 970 PRO MZ-V7P512E come with a heatsink or mounting screw, or do I need to buy them separately?

The drive is supplied in a plain white box containing only the M.2 2280 module. A motherboard mounting screw and any heatsink must be sourced separately.

I see only the 512GB model listed; how do I decide if this capacity suits my workload?

At 512GB the drive delivers up to 3500 MBps sequential read and 2300 MBps sequential write with 512MB DDR4 cache, making it suitable for heavy client workloads and engineering applications.

What does the 3500 MBps sequential read figure mean once the SSD is installed in my PC?

It represents the peak throughput over the PCIe Gen 3.0 x4 link when reading large contiguous files; real-world speed depends on motherboard lane allocation, thermal conditions and the workload mix.
