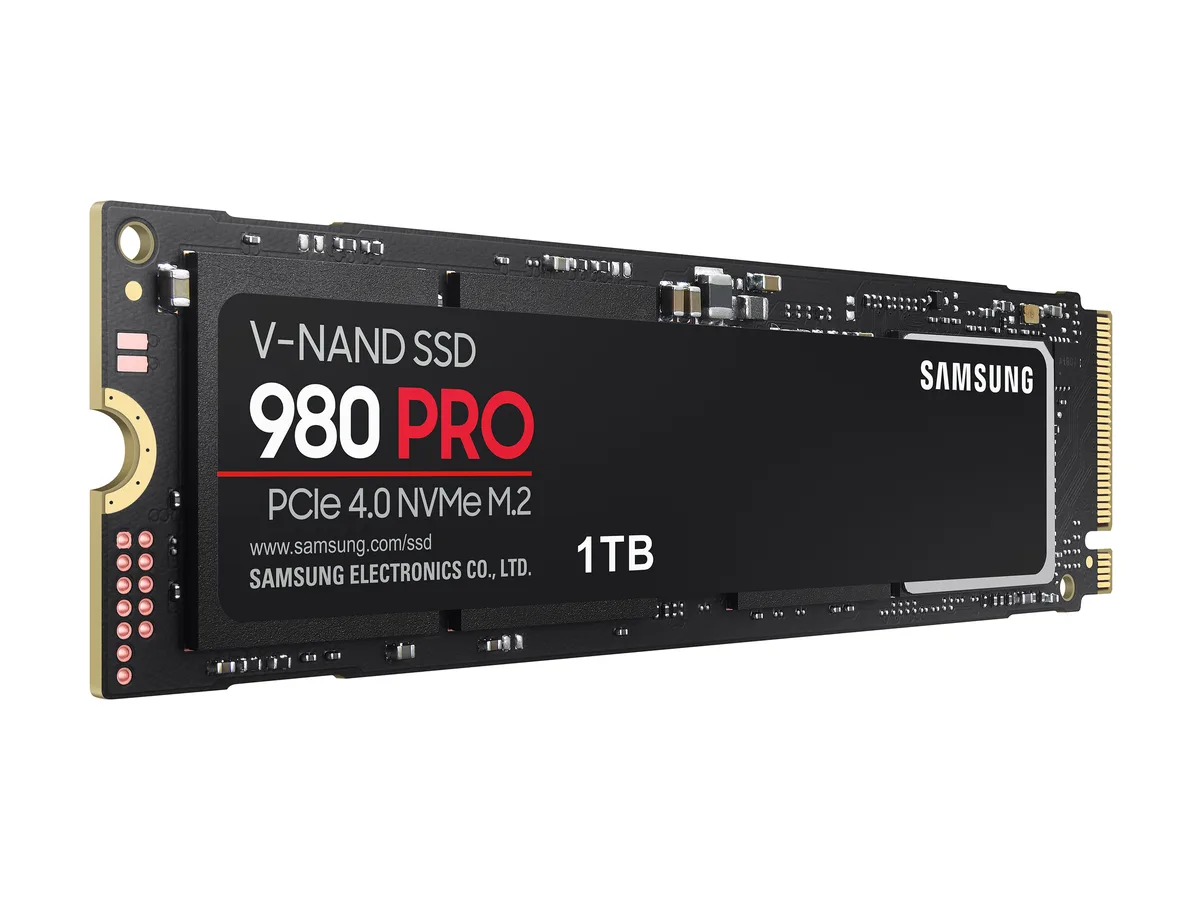

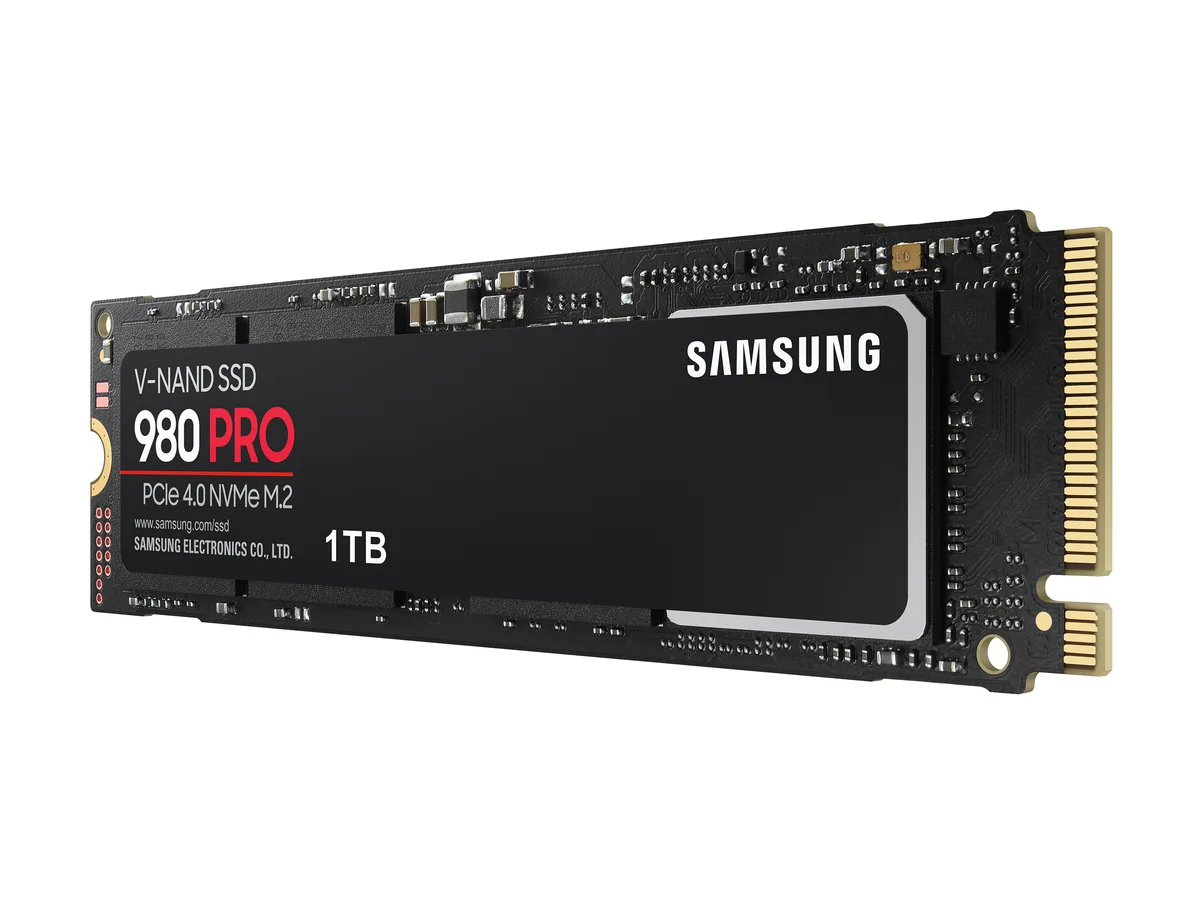

Small green circuit board M.2 2280 SSD with black label and silver controller chip

SAMSUNG

SAMSUNG 980 PRO 1TB M.2 2280 internal SSD MZ-V8P1T0B/AM

SKU CH-G86D-PAYBQ MPN MZ-V8P1T0B/AM

PCIe 4.0 NVMe internal SSD with 1TB capacity, up to 7000 MB/s read and 5000 MB/s write speeds, 1GB LPDDR4 cache and AES 256-bit encryption

  • Device TypeInternal Solid State Drive (SSD)
  • Used ForConsumer
  • Form FactorM.2 2280
  • Capacity1TB
  • Memory ComponentsSamsung V-NAND 3-bit MLC
  • InterfacePCI-Express Gen 4.0 x4, NVMe 1.3c

Options 1TB

  • Up to 7000 MBps read speed accelerates large-file loading
  • Up to 5000 MBps write speed shortens project save times
  • 1GB LPDDR4 cache sustains high throughput during heavy workloads
  • AES 256-bit encryption with TCG/Opal 2.0 protects stored data
  • Nickel coating plus heat-spreader label manages controller and NAND temperatures

Next-level PCIe 4.0 NVMe SSD

The Samsung 980 PRO 1TB M.2 2280 drive targets hardcore gamers and tech-savvy users who need maximum bandwidth for gaming, graphics and data analytics. It uses Samsung V-NAND 3-bit MLC with a Samsung controller and 1GB LPDDR4 cache. AES 256-bit encryption with TCG/Opal V2.0 and IEEE 1667 support protects data at rest.

Upgrade from PCIe 3.0 NVMe

Moving from a PCIe 3.0 NVMe drive brings sequential reads up to 7000 MBps and writes up to 5000 MBps, plus 4KB random performance of 1,000,000 IOPS at QD32. The jump is worth it when workloads saturate the older link or when sustained throughput matters for large asset streaming.

Sustained load thermal management

Nickel coating on the controller and a heat-spreader label on the NAND work with an embedded thermal control algorithm to manage heat during extended operation. Power draw reaches 6.2W read and 5.7W write while idle consumption stays at 35 mW. The drive is rated for 600 TBW and 1,500,000 hours MTBF.

Highlights

  • Up to 7000 MBps read speed accelerates large-file loading
  • Up to 5000 MBps write speed shortens project save times
  • 1GB LPDDR4 cache sustains high throughput during heavy workloads
  • AES 256-bit encryption with TCG/Opal 2.0 protects stored data
  • Nickel coating plus heat-spreader label manages controller and NAND temperatures

Specifications

BrandSAMSUNG
Series980 PRO
ModelMZ-V8P1T0B/AM
Device TypeInternal Solid State Drive (SSD)
Used ForConsumer
Form FactorM.2 2280
Capacity1TB
Memory ComponentsSamsung V-NAND 3-bit MLC
InterfacePCI-Express Gen 4.0 x4, NVMe 1.3c
ProtocolNVMe 1.3
ControllerSamsung
Cache1GB LPDDR4
EncryptionAES 256-bit Full Disk Encryption, TCG/Opal V2.0, Encrypted Drive (IEEE1667)
Max Sequential ReadUp to 7000 MBps
Max Sequential WriteUp to 5000 MBps
4KB Random ReadQD1: Up to 22,000 IOPS
QD32: Up to 1,000,000 IOPS
4KB Random WriteQD1: Up to 60,000 IOPS
QD32: Up to 1,000,000 IOPS
Terabytes Written (TBW)600TB
MTBF1,500,000 hours
Power Consumption (Idle)35 mW
Power Consumption (Active)Read: 6.2W
Write: 5.7W
Operating Temperature0°C ~ +70°C
Storage Temperature-40°C ~ +85°C
Height2.38mm
Width22.15mm
Depth80.15mm
Weight9.00g
Shipping weight0.08 kg
Package size145 × 99 × 23 mm

Other versions of this model

3 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What physical slot and clearance does the M.2 2280 form factor require?

The drive fits a standard M.2 2280 slot measuring 22.15 mm wide by 80.15 mm long with a 2.38 mm height profile.

Which step is most often missed when installing the PCIe 4.0 x4 NVMe drive?

Many builders forget to enable PCIe 4.0 mode in the motherboard BIOS, leaving the drive running at Gen 3 speeds.

When should the 1 TB drive be replaced based on its endurance rating?

The 600 TBW rating means the drive is warrantied for up to 600 terabytes of total data written before replacement is recommended.
