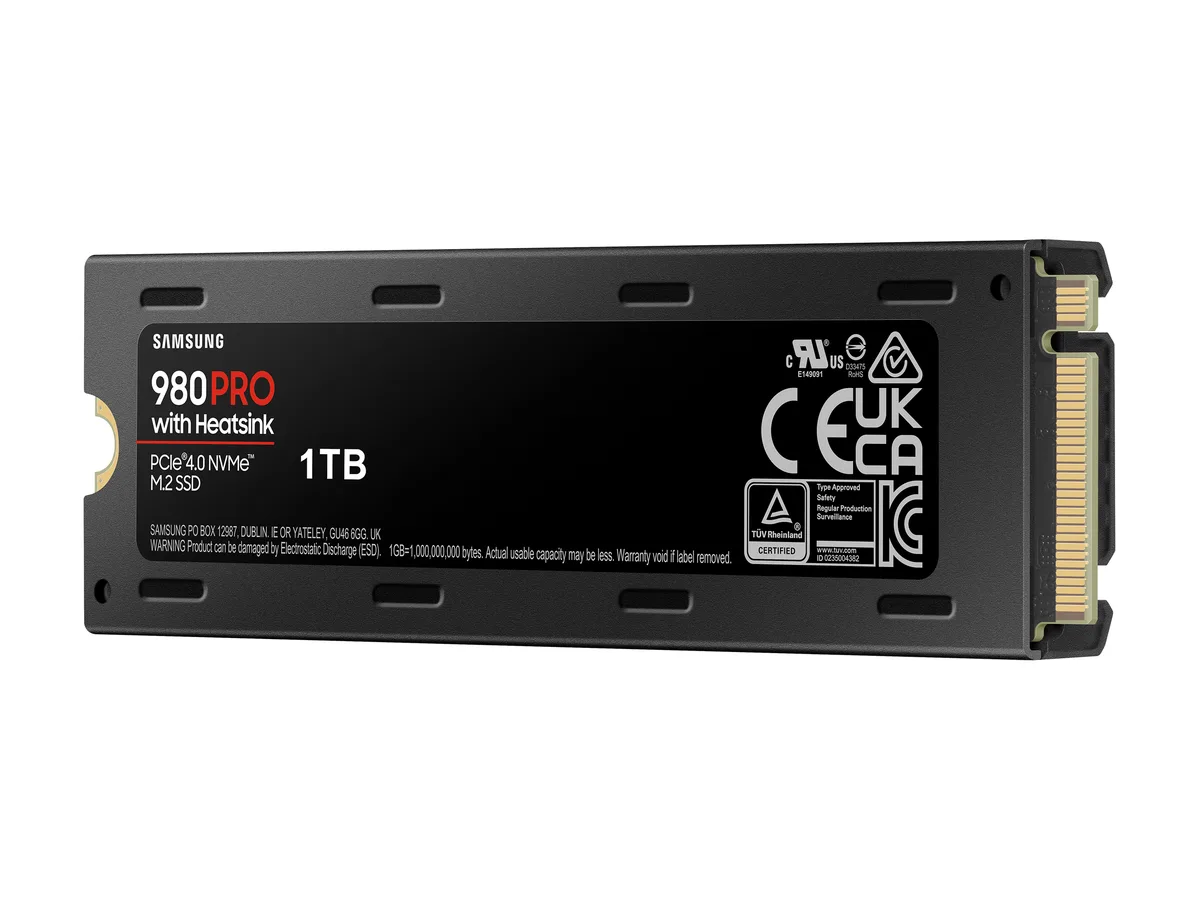

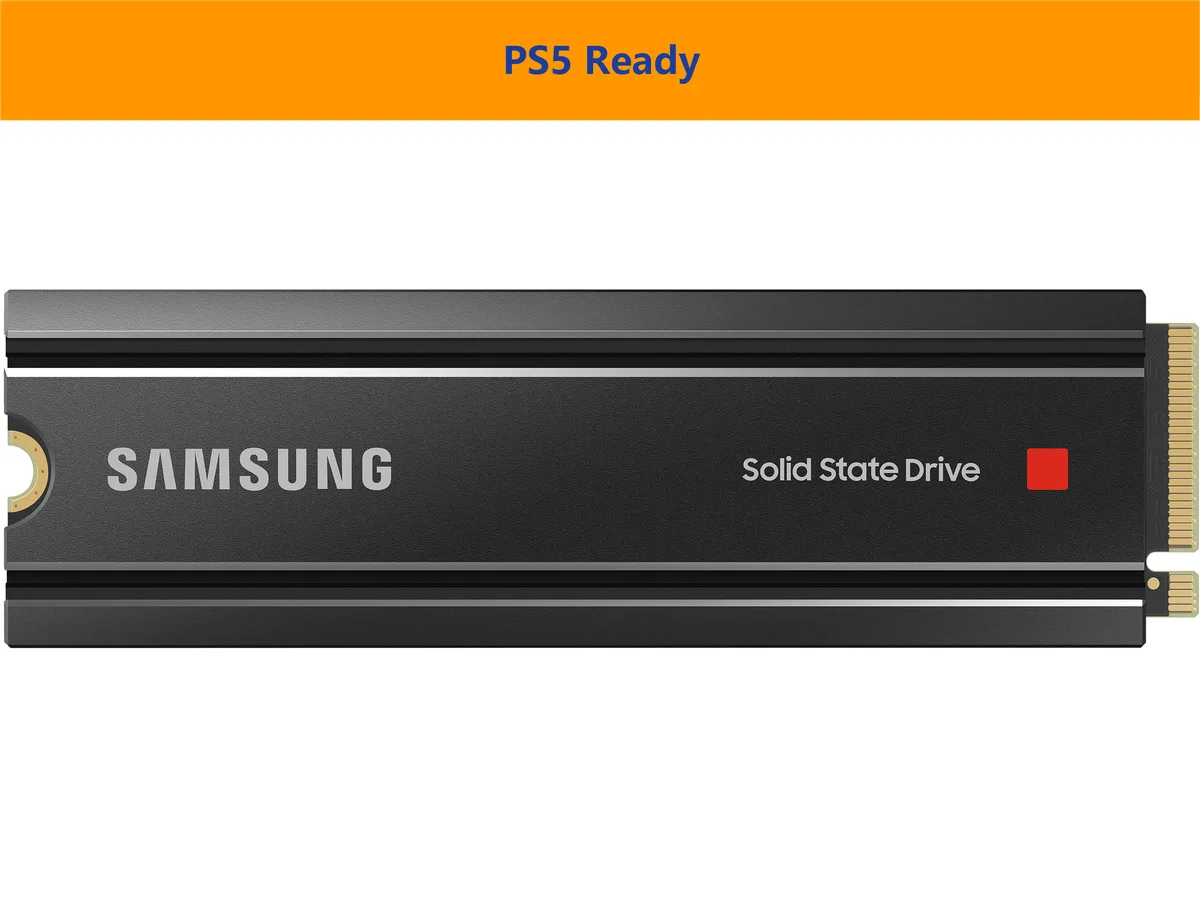

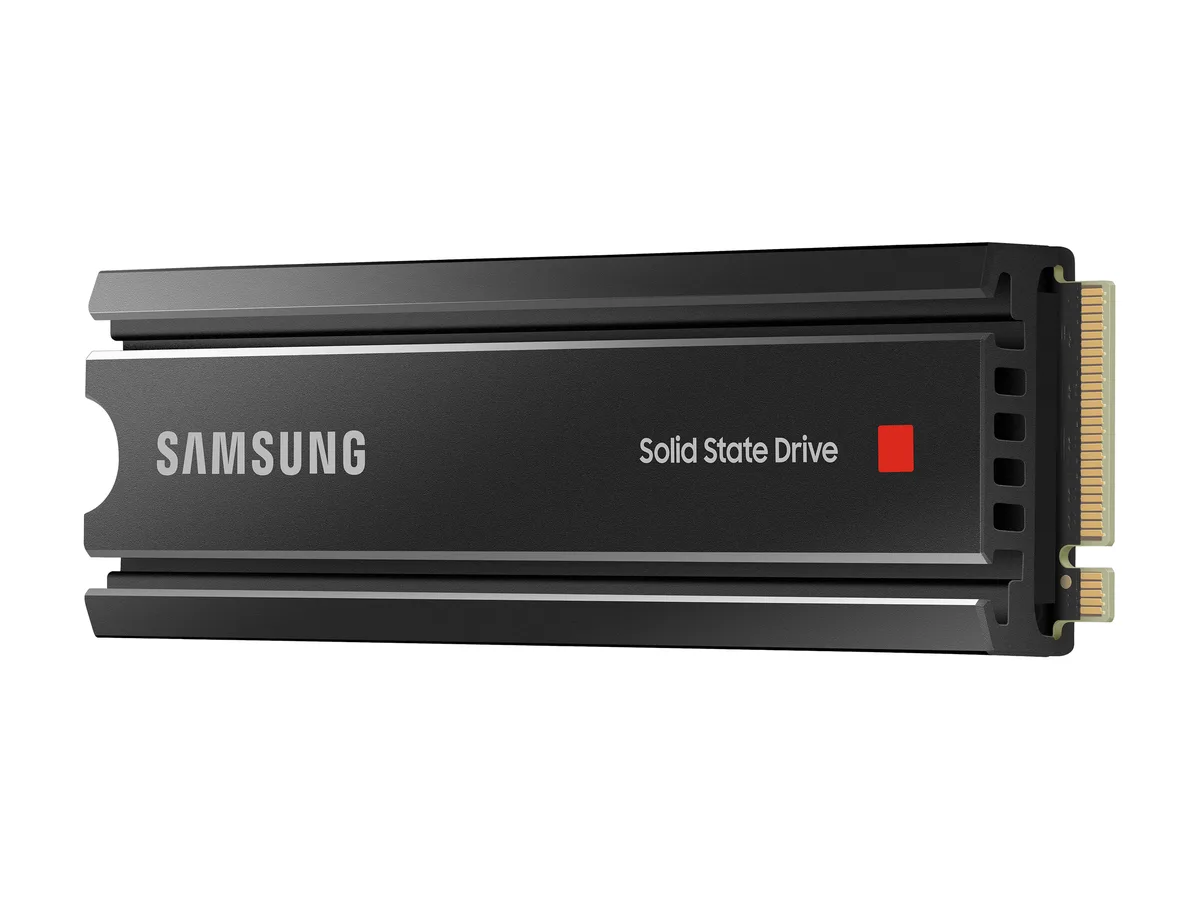

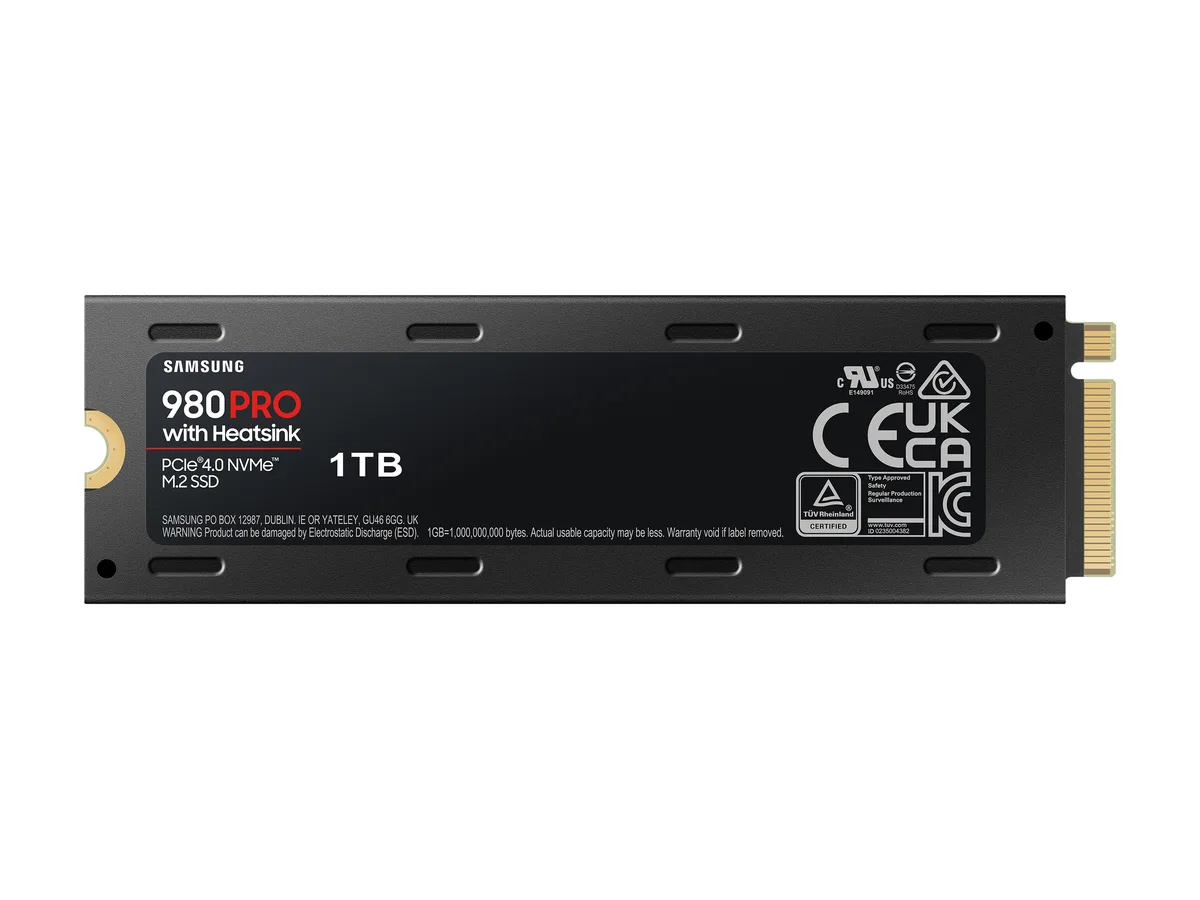

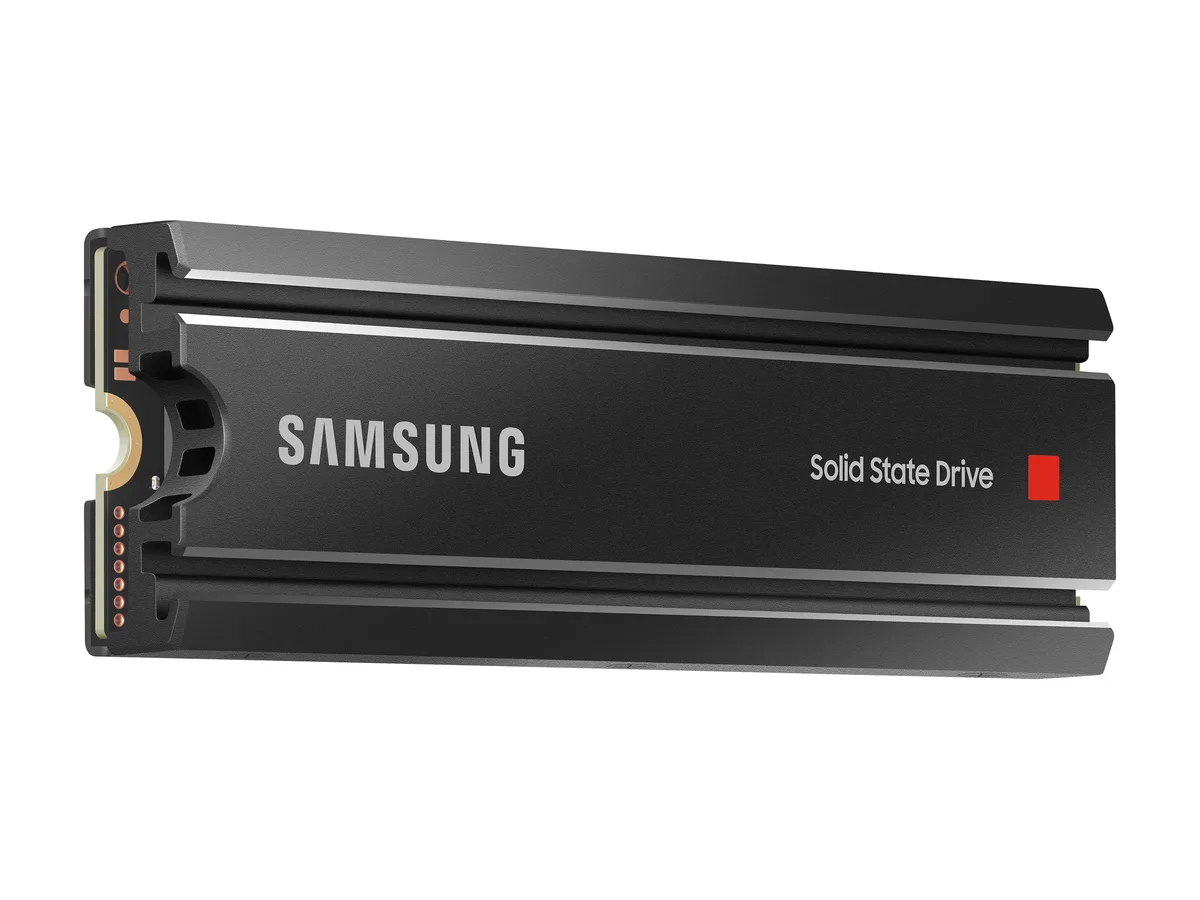

Samsung 980 PRO 1TB M.2 2280 SSD with integrated silver heatsink

SAMSUNG

SAMSUNG 980 PRO MZ-V8P1T0CW 1TB internal SSD with heatsink

SKU CH-XAK8-HY1FA MPN MZ-V8P1T0CW

PCIe 4.0 M.2 2280 SSD with heatsink delivers up to 7000 MB/s reads and 5100 MB/s writes for high-end PCs and PlayStation 5

  • Device TypeInternal Solid State Drive (SSD)
  • Used ForConsumer
  • Form FactorM.2 2280
  • Capacity1TB
  • Memory ComponentsV6(12xL) V-NAND 3bit MLC
  • InterfacePCIe Gen4. X4, NVMe 1.3c

Options 1TB with Heatsink

  • Up to 7000 MB/s sequential read for rapid data access
  • Up to 5100 MB/s sequential write for fast file transfers
  • Integrated heatsink maintains performance under sustained workloads
  • 600 TBW endurance rating supports heavy write cycles
  • AES 256-bit hardware encryption protects stored data

1TB PCIe 4.0 NVMe drive

This 1TB internal SSD uses the M.2 2280 form factor and a PCIe Gen4 x4 interface with NVMe 1.3c protocol. It is built for high-end computing, workstations and is compatible with PlayStation 5. The Elpis controller and 1GB LPDDR4 DRAM cache manage V6 V-NAND 3bit MLC memory.

Integrated heatsink and 5 mW idle power

An integrated heatsink provides thermal control during sustained workloads. Smart thermal management regulates temperature without active cooling. Idle power consumption is 5 mW, keeping system power draw low during light use.

AES 256-bit encryption and 600 TBW endurance

Hardware AES 256-bit encryption meets TCG V2.0 and IEEE 1667 standards for data security. The drive is rated for 600 TBW, indicating high write endurance. Samsung Magician software supports drive health monitoring and firmware updates.

Highlights

  • Up to 7000 MB/s sequential read for rapid data access
  • Up to 5100 MB/s sequential write for fast file transfers
  • Integrated heatsink maintains performance under sustained workloads
  • 600 TBW endurance rating supports heavy write cycles
  • AES 256-bit hardware encryption protects stored data

Specifications

BrandSAMSUNG
Series980 PRO
ModelMZ-V8P1T0CW
Device TypeInternal Solid State Drive (SSD)
Used ForConsumer
Form FactorM.2 2280
Capacity1TB
Memory ComponentsV6(12xL) V-NAND 3bit MLC
InterfacePCIe Gen4. X4, NVMe 1.3c
ProtocolNVMe 1.3
ControllerElpis
Cache1GB LPDDR4 DRAM
EncryptionAES 256-bit (SED), TCG V2.0, Encrypted Drive (IEEE1667)
Max Sequential ReadUp to 7000 MBps
Max Sequential WriteUp to 5100 MBps
4KB Random ReadUp to 1,000,000 IOPS
4KB Random WriteUp to 1,000,000 IOPS
Terabytes Written (TBW)600TB
HeatSinkwith HeatSink
Power Consumption (Idle)5 mW
Height8.60mm
Width24.00mm
Depth80.00mm
Weight30.50g
Shipping weight0.07 kg
Package size165 × 98 × 23 mm

Other versions of this model

3 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Does the drive fit a standard M.2 2280 slot on a desktop motherboard?

Yes, the form factor is M.2 2280 and the height is 8.60 mm, so it fits standard desktop M.2 slots that accept 2280-length modules.

Is the built-in heatsink sufficient for a PlayStation 5 expansion slot?

The drive ships with a heatsink and is listed as compatible with PlayStation 5, meeting the console's physical and thermal requirements.

What software can I use to monitor health and apply firmware updates?

Samsung Magician software provides drive health monitoring, performance benchmarks, and firmware updates for this model.
