Green rectangular circuit board with gold edge connector and black controller chip, no heatsink

SAMSUNG

SAMSUNG 990 PRO 1TB M.2 2280 PCIe 4.0 NVMe 2.0 internal SSD MZ-V9P1T0B/AM

SKU CH-WVEM-6GT9V MPN MZ-V9P1T0B/AM

PCIe 4.0 NVMe 2.0 drive delivers 7450 MB/s reads and 6900 MB/s writes with 1GB DRAM cache and AES 256-bit encryption

  • Device TypeInternal Solid State Drive (SSD)
  • Used ForConsumer
  • Form FactorM.2 2280
  • Capacity1TB
  • Memory ComponentsV7 V-NAND 3bit MLC
  • InterfacePCIe Gen 4.0 x4, NVMe 2.0

Options 1TB

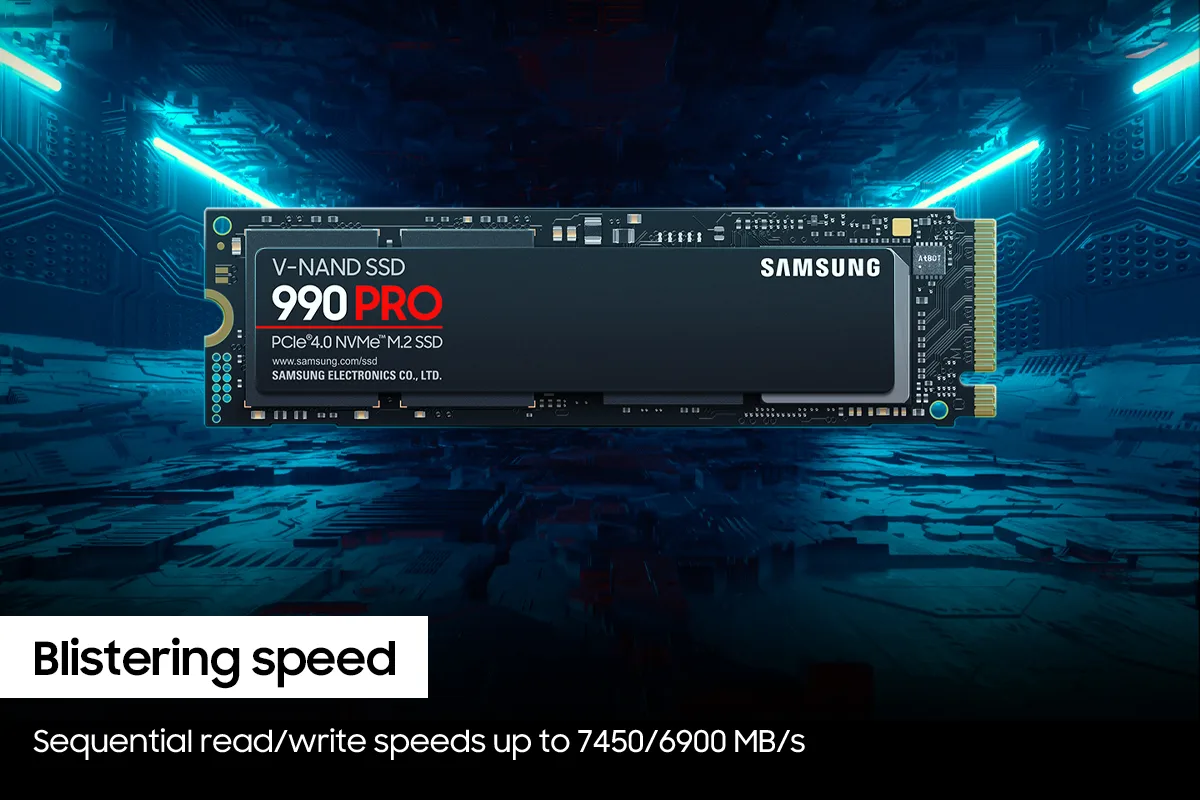

  • Sequential reads reach 7450 MB/s via PCIe 4.0 x4 NVMe 2.0
  • Random read IOPS hit 1400K for faster game loading
  • AES 256-bit encryption with TCG Opal IEEE1667 protects data
  • 1GB DRAM cache sustains performance during heavy workloads
  • Nickel-coated controller manages heat in slim M.2 2280 form factor

Built for high-end computing and gaming

The Samsung 990 PRO 1TB M.2 2280 drive uses PCIe 4.0 x4 and NVMe 2.0 to deliver sequential reads up to 7450 MBps and writes up to 6900 MBps. A Samsung controller and 1GB DRAM cache manage V7 V-NAND 3bit MLC for consumer workloads.

Check motherboard slot and thermal plan

Verify the board has an M.2 2280 key-M slot wired for PCIe Gen 4.0 x4 and that the BIOS supports NVMe 2.0. The drive ships without a heatsink, so confirm your laptop or desktop provides adequate airflow or a motherboard shield.

Sustained load behaviour

Smart thermal control uses a nickel-coated controller to manage temperature during long sessions. Power efficiency improves by 50 percent over the 980 PRO, while random performance gains of 65 percent keep IOPS steady at 1400K read and 1550K write under continuous demand.

Highlights

  • Sequential reads reach 7450 MB/s via PCIe 4.0 x4 NVMe 2.0
  • Random read IOPS hit 1400K for faster game loading
  • AES 256-bit encryption with TCG Opal IEEE1667 protects data
  • 1GB DRAM cache sustains performance during heavy workloads
  • Nickel-coated controller manages heat in slim M.2 2280 form factor

Specifications

BrandSAMSUNG
Series990 PRO
ModelMZ-V9P1T0B/AM
Device TypeInternal Solid State Drive (SSD)
Used ForConsumer
Form FactorM.2 2280
Capacity1TB
Memory ComponentsV7 V-NAND 3bit MLC
InterfacePCIe Gen 4.0 x4, NVMe 2.0
ProtocolNVMe 2.0
ControllerSamsung
Cache1GB DRAM
EncryptionAES 256-bit Encryption (Class 0)
TCG/Opal IEEE1667 (Encrypted drive)
Max Sequential ReadUp to 7450 MBps
Max Sequential WriteUp to 6900 MBps
HeatSinkwithout HeatSink
Shipping weight0.07 kg
Package size165 × 99 × 20 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Does the 990 PRO 1TB include a heatsink or do I need to buy one separately?

The drive ships without a heatsink. If your motherboard or laptop has a built-in M.2 shield you can use that; otherwise a third-party heatsink is optional for heavy workloads.

Should I choose the 1TB model or a different capacity for gaming and heavy workstation use?

The 1TB version delivers the same 7,450 MB/s sequential read and 6,900 MB/s write as higher capacities, plus 1 GB DRAM cache and 1,400K/1,550K IOPS, making it well suited for gaming and workstation tasks.

What does the 7,450 MB/s sequential read figure mean once the drive is installed in my PC or PS5?

It represents the peak PCIe 4.0 x4 throughput for large file transfers; real-world speeds depend on your platform, workload and thermal conditions, but the drive sustains near that level for extended loads.
