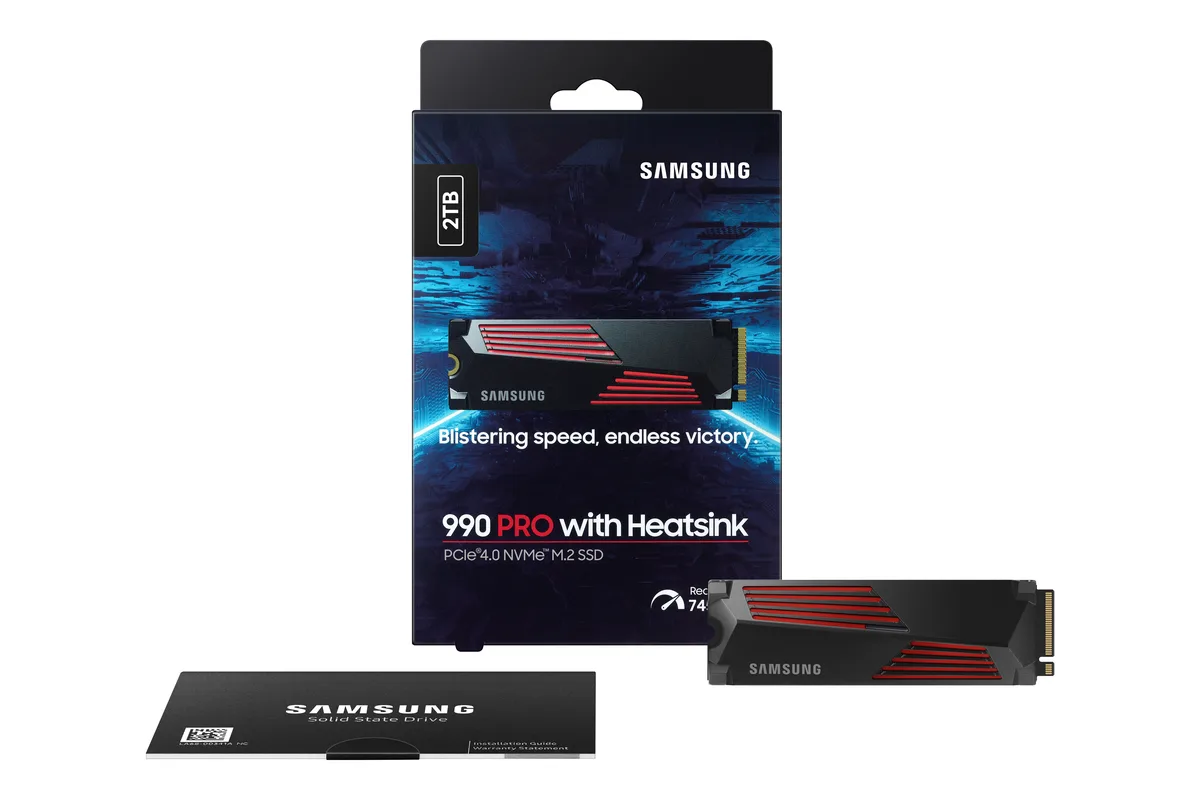

M.2 2280 SSD with integrated heatsink, black finish

SAMSUNG

SAMSUNG 990 PRO MZ-V9P2T0CW 2TB internal SSD

SKU CH-ARYD-DK7QT MPN MZ-V9P2T0CW

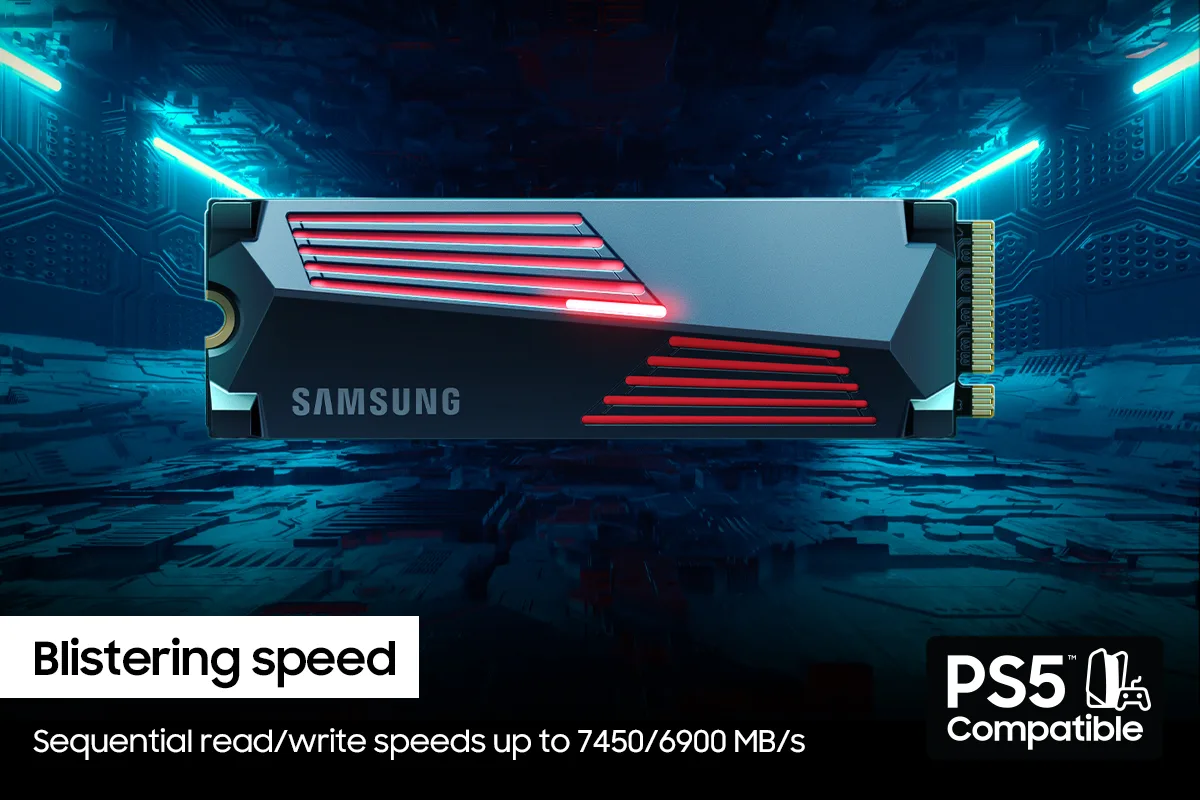

PCIe Gen4 M.2 2280 drive with integrated heatsink delivers up to 7450 MBps sequential read and 6900 MBps write for high-end computing and PlayStation 5

  • Device TypeInternal Solid State Drive (SSD)
  • Used ForConsumer
  • Form FactorM.2 2280
  • Capacity2TB
  • Memory ComponentsV7 V-NAND 3bit MLC
  • InterfacePCI-Express Gen 4.0 x4, NVMe 2.0

Options 2TB w/ Heatsink

  • Up to 7450 MB/s sequential read for rapid data access
  • Up to 6900 MB/s sequential write for fast file transfers
  • Integrated heatsink maintains performance under sustained workloads
  • AES 256-bit encryption protects stored data
  • 2GB DRAM cache supports responsive operation

2TB PCIe 4.0 NVMe drive for high-end PCs and PS5

This internal solid-state drive uses a PCIe 4.0 x4 interface and NVMe 2.0 protocol to deliver sequential reads up to 7450 MBps and writes up to 6900 MBps. It is built for heavy computing, gaming and professional workloads that demand sustained throughput.

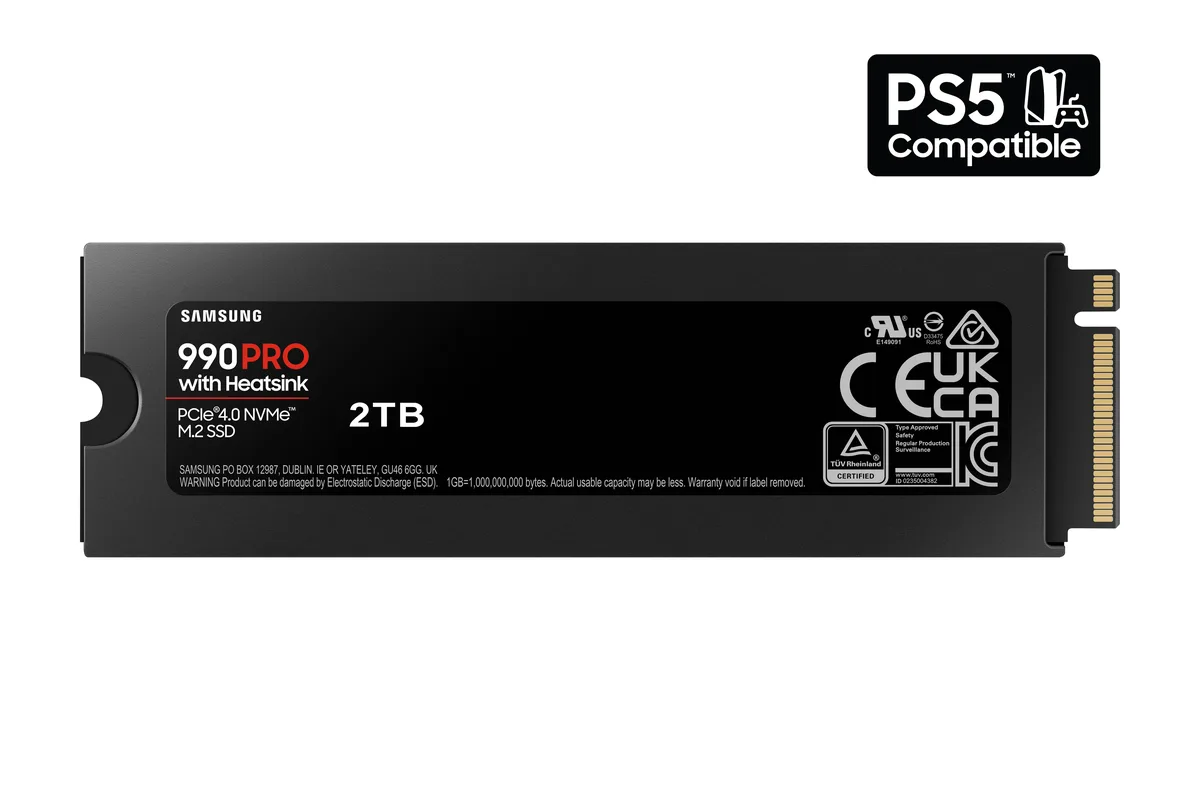

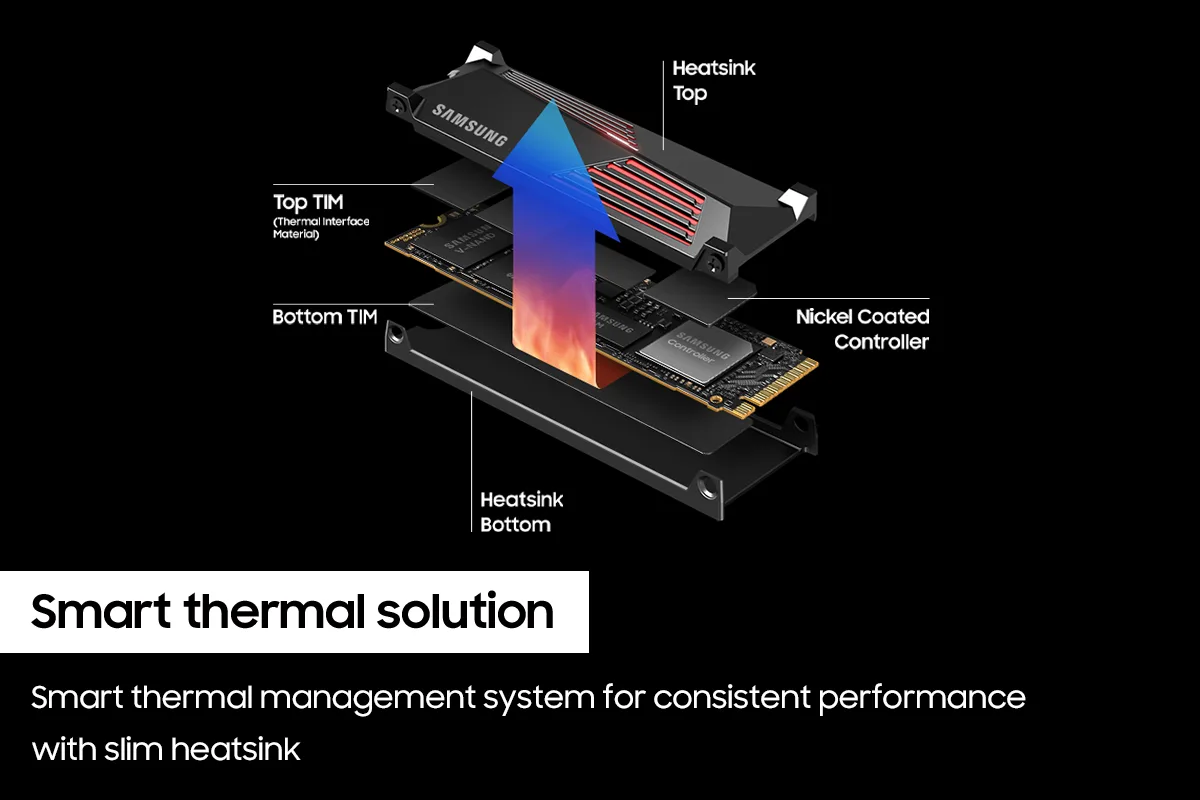

Integrated heatsink and V7 V-NAND with 2GB DRAM

The M.2 2280 module ships with a factory-fitted heatsink that manages thermals during extended loads. Samsung's V7 V-NAND 3bit MLC and a 2GB DRAM cache support the random performance uplift, while AES 256-bit encryption and TCG/Opal IEEE1667 protect stored data.

PCIe 4.0 bandwidth ceiling

The drive operates at the practical limit of the PCIe 4.0 x4 bus, so sequential speeds cannot exceed the 7450/6900 MBps window. Physical clearance in some laptops or small-form-factor boards may prevent installation of the heatsink-equipped module.

Highlights

  • Up to 7450 MB/s sequential read for rapid data access
  • Up to 6900 MB/s sequential write for fast file transfers
  • Integrated heatsink maintains performance under sustained workloads
  • AES 256-bit encryption protects stored data
  • 2GB DRAM cache supports responsive operation

Specifications

BrandSAMSUNG
Series990 PRO w/ Heatsink Normal Package
ModelMZ-V9P2T0CW
Device TypeInternal Solid State Drive (SSD)
Used ForConsumer
Form FactorM.2 2280
Capacity2TB
Memory ComponentsV7 V-NAND 3bit MLC
InterfacePCI-Express Gen 4.0 x4, NVMe 2.0
ProtocolNVMe 2.0
ControllerSamsung
Cache2GB DRAM
EncryptionAES 256-bit Encryption (Class 0)
TCG/Opal IEEE1667 (Encrypted drive)
Max Sequential ReadUp to 7450 MBps
Max Sequential WriteUp to 6900 MBps
Shipping weight0.07 kg
Package size163 × 99 × 20 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Does the PCIe 4.0 x4 NVMe 2.0 interface cap sequential throughput below the advertised 7450 MB/s read and 6900 MB/s write?

The PCIe 4.0 x4 NVMe 2.0 interface supports the stated up to 7450 MB/s read and 6900 MB/s write; real-world peaks depend on host controller, workload and thermal headroom.

Will the integrated heatsink on this M.2 2280 drive clear a standard motherboard M.2 shield or PS5 expansion slot?

The ultra-slim integrated heatsink is designed to fit the M.2 2280 form factor and clear typical motherboard shields and the PlayStation 5 expansion slot without modification.

What is the correct installation sequence for the 990 PRO with heatsink, and which step do builders most often skip?

Insert the drive at an angle into the M.2 slot, press flat, secure with the motherboard screw; the step often missed is removing any pre-installed motherboard thermal pad so the drive's own heatsink contacts the shield.
