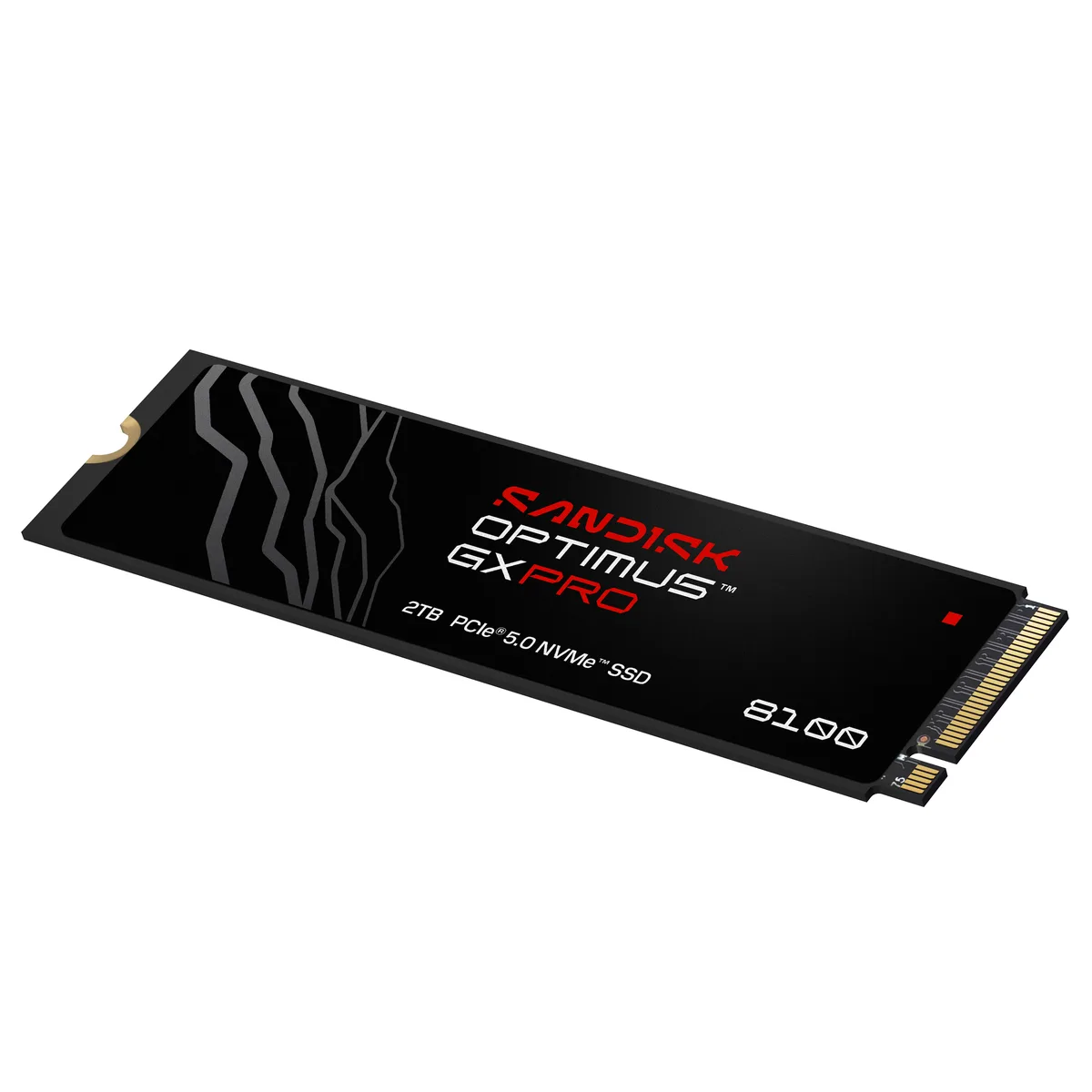

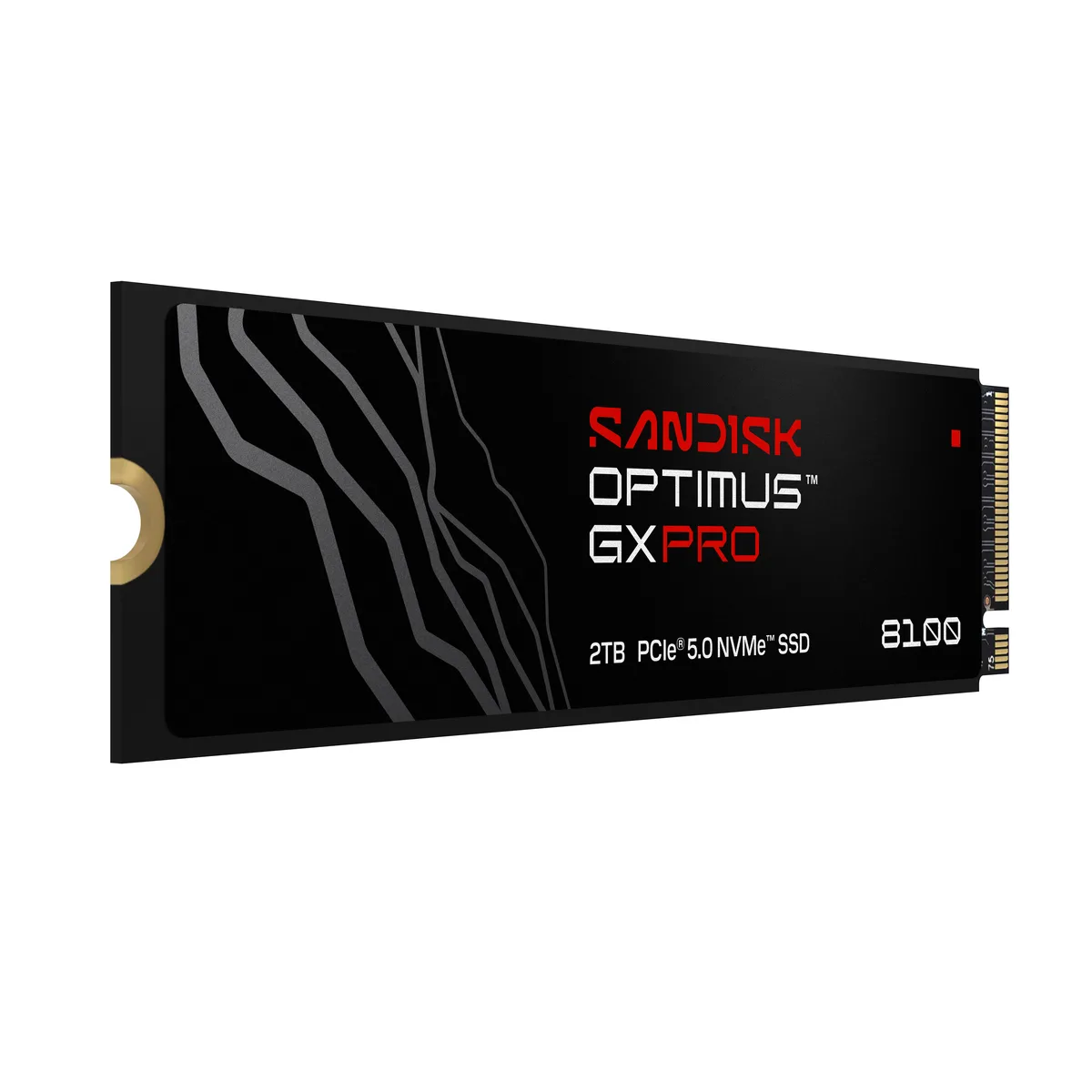

M.2 2280 SSD with low-profile anodized aluminum heatsink and RGB LED

SanDisk

SanDisk SDSP82200TAH-000E0 Optimus GX PRO 8100 2TB internal SSD

SKU CH-0YEJ-3QET9 MPN SDSP82200TAH-000E0

PCIe 5.0 x4 NVMe 2.0 internal SSD delivering 14,900 MB/s sequential read and 14,000 MB/s write with 2.3M/2.4M random IOPS and integrated low-profile heatsink

  • Device TypeInternal Solid State Drive (SSD)
  • Form FactorM.2 2280-S3-M
  • Capacity2TB
  • Memory Components3D NAND TLC
  • InterfacePCI-Express 5.0 x4
  • ProtocolNVMe 2.0

Option 2TB w/ Heatsink

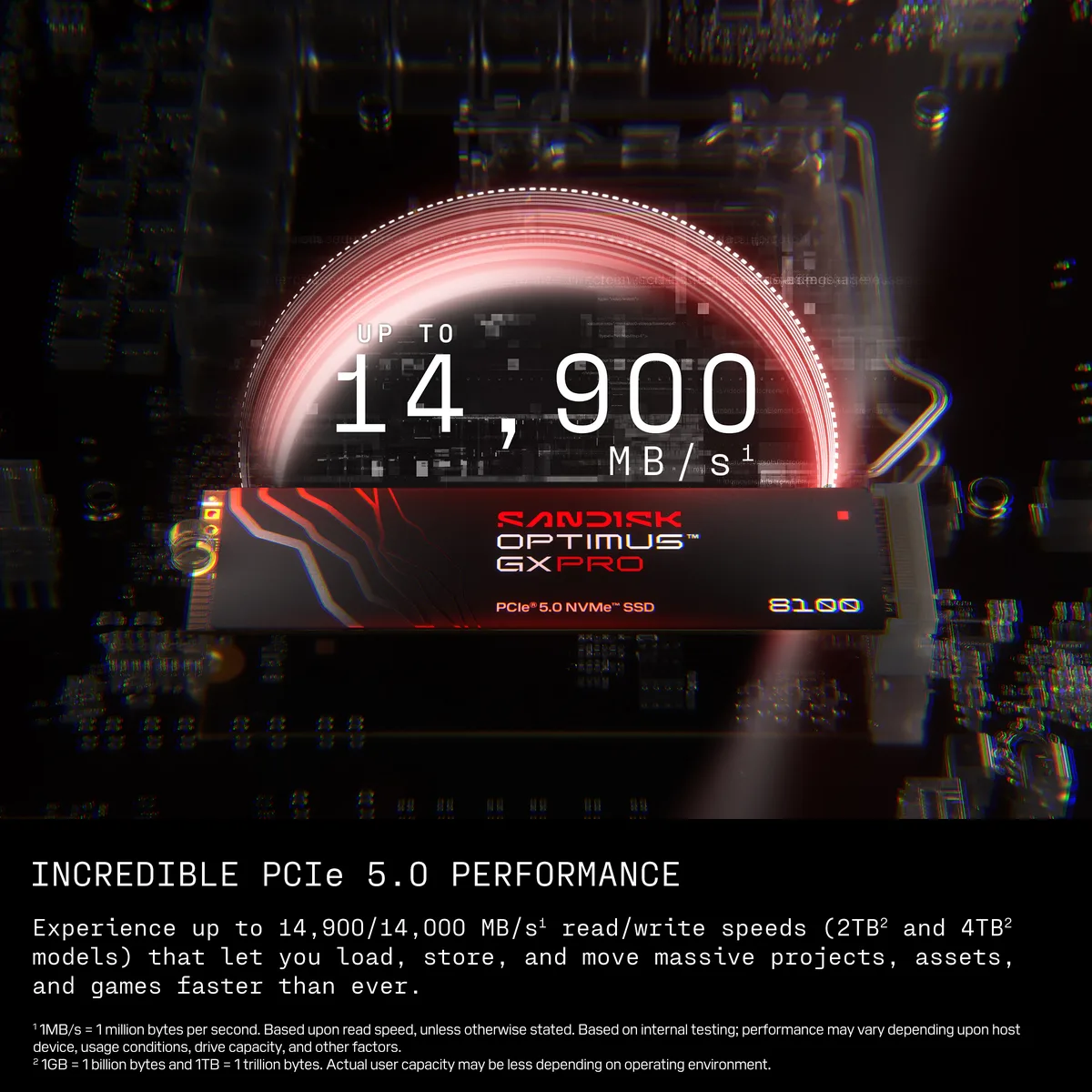

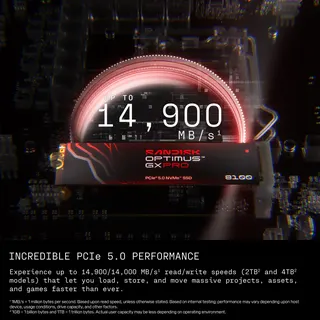

  • Sequential reads hit 14900 MB/s via PCIe 5.0 x4
  • Sequential writes reach 14000 MB/s on the NVMe 2.0 interface
  • Random 4KB reads up to 2.3M IOPS accelerate AI workloads
  • Random 4KB writes up to 2.4M IOPS handle heavy write tasks

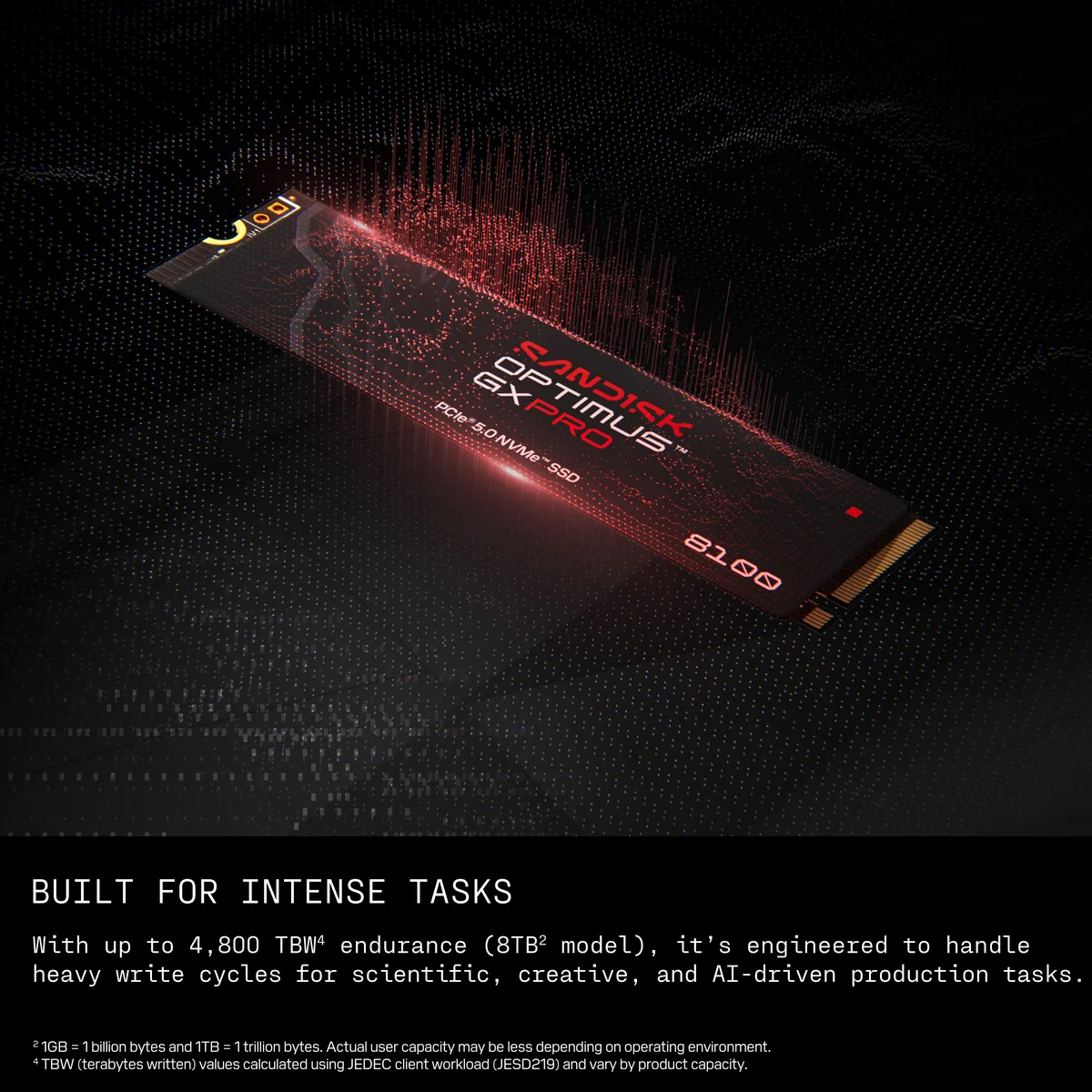

  • 1200 TBW endurance rating supports sustained creative workloads

Optimus GX PRO 8100 2TB SSD

The SanDisk Optimus GX PRO 8100 is a 2TB internal solid state drive built for professionals and gamers who need fast access to large libraries. It uses 3D NAND TLC memory and connects through an M.2 2280-S3-M slot with a low-profile anodized aluminum heatsink and RGB LED.

PCIe 5.0 x4 NVMe 2.0 limits

The drive runs on a PCI-Express 5.0 x4 link using the NVMe 2.0 protocol, delivering sequential reads up to 14900 MBps and writes up to 14000 MBps. Random performance reaches 2,300,000 IOPS read and 2,400,000 IOPS write, but sustained speeds depend on the host platform keeping the controller within its 0°C to 85°C operating window.

Motherboard slot and power check

Verify your motherboard has an M.2 2280 key-M slot wired for PCIe 5.0 x4 and enough clearance for the 9.76mm heatsink height. The drive draws up to 7.0W active write power, so confirm the board can supply that without throttling and that your BIOS supports NVMe 2.0 features.

Highlights

  • Sequential reads hit 14900 MB/s via PCIe 5.0 x4
  • Sequential writes reach 14000 MB/s on the NVMe 2.0 interface
  • Random 4KB reads up to 2.3M IOPS accelerate AI workloads
  • Random 4KB writes up to 2.4M IOPS handle heavy write tasks
  • 1200 TBW endurance rating supports sustained creative workloads

Specifications

BrandSanDisk
SeriesOptimus GX PRO 8100
ModelSDSP82200TAH-000E0
Device TypeInternal Solid State Drive (SSD)
Form FactorM.2 2280-S3-M
Capacity2TB
Memory Components3D NAND TLC
InterfacePCI-Express 5.0 x4
ProtocolNVMe 2.0
Max Sequential ReadUp to 14900 MBps
Max Sequential WriteUp to 14000 MBps
4KB Random ReadUp to 2,300,000 IOPS
4KB Random WriteUp to 2,400,000 IOPS
Terabytes Written (TBW)1200TB
MTBF1,750,000 hours
HeatSinkwith HeatSink
Power Consumption (Idle)5 mW
Power Consumption (Active)Average Active Power Read: 6.4W
Average Active Power Write: 7.0W
Operating Temperature0°C ~ +85°C
Storage Temperature-40°C ~ +85°C
Height9.76mm
Width25mm
Depth80mm
Weight28.2g
Shipping weight0.05 kg
Package size127 × 102 × 1 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will the 9.76 mm heatsink clear my motherboard M.2 shield?

The drive sits 9.76 mm tall with the integrated anodised aluminium heatsink; most current motherboard shields allow this height but check your board manual.

Does my platform need PCIe 5.0 to use this SSD?

The drive runs on PCIe 5.0 x4 NVMe 2.0 and is backward compatible with PCIe 4.0 and 3.0 slots at reduced speeds.

How much sustained write workload can the 2 TB model absorb?

The 2 TB version is rated for 1200 TBW, enough for heavy content-creation and AI workloads over the 5-year warranty period.
