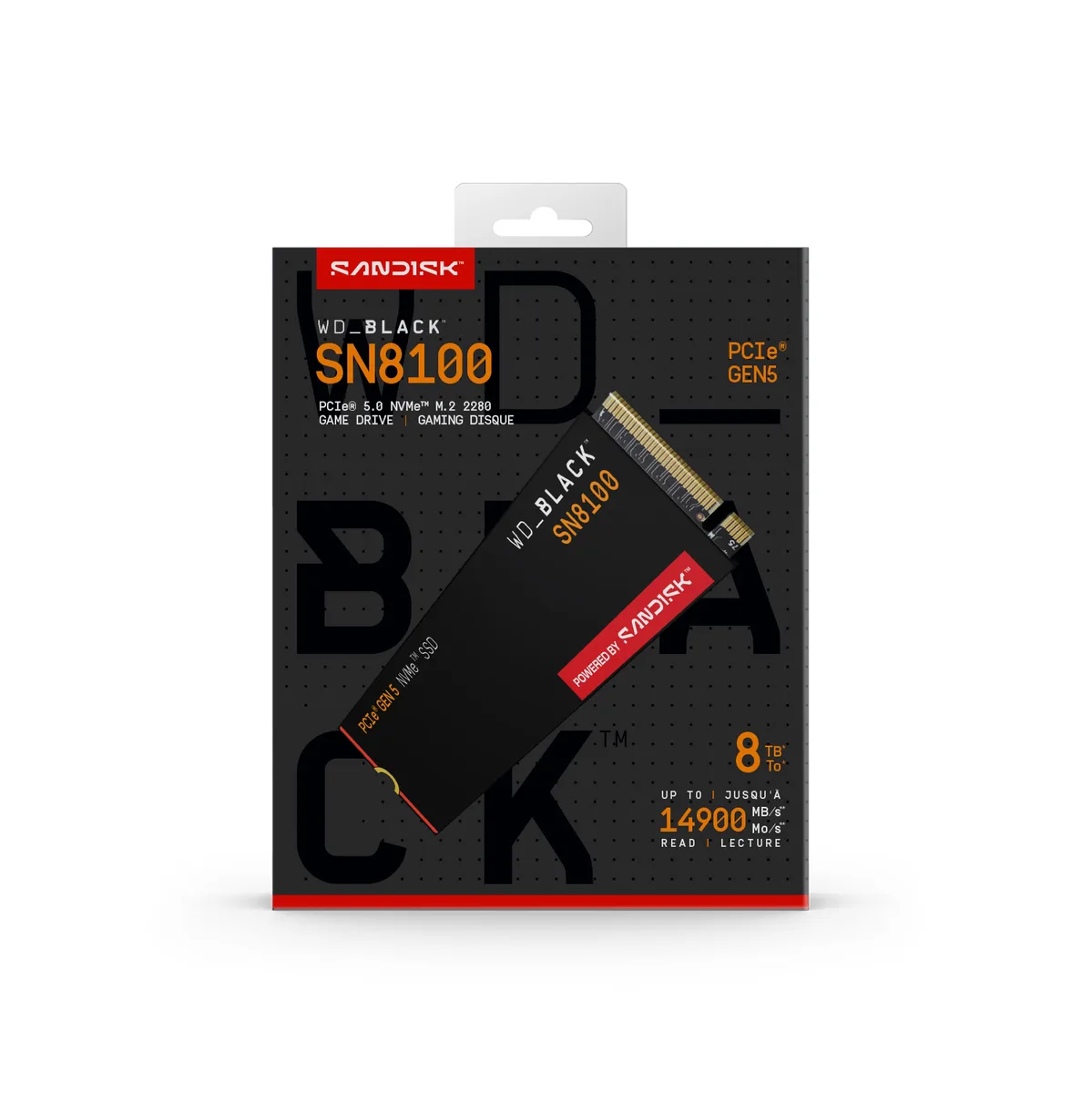

SanDisk WD_BLACK SN8100 8TB M.2 2280 SSD without heatsink

SanDisk

SanDisk WDS800T1X0M-00CMT0 8TB internal SSD

SKU CH-8PWF-613EH MPN WDS800T1X0M-00CMT0

M.2 2280 NVMe SSD with 8TB capacity, PCIe 5.0 x4 interface, 8GB DRAM cache, 14900 MB/s read and 13200 MB/s write speeds

  • Device TypeInternal Solid State Drive (SSD)
  • Used ForConsumer
  • Form FactorM.2 2280
  • Capacity8TB
  • InterfacePCI-Express 5.0 x4
  • ProtocolNVMe

Options 8TB

  • PCIe 5.0 x4 NVMe delivers up to 14,900 MB/s sequential read for fast load times
  • 8TB capacity stores large game libraries and AI models on a single M.2 2280 drive
  • 8GB DRAM cache sustains up to 13,200 MB/s sequential write during heavy content creation
  • 4,800 TBW endurance and 1,750,000-hour MTTF protect data through years of intensive use
  • Active power draw of 7.1 W read and 7.3 W write keeps thermals manageable without a heatsink

Capacity and audience

The SanDisk WDS800T1X0M-00CMT0 is an 8TB internal SSD built for consumer workloads. It fits the M.2 2280 form factor and connects through a PCI-Express 5.0 x4 interface using the NVMe protocol. The drive targets gaming, content creation and AI model loading.

Deciding specification

The single figure that determines suitability is the 4800TB terabytes written endurance rating. This number defines how much data can be written over the drive's warranted life. A workload that exceeds this limit will require a higher-endurance alternative.

Sustained load behaviour

Under continuous operation the drive draws 7.1W during reads and 7.3W during writes while maintaining sequential speeds up to 14900 MBps read and 13200 MBps write. Operating temperature stays within 0°C to 85°C without a heatsink. The 8GB DRAM cache and nCache 4.0 technology help sustain random performance up to 2,200,000 read IOPS and 2,400,000 write IOPS.

Highlights

  • PCIe 5.0 x4 NVMe delivers up to 14,900 MB/s sequential read for fast load times
  • 8TB capacity stores large game libraries and AI models on a single M.2 2280 drive
  • 8GB DRAM cache sustains up to 13,200 MB/s sequential write during heavy content creation
  • 4,800 TBW endurance and 1,750,000-hour MTTF protect data through years of intensive use
  • Active power draw of 7.1 W read and 7.3 W write keeps thermals manageable without a heatsink

Specifications

BrandWestern Digital
ModelWDS800T1X0M-00CMT0
Device TypeInternal Solid State Drive (SSD)
Used ForConsumer
Form FactorM.2 2280
Capacity8TB
InterfacePCI-Express 5.0 x4
ProtocolNVMe
Cache8GB DRAM
Max Sequential ReadUp to 14900 MBps
Max Sequential WriteUp to 13200 MBps
4KB Random ReadUp to 2,200,000 IOPS
4KB Random WriteUp to 2,400,000 IOPS
Terabytes Written (TBW)4800TB
MTTF1,750,000 Hours
HeatSinkwithout HeatSink
FeaturesExperience the breakneck speed of PCIe Gen 5
Drastically enhance your gaming and content creation experience with the speed of PCIe Gen 5.0x4 NVMe M.2 SSD technology - perfect for gaming, content creation, and loading models for AI-powered applications.
Blistering speeds combined with immense capacities
With the help of our nCache 4.0 feature, the WD_BLACK SN8100 SSD reaches sequential read speeds up to an astonishing 14,900MB/s, sequential write speeds up to 14,000MB/s, and over 2,300,000 IOPS of random performance (2TB - 4TB models), all while offering up to a massive 8TB of capaci
Power Consumption (Idle)Sleep (PS4): 5 mW
Power Consumption (Active)7.1W Read / 7.3W Write
Operating Temperature32°F to 185°F (0°C to 85°C)
Storage Temperature-40°F to 185°F (-40°C to 85°C)
Max Shock Resistance1,500G @0.5 ms half sine
Max Vibration ResistanceOperating Vibration: 5 gRMS, 10-2000 Hz, 3 axes
Non-operating Vibration: 4.9 gRMS, 7-800 Hz, 3 axes
Height3.88mm
Width80mm
Depth22mm
Weight8.8g
Shipping weight0.05 kg
Package size127 × 102 × 22 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What does the 14900 MBps sequential read figure mean when the drive is installed in a system?

That is the peak sequential read speed the 8TB WD_BLACK SN8100 can reach over a PCI-Express 5.0 x4 link; real-world throughput will depend on the motherboard slot, cooling and workload.

How does the PCI-Express 5.0 x4 interface limit performance in practice?

The x4 lane width caps the theoretical bandwidth at the PCIe 5.0 rate, so the drive cannot exceed the 14900 MBps read and 13200 MBps write ceilings even if the controller could go faster.

What physical space and mounting does the M.2 2280 form factor require?

It needs an M.2 slot that accepts 2280-length modules (80 mm long) and a motherboard standoff at the 80 mm position; the drive ships without a heatsink, so clearance above the PCB is minimal.
