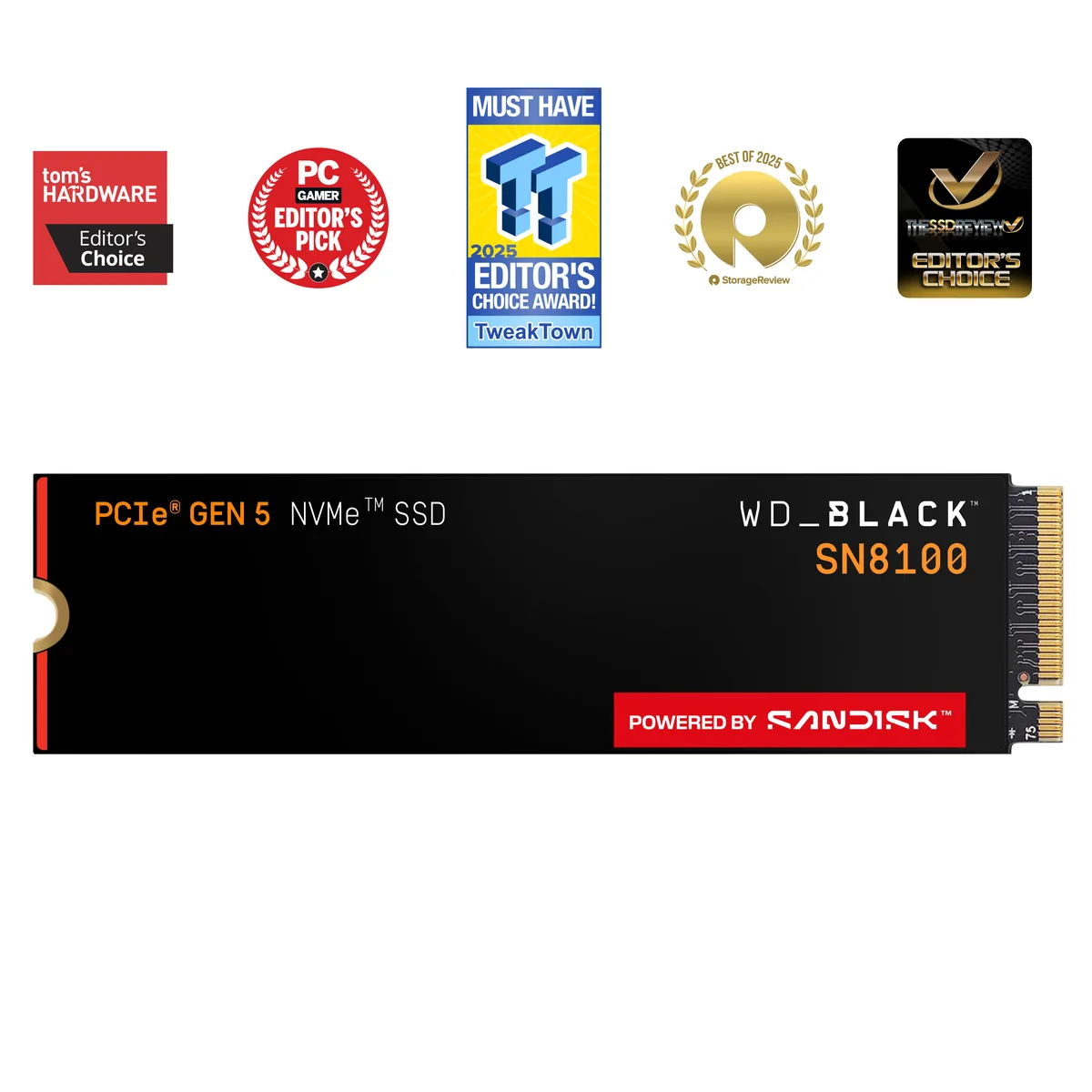

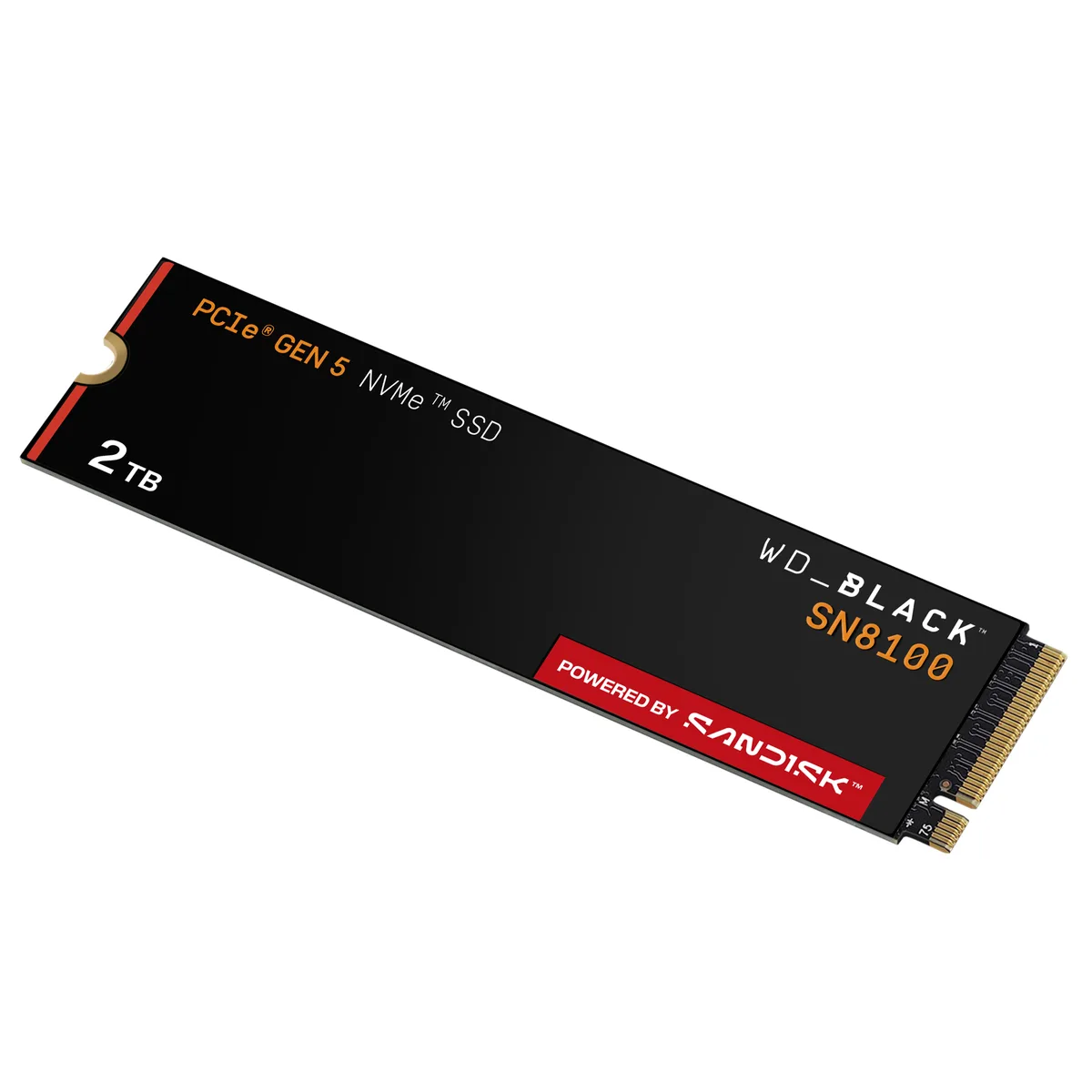

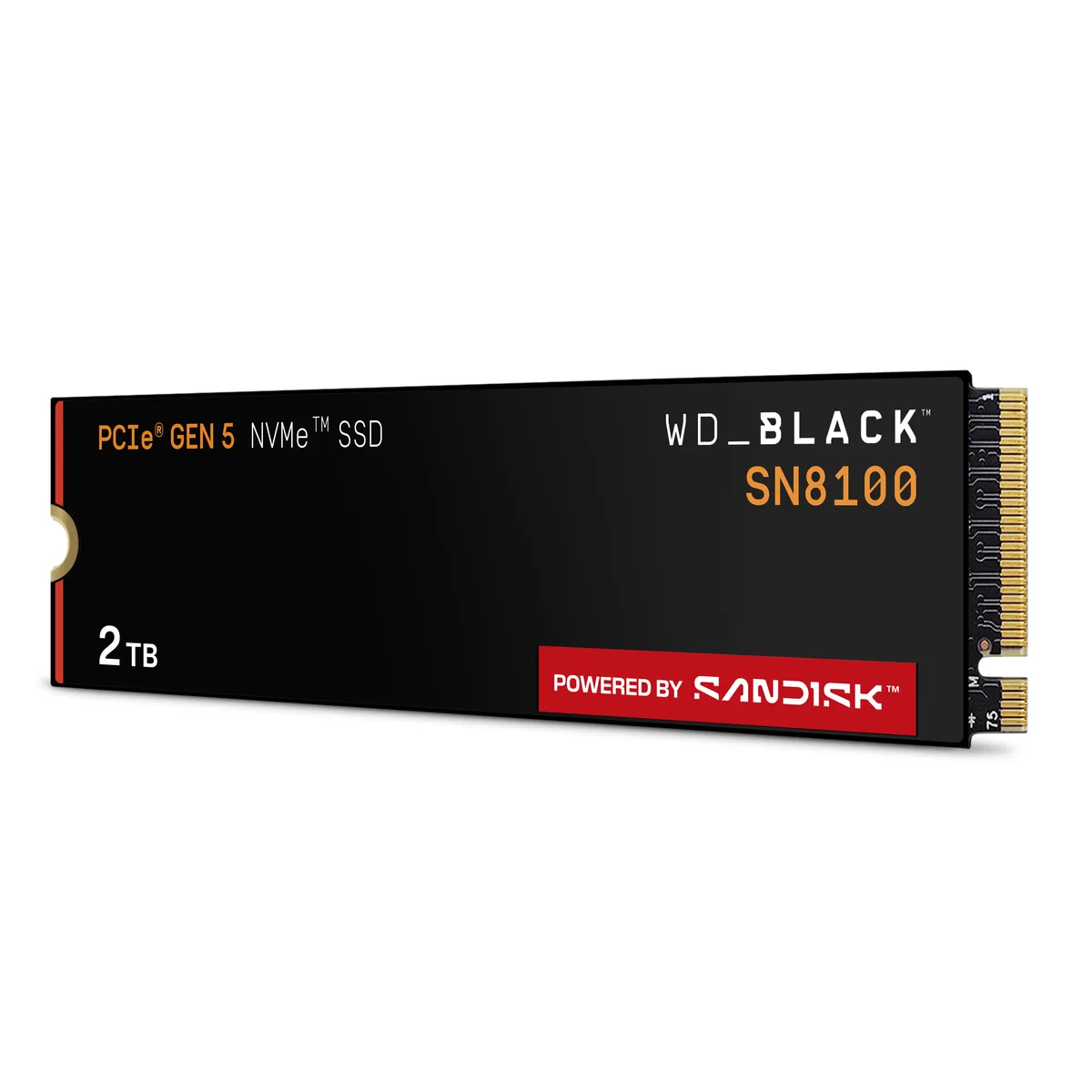

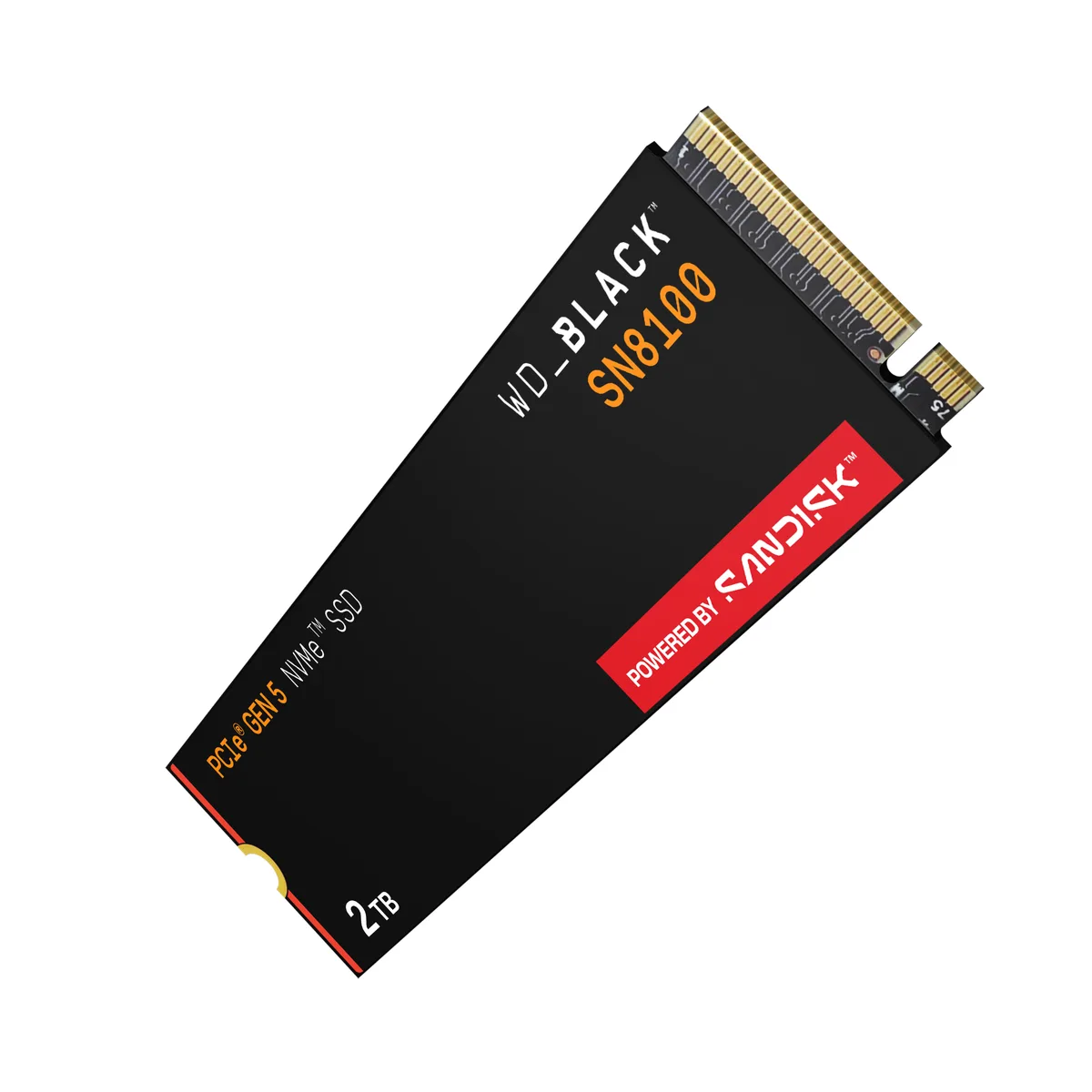

Green rectangular M.2 2280 SSD circuit board with black controller and gold edge connector

SanDisk

SanDisk WDS200T1X0M-00CMT0 2TB internal SSD

SKU CH-P3W4-WHPW2 MPN WDS200T1X0M-00CMT0

A 2 TB PCI-Express 5.0 x4 internal SSD with 2 GB DRAM cache delivering up to 14,900 MBps read and 14,000 MBps write for gaming, content creation and AI workloads

  • Device TypeInternal Solid State Drive (SSD)
  • Used ForConsumer
  • Form FactorM.2 2280
  • Capacity2TB
  • InterfacePCI-Express 5.0 x4
  • ProtocolNVMe

Options 2TB

  • Blistering load times with sequential reads up to 14900 MB/s
  • Smooth multitasking from random performance up to 2400000 IOPS
  • Long drive life backed by 1200 TBW endurance
  • Efficient operation at 6.5 W read and 7.0 W write
  • Ready for AI workloads with 2 GB DRAM cache

WD_BLACK SN8100 2TB PCIe 5.0 NVMe SSD

The WD_BLACK SN8100 is a 2TB internal solid state drive built for consumer workloads that demand very high throughput. It uses the M.2 2280 form factor and connects through a PCIe 5.0 x4 interface with NVMe protocol. The drive includes 2GB of DRAM cache and is suited for gaming, content creation and loading large AI models.

PCIe 5.0 x4 bandwidth and thermal limits

The PCIe 5.0 x4 interface can deliver sequential reads up to 14,900 MB/s and writes up to 14,000 MB/s, with random performance reaching 2,300,000 read IOPS and 2,400,000 write IOPS. Active power draw is 6.5 W during reads and 7.0 W during writes, while idle power drops to 5 mW. The controller is rated for operation between 0 °C and 85 °C, so sustained loads may require motherboard or add-in cooling.

DRAM cache, endurance and heatsink considerations

The 2GB DRAM cache helps maintain consistent performance across mixed workloads. Endurance is rated at 1,200 TBW with an MTTF of 1,750,000 hours. The drive ships without a heatsink, so the installer must ensure adequate airflow or a motherboard M.2 shield to keep temperatures within the specified operating range.

Highlights

  • Blistering load times with sequential reads up to 14900 MB/s
  • Smooth multitasking from random performance up to 2400000 IOPS
  • Long drive life backed by 1200 TBW endurance
  • Efficient operation at 6.5 W read and 7.0 W write
  • Ready for AI workloads with 2 GB DRAM cache

Specifications

BrandWestern Digital
ModelWDS200T1X0M
Device TypeInternal Solid State Drive (SSD)
Used ForConsumer
Form FactorM.2 2280
Capacity2TB
InterfacePCI-Express 5.0 x4
ProtocolNVMe
Cache2GB DRAM
Max Sequential ReadUp to 14900 MBps
Max Sequential WriteUp to 14000 MBps
4KB Random ReadUp to 2,300,000 IOPS
4KB Random WriteUp to 2,400,000 IOPS
Terabytes Written (TBW)1200TB
MTTF1,750,000 Hours
HeatSinkwithout HeatSink
FeaturesExperience the breakneck speed of PCIe Gen 5
Drastically enhance your gaming and content creation experience with the speed of PCIe Gen 5.0x4 NVMe M.2 SSD technology - perfect for gaming, content creation, and loading models for AI-powered applications.
Blistering speeds for intense tasks
With the help of our nCache 4.0 feature, the WD_BLACK SN8100 SSD reaches sequential read speeds up to an astonishing 14,900MB/s, sequential write speeds up to 14,000MB/s, and over 2,300,000 IOPS of random performance (2TB-4TB models).
Designed to perform
Our latest TLC 3D CBA NAND technology provide
Power Consumption (Idle)Sleep (PS4): 5 mW
Power Consumption (Active)6.5W Read / 7.0W Write
Operating Temperature32°F to 185°F (0°C to 85°C)
Storage Temperature-40°F to 185°F (-40°C to 85°C)
Max Shock Resistance1,500G @0.5 ms half sine
Max Vibration ResistanceOperating Vibration: 5 gRMS, 10-2000 Hz, 3 axes
Non-operating Vibration: 4.9 gRMS, 7-800 Hz, 3 axes
Height2.38mm
Width80mm
Depth22mm
Weight7.5g
Shipping weight0.05 kg
Package size152 × 102 × 41 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How do I decide between the 2TB and larger capacities for this WD_BLACK SN8100?

The 2TB model delivers 1200 TBW endurance and up to 14,900 MB/s reads; the 4TB version doubles endurance to 2400 TBW while keeping the same peak speeds, so choose 2TB for typical gaming and creative workloads or 4TB if you need maximum write lifetime.

What does the 14,900 MB/s sequential read figure mean once the drive is installed in my PC?

That 14,900 MB/s is the maximum sequential read speed the controller can sustain on large-file transfers such as game-level loads or video-footage ingest; everyday mixed workloads will run lower, but the headroom keeps demanding tasks responsive.

The drive uses a PCIe 5.0 x4 interface — what does that cap in practice?

PCIe 5.0 x4 provides the electrical lane bandwidth that lets the SN8100 hit its rated 14,900 MB/s reads and 14,000 MB/s writes; if the motherboard only supports PCIe 4.0 x4 the drive will still work but cannot reach those peak throughput numbers.
