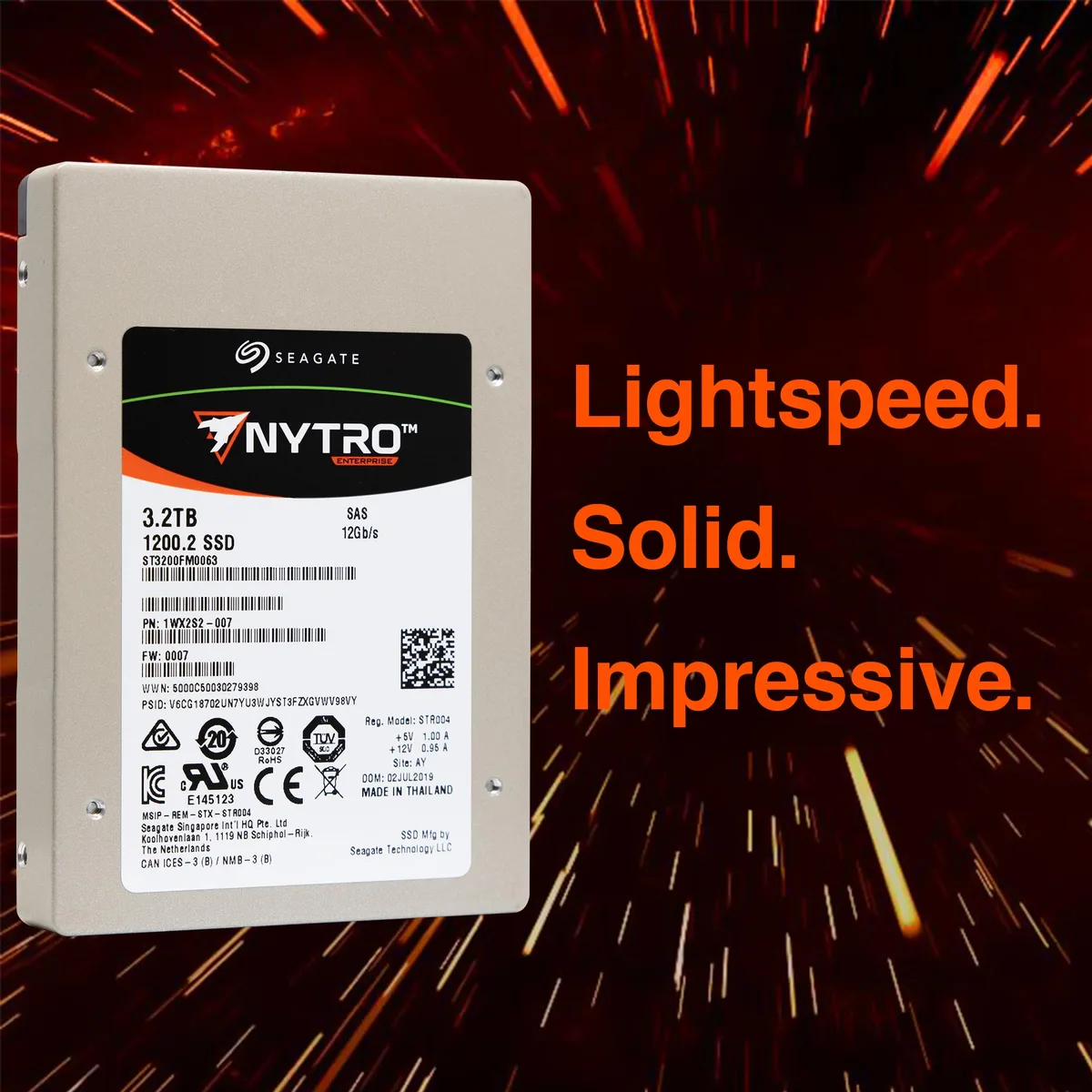

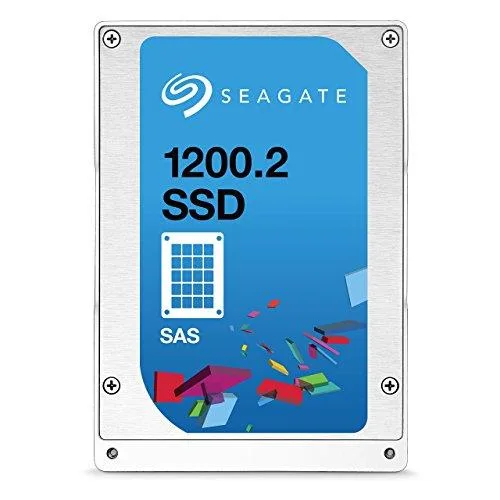

Seagate 1200.2 2.5 inch 3.2TB SAS enterprise SSD, silver metal casing, dual port connector

Seagate

Seagate 1200.2 ST3200FM0063 3.2TB SAS enterprise SSD

SKU CH-MM9P-Z6CMF MPN ST3200FM0063

A 2.5" 3.2TB SAS enterprise SSD delivering 1100 MBps read and 850 MBps write with 180,000 random read IOPS

  • Form Factor2.5"
  • Capacity3.2TB
  • Memory ComponentseMLC
  • InterfaceSAS 12Gb/s
  • Max Sequential ReadUp to 1100 MBps
  • Max Sequential WriteUp to 850 MBps

Options 3.2TB

  • 3.2TB
  • 1.92TB
  • 1.6TB
  • 800GB
  • 400GB

Struck-through versions exist but are not stocked here.

  • 2 TB capacity fits massive datasets in a 2.5" drive
  • SAS 12Gb/s interface delivers up to 1100 MB/s sequential read speed
  • eMLC memory sustains 180000 random read IOPS for heavy workloads
  • 8 W idle power reduces server energy draw
  • 1000 G shock rating protects data in dense racks

Capacity and interface

The Seagate 1200.2 ST3200FM0063 is a 3.2TB enterprise SSD with a SAS 12Gb/s dual-port interface. It uses eMLC memory in a 2.5-inch form factor and is suited for storage arrays that demand consistent throughput and high endurance.

Sustained workload behaviour

Sequential reads reach up to 1100 MBps and writes up to 850 MBps while random 4KB performance delivers up to 180,000 read IOPS and 20,000 write IOPS. Idle power draw is 5.8W and the drive operates from 0°C to 70°C with shock resistance rated at 1000G.

Compatibility checks

Verify that your backplane or controller supports SAS 12Gb/s and provides a 2.5-inch bay with at least 15mm height clearance. The dual-port design requires a compatible SAS expander or HBA to utilise both paths for failover.

Highlights

  • 2 TB capacity fits massive datasets in a 2.5" drive
  • SAS 12Gb/s interface delivers up to 1100 MB/s sequential read speed
  • eMLC memory sustains 180000 random read IOPS for heavy workloads
  • 8 W idle power reduces server energy draw
  • 1000 G shock rating protects data in dense racks

Specifications

BrandSeagate
Series1200.2
ModelST3200FM0063
Form Factor2.5"
Capacity3.2TB
Memory ComponentseMLC
InterfaceSAS 12Gb/s
Max Sequential ReadUp to 1100 MBps
Max Sequential WriteUp to 850 MBps
4KB Random ReadUp to 180,000 IOPS
4KB Random WriteUp to 20,000 IOPS
FeaturesDual port 12Gb/s SAS interface for the highest level of enterprise reliability, availability and scalability
Industry-leading storage density range including 4TB-class capacity in a 2.5-inch form factor
Ultra-fast performance of up to 1900MB/s that nearly saturates both 12Gb/s ports
Endurance options to match the needs of a wide range of enterprise workloads
SAS dual-port communication path for redundant, failover I/O communication to ensure data availability in critical production systems
Power loss data protection circuit to help prevent loss of data in the event of unexpected powe
Power Consumption (Idle)5.8W
Operating Temperature0°C ~ +70°C
Storage Temperature-40°C ~ +75°C
Operating Humidity5% to 95% RH
Max Shock Resistance1000G
Max Vibration Resistance1.98G
Height15.00mm
Width70.10mm
Depth100.45mm
Weight165.00g
Shipping weight0.29 kg
Package size152 × 102 × 25 mm

Other versions of this model

1 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How much power does the 3.2TB SAS 12Gb/s drive draw when idle?

Idle power consumption is 5.8W. The eMLC drive operates between 0°C and 70°C, so sustained use inside a cooled chassis will not exceed its thermal envelope.

What host connector and protocol must my server provide for this 2.5-inch SAS 12Gb/s SSD?

A dual-port SAS 12Gb/s backplane or HBA is required. The drive uses the standard 2.5-inch SAS form factor with 15.00mm height and 70.10mm width, so it fits common hot-swap trays.

Will the ST3200FM0063 negotiate down to 6Gb/s on my older SAS controller?

Yes. The SAS 12Gb/s interface is backward compatible with 6Gb/s and 3Gb/s controllers, though sequential throughput will be limited to the slower link speed.
