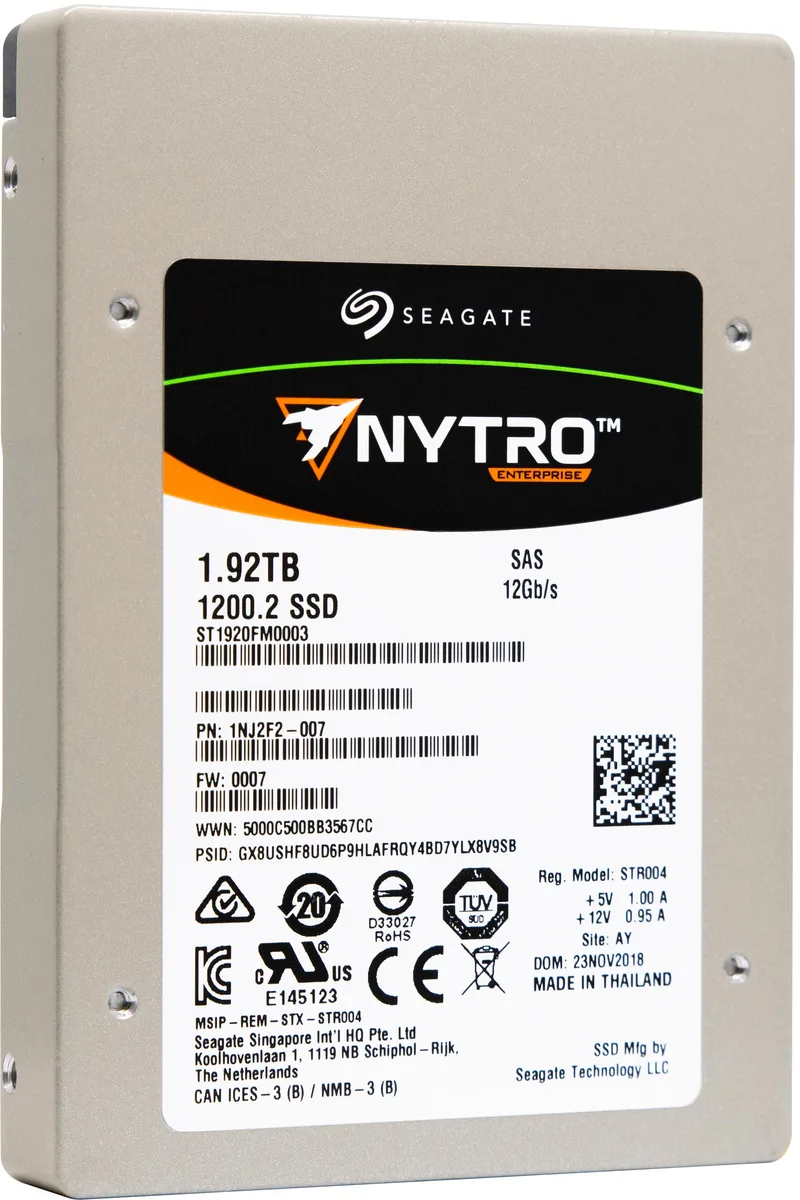

Seagate 1200.2 1.92TB 2.5 inch enterprise SSD, silver metal casing, dual SAS ports, 15mm height

Seagate

Seagate ST1920FM0003 1200.2 1.92TB 2.5" Dual 12Gb/s SAS eMLC enterprise SSD

SKU CH-G7F5-2KYZR MPN ST1920FM0003

A 2.5-inch enterprise SSD with dual 12Gb/s SAS delivering up to 1150 MB/s read and 190,000 random read IOPS

  • Form Factor2.5"
  • Capacity1.92TB
  • Memory ComponentseMLC
  • InterfaceDual 12Gb/s SAS
  • Max Sequential ReadUp to 1150 MBps
  • Max Sequential WriteUp to 850 MBps

Options 1.92TB

  • 3.2TB
  • 1.92TB
  • 1.6TB
  • 800GB
  • 400GB

Struck-through versions exist but are not stocked here.

  • High sequential read speed up to 1150 MBps
  • High sequential write speed up to 850 MBps
  • Strong random read performance up to 190000 IOPS
  • Dual-port SAS for redundant failover I/O paths
  • Power loss protection prevents data loss during outages

1.92TB Dual-Port SAS Enterprise SSD

The Seagate ST1920FM0003 is a 2.5-inch enterprise solid-state drive built on the 1200.2 platform. It uses eMLC flash and a dual 12Gb/s SAS interface to deliver consistent performance for primary storage arrays and caching tiers in data-centre environments.

Workloads needing dual-port failover

This drive suits servers and storage systems that require redundant I/O paths and sustained throughput up to 1150 MBps read and 850 MBps write. It is not for platforms that only support single-port SAS connectivity or interfaces other than SAS.

Dual 12Gb/s SAS interface for redundant I/O

The defining specification is the dual-port 12Gb/s SAS connection, which provides failover communication paths and nearly saturates both ports with up to 1900 MB/s combined throughput for high-availability deployments.

Highlights

  • High sequential read speed up to 1150 MBps
  • High sequential write speed up to 850 MBps
  • Strong random read performance up to 190000 IOPS
  • Dual-port SAS for redundant failover I/O paths
  • Power loss protection prevents data loss during outages

Specifications

BrandSeagate
Series1200.2
ModelST1920FM0003
Form Factor2.5"
Capacity1.92TB
Memory ComponentseMLC
InterfaceDual 12Gb/s SAS
Max Sequential ReadUp to 1150 MBps
Max Sequential WriteUp to 850 MBps
4KB Random ReadUp to 190,000 IOPS
4KB Random WriteUp to 38,000 IOPS
FeaturesDual port 12Gb/s SAS interface for the highest level of enterprise reliability, availability and scalability
Industry-leading storage density range including 4TB-class capacity in a 2.5-inch form factor
Ultra-fast performance of up to 1900MB/s that nearly saturates both 12Gb/s ports
Endurance options to match the needs of a wide range of enterprise workloads
SAS dual-port communication path for redundant, failover I/O communication to ensure data availability in critical production systems
Power loss data protection circuit to prevent loss of data in the event of unexpected power int
Operating Temperature0°C ~ +70°C
Storage Temperature-40°C ~ +75°C
Operating Humidity5% to 95% RH
Max Shock Resistance1000G
Height15.00mm
Width70.10mm
Depth100.45mm
Weight0.19 lb.
Shipping weight0.25 kg
Package size226 × 152 × 76 mm

Other versions of this model

1 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will the 15.00mm height of this 2.5" drive fit my server bay?

The drive measures 15.00mm high, 70.10mm wide and 100.45mm deep. Verify your bay accepts a 15mm 2.5" form factor before ordering.

How do I connect the dual 12Gb/s SAS ports and what is the common mistake?

Attach both SAS cables to the controller for multipath redundancy; the frequent error is using only one port and losing failover protection.

When will the eMLC memory reach its write limit and need replacement?

Endurance varies by workload; monitor SMART wear indicators and plan replacement once the rated program/erase cycles are exhausted.
