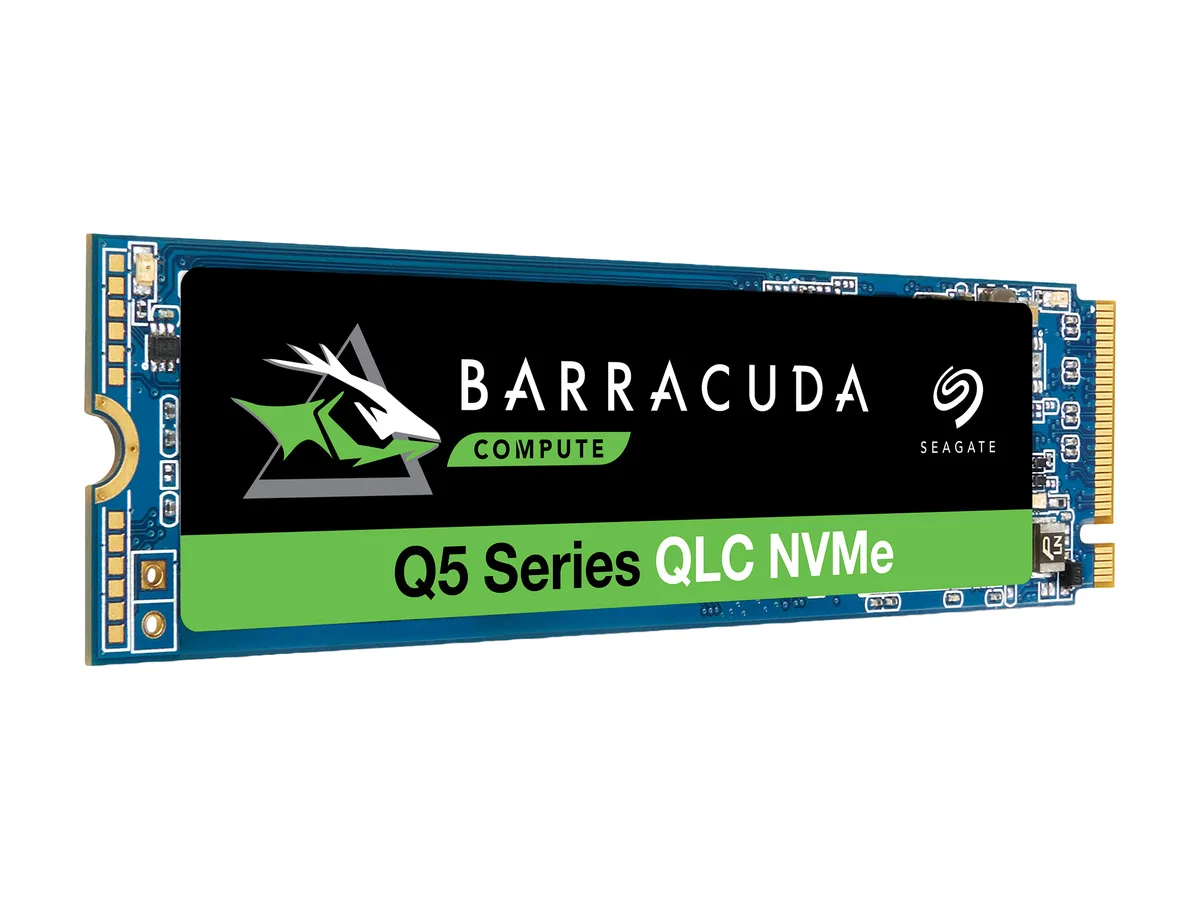

Green M.2 2280 circuit board with black controller and silver label

Seagate

Seagate BarraCuda Q5 ZP2000CV3A001 2TB M.2 2280 PCIe Gen3 x4 NVMe 1.3 3D QLC internal SSD

SKU CH-89X8-M26XS MPN ZP2000CV3A001

A 2 TB M.2 2280 NVMe drive delivering sequential reads up to 2400 MB/s and writes up to 1800 MB/s using 3D QLC NAND

  • Device TypeInternal Solid State Drive (SSD)
  • Used ForConsumer
  • Form FactorM.2 2280
  • Capacity2TB
  • Memory Components3D QLC
  • InterfacePCIe Gen3 x4 NVMe 1.3

Options 2TB

  • Cost-effective speed upgrade with 3D QLC NAND
  • Up to 2400 MBps sequential read for faster loads
  • Up to 1800 MBps sequential write for quicker saves
  • Low 3.3W active power extends laptop battery life
  • 8M-hour MTBF and 531TB TBW for long-term reliability

BarraCuda Q5 2TB NVMe drive

The Seagate BarraCuda Q5 ZP2000CV3A001 is a 2TB internal SSD built on 3D QLC NAND. It uses an M.2 2280 form factor with a PCIe Gen3 x4 NVMe 1.3 interface. The drive targets consumers who want a cost-effective upgrade from mechanical storage to solid-state speeds. Sequential reads reach up to 2400 MBps and writes up to 1800 MBps.

Thermals power and noise

The SSD draws 25 mW at idle and up to 3.3W during active workloads. It operates between 0°C and 70°C and survives storage temperatures from -40°C to 85°C. With no moving parts the drive produces no audible noise. Shock resistance is rated at 1500G and the MTBF is 1,800,000 hours. Total bytes written endurance is 531TB.

Build integration

The M.2 2280 module plugs directly into a compatible motherboard slot, removing the need for drive bays and cables. Its slim profile frees space inside small-form-factor chassis and laptops. Low active power consumption helps extend battery life in mobile systems. Seagate DiscWizard software is available for migration and cloning from an old drive.

Highlights

  • Cost-effective speed upgrade with 3D QLC NAND
  • Up to 2400 MBps sequential read for faster loads
  • Up to 1800 MBps sequential write for quicker saves
  • Low 3.3W active power extends laptop battery life
  • 8M-hour MTBF and 531TB TBW for long-term reliability

Specifications

BrandSeagate
SeriesBarraCuda Q5
ModelZP2000CV3A001
Part NumberZP2000CV3A001
Device TypeInternal Solid State Drive (SSD)
Used ForConsumer
Form FactorM.2 2280
Capacity2TB
Memory Components3D QLC
InterfacePCIe Gen3 x4 NVMe 1.3
Cache0MB
Max Sequential ReadUp to 2400 MBps
Max Sequential WriteUp to 1800 MBps
MTBF1,800,000 hours
FeaturesUpgrade to cost-effective SSD speeds with next-gen 3D QLC NAND
Leverage NVMe SSD speeds that are up to 50x faster than traditional hard drives
Harness high sequential read/write speeds (up to 2400/1800 MB/s) for more responsive downloads, installs, and multitasking
Get easy installation and upgrades with a slim M.2 2280 NVMe form factor
Extend battery life with low active power requirements of up to 3.3W
Rely on 1.8M-hours MTBF
Enjoy added peace of mind with 1-year Rescue Data Recovery Services
Benefit from long-term durability with 531TB total bytes written (TBW)
Migrate and clone d
Power Consumption (Idle)25 mW
Power Consumption (Active)3.3W
Operating Temperature0°C ~ +70°C
Storage Temperature-40°C ~ +85°C
Max Shock Resistance1500G
Height2.15mm
Width22.00mm
Depth80.00mm
Weight7.00g
Shipping weight0.05 kg
Package size178 × 132 × 13 mm

Other versions of this model

2 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How do I install the M.2 2280 NVMe 1.3 drive in my system?

Slide the drive into the M.2 2280 slot at an angle, press it flat and secure it with the motherboard screw; the step often missed is leaving the protective label on the controller, which can trap heat.

What maintenance or replacement will the 3D QLC 2TB drive need later?

The drive has no user-serviceable parts; its 531 TBW endurance rating and 1,800,000-hour MTBF indicate when a full replacement is due rather than a component swap.

What limit appears first during sustained writes on the PCIe Gen3 x4 SSD?

The 3D QLC NAND write speed drops after the SLC cache fills, so sequential write performance falls below the 1800 MBps peak during long transfers.
