Seagate

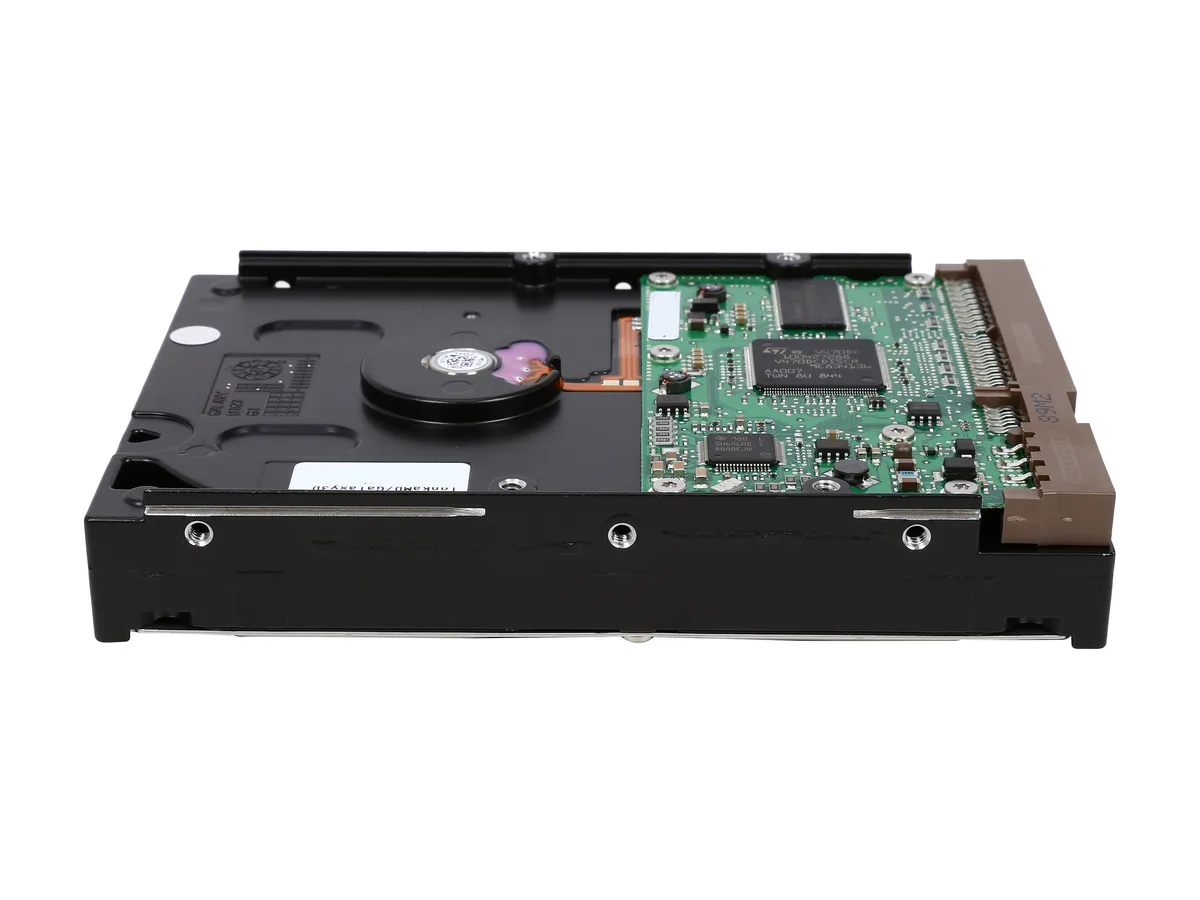

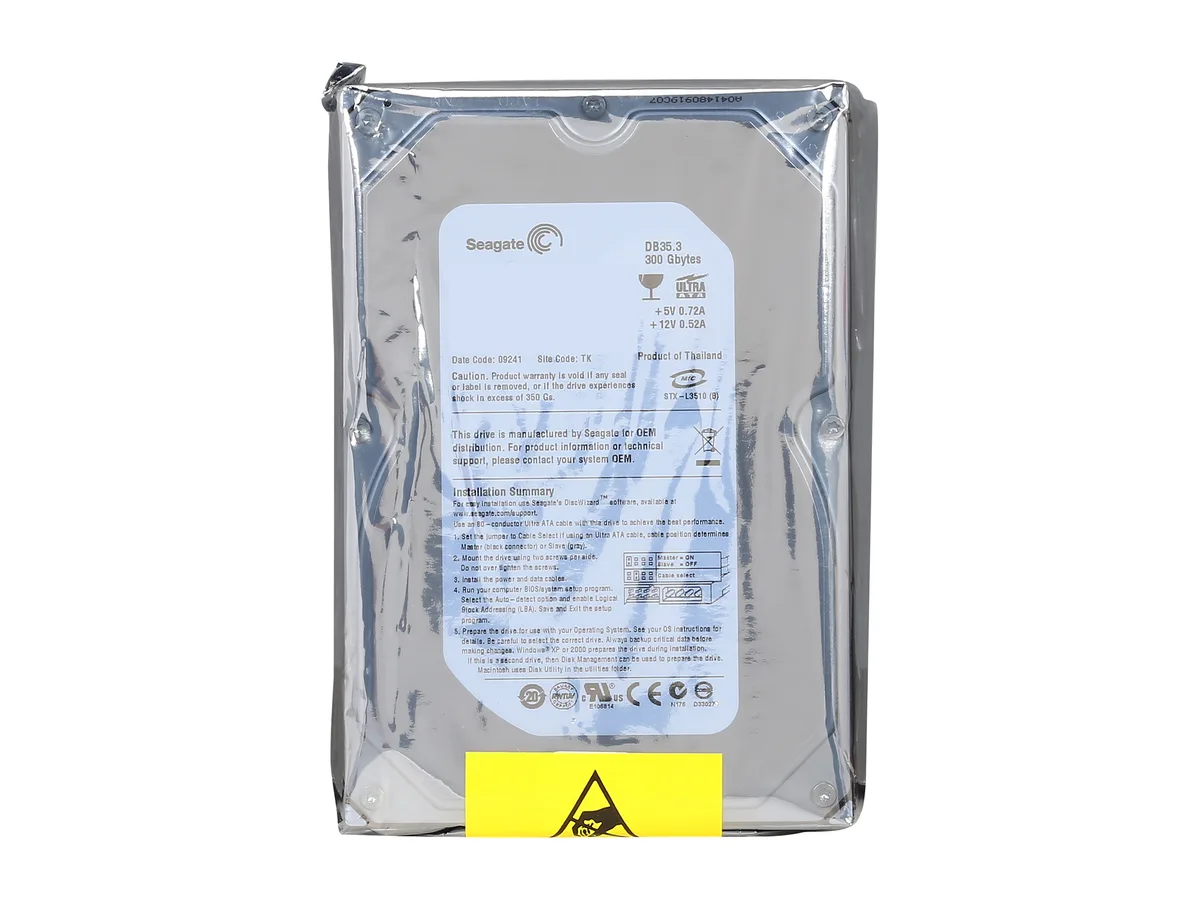

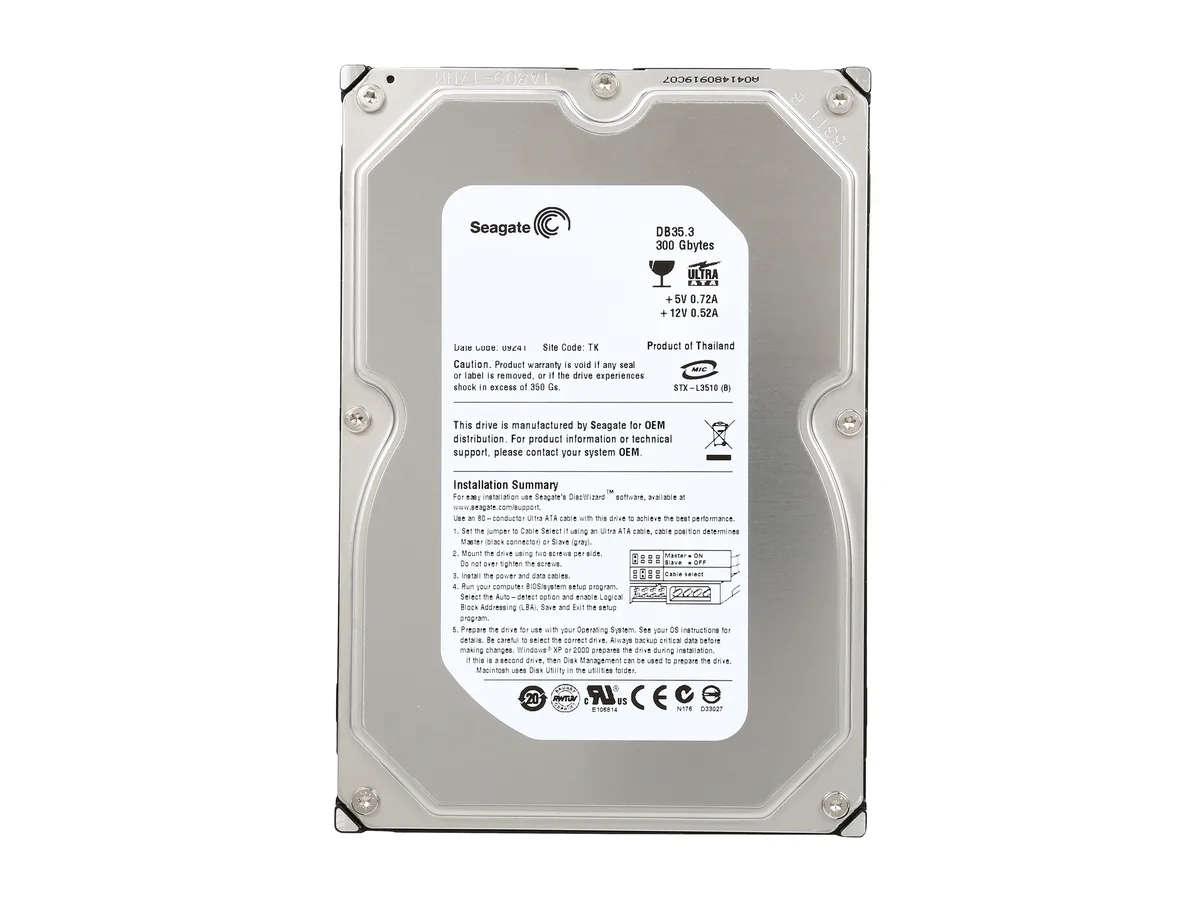

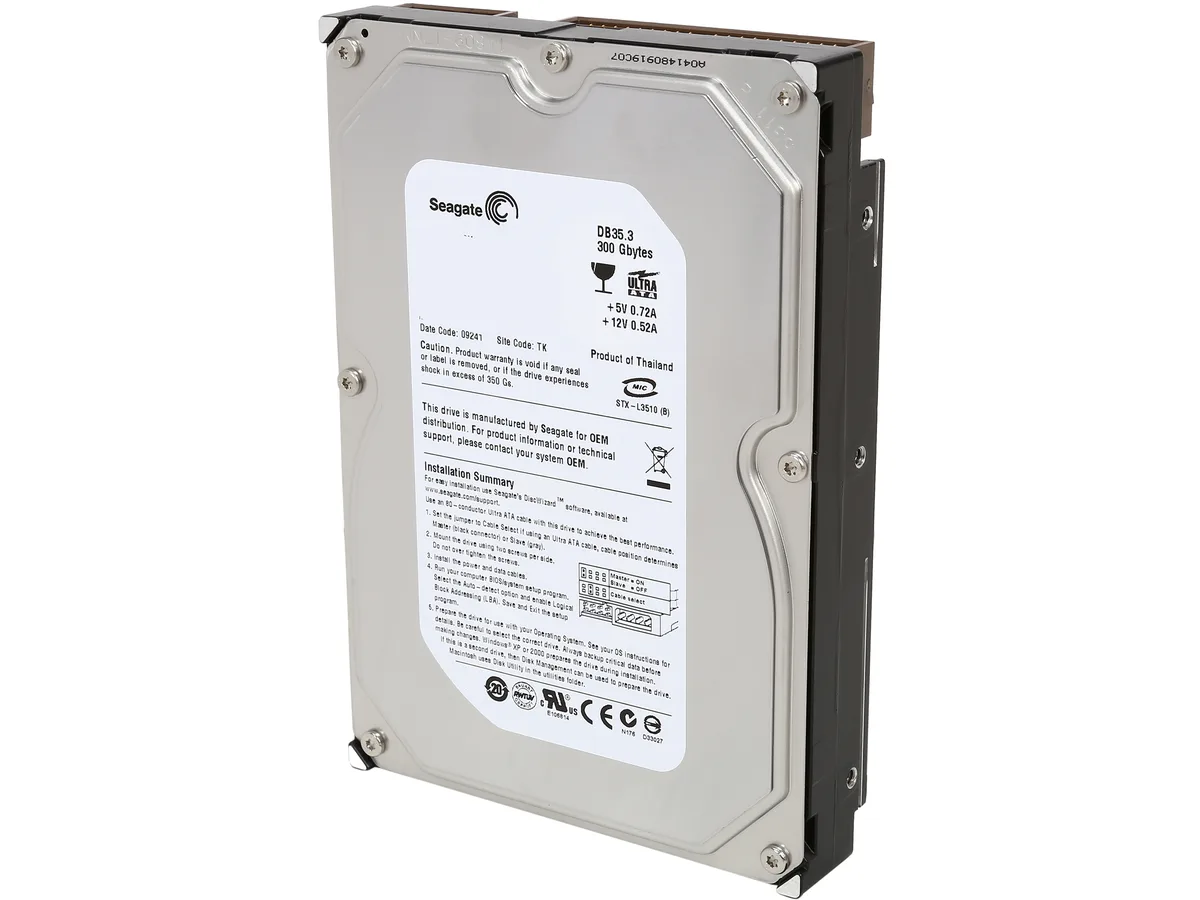

Seagate DB35.3 ST3300820ACE 300GB 7200 RPM 8MB IDE Ultra ATA 100 3.5" internal hard drive
A 300 GB IDE Ultra ATA 100 drive at 7200 RPM with 8 MB cache, built for DVR recording up to 750 hours standard or 150 hours high-definition
- InterfaceIDE Ultra ATA 100
- Capacity300GB
- RPM7200 RPM
- Cache8MB
- Average Latency4.16ms
- FeaturesUp to 750 hours of standard TV capacity, up to 150 hours of
- Up to 750 hours standard TV recording capacity
- Up to 150 hours high-definition video storage
- 7200 RPM spindle speed for responsive DVR playback
- 8 MB cache buffers streaming video data
- 16 ms average latency supports smooth recording
Legacy DVR storage
This 300 GB IDE Ultra ATA 100 drive spins at 7200 RPM with 8 MB cache and 4.16 ms average latency. It is built for digital video recorders and surveillance systems that require continuous streaming performance. The DB35.3 series includes DynaPlay technology and SoftSonic motor design for quiet, reliable operation in always-on environments.
DVR integrators and PC restorers
Suits installers maintaining or upgrading legacy DVR appliances that use the PATA interface and need up to 750 hours of standard TV or 150 hours of high-definition recording capacity. Not for builders whose motherboards lack an IDE connector or who require the higher throughput of modern serial interfaces.

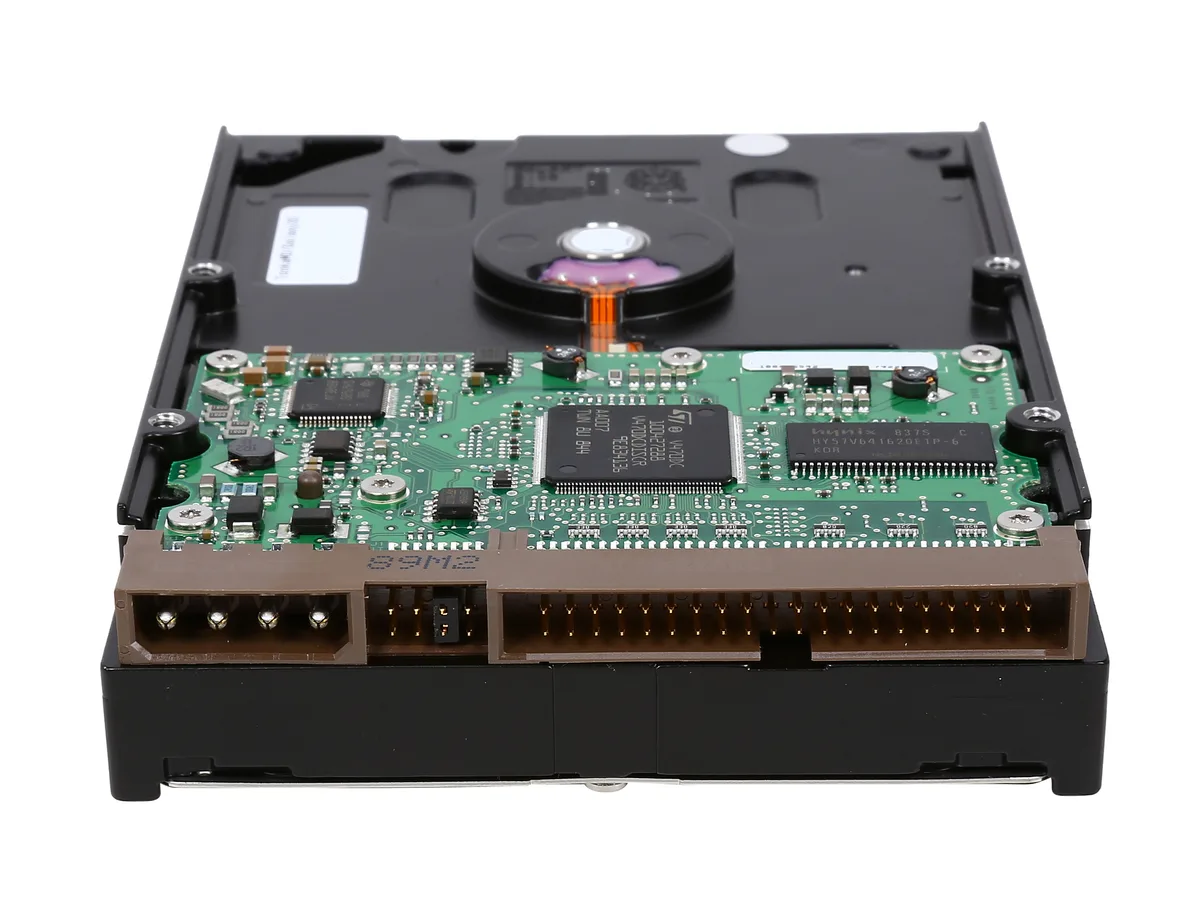

IDE Ultra ATA 100 interface
The parallel ATA 100 connection is the single specification that determines fit; the drive will only work in systems with a compatible 40-pin IDE controller and 3.5 inch drive bay. Dimensions are 26.1 mm height, 101.85 mm width and 146.99 mm length.
Highlights
- Up to 750 hours standard TV recording capacity
- Up to 150 hours high-definition video storage
- 7200 RPM spindle speed for responsive DVR playback
- 8 MB cache buffers streaming video data
- 16 ms average latency supports smooth recording
Specifications
| Brand | Seagate |
|---|---|
| Series | DB35.3 |
| Model | ST3300820ACE |
| Interface | IDE Ultra ATA 100 |
| Capacity | 300GB |
| RPM | 7200 RPM |
| Cache | 8MB |
| Average Latency | 4.16ms |
| Features | Up to 750 hours of standard TV capacity, up to 150 hours of high-definition capacity DynaPlay technology delivers the storage industry’s most comprehensive set of features for the demanding DVR environment, including video streaming performance, power optimization and content security. Seagate SoftSonic motor technology and optimized seek profiles deliver years of quiet, worry-free operation. Available Seagate Secure technology improves content security as part of a system digital rights management strategy. Seagate Design Service Centers improve product performance and reliability, |
| Form Factor | 3.5" (PATA) |
| Height (maximum) | 26.1mm |
| Width (maximum) | 101.85mm |
| Length (maximum) | 146.99mm |
| Shipping weight | 0.59 kg |
| Package size | 151 × 121 × 28 mm |
Questions about this item
How much noise and heat does the 7200 RPM ST3300820ACE produce during continuous DVR recording?
Seagate SoftSonic motor technology and optimized seek profiles are designed for years of quiet operation, while DynaPlay technology includes power optimization for the demanding DVR environment.
What host interface must my system provide for the IDE Ultra ATA 100 connection on this 3.5 inch drive?
The drive requires a standard 40-pin PATA/IDE controller capable of Ultra ATA 100 transfers; a Molex power connector is also needed for the 3.5 inch form factor.
Will the ST3300820ACE work alongside an older IDE drive on the same cable without performance loss?
Each drive on a shared IDE cable negotiates its own Ultra ATA 100 mode, so the 7200 RPM unit retains its throughput while an older device runs at its lower supported speed.
