Green rectangular M.2 2280 SSD circuit board with black controller and gold edge connector

Seagate

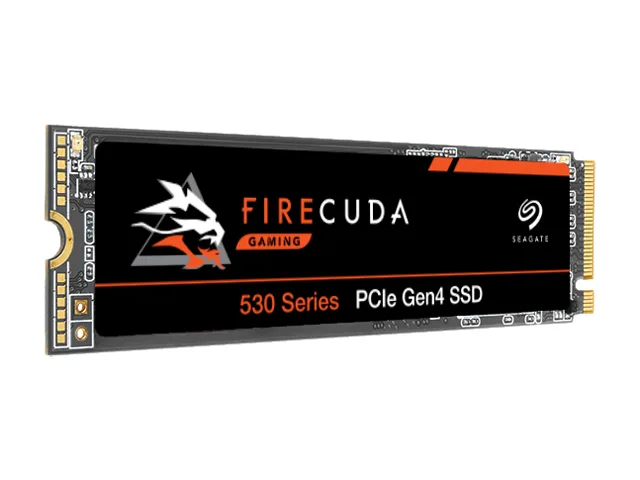

Seagate FireCuda 530 ZP1000GM3A013 1TB M.2 2280 internal SSD

SKU CH-5F1J-TBZM1 MPN ZP1000GM3A013

A 1TB M.2 2280 internal SSD with PCIe Gen4 x4 NVMe 1.4 interface delivering up to 7300 MBps sequential read and 6000 MBps sequential write speeds

  • Device TypeInternal Solid State Drive (SSD)
  • Used ForConsumer
  • Form FactorM.2 2280
  • Capacity1TB
  • Memory Components3D TLC
  • InterfacePCIe Gen4 x4 NVMe 1.4

Options 1TB

  • Sequential reads up to 7300 MB/s accelerate game loading
  • Sequential writes up to 6000 MB/s speed up content creation
  • Random reads up to 800000 IOPS deliver snappy system response
  • Random writes up to 1000000 IOPS handle heavy multitasking
  • MTBF of 1800000 hours indicates long-term reliability

1TB PCIe Gen4 NVMe SSD for gaming

The Seagate FireCuda 530 ZP1000GM3A013 is a 1TB M.2 2280 internal SSD built for consumers who need fast storage. It uses 3D TLC memory and a PCIe Gen4 x4 NVMe 1.4 interface to deliver high throughput. The drive targets gamers and creators who want responsive loads and quick file transfers.

Installation is a standard M.2 2280 slot insertion

The drive fits any motherboard or laptop with an M.2 2280 key-M slot that supports PCIe Gen4 x4. No cables or brackets are required. The unit ships without a heatsink, so the host platform must provide adequate airflow or a motherboard shield to avoid thermal throttling under sustained write workloads.

1TB capacity handles modern game libraries

Sequential reads reach up to 7300 MBps and writes up to 6000 MBps, with 4KB random reads up to 800000 IOPS and writes up to 1000000 IOPS. That headroom covers large texture streaming, video editing timelines and heavy multitasking. Very long sustained writes or near-full drive conditions will reduce write speeds as the SLC cache fills.

Highlights

  • Sequential reads up to 7300 MB/s accelerate game loading
  • Sequential writes up to 6000 MB/s speed up content creation
  • Random reads up to 800000 IOPS deliver snappy system response
  • Random writes up to 1000000 IOPS handle heavy multitasking
  • MTBF of 1800000 hours indicates long-term reliability

Specifications

BrandSeagate
SeriesFireCuda 530
ModelZP1000GM3A013
Part NumberZP1000GM3A013
Device TypeInternal Solid State Drive (SSD)
Used ForConsumer
Form FactorM.2 2280
Capacity1TB
Memory Components3D TLC
InterfacePCIe Gen4 x4 NVMe 1.4
Cache0MB
Max Sequential ReadUp to 7300 MBps
Max Sequential WriteUp to 6000 MBps
4KB Random ReadUp to 800,000 IOPS
4KB Random WriteUp to 1,000,000 IOPS
MTBF1,800,000 hours
HeatSinkwithout HeatSink
FeaturesSpeed Reigns. FireCuda 530 dominates the SSD lineup - delivering pure performance, absolute power, the most advanced components, and unrivaledendurance.
Highest Performance. At up to 7,300MB/s you can harness the full power of PCIe Gen4 speeds to dominate next-generation games and applications.
Fastest. FireCuda. Ever. Built for sustained, pro-level gaming and accelerated content creation with transfer speeds up to 2x faster than PCIe Gen3 NVMe SSDs and up to 12x faster than SATA SSDs.
Latest Tech. Built with a Seagate-validated E18 controller and the latest 3D TLC NAND, FireCuda 530
Power Consumption (Idle)16 mW
Power Consumption (Active)6.5W
Operating Temperature0°C ~ +70°C
Storage Temperature-40°C ~ +85°C
Max Shock Resistance1500G
Height2.23mm
Width22.15mm
Depth80.15mm
Weight8.10g
Shipping weight0.06 kg
Package size155 × 108 × 24 mm

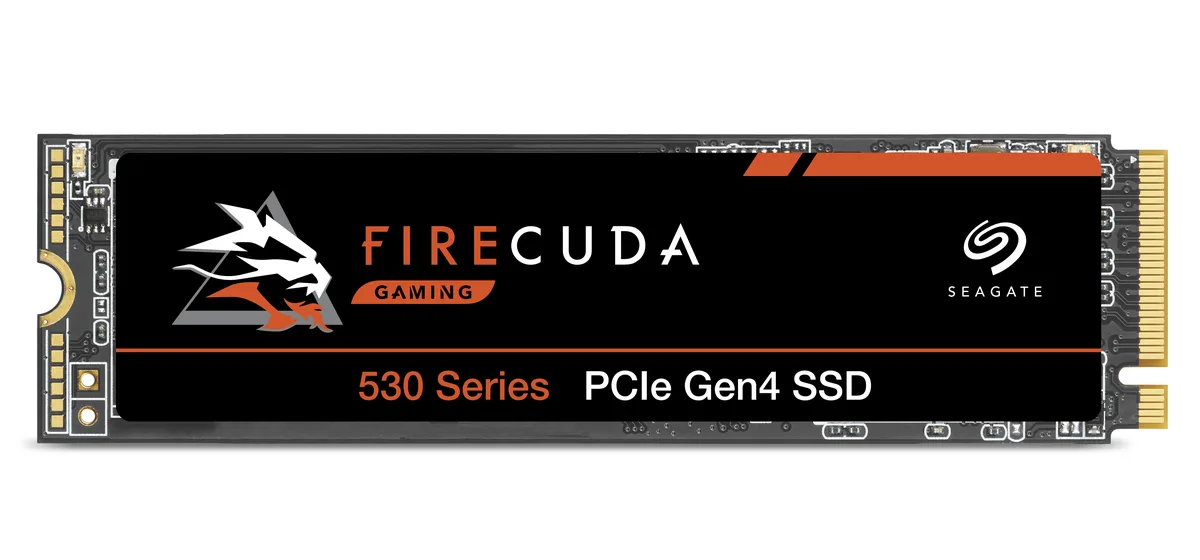

Other versions of this model

4 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How do I verify the FireCuda 530 ZP1000GM3A013 is running at its rated 7300 MBps sequential read speed after installation?

Run a benchmark tool such as CrystalDiskMark on the NVMe drive; a fresh 1TB unit should show reads near 7300 MBps and writes near 6000 MBps on a PCIe Gen4 x4 platform.

What ships with the ZP1000GM3A013 and what must I source separately for a PS5 install?

The box contains only the bare M.2 2280 1TB module without a heatsink; Sony requires a compatible heatsink for PS5, so purchase one separately before fitting.

Which capacity of the FireCuda 530 series should I choose if I want the 1TB model with PCIe Gen4 x4 NVMe 1.4?

Select the ZP1000GM3A013 part number — it identifies the 1TB capacity in the FireCuda 530 line with the Gen4 x4 NVMe 1.4 interface.
