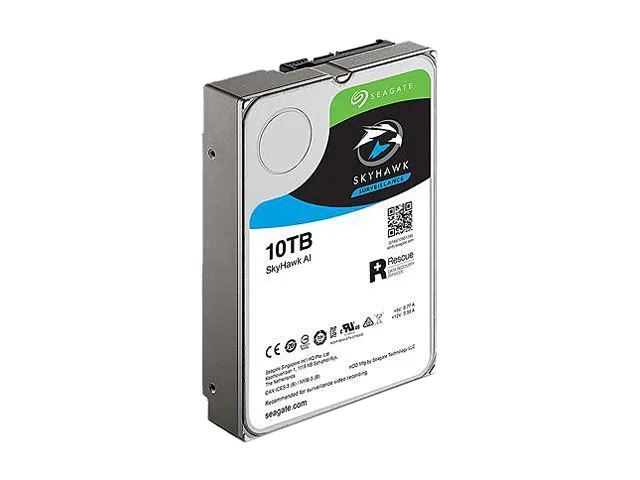

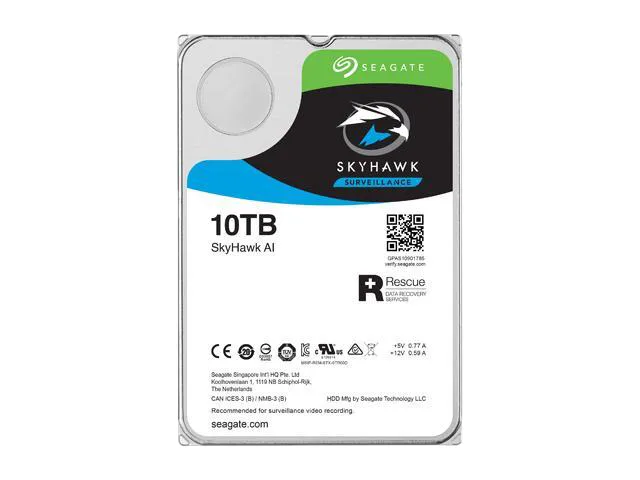

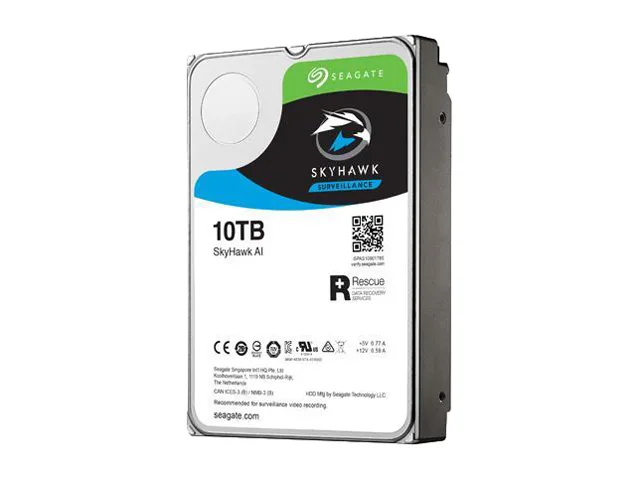

3.5 inch bare internal hard drive, silver aluminium finish

Seagate

Seagate SkyHawk AI ST10000VE001 10TB 7200 RPM 256MB SATA 6.0Gb/s 3.5" internal hard drive

SKU CH-23T4-TN4W1 MPN ST10000VE001

A 10 TB, 7200 RPM surveillance drive with 256 MB cache and ImagePerfect AI firmware for zero dropped frames across 64 HD streams and 32 AI channels

  • PackagingBare Drive
  • InterfaceSATA 6.0Gb/s
  • Capacity10TB
  • NAND Flash Memory TypeHard Drive
  • RPM7200 RPM
  • Cache256MB

Options 10TB

Struck-through versions exist but are not stocked here.

  • ImagePerfect AI firmware ensures zero dropped frames across 64 HD video streams
  • Supports 32 simultaneous AI channels for scalable edge analytics
  • 2M-hour MTBF and 550TB yearly workload rating deliver class-leading reliability
  • Built-in RV sensors maintain consistent performance in multi-bay NVR enclosures
  • SkyHawk Health Management provides prevention, intervention and recovery protection

SkyHawk AI 10TB surveillance drive

The Seagate SkyHawk AI ST10000VE001 is a 10TB 3.5-inch internal hard drive built for network video recorders and edge AI appliances. It spins at 7200 RPM with a 256MB cache and connects over a SATA 6.0Gb/s interface. The drive targets installers who need continuous recording across many cameras while also running AI analytics on the same unit.

Bare drive with RV sensors for multi-bay NAS

Supplied as a bare drive measuring 146.99mm long, 101.85mm wide and 26.11mm high, it fits standard 3.5-inch drive bays in multi-bay enclosures. Built-in rotational vibration sensors help maintain consistent throughput when several drives operate side by side. The SATA data and power connectors are the only interfaces present.

550TB yearly workload at 7200 RPM

Rated for a 550TB per year workload and 2M hours MTBF, the drive is designed for the heavy, sustained write patterns of surveillance storage. ImagePerfect AI firmware aims to deliver zero dropped frames while supporting up to 64 HD video streams and 32 AI streams simultaneously. SkyHawk Health Management monitors drive behaviour and suggests prevention, intervention or recovery actions to protect recorded video.

Highlights

  • ImagePerfect AI firmware ensures zero dropped frames across 64 HD video streams
  • Supports 32 simultaneous AI channels for scalable edge analytics
  • 2M-hour MTBF and 550TB yearly workload rating deliver class-leading reliability
  • Built-in RV sensors maintain consistent performance in multi-bay NVR enclosures
  • SkyHawk Health Management provides prevention, intervention and recovery protection

Specifications

BrandSeagate
SeriesSkyHawk AI
ModelST10000VE001
PackagingBare Drive
InterfaceSATA 6.0Gb/s
Capacity10TB
NAND Flash Memory TypeHard Drive
RPM7200 RPM
Cache256MB
FeaturesImagePerfect AI firmware delivers zero dropped frames while supporting heavier workloads.
Versatile capabilities intelligently adapt to the scale of your AI environment, supporting up to 64 HD video streams and 32 AI streams.
Rescue Data Recovery Services. SkyHawk AI comes with extra peace of mind for any mechanical, accidental, or natural disaster. With a 95% success rate of in-house recovery, Seagate has your back with a 3-year included Rescue Services plan.
SkyHawk Health Management actively helps protect your video storage by focusing on prevention, intervention, and recovery opt
UsageFor Video Surveillance
Form Factor3.5"
Height (maximum)26.11mm
Width (maximum)101.85mm
Length (maximum)146.99mm
Shipping weight0.68 kg
Package size178 × 127 × 38 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What does the SATA 6.0Gb/s interface mean for real-world throughput on the ST10000VE001?

The SATA 6.0Gb/s link sets the maximum electrical signalling rate; actual sustained transfer is determined by the 7200 RPM platters and 256MB cache, so peak sequential speeds stay within the interface envelope.

Will the 3.5" form factor and 26.11mm height fit a standard surveillance NVR bay?

The drive measures 146.99mm long, 101.85mm wide and 26.11mm high, matching the standard 3.5" internal drive envelope used in most multi-bay NVR chassis.

How is the drive installed in a multi-bay NVR and what step is often missed?

Secure the bare drive with four M3 screws, connect the SATA data and power cables, then enable the SkyHawk Health Management service in the NVR firmware so the 550TB/year workload rating and RV-sensor vibration monitoring are active.
