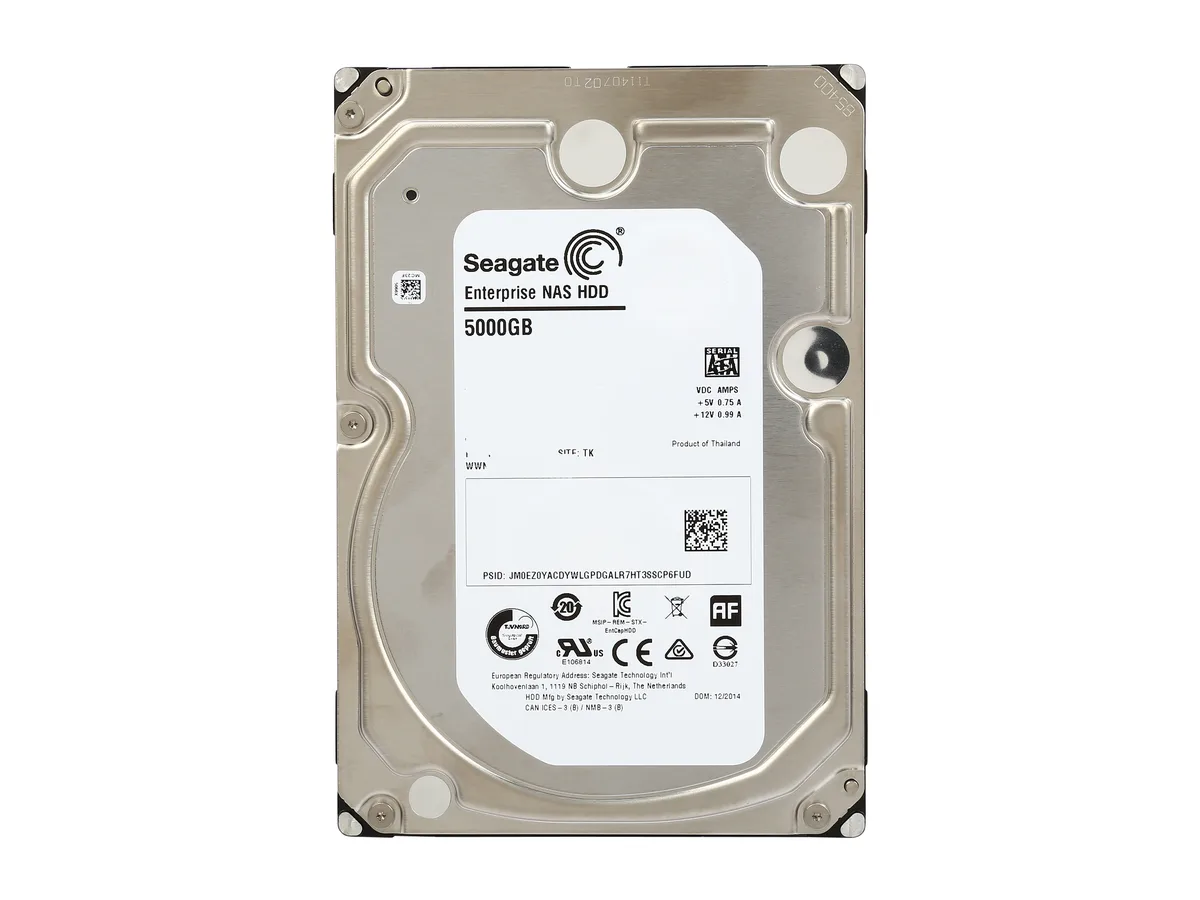

Silver 3.5 inch bare hard drive with circuit board visible

Seagate

Seagate ST5000VN0001 5TB 7200 RPM 128MB SATA 6.0Gb/s 3.5" internal hard drive

SKU CH-1TVG-9X25X MPN ST5000VN0001

A 5TB 7200 RPM 3.5" SATA drive with 128MB cache, 1.2M-hour MTBF and 300TB-year workload rating for 1- to 16-bay NAS enclosures

  • PackagingBare Drive
  • InterfaceSATA 6.0Gb/s
  • Capacity5TB
  • RPM7200 RPM
  • Cache128MB
  • Average Latency4.16ms

Options 5TB

  • 5TB capacity for large NAS storage volumes
  • 7200 RPM spindle speed for responsive multi-user access
  • 128MB cache accelerates frequent read and write operations
  • 2 million hours MTBF supports continuous enterprise workloads
  • 300TB-per-year workload rating handles sustained NAS traffic

5 TB Enterprise NAS Drive

The Seagate Enterprise NAS ST5000VN0001 is a 5 TB, 7200 RPM, 3.5-inch internal hard drive with a 128 MB cache and SATA 6.0Gb/s interface. It is built for 1- to 16-bay enclosures and carries a 1.2 million hour MTBF rating with a 300 TB-per-year workload limit. This drive targets NAS operators and small-business servers that need sustained multi-user access.

Upgrade from lower-capacity or desktop-class drives

The jump is worth it when a NAS approaches its bay limit or when annual written data exceeds the rating of consumer drives. The 7200 RPM spindle speed and RV sensor keep performance steady under vibration from adjacent drives. Buyers who need more than 16 bays or a higher yearly workload rating will need a different class of drive.

SATA 6.0Gb/s interface limits

The SATA 6.0Gb/s link caps sequential throughput well below the drive's internal media speed, so large transfers are bottlenecked by the bus. Average latency is 4.16 ms, which is typical for 7200 RPM mechanics. The interface does not support command queuing optimisations found on newer protocols, so heavy random I/O queues can saturate the link.

Highlights

  • 5TB capacity for large NAS storage volumes
  • 7200 RPM spindle speed for responsive multi-user access
  • 128MB cache accelerates frequent read and write operations
  • 2 million hours MTBF supports continuous enterprise workloads
  • 300TB-per-year workload rating handles sustained NAS traffic

Specifications

BrandSeagate
SeriesEnterprise NAS
ModelST5000VN0001
PackagingBare Drive
InterfaceSATA 6.0Gb/s
Capacity5TB
RPM7200 RPM
Cache128MB
Average Latency4.16ms
FeaturesEnterprise-class reliability and performance for cloud-based storage and NAS applications in 1- to 16-bay enclosures
1.2 million hours MTBF for enterprise-class reliability
300TB-per-year workload rating for mid-range NAS and cloud-based storage
7200-RPM spindle speed performance
Double the cache size-256MB multisegmented on 8TB capacity
Dual-stage actuators to deliver precision seeks every time
SATA 6Gb/s interface for easy integration into NAS and RAID rackmount systems
RV sensor for sustained performance and reliability
Optional 5-year Rescue Data Recovery Service plan protects ag
UsageFor Enterprise Storage
Form Factor3.5"
Height (maximum)26.10mm
Width (maximum)101.85mm
Length (maximum)147.00mm
Shipping weight1.06 kg
Package size157 × 122 × 30 mm

Other versions of this model

2 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What are the exact dimensions of the 3.5" drive so I can confirm it fits my NAS bay?

The drive measures 147.00mm long, 101.85mm wide and 26.10mm high, matching the standard 3.5" form factor for 1- to 16-bay enclosures.

Does the bare drive include mounting screws or rails for installation?

The bare drive ships without screws or rails; you must use the hardware supplied with your NAS or server chassis to secure it.

When should I consider replacing the drive based on its workload rating?

The drive is rated for 300TB per year; plan replacement once cumulative writes approach that annual limit to maintain the 1.2 million hour MTBF target.
