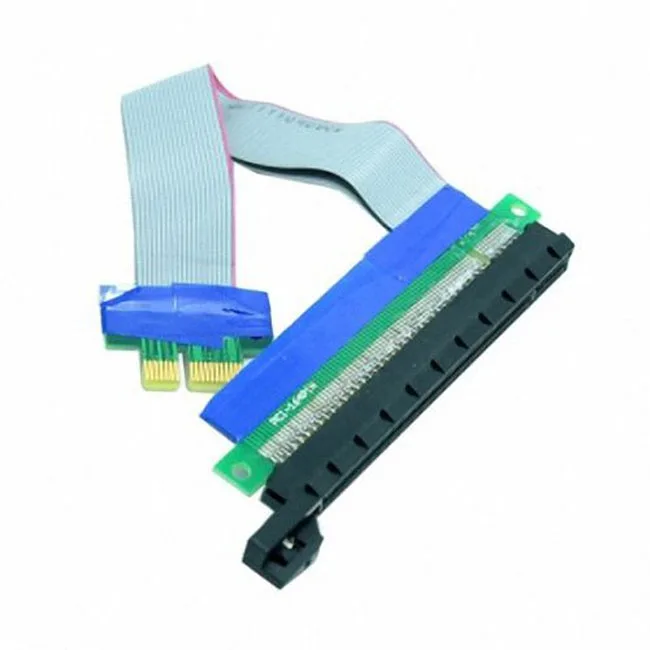

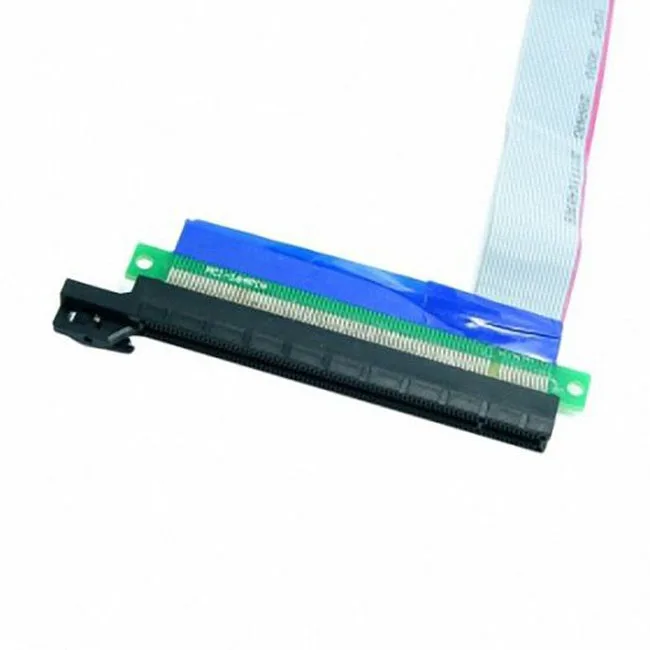

Green PCIe 1x riser board with 20cm white ribbon cable to 16x slot

SHENZHEN JIMIER ELECTRONICS CO,. LTD.

SHENZHEN JIMIER ELECTRONICS CO,. LTD. PCI-E 1x to 16x Riser Card 20cm EP-060

SKU CH-JB93-EF8Y2

Extends a PCIe 1x slot to fit 16x cards in 1U to 3U chassis with a 20cm flexible cable

  • TypeController Card
  • Extends a PCIe 1x slot to accept 16x cards at 1x speed
  • 20 cm flexible FFC cable fits 1U 2U 3U chassis
  • Multi-layer PCB design maintains signal integrity
  • Single 1x riser card with ribbon cable simplifies installation
  • Compatible with PCIe 1x 4x 8x 16x cards at 1x bandwidth

PCI-E 1x to 16x riser for tight chassis

This riser converts a single PCI-E 1x slot into a physical 16x connector using a 20cm flexible flat cable. It fits 1U, 2U and 3U server cases where a full-height card cannot sit directly on the motherboard. The board accepts 1x, 4x, 8x and 16x cards while operating at 1x electrical speed. Builders needing higher bandwidth or multiple cards should look elsewhere.

Passive design keeps thermals simple

No active cooling is present so the adapter adds no fan noise to the system. Power draw is limited to what the attached card requires through the 1x link. The thin FFC cable routes around tight drive cages without blocking airflow to nearby components. Installers must ensure the host slot can supply enough current for their specific expansion card.

20cm cable and EP-060 board only

The package contains the riser PCB and the pre-attached 20cm ribbon cable; no brackets, screws or software utilities are included. The flexible cable allows the card to be mounted horizontally or vertically in shallow enclosures. Users must supply their own retention hardware for the target chassis. Drivers are provided by the expansion card manufacturer, not this adapter.

Highlights

  • Extends a PCIe 1x slot to accept 16x cards at 1x speed
  • 20 cm flexible FFC cable fits 1U 2U 3U chassis
  • Multi-layer PCB design maintains signal integrity
  • Single 1x riser card with ribbon cable simplifies installation
  • Compatible with PCIe 1x 4x 8x 16x cards at 1x bandwidth

Specifications

TypeController Card

Questions about this item

How do I install the EP-060 riser card in a 1U chassis?

Plug the 1x riser board into the motherboard slot, route the flexible high-speed FFC cable, then seat the graphics card into the 16x connector; the 20cm cable length fits 1U, 2U and 3U cases.

What maintenance will the flexible FFC cable need over time?

Inspect the ribbon cable periodically for creases or connector dust; reseat both ends if contact issues appear, otherwise no scheduled replacement is required.

What bandwidth limit appears first when running a 16x card on this adapter?

The adapter only provides 1x electrical speed, so the PCIe 1x link is the bottleneck regardless of the card's 16x physical connector.
