Silverstone SST-KR01 low-profile CPU cooler, 54 mm tall with copper heat pipes, aluminum fins and 80 mm PWM fan

Silverstone

Silverstone SST-KR01 80mm low-profile CPU cooler

SKU CH-4SBE-54BKG MPN SST-KR01

A 54mm tall air cooler with two 6mm copper heat-pipes, an 80mm dual ball-bearing PWM fan running 800 to 3000 RPM and rated for CPUs up to 95W on AMD AM4, AM3, AM2, FM2 and FM1 sockets

  • TypeFan & Heatsinks
  • Fan Size80mm
  • CPU Socket CompatibilityAMD Socket AM4 / AM3 / AM2 / FM2 / FM1
  • Bearing TypeDual ball bearing
  • RPM800 - 3,000 RPM PWM
  • Air Flow34.33 CFM (Max.)
  • Fits slim cases with a 54 mm overall height
  • Dual 6 mm copper pipes and aluminum fins spread heat efficiently
  • 80 mm PWM fan runs 800 – 3,000 RPM for up to 34.33 CFM airflow
  • Dual ball bearing fan rated for long life at 33 dBA maximum noise
  • Mounts on AMD AM4, AM3, AM2, FM2 and FM1 sockets

Low-profile 54 mm cooler for small AMD builds

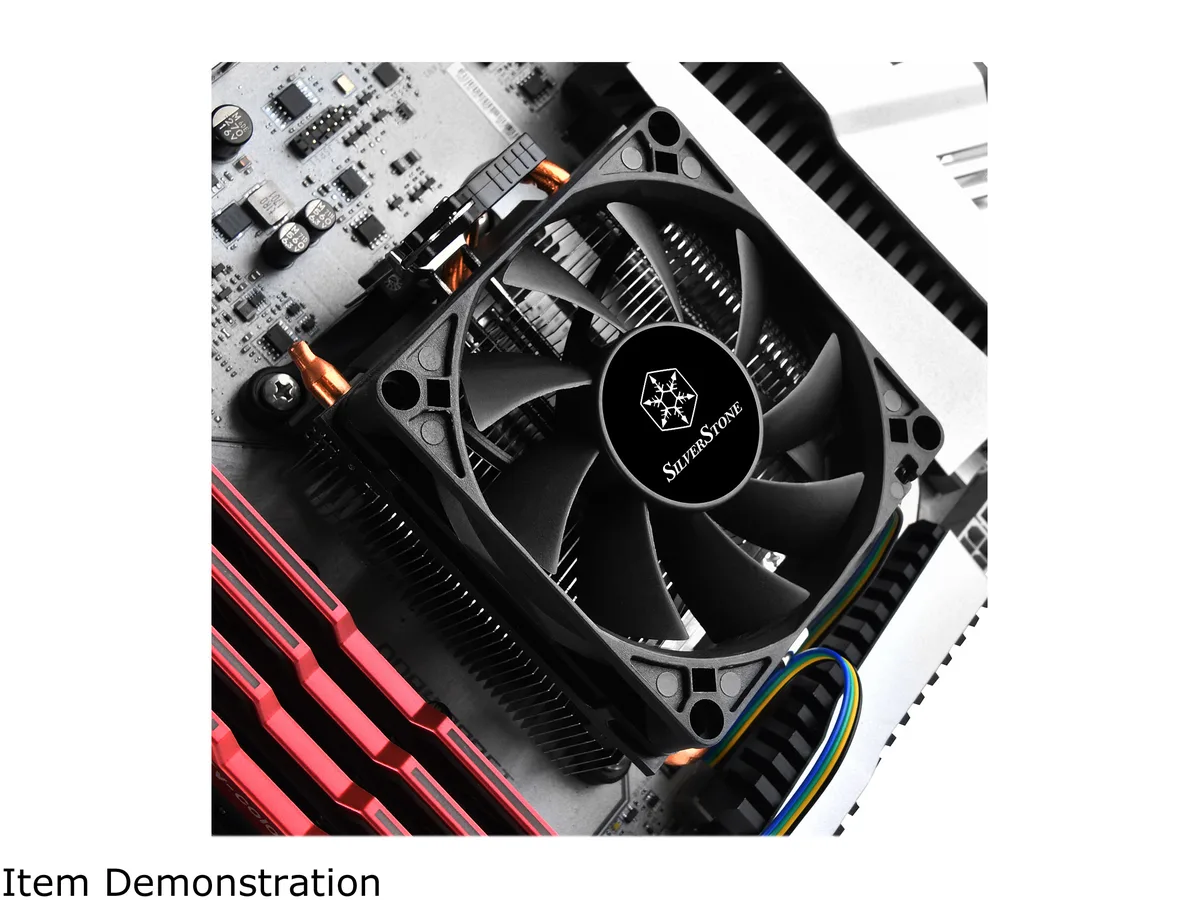

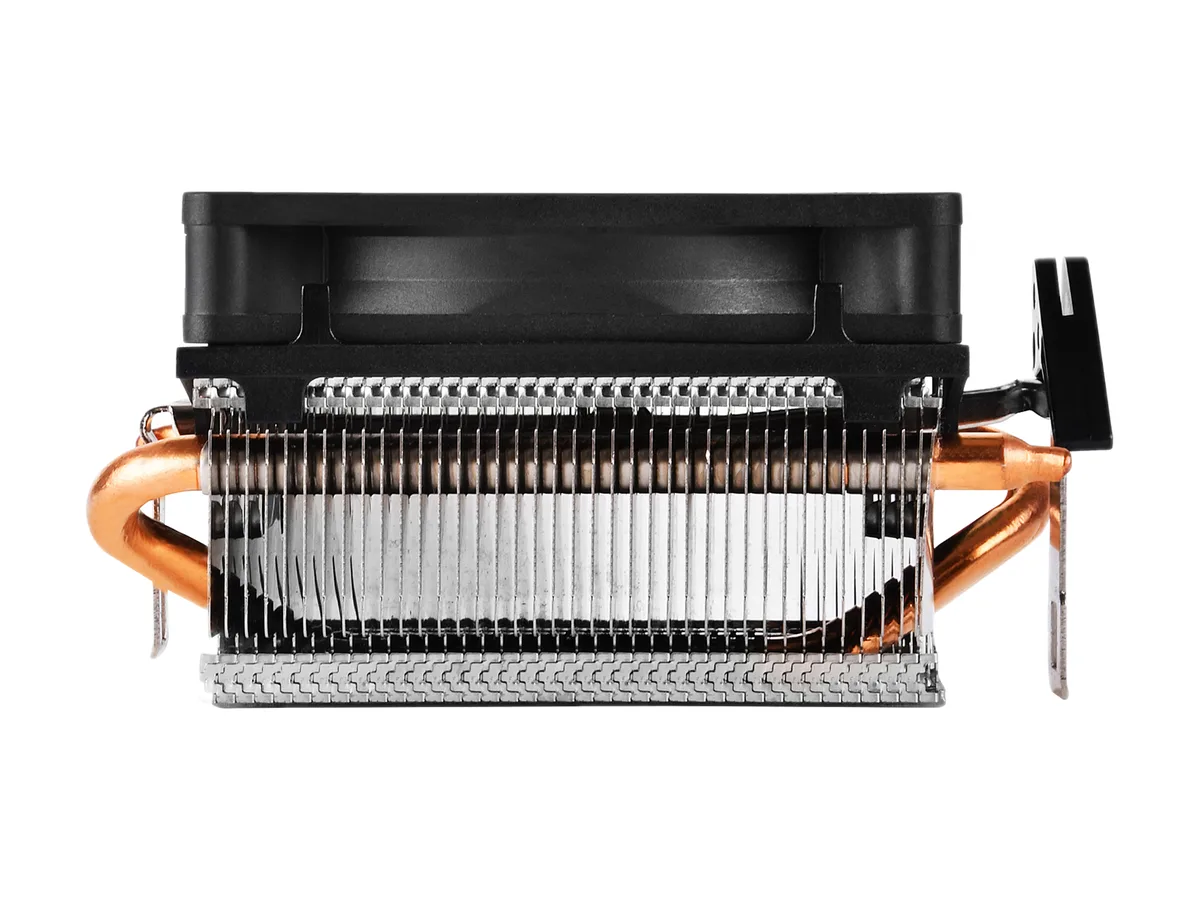

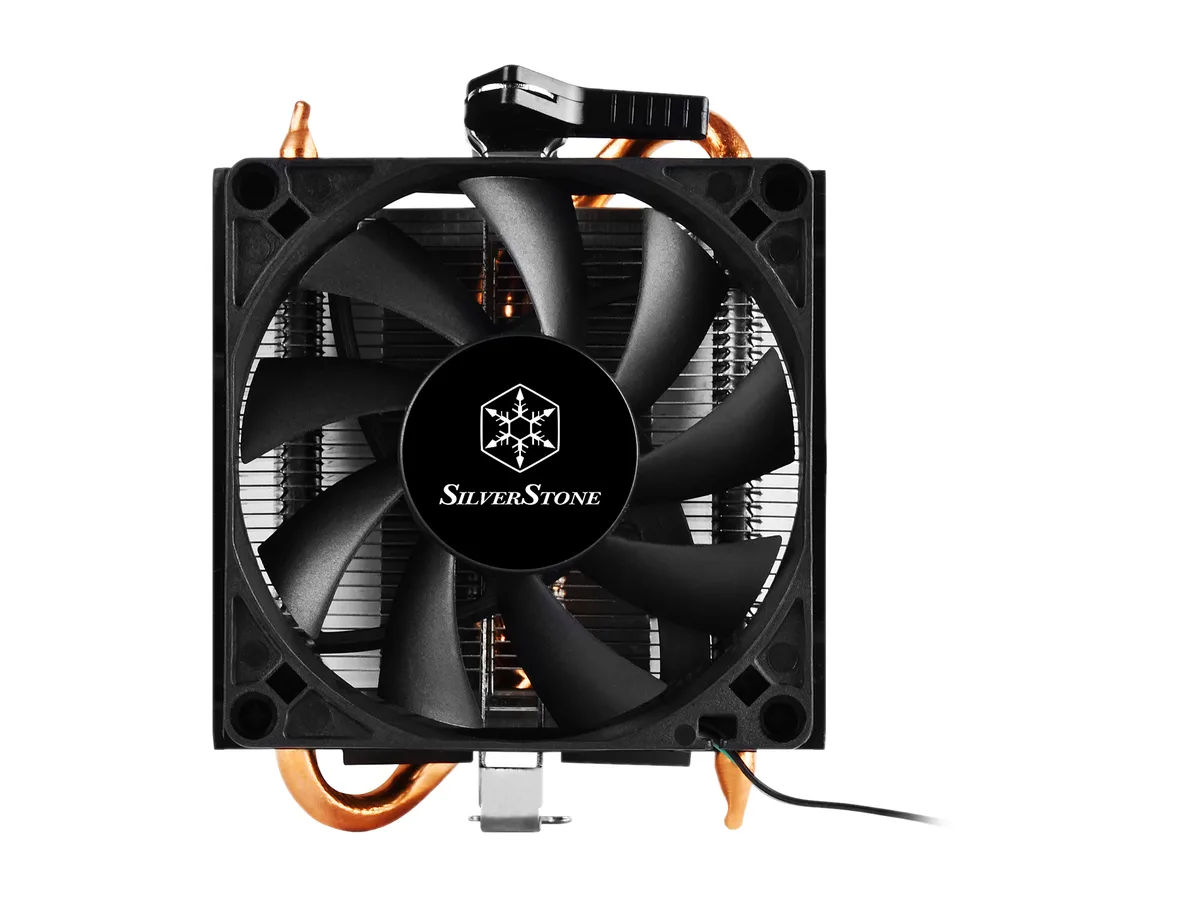

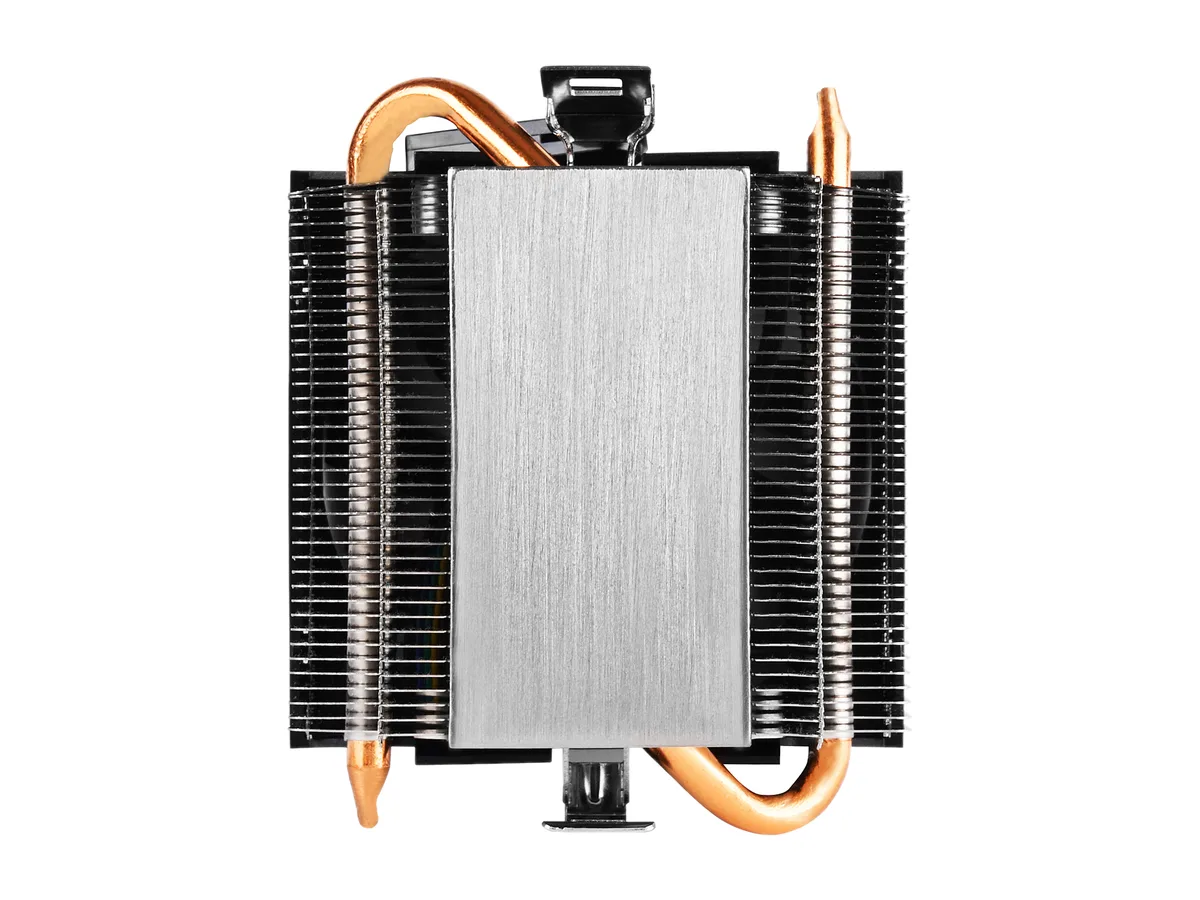

The Silverstone SST-KR01 stands 54 mm tall and fits AMD Socket AM4, AM3, AM2, FM2 and FM1 platforms. Two 6 mm copper heat-pipes and aluminium fins move heat into a horizontal 80 mm PWM fan. It targets compact systems that need a capable air cooler within a slim chassis.

95 W TDP ceiling without extra case airflow

The cooler is rated for CPUs up to 95 W when the case supplies efficient airflow; above that figure additional ventilation is required. The 800 to 3,000 RPM PWM fan delivers up to 34.33 CFM at a maximum of 33 dBA, so thermal headroom depends on how well the enclosure exhausts the warm air.

Horizontal fan mount needs RAM and VRM clearance

The fan sits horizontally over the heatsink, so tall memory modules or bulky VRM heatsinks can block installation. Dual ball bearings give the fan a long service life, but the 80 x 80 x 15 mm frame leaves little room for error. Builders should verify motherboard layout before fitting the unit.

Highlights

  • Fits slim cases with a 54 mm overall height
  • Dual 6 mm copper pipes and aluminum fins spread heat efficiently
  • 80 mm PWM fan runs 800 – 3,000 RPM for up to 34.33 CFM airflow
  • Dual ball bearing fan rated for long life at 33 dBA maximum noise
  • Mounts on AMD AM4, AM3, AM2, FM2 and FM1 sockets

Specifications

BrandSILVERSTONE
SeriesKrypton Series
ModelSST-KR01
TypeFan & Heatsinks
Fan Size80mm
CPU Socket CompatibilityAMD Socket AM4 / AM3 / AM2 / FM2 / FM1
Bearing TypeDual ball bearing
RPM800 - 3,000 RPM PWM
Air Flow34.33 CFM (Max.)
Noise Level33 dBA (Max.)
Heatsink MaterialCopper heat pipes with aluminum fins
Fan Mounting Types to HeatsinkHorizontal
Max CPU Cooler Height54 mm
Fan Dimensions80.00 x 80.00 x 15.00 mm
Heatsink Dimensions54.00 x 107.00 x 82.00 mm
FeaturesDesigned for low profile system at only 54mm tall
Two Ø6mm heat-pipes and aluminum fins for excellent heat conducting efficiency
Includes compact 80mm PWM fan with dual ball bearing for great cooling and durability
For use with CPUs up to 95W or more*
AMD Socket AM2/AM3/AM4/FM1/FM2 compatible
Remark
* To use on CPUs with TDP greater than 95W, a case with efficient airflow is required.
Shipping weight0.24 kg
Package size114 × 102 × 69 mm

Questions about this item

Which CPU sockets does the SST-KR01 support?

The cooler mounts on AMD Socket AM4, AM3, AM2, FM2 and FM1 platforms.

What does the 34.33 CFM maximum airflow mean for my build?

At full 3000 RPM the 80 mm fan moves 34.33 CFM, enough for CPUs up to 95 W in a case with good airflow.

How does the 800–3000 RPM PWM range affect noise and cooling?

PWM control lets the fan spin from 800 RPM for quiet idle up to 3000 RPM for peak load, topping out at 33 dBA.
