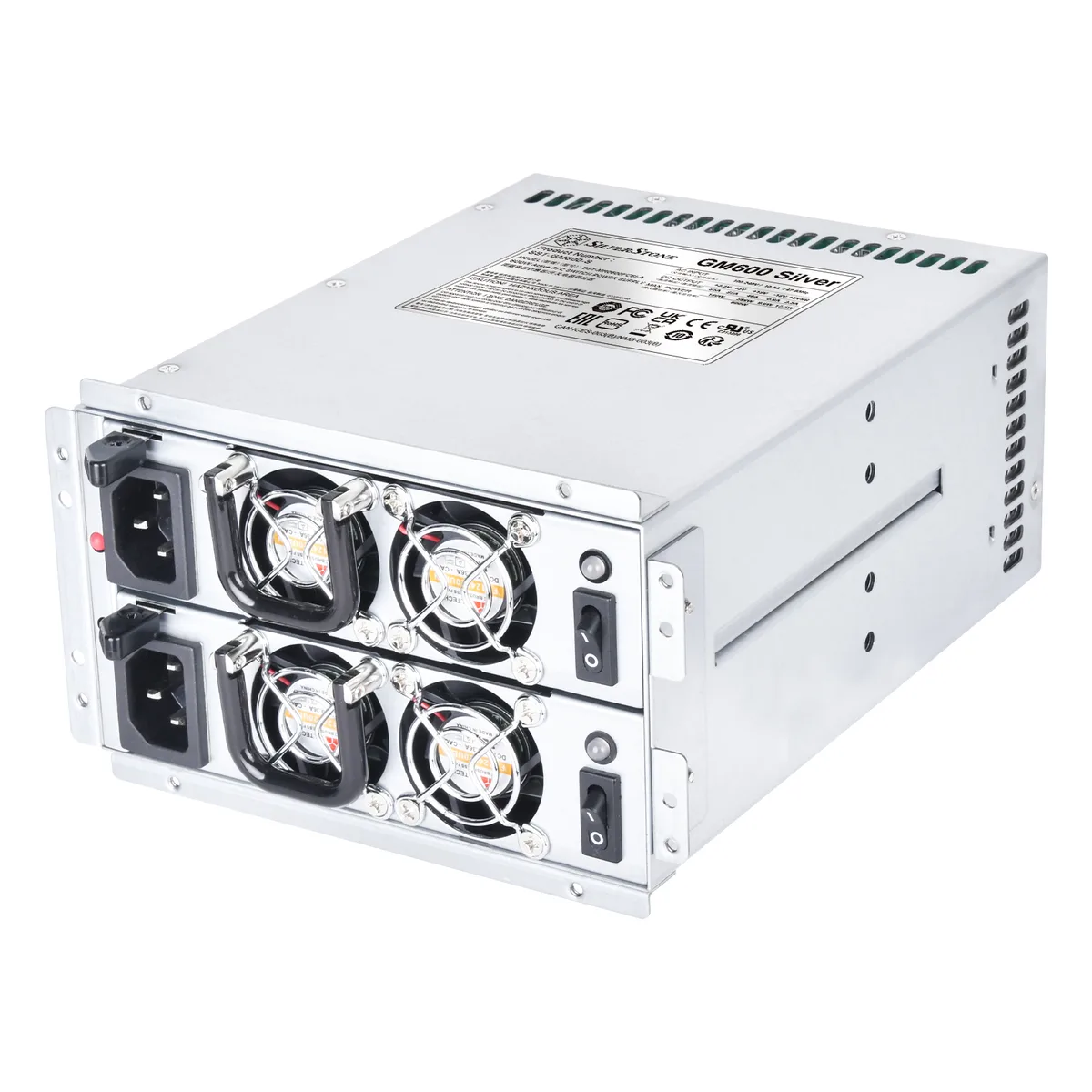

Silver rectangular server PSU with pull-out handle, 40mm fans, silver finish

Silverstone Technology

Silverstone Technology GM600-S 600W server power supply

SKU CH-G7VV-T5MTE MPN GM600-S

Delivers 600W in a 1+1 redundant, hot-swappable PS/2 mini form factor with Japanese capacitors and 40mm DC fans

  • ColorSilver
  • TypeATX
  • Maximum Power600 W
  • Fans40mm DC fans
  • PFCActive
  • Max PSU Length175 mm
  • Cybenetics Silver efficiency saves electricity with 85-87% rating
  • 1+1 redundant design keeps server running if one unit fails
  • Hot-swappable modules allow replacement without system shutdown
  • Japanese electrolytic capacitors deliver 100000-hour MTBF reliability
  • Single +12V rail provides 588W for high-end components

Server mini-redundant 600 W unit

The Silverstone GM600-S is a PS/2 mini-redundant power supply rated for 600 W continuous output. It uses a 1+1 redundant configuration with hot-swappable modules so a failed unit can be replaced without shutting the server down. Japanese electrolytic capacitors and a pull-out handle bar are fitted for serviceability. The supply targets 24-hour operation at 50 °C ambient.

588 W on the +12 V rail

A single +12 V rail delivers up to 588 W, leaving headroom for multi-core CPUs and multiple drives. The combined +3.3 V and +5 V rail is limited to 180 W, so very dense 5 V-heavy backplanes may hit that ceiling first. Overall efficiency sits between 85 % and 87 % at full load, reducing wasted heat. Input accepts 90–264 V at 47–63 Hz with active PFC above .9.

51 dBA with 40 mm DC fans

Four 40 mm DC fans cool the unit, producing a measured 51 dBA under load. The design sustains full 600 W output continuously up to 50 °C operating temperature. MTBF is rated at 100 000 hours, reflecting the redundant architecture and capacitor choice. The compact 140 × 40 × 175 mm housing fits space-constrained server chassis.

Highlights

  • Cybenetics Silver efficiency saves electricity with 85-87% rating
  • 1+1 redundant design keeps server running if one unit fails
  • Hot-swappable modules allow replacement without system shutdown
  • Japanese electrolytic capacitors deliver 100000-hour MTBF reliability
  • Single +12V rail provides 588W for high-end components

Specifications

BrandSilverStone
ColorSilver
TypeATX
Maximum Power600 W
Fans40mm DC fans
PFCActive
Max PSU Length175 mm
Dimensions140mm (W) x 40mm (H) x 175mm (D)
Shipping weight2.27 kg
Package size127 × 127 × 127 mm

Questions about this item

Will the 588 W combined +12 V rail handle my existing dual-CPU server board?

The single +12 V rail delivers up to 588 W, so it can power dual-CPU boards that draw within that limit.

How can I confirm the unit is running at its rated 85–87 % efficiency after installation?

At full load the active PFC maintains a power factor above .9, indicating the supply is operating in its certified efficiency band.

Does the package include the redundant PS/2 mini housing and hot-swap brackets, or must I order them separately?

The GM600-S ships as a complete 1+1 redundant module with pull-out handle bars; no extra brackets are required for hot-swap installation.
