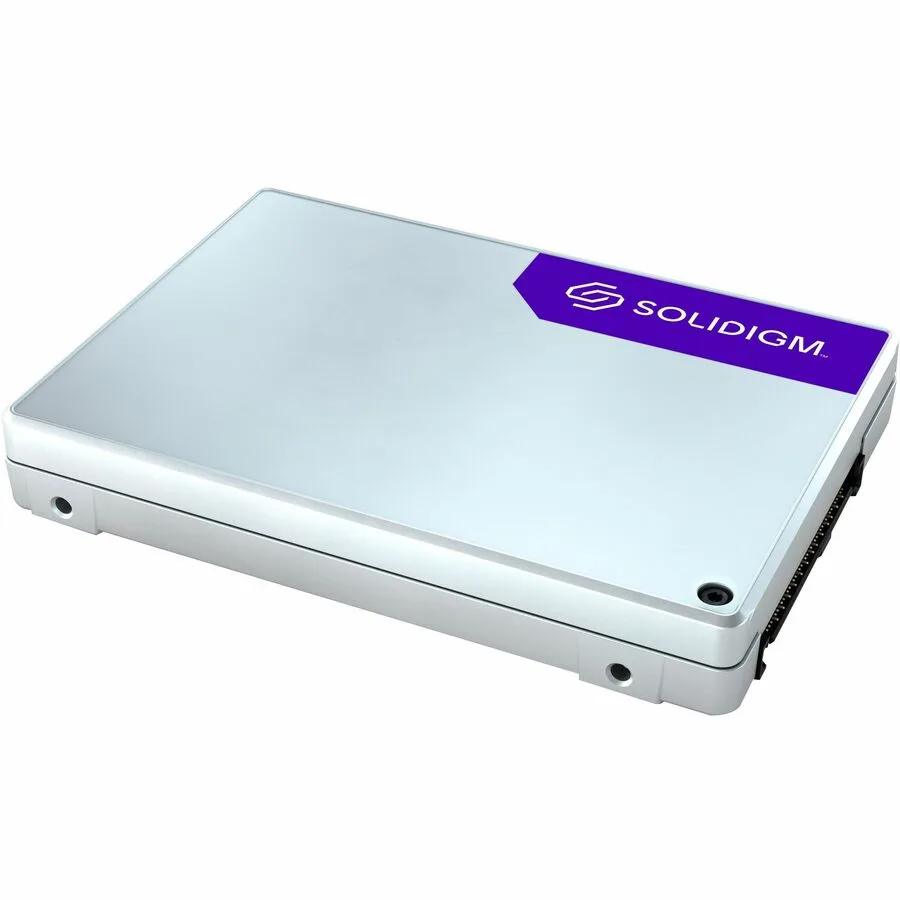

Rectangular U.2 15mm enterprise SSD with silver metal casing and gold edge connector

Solidigm

Solidigm D7-P5520 7.68TB U.2 15mm enterprise SSD SSDPF2KX076T1GF

SKU CH-1WXY-DR1Z9 MPN SSDPF2KX076T1GF

Enterprise SSD delivering 7.68TB via PCI-Express 4.0 with 14.0 PBW endurance and FIPS security

  • Form FactorU.2 15mm
  • Capacity7.68TB
  • Memory Components144L TLC 3D NAND
  • InterfacePCI-Express 4.0
  • Max Sequential ReadUp to 7100 MBps
  • Max Sequential WriteUp to 4200 MBps

Option 7.68TB U.2 FIPS

Show 7 more configurations
  • Massive 7.68TB capacity stores vast datasets
  • PCIe 4.0 x4 delivers up to 7100 MBps sequential read
  • 144L TLC 3D NAND enables 14.0 PBW endurance
  • FIPS security protects sensitive enterprise data
  • 2,000,000 hours MTBF ensures long-term reliability

Solidigm D7-P5520 7.68TB U.2 SSD

The Solidigm D7-P5520 is a 7.68TB enterprise solid-state drive built for data-centre servers and high-density storage arrays. It uses a U.2 15mm form factor with a PCI-Express 4.0 x4 interface and 144L TLC 3D NAND. Sequential reads reach 7100 MBps and writes reach 4200 MBps, with random performance of 1100000 read IOPS and 220000 write IOPS. Endurance is rated at 14.0 PBW and MTBF at 2000000 hours.

Compatibility check before ordering

Verify that your server or storage chassis accepts a U.2 15mm drive and provides a PCI-Express 4.0 x4 connection to the backplane or adapter. Confirm the platform supplies up to 18W active power and 5W idle power within its thermal design. The drive includes FIPS security features; ensure your management software supports them if encryption compliance is required. Physical shock tolerance is 1000 G at .5 msec and vibration tolerance is 2.17 GRMS operating.

Suited for read-heavy workloads.

This drive suits read-intensive applications such as content delivery, virtualisation boot volumes and analytics repositories where high random-read IOPS and large capacity matter. The 14.0 PBW endurance rating limits suitability for sustained heavy-write workloads like continuous database logging or high-frequency checkpointing. Buyers needing higher write endurance or a different form factor such as E1.S should evaluate alternative enterprise models.

Highlights

  • Massive 7.68TB capacity stores vast datasets
  • PCIe 4.0 x4 delivers up to 7100 MBps sequential read
  • 144L TLC 3D NAND enables 14.0 PBW endurance
  • FIPS security protects sensitive enterprise data
  • 2,000,000 hours MTBF ensures long-term reliability

Specifications

BrandSolidigm
ModelD7-P5520
Part NumberSSDPF2KX076T1GF
Form FactorU.2 15mm
Capacity7.68TB
Memory Components144L TLC 3D NAND
InterfacePCI-Express 4.0
Max Sequential ReadUp to 7100 MBps
Max Sequential WriteUp to 4200 MBps
4KB Random Read1100000 IOPS (4K Blocks)
4KB Random Write220000 IOPS (4K Blocks)
Endurance14.0 PBW
MTBF2,000,000 hours
SecurityFIPS
Power Consumption (Idle)5W
Power Consumption (Active)18W
Max Shock Resistance1,000 G (Max) at 0.5 msec
Max Vibration ResistanceOperating: 2.17 GRMS (5 - 700 Hz) Max
Non-Operating: 3.13 GRMS (5 - 800 Hz) Max
Weight165g +/- 5g
Shipping weight0.17 kg
Package size140 × 110 × 17 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Does the U.2 15mm drive ship with any mounting hardware or cables, or must they be purchased separately?

The drive is supplied as a bare U.2 15mm module. Mounting brackets, screws and the U.2-to-PCIe cable or backplane are not included and must be sourced to match the server chassis.

Is the 7.68 TB capacity the only option in the D7-P5520 line, or are smaller versions available?

The listed part SSDPF2KX076T1GF is the 7.68 TB model. Other capacities exist in the D7-P5520 series but carry different part numbers and are not covered by this listing.

What does the 7,100 MB/s sequential read figure mean for a database server running typical 4 KB random workloads?

The 7,100 MB/s is a peak sequential number. For 4 KB random reads the drive delivers 1,100,000 IOPS, which is the relevant metric for transaction-heavy database workloads.
