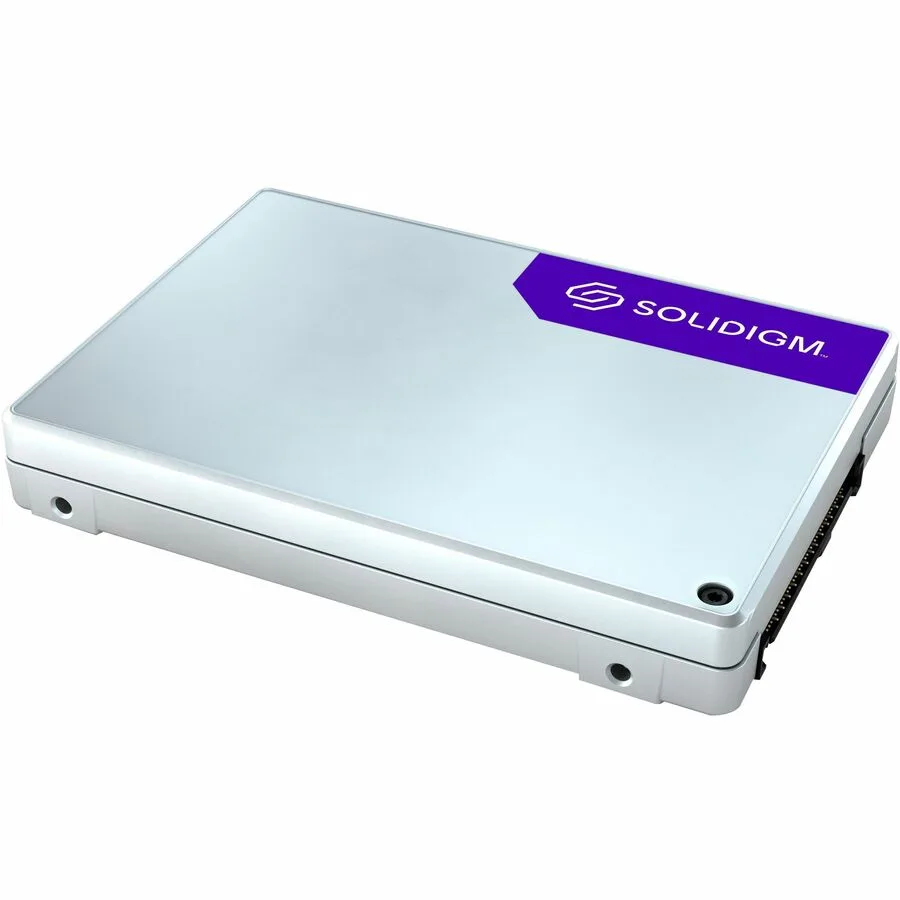

Rectangular U.2 15mm SSD with label showing model SSDPF2KX076T1OF and capacity 7.68TB

Solidigm

Solidigm D7-P5520 7.68TB U.2 15mm enterprise SSD SSDPF2KX076T1OF

SKU CH-MZ5T-VKAEV MPN SSDPF2KX076T1OF

A 7.68TB U.2 15mm enterprise SSD with PCIe 4.0 x4, 144L TLC 3D NAND, 7100 MBps read, 4200 MBps write, 14.0 PBW endurance and FIPS security

  • Form FactorU.2 15mm
  • Capacity7.68TB
  • Memory Components144L TLC 3D NAND
  • InterfacePCI-Express 4.0
  • Max Sequential ReadUp to 7100 MBps
  • Max Sequential WriteUp to 4200 MBps
  • 68TB capacity stores massive datasets in a single drive
  • Up to 7100 MBps sequential read accelerates large-file workflows
  • 0 PBW endurance sustains write-intensive applications
  • FIPS security protects sensitive data at rest
  • 2,000,000 hours MTBF delivers enterprise-grade reliability

Solidigm D7-P5520 7.68TB U.2 enterprise SSD

This Solidigm D7-P5520 delivers 7.68TB of storage in a U.2 15mm form factor for data-centre servers. It uses 144L TLC 3D NAND and a PCI-Express 4.0 interface. The drive targets read-intensive workloads such as content delivery, analytics and virtualisation. FIPS security certification supports regulated environments.

Sustained load behaviour with 14.0 PBW endurance

The drive is rated for 14.0 PBW of total bytes written and an MTBF of 2,000,000 hours. Active power draw reaches 18W while idle power sits at 5W. Sequential writes sustain up to 4200 MBps and random writes reach 220000 IOPS. Shock resistance of 1,000 G and vibration ratings of 2.17 GRMS operating and 3.13 GRMS non-operating protect data integrity under continuous stress.

Check U.2 15mm bay and PCIe 4.0 support before

Verify that your chassis provides a U.2 15mm drive bay with a compatible backplane. The system must support PCI-Express 4.0 x4 electrical connections for full bandwidth. Ensure the platform can supply up to 18W per drive and that firmware or BIOS recognises the FIPS-enabled controller. Weight is 165g.

Highlights

  • 68TB capacity stores massive datasets in a single drive
  • Up to 7100 MBps sequential read accelerates large-file workflows
  • 0 PBW endurance sustains write-intensive applications
  • FIPS security protects sensitive data at rest
  • 2,000,000 hours MTBF delivers enterprise-grade reliability

Specifications

BrandSolidigm
ModelD7-P5520
Part NumberSSDPF2KX076T1OF
Form FactorU.2 15mm
Capacity7.68TB
Memory Components144L TLC 3D NAND
InterfacePCI-Express 4.0
Max Sequential ReadUp to 7100 MBps
Max Sequential WriteUp to 4200 MBps
4KB Random Read1100000 IOPS (4K Blocks)
4KB Random Write220000 IOPS (4K Blocks)
Endurance14.0 PBW
MTBF2,000,000 hours
SecurityFIPS
Power Consumption (Idle)5W
Power Consumption (Active)18W
Max Shock Resistance1,000 G (Max) at 0.5 msec
Max Vibration ResistanceOperating: 2.17 GRMS (5 - 700 Hz) Max
Non-Operating: 3.13 GRMS (5 - 800 Hz) Max
Weight165g +/- 5g
Shipping weight0.17 kg
Package size140 × 110 × 17 mm

Questions about this item

How much power does the 7.68TB D7-P5520 draw when active all day?

Active power is 18W and idle power is 5W for this U.2 15mm drive.

What host connector must my server provide for the U.2 15mm form factor?

The drive requires a U.2 backplane or cable wired for PCI-Express 4.0 x4 lanes.

Will the PCIe 4.0 x4 interface run on my older PCIe 3.0 backplane?

Yes, the PCI-Express 4.0 interface is backward compatible with PCIe 3.0 slots at 3.0 speeds.
