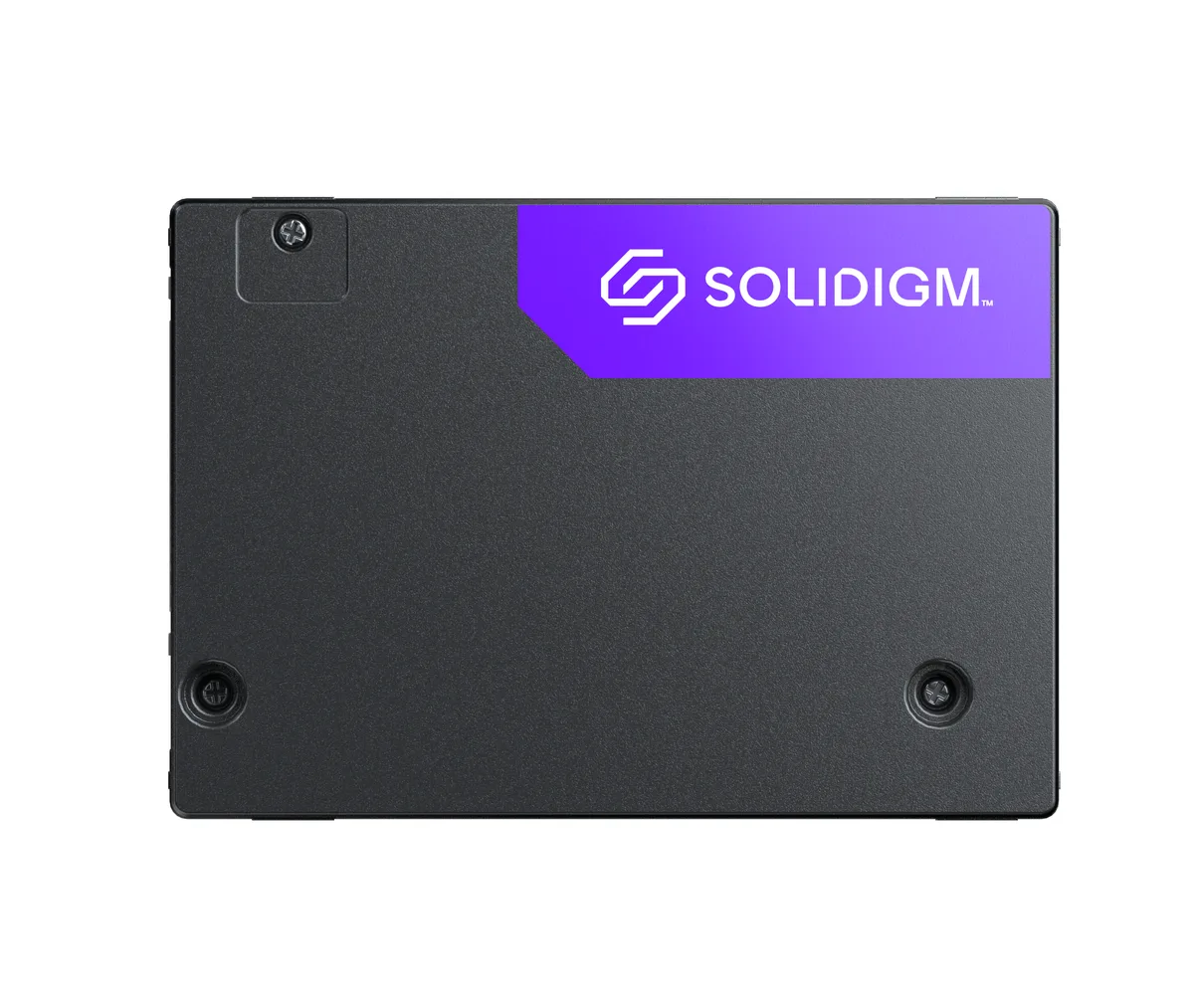

Rectangular metal U.2 15mm SSD with label showing 12.8TB capacity

Solidigm

Solidigm SB5PH27E128TOP1 D7-PS1030 12.8TB U.2 15mm enterprise SSD

SKU CH-W1AC-7JFSX MPN SB5PH27E128TOP1

12.8 TB U.2 15 mm enterprise SSD with PCI-Express 5.0 interface, 176L TLC 3D NAND, up to 14500 MB/s read, 9300 MB/s write, 2750000 random read IOPS, 800000 random write IOPS and 3 DWPD endurance

  • Form FactorU.2 15mm
  • Capacity12.8TB
  • Memory Components176L TLC 3D NAND
  • InterfacePCI-Express 5.0
  • Max Sequential ReadUp to 14500 MBps
  • Max Sequential WriteUp to 9300 MBps

Option 12.8TB U.2 Opal

Struck-through versions exist but are not stocked here.

  • 8TB capacity stores massive datasets in a single U.2 15mm slot
  • PCIe 5.0 interface delivers up to 14500 MBps sequential read throughput
  • 2750000 random read IOPS accelerates transaction-heavy workloads
  • 3 DWPD endurance rating supports 70 PBW of total writes
  • 2500000-hour MTBF underpins long-term data-centre reliability

12.8TB U.2 enterprise SSD

The Solidigm D7-PS1030 is a 12.8TB U.2 15mm drive built on 176-layer TLC 3D NAND with a PCIe 5.0 x4 interface. It is intended for data-centre and server workloads that demand high capacity and sustained throughput in a single slot.

Upgrade from PCIe 4.0 or lower-capacity U.2 drives

Moving from a PCIe 4.0 U.2 device or a smaller-capacity enterprise SSD adds sequential read speeds up to 14500 MBps and write speeds up to 9300 MBps. The jump is worth it when queues regularly saturate 4.0 bandwidth or when consolidation reduces drive count.

12.8TB with 3 DWPD endurance

The 12.8TB capacity delivers 70 PBW of write endurance at 3 DWPD, supporting heavy mixed read-write workloads such as database logging and content streaming. Workloads exceeding 70 PBW or requiring higher write IOPS than 800000 will exhaust the rated endurance or random-write headroom.

Highlights

  • 8TB capacity stores massive datasets in a single U.2 15mm slot
  • PCIe 5.0 interface delivers up to 14500 MBps sequential read throughput
  • 2750000 random read IOPS accelerates transaction-heavy workloads
  • 3 DWPD endurance rating supports 70 PBW of total writes
  • 2500000-hour MTBF underpins long-term data-centre reliability

Specifications

BrandSolidigm
ModelD7-PS1030
Part NumberSB5PH27E128TOP1
Form FactorU.2 15mm
Capacity12.8TB
Memory Components176L TLC 3D NAND
InterfacePCI-Express 5.0
Max Sequential ReadUp to 14500 MBps
Max Sequential WriteUp to 9300 MBps
4KB Random Read2750000 IOPS (4K Blocks)
4KB Random Write800000 IOPS (4K Blocks)
Endurance3 DWPD / 70 PBW
MTBF2,500,000 hours
SecurityOpal
Power Consumption (Idle)5W
Power Consumption (Active)23W
Operating Temperature0°C to 77°C
Max Shock Resistance1,000 G (Max) at 0.5 msec
Max Vibration ResistanceOperating: 2.17 GRMS (5 - 700 Hz) Max
Non-Operating: 3.13 GRMS (5 - 800 Hz) Max
Weight165g +/- 10g
Shipping weight0.17 kg
Package size140 × 110 × 17 mm
